Easy Fix Thermometer Pad
with Ice Alert
Model: EW102
USER MANUAL
INDEX
Overview ........................................................................2
Front view ................................................................2
Back view.................................................................2
Sensor......................................................................3
Getting started...............................................................3
Main unit installation ................................................3
Sensor installation....................................................3
Synchronising with sensor .......................................3
Temperature and humidity ...........................................5
Ice warning...............................................................5
Placing of unit ...............................................................5
Reset ..............................................................................6
Troubleshooting ............................................................6
Specications................................................................6
Precautions....................................................................7
About Oregon Scientic ...............................................7
EU Declaration of conformity.......................................8
FCC Statement ..............................................................8
EN
2
OVERVIEW

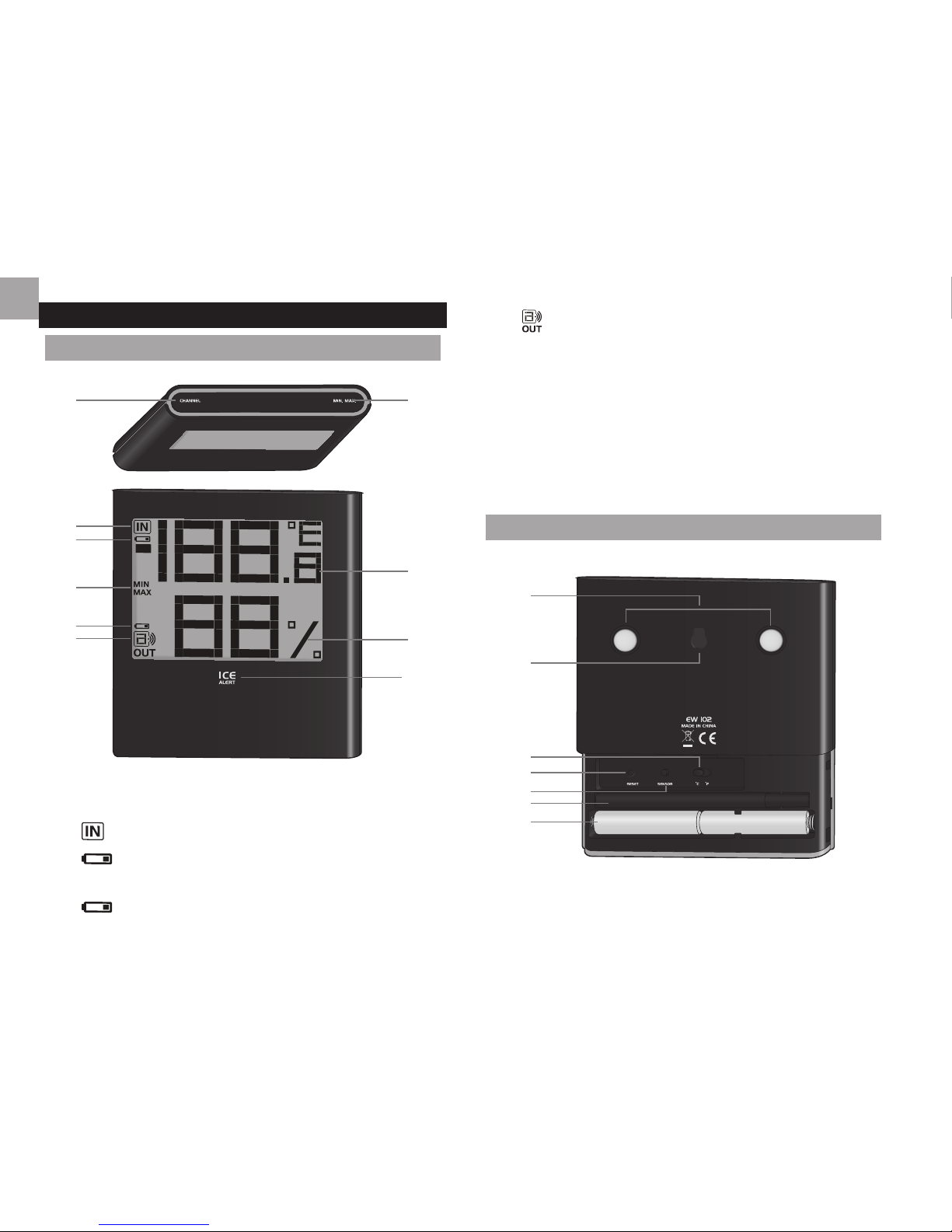

FRONT VIEW
1. CHANNEL: toggle between indoor and outdoor
channels (1-3); activate / deactivate / auto-toggle
2. : indoor temperature / humidity is displayed
3. : main unit batteries low
4. MIN/MAX: indicates type of data being displayed
5. : sensor batteries low
6. : remote sensor reception indicator and outdoor
channel selected
7. MIN.MAX.: view current, maximum and minimum indoor
/ outdoor temperature and humidity; clear records
8. Temperature
9. Humidity
10. Ice alert LED indicator
BACK VIEW
1. Magnets for mounting
2. Wall mount hole
1
2
3
4
5
6
7
8
9
10
+-
+-
1
2
3
4
5
6
7
EN
3
3. °C / °F: select temperature unit
4. RESET: reset unit to default settings
5. SENSOR: initiate search for sensor
6. Pole compartment
7. Battery compartment

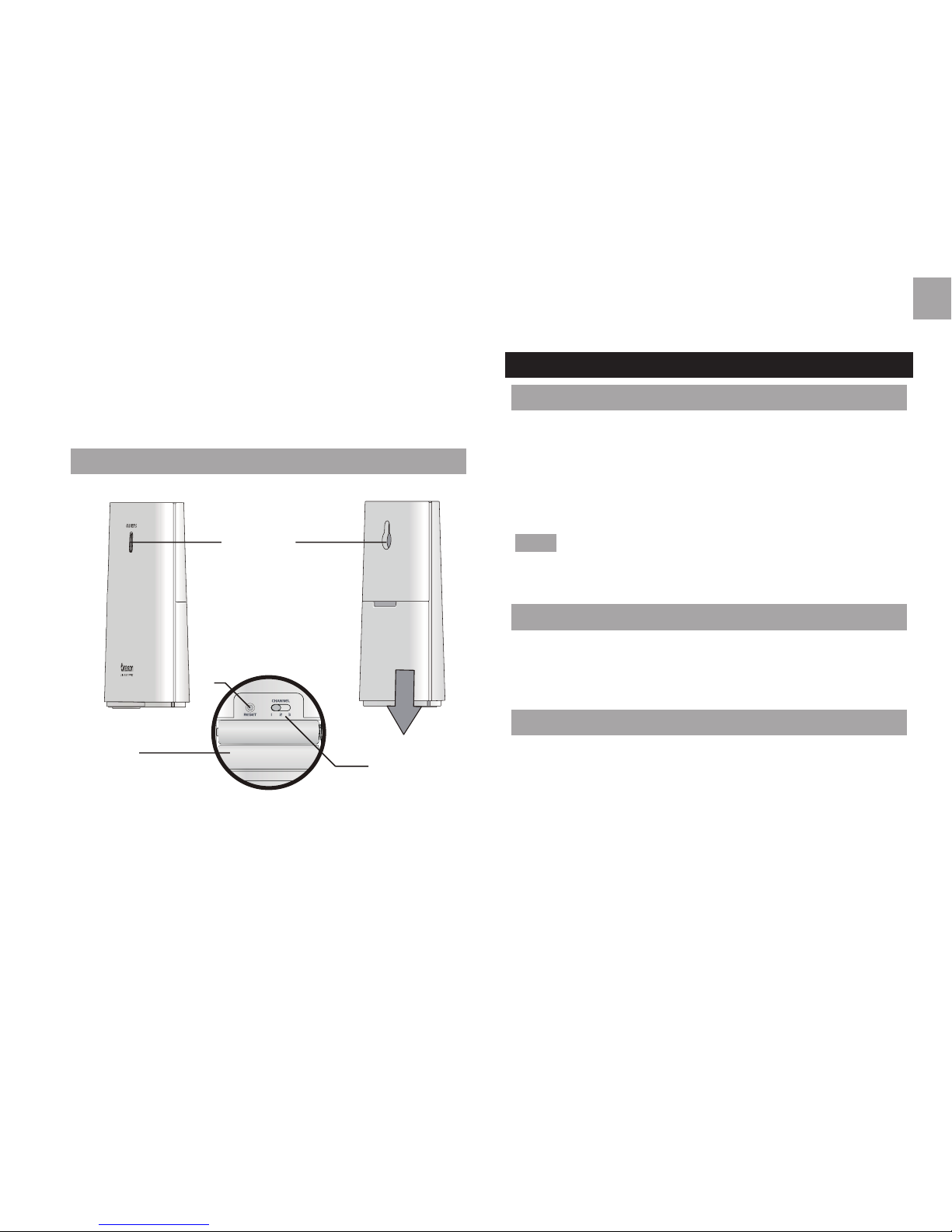

SENSOR
12
5
3
4
+-
1. LED indicator: ashes when remote unit transmits a
reading
2. Wall mount hole
3. RESET: reset unit to default settings
4. CHANNEL switch
5. Battery compartment
GETTING STARTED
MAIN UNIT INSTALLATION
Insert batteries:
1. Slide open the battery compartment cover.
2. Insert the batteries, matching the polarities.
3. Press RESET after each battery change.
4. Replace the battery compartment cover.
NOTE Batteries should not be exposed to excessive heat
such as sunshine or re.
SENSOR INSTALLATION
1. Slide open the battery compartment cover.
2. Insert the batteries matching the polarities (+/-).
SYNCHRONISING WITH SENSOR
1. Press CHANNEL on main unit to select a channel.
2. On sensor, slide channel switch to corresponding
channel. (For additional sensors, select a different
channel). Press RESET.
3. Press SENSOR on main unit to initiate search.
EN
4

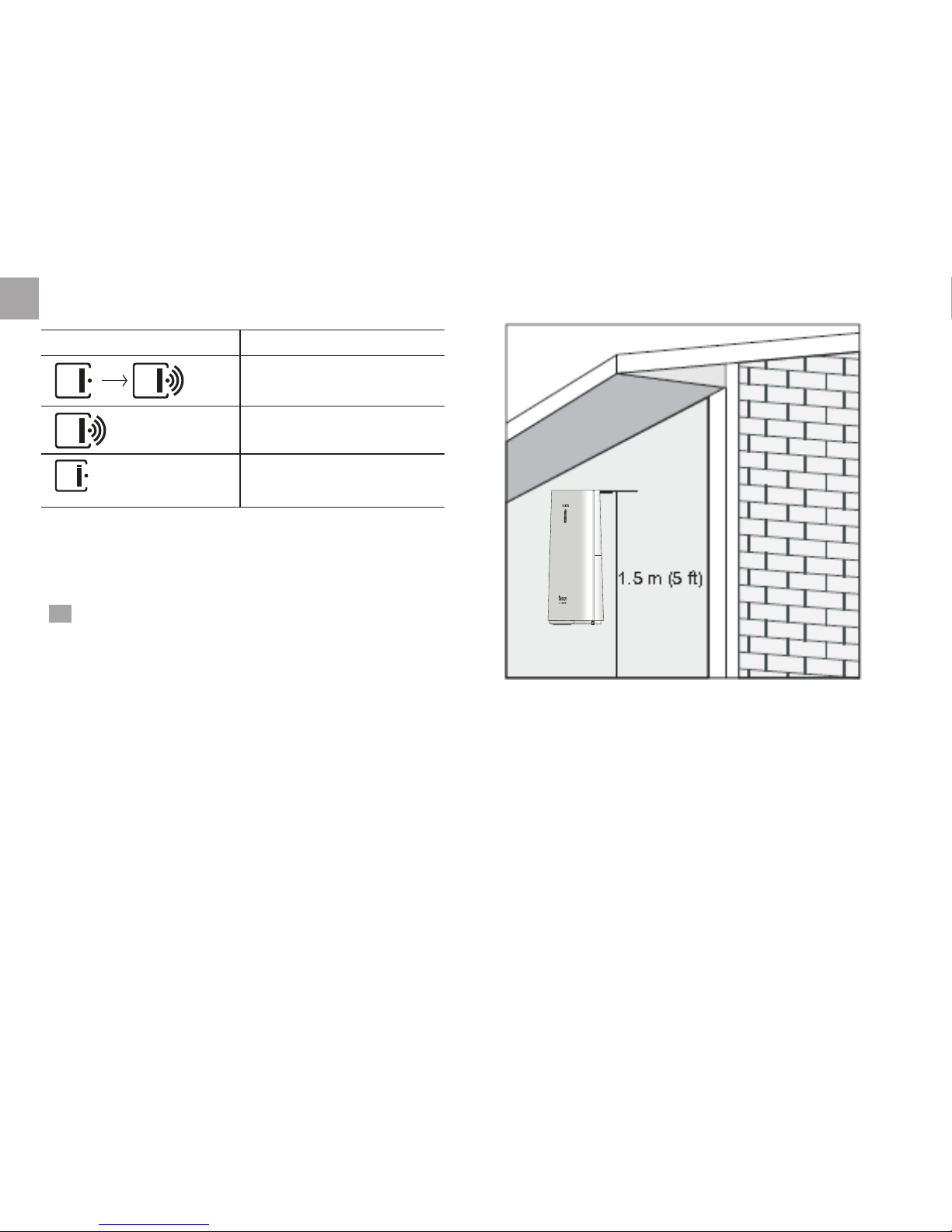

The sensor reception icon shows the status:
ICONS MEANING
Main unit is searching for
sensor(s)
A sensor channel has been
found and logged on
and “--.-”
No sensor found
4. Secure the sensor in the desired location using the
wall mount hole.
TIP Ideal placements for the sensor would be in any location
on the exterior of the home at a height of not more than
1.5 m (5 ft) and which can shield it from direct sunlight or wet
conditions for an accurate reading.
For best results:
• Place the sensor within 30m (100 ft) of the main unit.
• Place the sensor out of direct sunlight and moisture.
• Position the sensor so that it faces the main unit,
minimizing obstructions such as doors, walls and
furniture.
• Place the sensor in a location with a clear view to the sky,
away from metallic / electronic objects.
EN
5
• Position the sensor close to the main unit during cold
winter months as below-freezing temperatures may
affect battery performance and signal transmission.
TIP The transmission range may vary depending on many
factors. You may need to experiment with various locations
to get the best results.
NOTE Use alkaline batteries for longer usage and consumer
grade lithium batteries in temperatures below freezing.
TEMPERATURE AND HUMIDITY
To select temperature unit:
Slide °C / °Fswitch.
To toggle between each sensor’s readings:
Press CHANNEL repeatedly
OR
Press and hold CHANNEL for 2 seconds to initiate auto
toggle of channel readings.
To end, press CHANNEL.
To toggle between current, minimum and maximum
records for the past 24 hours:
Press MIN. MAX. repeatedly.
To clear the records:
Press and hold MIN. MAX.
ICE WARNING
If temperature recorded falls between -2°C to 3°C (29°F to
37°F), LED indicator will ash and will stop ashing once the
temperature is out of this range.
PLACING OF UNIT
Mounting on metallic surface:
Place onto surface.
Mounting on wall:
Use wall mount hole.
Placing on a at surface:
1. Remove battery compartment cover.
2. Remove pole from casing.
3. Replace battery compartment cover.
4. Insert pole through hole and place in desired position.
EN
6
RESET
Press RESET to return to default settings.
TROUBLESHOOTING
DISPLAY AREA PROBLEM
LL.L Temperature Reading is
below range
LL Humidity
HH.H Temperature Reading is
above range
HH Humidity
-- Humidity Temperature
is out of range
for calculating
relative humidity;
sensor does not
have humidity
function
SPECIFICATIONS
MAIN UNIT
TYPE DESCRIPTION
L x W x H 105 x 16 x 112 mm (4.1 x 0.6
x 4.4 in)
Weight 136g (4.8 oz) without battery
Temperature
range
-5°C to 50°C (23°F to 122°F)
Humidity range 20% - 90%
Signal frequency 433 MHz
Power 2 x UM-4 (AAA) 1.5 V
batteries
SENSOR
TYPE DESCRIPTION
L x W x H 57 x 27 x 100
2.2 x 1.1 x 3.9 in
Weight 54g (1.9 oz) without battery
EN
7
Temperature
range
-20°C to 60°C (-4°F to
140°F)
Humidity range 20% - 90%
Transmission
range
30 m (100 ft) unobstructed
Power 2 x UM-4 (AAA) 1.5 V
batteries
PRECAUTIONS
• Do not subject the unit to excessive force, shock, dust,
temperature or humidity.
• Do not cover the ventilation holes with any items such as
newspapers, curtains etc.
• Do not immerse the unit in water. If you spill liquid over
it, dry it immediately with a soft, lint-free cloth.
• Do not clean the unit with abrasive or corrosive
materials.
• Do not tamper with the unit’s internal components. This
invalidates the warranty.
• Only use fresh batteries. Do not mix new and old
batteries.
• Images shown in this manual may differ from the actual
display.
• When disposing of this product, ensure it is collected
separately for special treatment and not as normal
household waste.
• Placement of this product on certain types of wood
may result in damage to its nish for which Oregon
Scientic will not be responsible. Consult the furniture
manufacturer’s care instructions for information.
• The contents of this manual may not be reproduced
without the permission of the manufacturer.
• Do not dispose old batteries as unsorted municipal
waste. Collection of such waste separately for special
treatment is necessary.
• Please note that some units are equipped with a battery
safety strip. Remove the strip from the battery
compartment before rst use.
• Should there be any discrepancy between the English
and other language versions, the English version shall
apply and prevail.
NOTE The technical specications for this product and the
contents of the user manual are subject to change without
notice.
NOTE Features and accessories will not be available in all
countries. For more information, please contact your local
retailer.
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientic.com) to learn more
EN
8
about Oregon Scientic products.
If you’re in the US and would like to contact our
Customer Care department directly, please visit: https://
us.oregonscientic.com/service/support.asp
For international inquiries, please visit: https://
us.oregonscientic.com/about/international.asp
EU-DECLARATION OF CONFORMITY
Hereby, Oregon Scientic, declares that this Easy Fix
Thermometer Pad with Ice Alert (Model: EW102) is in
compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC. A copy of the
signed and dated Declaration of Conformity is available on
request via our Oregon Scientic Customer Service.
FCC STATEMENT
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) This
device must accept any interference received, including
interference that may cause undesired operation.
WARNING Changes or modications not expressly
approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
NOTE This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee
that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
EN
9
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV
technician for help.
DECLARATION OF CONFORMITY
The following information is not to be used as contact for
support or sales. Please call our customer service number
listed on our website at www.oregonscientic.com, or on the
warranty card for this product for all inquiries instead.
We
Name: Oregon Scientic, Inc.
Address: 19861 SW 95th Ave.,Tualatin,
Oregon 97062 USA
Telephone No.: 1-800-853-8883
declare that the product
Product No.: EW102
Product Name: Easy Fix Thermometer Pad with Ice
Alert
Manufacturer: IDT Technology Limited
Address: Block C, 9/F, Kaiser Estate,
Phase 1, 41 Man Yue St.,
Hung Hom, Kowloon,
Hong Kong
is in conformity with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: 1) This device may
not cause harmful interference, and 2) This device must
accept any interference received, including interference
that may cause undesired operation.
Inhaltsverzeichnis
Andere Oregon Scientific Thermostat Handbücher
Beliebte Thermostat Handbücher anderer Marken
EWELLY
EWELLY EW-181 Bedienungsanleitung
Prolon
Prolon T1100 Montageanleitung
Computherm
Computherm Q20 Bedienungsanleitung
Heatmiser
Heatmiser neoStat Bedienungsanleitung
Aube Technologies
Aube Technologies TH111GFCI-NP 240 VCA Bedienungsanleitung
Mars
Mars HEAT CONTROLLER IR Wireless Thermostat Bedienungsanleitung
