USER MANUAL
Orient Helpline no.:
1800 103 7574 (Toll Free)
Orient Electric Limited
(a CK Birla Group company)
240, Okhla Industrial Estate, Phase III
New Delhi-110020
Orient Helpline no.:1800 103 7574 (Toll Free)
Email:customer.connect@orientelectric.com
Website:www.orientelectric.com
LightingFans Home Appliances Switchgear
Follow us on:
TOWER FAN
ORIENT MONROE
Installation of tower Fan: Align six snap joints of the upper body with six snap joint holes on the main body
and push the upper body towards panel until it is aligned properly with the main body. Now the whole tower
fan is assembled and ready for use. The method to dismantle the tower fan is reverse the above detailed
operations.
Installation Instructions
Technical Parameters
Circuit Diagram
Electronic
Synchronous motor
Therm
al fuse
Motor
Capacitor
AC Supply
Circuit board
type
Product Structure Diagram
Head cover
Upper body
Air outlet
Main body
Keys
Panel
Base
Push
Machine body of the air outlet
Snap joint
Snap joint hole
Main body
Panel (Tower Fan after assembly)
Model Rated voltage Rated frequency Rated power Control type
Orient Monroe 220V~240V 50/60Hz 40W Electronic
PCB & Control Panel Details
Instructions for use of the remote control
1. When the remote control is used for the first time, please take out the insulation sheet from its back.
2. The scope of application of the remote control is within 5m from the receiver. If the remote control does
not face the receiver, its scope of application will be narrowed.
3. The remote control must face the receiver (the receiver is located in the product panel).
4. There shall be no barrier between the receiver and remote control.
5. The remote control may be out of order, if it is used in a room with high frequency machines (due to
electromagnetic interference, the sensitivity of the remote control will be reduced).
6. Please keep the remote control properly and do not impact or make it fall down.
Instructions for use of the electronic panel.
The electronic panel has the wind speed of three levels and three types of wind mode as well as the swing
and timing functions.
Power (On/OFF) switch key: After the power supply is connected, press this key, the fan will be started
at a medium speed and work at a low speed, and the power button and wind speed button will light up.
Press this key again, all working states of the fan will be stopped and the button light will go out.
Wind speed regulating key: Under the startup state, press this key for selecting the wind speed needed.
Instructions for Use
Swing Key: Press the swing key to turn on the swing function, the button light will glow; press it again
to stop the swing.
Timer key: Press this key, the time of countdown required may be set and the timing button light will
light up.
Mode key: Press mode key to switch between Normal – Natural – Sleep functions as per requirement.
Low speed Medium speed High speed
Natural wind Sleep wind
Normal wind
ON OFF
OFF
ON
0.5H will be increased after
pressing each time
Release
Swing
Normal Natural Sleep
Low
Electronic type
05h.1h 2h 3h
Middle High
1. If the Fan not starting a. Check whether the power line plug is inserted into the socket. B. Check
whether the On/Off switch of the fan in turned on; c. Check whether the power supply is OK.
2. During use, if tower fan vibrates: a. Check whether it is placed on a flat surface; b. Check whether
there are foreign matters near it
Attention:
If the flexible power line is damaged, in order to avoid dangers, it must be replaced by its manufacturer, its
Maintenance Department or similar professional technician.
Before dismantling the protective case, please make sure that the fan is disconnected with the power supply.
Simple Troubleshooting

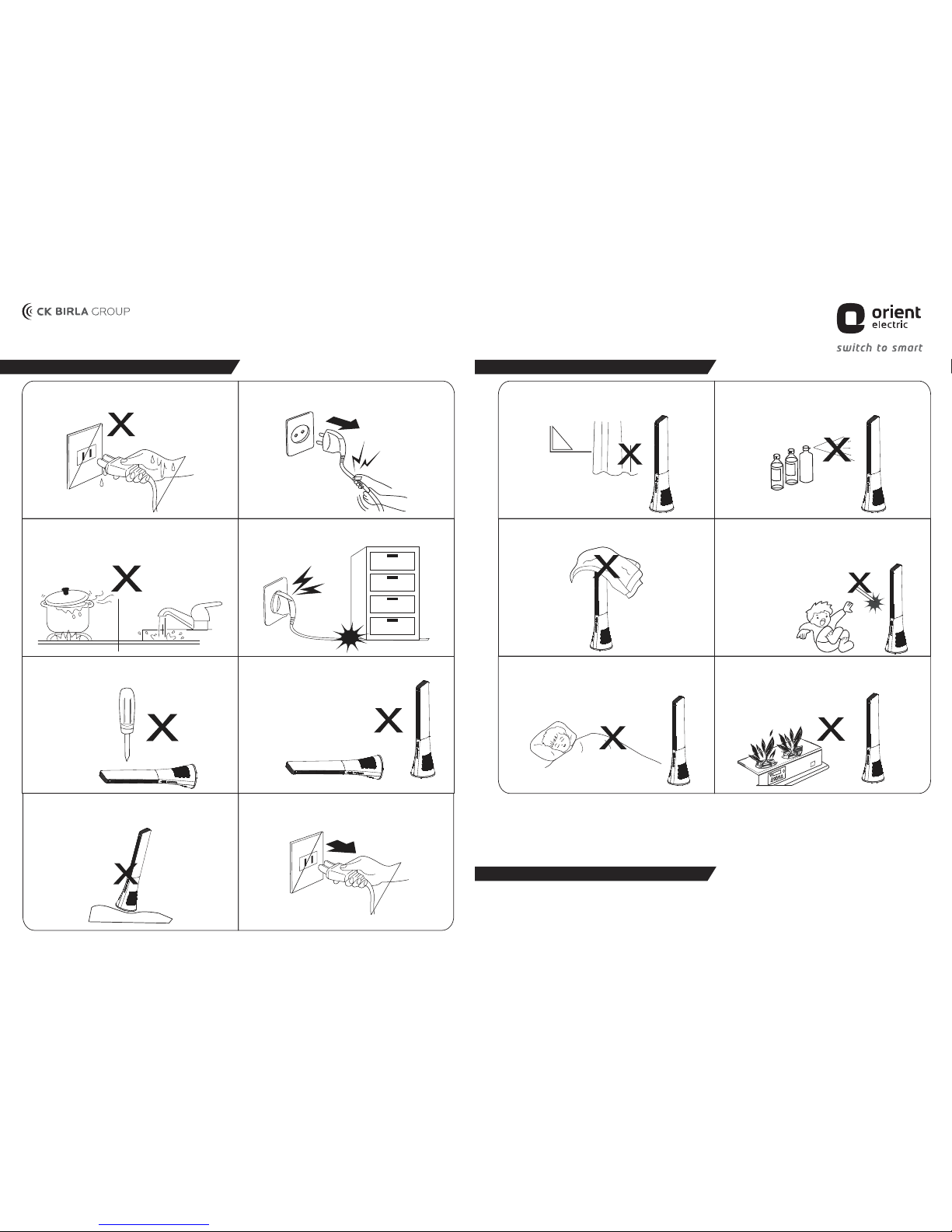

Safety PrecautionsSafety Precautions
Do not place the product in a place where a curtain may be
absorbed or covered.
It is strictly prohibited to spray or swipe the pesticide or
acid substances.
During use, it is strictly prohibited to cover any article. It is strictly prohibited to put the finger or sharp article
into the product during its operation.
Children, patient and older should not operate this product.
Children, patients or the elder should not operate this
product.
It is strictly prohibited to blow facing the furnace or gas.
Oil
Acid
e
di
c
i
t
s
e
P
It is strictly prohibited to plug or pull the plug or plug
the wet plug.
It is strictly prohibited to pull the plug by pulling the
line.
It is strictly prohibited to use the product in a place with
the temperature of 40°C above and wet place, such as near
the furnace/ bathroom.
It is strictly prohibited to press or tread the power line
with the article.
It is strictly prohibited to dismantle, refit or repair the
product without permission.
It is strictly prohibited to use the product
without chassis or by putting it down.
It is strictly prohibited to put the product in an uneven
place or cushion such foreign matters as foam at its
bottom.
The plug must be pulled out when the product is not
used for a while or is moved.
