Orient RK-AU0301B Bedienungsanleitung

ENGLISH

MECHANICAL WATCH WITH

POWER RESERVE INDICATOR

AUTOMATIC & HAND WINDING

INSTRUCTION MANUAL

Thank you for choosing our product. To ensure prolonged use and optimum

performance, please read this instruction manual carefully and familiarize

your-self with the terms of the guarantee.

Please keep this Instruction Manual handy for future reference.

SAFETY PRECAUTIONS

Make absolutely sure to observe the demarcated contents indicated below to

prevent any possible physical danger and property damage to you as well as

other people concerned.

WARNING

... A demarcation with this symbol represents the contents

assuming possibility for death or serious injury

when the product is used in any manner different from

given instructions.

CAUTION

... A demarcation with this symbol represents the contents

assuming possibility of causing human injury or

material damage only when a product is used in any

manner different from given instructions.

ENGLISH

IN HANDLING THE WATCH

(1)Water-resistance

Conditions

of use

Type

Underwater

operation of

crown and

operation

of crown

with drops

of water

on it

Exposure

to small

amounts

of water

(face-

washing,

rain, etc.)

Water sports

(swimming,

etc.),

frequent

contact with

water (car-

washing,

etc.)

Skin diving

(air tanks

are not

used)

Scuba

diving

(air tanks

are used)

Mixed-gas

Diving

(using

helium

gas)

Non water resistant

Without

WATER

RESISTANT

(WATER

RESIST)

××××××

Water

resistant

watches

Water

resistant for

daily life

WATER

RESISTANT

(WATER

RESIST) ×××××

Reinforced

water

resistance

for daily

life I

WATER

RESISTANT

(WATER

RESIST)

50m (5bar)

×  ×××

Reinforced

water

resistance

for daily

life II

WATER

RESISTANT

(WATER

RESIST)

100m (10bar)

200m (20bar)

×× ×

Diver’s

watches

Diver’s

watch for Air

Diving

AIR DIVER’S

100m / 150m

200m ××

Diver’s

watch for

Mixed-gas

Diving

He-GAS

DIVER’S

200m / 300m /...

×

* It is recommended that you use the watch correctly following the above-mentioned scope of usage

after ascertaining water resistance precautions marked on the dial or caseback.

ENGLISH

CAUTION

1A watch with water resistance for daily life 30m (3 bar) can be used

during face-washing, etc. but cannot be used in an environment in which

it will be submerged in water.

2A watch with reinforced water resistance for daily life I 50m (5 bar) can be

used while swimming, etc. but cannot be used during any type of diving

including skin diving.

3A watch with reinforced water resistance for daily life II 100m or 200m (10

or 20 bar) can be used while skin diving, but cannot be used while scuba

diving using oxygen tanks or saturation diving using helium gas, etc.

4Keep the crown pushed in at all times (in the normal position) while using

the watch. If the crown is the screwed-down type, check that it is securely

screwed down.

5Do not operate the crown underwater, or while the watch is wet. Water

may enter the interior of the watch and defeat the water resistance.

6If your watch is non-water resistant, beware of splashes of water (during

face washing, rain, etc.) and sweat. If the watch becomes wet from water

or sweat, wipe the moisture off with a dry, soft cloth.

7Even with a water resistant watch for everyday use, avoid directing

strong jets of mains water onto the watch. Water pressure above the limit

can apply, which may defeat the water resistance.

8With a water resistant watch for everyday use, rinse sea water off the case

after exposure, then wipe it thoroughly to avoid corrosion and other effects.

9The interior of the watch contains some amount of moisture, which may

cause fogging on the inside of the glass when the outside air is cooler

than the internal temperature of the watch. If the fogging is temporary

it causes no harm inside the watch, but if prolonged, or if water enters

the watch, consult your place of purchase and do not leave the problem

untreated.

ENGLISH

(2) Shock

1Be sure not to carry the watch when you engage in

strenuous sports, whereas playing such light sports as golf,

etc., will not adversely influence the watch.

2Avoid a violent shock such as dropping the watch on the

floor.

(3)Magnetism

1If the watch is left at a location with strong magnetism for an extended

period of time, the components may be magnetized, resulting in

malfunction. Be careful.

2The watch may temporarily speed up or slow down when exposed to

magnetism. Precision is restored when placed away from magnetism. In

such a case, reset the time.

(4)Vibration

The watch may lose precision if subjected to strong

vibrations such as from riding motorcycles, using

jackhammers, chain saws, etc.

(5)Temperature

In environments below and above normal temperatures (5°C-35°C), the

watch may malfunction and stop.

Do not use the watch at high temperatures, such as in a sauna. The

watch may heat and cause burns.

(6)Chemicals, Gases, etc.

Utmost caution must be exercised when coming into contact with gases,

mercury, chemicals (paint thinner, gasoline, various solvents, detergents

containing such components, adhesives, paint, drugs, perfumes,

cosmetics, etc.), and so forth. Such may cause discoloration of the

watchcase, watchband, and dial face. Discoloration, deformation, and

damage to various resin-based component parts may also occur.

CAUTION

ENGLISH

(7) About accessory parts

CAUTION

Do not attempt to disassemble or modify this product.

WARNING

Store the bracelet/strap pin and other small parts out of the reach of

children.

If any small parts are swallowed, immediately contact a doctor.

(8)Allergic reactions

CAUTION

If you develop a skin rash or your skin becomes abnormally irritated due

to contact with the watch or strap, stop wearing the watch immediately

and consult a doctor.

(9)About “luminous light”

Some watch have luminous light on the hands and dial.

The luminous light is a safe paint that stores sunlight and artificial light

without using any radioactive material, and emits that light in a dark

setting. As the paint discharges the stored light, it will become dimmer

over time. The amount of light emitted and the time that light is emitted

depends on various factors when the light is stored, such as the shape

of the glass, the thickness of the paint, surrounding brightness level, the

distance from the watch to the light source, and the light absorption level.

Please note that when not enough light energy is stored, the watch may

emit weak light or emit light for only a short time.

(10)Water resistant watchband

Some products employ leather and nylon bands on which a special

treatment to resist perspiration and water absorption have been applied.

Please understand that the water resisting effect of this watchband can

be lost depending on the period and conditions of use.

ENGLISH

(11)Precautions when diving

WARNING

Watches with “DIVER’S 200m” or “DIVER’S WATCH 200m” marked on

its dial or case back are designed to be able to be used when scuba

diving (air diving, water depth of up to 200m).

• This watch is not designed for saturation diving. Do not use this watch

when saturation diving.

• Do not use this watch in water depths of 200m or deeper.

CAUTION

[Precautions before diving]

Make sure to do the following before you dive.

• Check that the watch is fully wound.

• Make sure the watch shows the correct time.

• Make sure the rotating bezel is set correctly. Also, make sure that the

watchband is not too loose or too tight.

• Check that the screwed-down type crown is securely tightened.

• Make sure that there are no cracks or chips in the glass.

• Make sure that the watchband is not about to tear, and check that

there are no problems with its joints (spring bar, buckle, clasp, etc.).

If there are any problems, do not use the watch when diving.

CAUTION

[Precautions during diving]

• Do not operate the crown while in the water.

• The rotating bezel may be hard to operate under water due to water

pressure.

• Do not subject the watch to shocks, such as banging on rocks.

ENGLISH

CAUTION

[Precautions after diving]

• To remove salt water from the case or bracelet/strap, first make sure

the crown is securely tightened. Then, rinse it with fresh water to

prevent rusting.

• Do not use chemical agents to rinse the watch or soak the watch.

(12)Changing the interchangeable watchband

Depending on the model, some watches come with interchangeable

watchbands.

Please contact your dealer or our service center if you want to change

the watchband.

◆HOW TO IDENTIFY THE CALIBER NUMBER

Check the caliber number by referring to the model number of your watch or

the case code on the watch’s case back.

1. Searching by 13-digit model number

Check the 13-digit model number on the guarantee supplied with your watch.

You can also see the number on the product tag put on the watch. Its fourth

and fifth digits indicate the caliber number of your watch.

Example: If the model number is “RE-AT0001L00B”, the caliber number is “AT”.

2. Searching by the case code

See the case code on the case back of your watch like XXXX-XXXX.

The first three digits indicate the caliber number.

Example : When the case code is “F6R4-UAA0”, the caliber number is “F6R”.

* The place of case code may vary and its letter size may be small and

difficult to see depending on the characteristics of watches.

* The pictures and illustrations on this manual may differ from the actual

appearance of your watch but the function and operation procedures are

the same.

ENGLISH

◆SPECIFICATIONS

Caliber Number of jewels Date

Second hand halt

mechanism

AT F6R 22 –

AU F6N 22 

AV F6F 24 –

AW F6G 24 

(1) Vibrations : 21,600 vibrations / hour

(2) Daily accuracy : +25sec. to -15 sec.

(3) Drive system : Mainspring Winding (Hand-winding)

(4) Running time : At least 50 hours

The stated daily accuracy is in the following conditions:

• After 24 hours at room temperature with the mainspring wound fully and the

dial facing up.

• Due to the characteristics of the automatic winding watch, the time may

deviate from the stated “daily accuracy” depending on the following

conditions: amount of time the watch is worn each day, position of the

watch, movement of your arm, winding condition of the mainspring.

• Determine the deviation from not just a day but a period of about a week.

Product specifications may change without notice, for improvement.

ENGLISH

◆

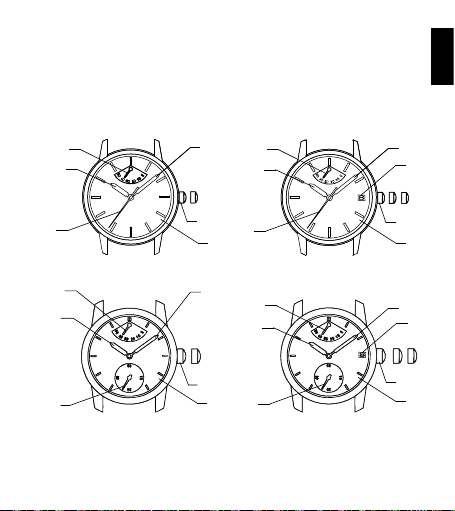

NAMES AND FUNCTIONS OF INDIVIDUAL COMPONENT PARTS

A: Hour hand

Power reserve hand 1. Normal position

B: Minute hand F: Crown 2.

First click: Calendar setting

C: Second hand G: Dial 3. Second click: Time setting

Date

*Thepositionofthecrownandpowerreserveindicatorhand,maydi󰀨er

depending on the model.

12 3

1 3

12 3

ENGLISH

◆

AUTOMATIC AND HAND WINDING MECHANISM

(1) This is an automatic winding mechanical watch (with a

hand winding mechanism).

(2) The mainspring is wound by natural movements of your

arm when wearing the watch on your wrist.

In addition, you can also wind the mainspring by turning

the crown.

(3) If your watch stops, either swing the watch back and forth

ten or more times or turn the crown to wind the mainspring in order to

restart the second hand.

After it starts moving, set the calendar and time.

(4) When winding the mainspring, slowly turn the crown to the right

(clockwise) while in its normal position.

Turning the crown to the left (counterclockwise) merely turns the crown

uselessly and does not wind the mainspring.

You can wind the mainspring fully by turning the crown to the right about

30 times from a stopped position.

The crown can still be turned after the mainspring is fully wound. Either

use the above count or use the markings on the power reserve indicator

when winding the watch.

(5) Even if the mainspring is fully wound, it will not be over-wound due to the

slip mechanism.

(6)

This watch will run approximately 50 hours after it is fully wound. If it is

not wound enough, the watch may lose accuracy. In order to maintain the

watch’s accuracy, we recommend wearing the watch at least 8 hours a day.

MODELS WITH SCREWED-DOWN CROWN

Depending on the model, you may not be able to pull the crown out without

unscrewing it (models with screwed-down crown).

Operate this type of watch as follows:

(1) Before setting the date and time, first turn the crown counterclockwise to

loosen the screw lock.

(2) After setting the date and time, turn the crown clockwise while pressing

in, until it stops turning to securely tighten the screw.

Inhaltsverzeichnis

Sprachen:

Andere Orient Betrachten Handbücher

Orient

Orient CFA02001B Bedienungsanleitung

Orient

Orient DM 48Y Bedienungsanleitung

Orient

Orient RA-KV0403S Bedienungsanleitung

Orient

Orient TT(KFB) Bedienungsanleitung

Orient

Orient DD (48C) Bedienungsanleitung

Orient

Orient VS75 Bedienungsanleitung

Orient

Orient GNA Bedienungsanleitung

Orient

Orient UG1R002B Bedienungsanleitung

Orient

Orient OrientStar DIVER'S WATCH 200m Bedienungsanleitung

Orient

Orient cem65001b Bedienungsanleitung

Orient

Orient EMAM80 Bedienungsanleitung

Orient

Orient UT (H4A) Bedienungsanleitung

Orient

Orient ST(KUD) Bedienungsanleitung

Orient

Orient WE (KL7) Bedienungsanleitung

Orient

Orient UY (KTA) Bedienungsanleitung

Orient

Orient BEM5L003 Bedienungsanleitung

Orient

Orient BF J50 Bedienungsanleitung

Orient

Orient KFB TT Bedienungsanleitung

Orient

Orient ES 46C Bedienungsanleitung

Orient

Orient TT(KFB) Handbuch

Orient

Orient M14 Bedienungsanleitung

Orient

Orient UU(KHA) Bedienungsanleitung

Orient

Orient KFA (TD) Bedienungsanleitung

Orient

Orient FTD10002B0 Bedienungsanleitung

Beliebte Betrachten Handbücher anderer Marken

Pandora

Pandora WATCH2 Bedienungsanleitung

Casio

Casio QW-4343 Bedienungsanleitung

Suunto

Suunto X6 Bedienungsanleitung

Seiko

Seiko N830 Bedienungsanleitung

MotionX

MotionX 365 Bedienungsanleitung

Garmin

Garmin VENU SQ 2 Bedienungsanleitung

QCY

QCY Watch GTC Bedienungsanleitung

Canyon

Canyon Cindy CNE-KW41WP Bedienungsanleitung

Esq

Esq Watches Installationsanleitung

Crane

Crane AA5-CDSM-3A Bedienungsanleitung

Timex

Timex W-214 Bedienungsanleitung

DETOMASO

DETOMASO MATERA Bedienungsanleitung

Geemarc

Geemarc Watch N Shake Bedienungsanleitung

LORUS

LORUS W590 Bedienungsanleitung

STENLILLE

STENLILLE Actío Bedienungsanleitung

Casio

Casio 5594 Bedienungsanleitung

Sinn

Sinn HUNTER'S WATCH 3. Edition Bedienungsanleitung

Slazenger

Slazenger SLZ800 Bedienungsanleitung
