Orient UY (KTA) Bedienungsanleitung

ENGLISH

ANALOGUE QUARTZ WATCH

INSTRUCTION MANUAL

Thank you for choosing our product. To ensure prolonged use and optimum

performance, please read this instruction manual carefully and familiarize

your-self with the terms of the guarantee.

Please keep this Instruction Manual handy for future reference.

SAFETY PRECAUTIONS

Make absolutely sure to observe the demarcated contents indicated below to

prevent any possible physical danger and property damage to you as well as

other people concerned.

... A demarcation with this symbol represents the contents

assuming imminent danger for death or serious injury

when the product is used in any manner different from

given instructions.

... A demarcation with this symbol represents the contents

assuming possibility for death or serious injury

when the product is used in any manner different from

given instructions.

... A demarcation with this symbol represents the contents

assuming possibility of causing human injury or

material damage only when a product is used in any

manner different from given instructions.

DANGER

WARNING

CAUTION

ENGLISH

IN HANDLING THE WATCH

(1) Water-resistance

Conditions

of use

Type

Underwater

operation of

crown and

operation

of crown

with drops

of water

on it

Exposure

to small

amounts

of water

(face-

washing,

rain, etc.)

Water sports

(swimming,

etc.),

frequent

contact with

water (car-

washing,

etc.)

Skin diving

(air tanks

are not

used)

Scuba

diving

(air tanks

are used)

Mixed-gas

Diving

(using

helium

gas)

Non water resistant

Without

WATER

RESISTANT

(WATER

RESIST)

××××××

Water

resistant

watches

Water

resistant for

daily life

WATER

RESISTANT

(WATER

RESIST) ×××××

Reinforced

water

resistance

for daily

life I

WATER

RESISTANT

(WATER

RESIST)

50m (5bar)

×  ×××

Reinforced

water

resistance

for daily

life II

WATER

RESISTANT

(WATER

RESIST)

100m (10bar)

200m (20bar)

×× ×

Diver’s

watches

Diver’s

watch for Air

Diving

AIR DIVER’S

100m / 150m

200m ××

Diver’s

watch for

Mixed-gas

Diving

He-GAS

DIVER’S

200m / 300m /...

×

* It is recommended that you use the watch correctly following the above-mentioned scope of usage

after ascertaining water resistance precautions marked on the dial or caseback.

ENGLISH

1A watch with water resistance for daily life 30m (3 bar) can be used during

face-washing, etc. but cannot be used in an environment in which it will be

submerged in water.

2A watch with reinforced water resistance for daily life I 50m (5 bar) can be

used while swimming, etc. but cannot be used during any type of diving

including skin diving.

3A watch with reinforced water resistance for daily life II 100m or 200m (10

or 20 bar) can be used while skin diving, but cannot be used while scuba

diving using oxygen tanks or saturation diving using helium gas, etc.

4Keep the crown pushed in at all times (in the normal position) while using

the watch. If the crown is the screwed-down type, check that it is securely

screwed down.

5Do not operate the crown underwater, or while the watch is wet. Water

may enter the interior of the watch and defeat the water resistance.

6If your watch is non-water resistant, beware of splashes of water (during

face washing, rain, etc.) and sweat. If the watch becomes wet from water

or sweat, wipe the moisture off with a dry, soft cloth.

7Even with a water resistant watch for everyday use, avoid directing strong

jets of mains water onto the watch. Water pressure above the limit can

apply, which may defeat the water resistance.

8With a water resistant watch for everyday use, rinse sea water off the case

after exposure, then wipe it thoroughly to avoid corrosion and other effects.

9The interior of the watch contains some amount of moisture, which may

cause fogging on the inside of the glass when the outside air is cooler than

the internal temperature of the watch. If the fogging is temporary it causes

no harm inside the watch, but if prolonged, or if water enters the watch,

consult your place of purchase and do not leave the problem untreated.

WARNING

ENGLISH

(2) Handling the Battery

1If a button battery or coin battery is ingested, it may cause chemical burns

or perforation of mucous membrane even in a short period of time, and in

the worst-case scenario, may result in death. Never leave button batteries

or coin batteries within the reach of infants or young children.

If a button battery or coin battery is ingested, or there is a possibility

that one was ingested, it must be removed at once. Please treat as an

emergency situation and contact a doctor immediately.

2Do not remove the battery from the watch. Contact the place of purchase

of the watch or your nearest ORIENT authorized service center for

assistance when wanting to remove the battery.

3The battery used in this watch is not a rechargeable battery, so it cannot be

recharged and used again. Do not attempt to charge the battery as doing

so could cause it to overheat or explode.

4A skin rash or other symptom may develop if leaking battery fluid comes

into contact with skin. Do not leave depleted batteries sitting around for

long periods of time.

(3) Replacing the Battery

1Depleted batteries that are left sitting in the watch for long periods of time

may begin to leak battery acid, which could lead to malfunction. Be sure to

replace depleted batteries as soon as possible.

2Replace the watch battery only with the specified battery type.

3Battery replacement requires special-purpose tools, techniques, etc.

Reversing the polarities when inserting the battery may cause the battery

to overheat or explode. Contact the place of purchase or your nearest

ORIENT authorized service center for assistance when wanting to replace

the battery.

WARNING

DANGER

CAUTION

ENGLISH

(4) Shock

1Be sure not to carry the watch when you engage in strenuous

sports, whereas playing such light sports as golf, etc., will not

adversely influence the watch.

2Avoid a violent shock such as dropping the watch on the

floor.

(5) Magnetism

1If the watch is left at a location with strong magnetism for an extended

period of time, the components may be magnetized, resulting in

malfunction. Be careful.

2The watch may temporarily speed up or slow down when exposed to

magnetism. Precision is restored when placed away from magnetism. In

such a case, reset the time.

(6) Vibration

The watch may lose precision if subjected to strong

vibrations such as from riding motorcycles, using

jackhammers, chain saws, etc.

(7) Temperature

In environments below and above normal temperatures (5°C-35°C), the

watch may malfunction and stop.

Do not use the watch at high temperatures, such as in a sauna. The watch

may heat and cause burns.

(8) Chemicals, Gases, etc.

Utmost caution must be exercised when coming into contact with gases,

mercury, chemicals (paint thinner, gasoline, various solvents, detergents

containing such components, adhesives, paint, drugs, perfumes,

cosmetics, etc.), and so forth. Such may cause discoloration of the

watchcase, watchband, and dial face. Discoloration, deformation, and

damage to various resin-based component parts may also occur.

CAUTION

ENGLISH

(9) About accessory parts

CAUTION

Do not attempt to disassemble or modify the watch.

WARNING

Store the bracelet/strap pin and other small parts out of the reach of

children.

If any small parts are swallowed, immediately contact a doctor.

(10)Allergic reactions

CAUTION

If you develop a skin rash or your skin becomes abnormally irritated due to

contact with the watch or strap, stop wearing the watch immediately and

consult a doctor.

(11)About “luminous light”

Some models have luminous light on the hands and dial.

The luminous light is a safe paint that stores sunlight and artificial light

without using any radioactive material, and emits that light in a dark

setting. As the paint discharges the stored light, it will become dimmer

over time. The amount of light emitted and the time that light is emitted

depends on various factors when the light is stored, such as the shape

of the glass, the thickness of the paint, surrounding brightness level, the

distance from the watch to the light source, and the light absorption level.

Please note that when not enough light energy is stored, the watch may

emit weak light or emit light for only a short time.

(12)Water resistant watchband

Some models employ leather and nylon bands on which a special

treatment to resist perspiration and water absorption have been applied.

Please understand that the water resisting effect of this watchband can be

lost depending on the period and conditions of use.

ENGLISH

FEATURES

(1) This is an analogue crystal oscillator watch.

(2) The current time is indicated by the hour, minute and second hands.

(3) The 24-hour time, date and day of the week are indicated by hands.

SPECIFICATIONS

(1) Crystal oscillator frequency …

32,768 Hz (Hz = Oscillations per second)

(2) Wrist-worn accuracy … Mean monthly rate: ±20 seconds

(at 5°C to 35°C)

(3) Operating temperature range … –5°C to +50°C

(4) Drive system … Step motor

(5) Additional functions … Reset switch, Second hand halt

mechanism, Calendar (Date and Day of

the week) quick setting function

(6) Battery … SR927SW ; 1 piece

(7) Battery life … Approximately 3 years from insertion of

a new battery

* The above specifications may change without notice for improvement.

ENGLISH



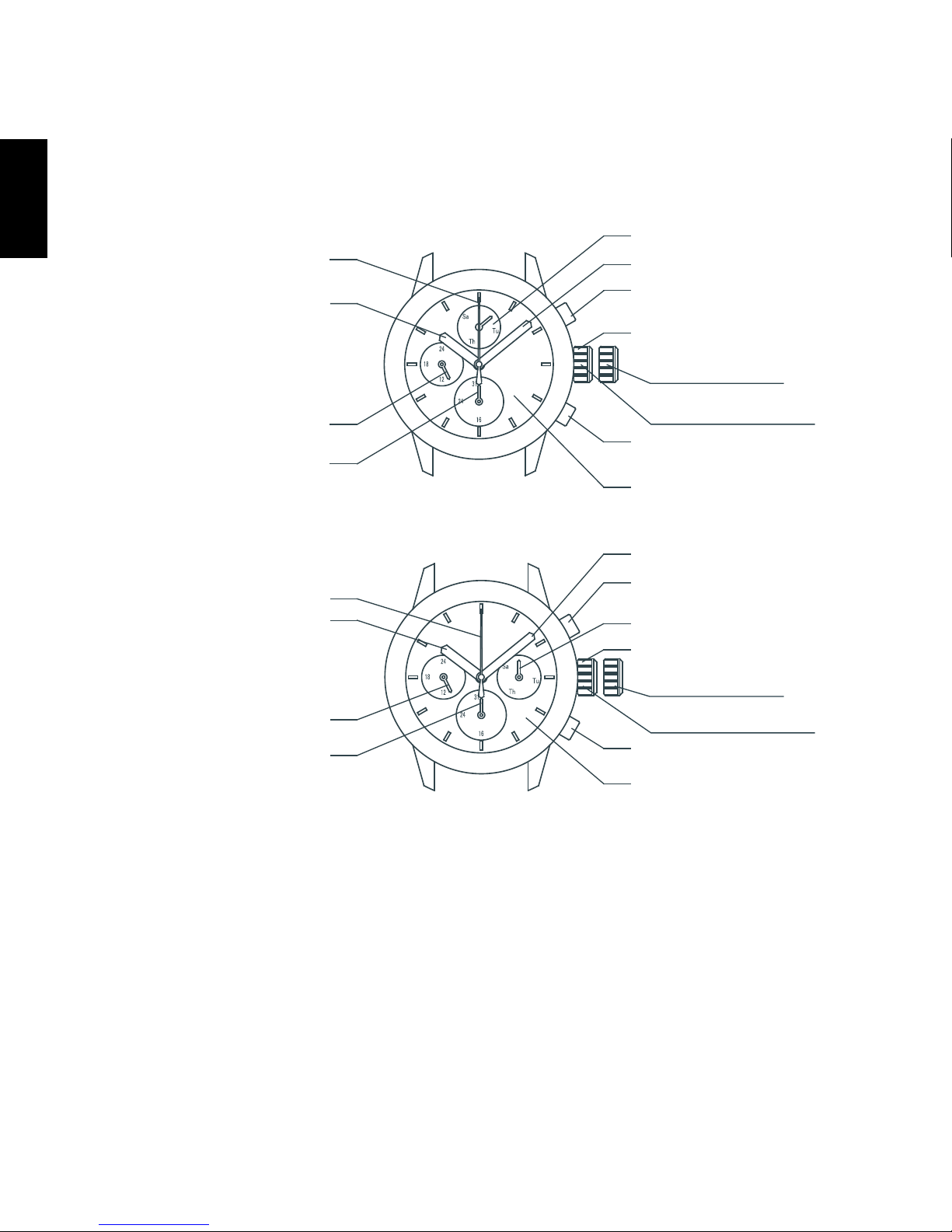

NAMES OF INDIVIDUAL COMPONENT PARTS

* The position of date, day of the week, 24-hour hands and crown differ on

some models.

<UY(KTA)>

<UZ(KTB)>

First click :

Time setting

(The second

hand stops)

Normal Position

First click :

Time setting

(The second

hand stops)

A : Hour hand

B : Minute hand

C : Second hand

D : Crown

E : Dial

F : Date hand

G: Day of the week hand

H : 24-hour hand

I : Set date button

J : Set day of the week

button

ENGLISH

MODELS WITH SCREWED-DOWN CROWN

Some models have a screw down crown that can be locked.

For these models, perform the following procedures before setting.

(1) Before time setting and calendar setting, turn the crown counterclockwise

and loosen.

(2) After time setting and calendar setting are completed, turn the crown

clockwise and tighten.

MODELS WITH A SCREWED-DOWN BUTTON RING

Depending on the product, some models may have a configuration that allows

the button ring (ring on the outer periphery) to be locked (fixed) into place by

being screwed down.

Use the following operating method for this type of watch.

(1) When wanting to use the buttons, first turn the button ring to the left, and

then loosen it until the screw stops.

* The buttons may not be able to be used if the button ring cannot be

loosened enough. Do not turn it more forcefully than necessary.

(2) After finishing using the buttons, turn the button ring to the right, and firmly

tighten it until the screw stops.

* Do not tighten it more forcefully than necessary.

ENGLISH

HOW TO SET THE TIME AND CALENDAR

[How to set the time]

(1) Pull out the crown when the second hand is

at the 12 o’clock position. The second hand

stops on the spot.

(2) Turn the crown to set the time.

*This watch features a calendar function.

When setting the hour hand, check that

AM/PM is set correctly. The date changes

at “0:00 a.m.”.

Check AM or PM with the 24-hour hand.

*When setting the time, first advance it 4 to 5 minutes ahead of the

desired time, and then turn it back to the exact time.

(3) Push the crown back in to the normal

position.

[24-hour hand]

The 24-hour hand is interlocked with the hour hand and cannot be adjusted

individually.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Orient Betrachten Handbücher

Orient

Orient UG1R002B Bedienungsanleitung

Orient

Orient KFA (TD) Bedienungsanleitung

Orient

Orient DB 46A Bedienungsanleitung

Orient

Orient BEM5L003 Bedienungsanleitung

Orient

Orient KU(RMC) Bedienungsanleitung

Orient

Orient TT(KFB) Handbuch

Orient

Orient GNA Bedienungsanleitung

Orient

Orient EW 46F Bedienungsanleitung

Orient

Orient SDH00001 Bedienungsanleitung

Orient

Orient UT (H4A) Bedienungsanleitung

Orient

Orient FFT00001W0 Bedienungsanleitung

Orient

Orient WE (KL7) Bedienungsanleitung

Orient

Orient KFB TT Bedienungsanleitung

Orient

Orient UB8A002B Series Bedienungsanleitung

Orient

Orient TT(KFB) Bedienungsanleitung

Orient

Orient DM 48Y Bedienungsanleitung

Orient

Orient TV(KFC) Bedienungsanleitung

Orient

Orient DA 40R Bedienungsanleitung

Orient

Orient SY(KFF) Bedienungsanleitung

Orient

Orient RA-KV0403S Bedienungsanleitung

Orient

Orient M14 Bedienungsanleitung

Orient

Orient DD (48C) Bedienungsanleitung

Orient

Orient EMAM80 Bedienungsanleitung

Orient

Orient CFA02001B Bedienungsanleitung

Beliebte Betrachten Handbücher anderer Marken

Pandora

Pandora WATCH2 Bedienungsanleitung

Casio

Casio QW-4343 Bedienungsanleitung

Suunto

Suunto X6 Bedienungsanleitung

Seiko

Seiko N830 Bedienungsanleitung

MotionX

MotionX 365 Bedienungsanleitung

Garmin

Garmin VENU SQ 2 Bedienungsanleitung

QCY

QCY Watch GTC Bedienungsanleitung

Canyon

Canyon Cindy CNE-KW41WP Bedienungsanleitung

Esq

Esq Watches Installationsanleitung

Crane

Crane AA5-CDSM-3A Bedienungsanleitung

Timex

Timex W-214 Bedienungsanleitung

DETOMASO

DETOMASO MATERA Bedienungsanleitung

Geemarc

Geemarc Watch N Shake Bedienungsanleitung

LORUS

LORUS W590 Bedienungsanleitung

STENLILLE

STENLILLE Actío Bedienungsanleitung

Casio

Casio 5594 Bedienungsanleitung

Sinn

Sinn HUNTER'S WATCH 3. Edition Bedienungsanleitung

Slazenger

Slazenger SLZ800 Bedienungsanleitung
