FLUSH MOUNT BRACKETS
FLUSH MOUNT BRACKET
FMKD68RD - Round | FMKD68SQ - Square
Fits 6” & 8” Director Series Speakers
1) CUT Cut out ceiling hole using the included Cut-Out Template.
(Sizes as follows: 10 5/16’’ (262MM) ROUND | 10 1/8’’ (257MM) X 10 1/8’’ (257MM) SQUARE)
2) INSERT Insert the flush mount kit within in-ceiling hole, and ensure it sits flat
against the drywall.

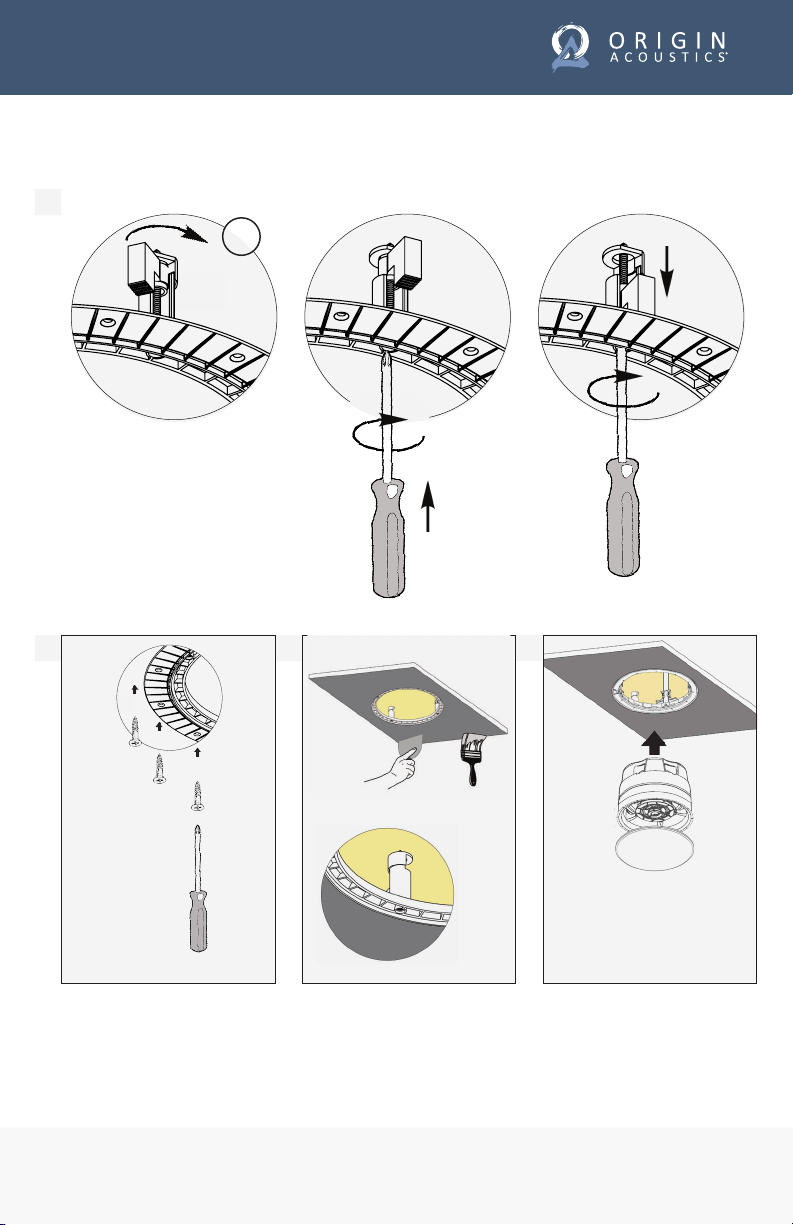

3) CLAMP Use a Philips screw driver to turn the screw inside each clamp. This
will tighten the clamps and secure the bracket against the drywall.
4) SCREW Use a screwgun/drill to drive drywall screws through the mounting
holes of the flange, to secure the fluhsmount bracket into the drywall.
5) DRYWALL Apply joint compound over the bracket to seal and blend the
bracket into the ceiling.
6) FEATHER OUTWARDS Begin applying the joint compound 6 - 8 inches
(152 - 203 mm) from the bracket edge and then feather outward 16 - 20 inches
(406 - 508 mm) to achieve a smooth and flat transition.
7) INSERT BAYONET RING & DIRECTOR SPEAKER
*All warranties and warranty conditions are subject to change. Please
refer to docs.originacoustics.com for the latest information.
Please visit docs.originacoustics.com or scan this QR code using your smart device for the
most up to date safety information and use instructions for this product.
SPKA-FMKT-IC6-IC8
SCALE:1:2
Flange
Clamps
Mounting Holes
SPKA-FMKT-IC6-IC8-SQ
SCALE:1:2
Flange
Clamps
Mounting Holes
C
D
A
B
QUICK START GUIDE
07-26-23
6975 S Decatur Blvd, Las Vegas, NV 89118 • www.originacoustics.com • 844-674-4461
©2023 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
INSTALLATION IMAGES
A
CD
SPKA-FMKT-IC6-IC8
SCALE:1:2
6
4
3
12
2
7
1
8
11
10
5
9
SPKA-FMKT-IC6-IC8
SCALE:1:2
B
B
B
4
LIFT UP
Zip-Klip
A
A
3
LIFT UP
Zip-Klip
A
2
LIFT UP
Zip-Klip
A
LIFT UP
Zip-Klip
A
1
SPKA-FMKT-IC6-IC8
SCALE:1:2
SPKA-FMKT-IC6-IC8
SCALE:1:2
SPKA-FMKT-IC6-IC8
SCALE:1:2
LIFT UP
Zip-Klip
A
LIFT UP
Zip-Klip
A
LIFT UP
Zip-Klip
A
A
LIFT UP
Zip-Klip
A
LIFT UP
Zip-Klip
A
C
