USER GUIDE
NERO STREAM XD2 MANUAL R1.indd 1 2/3/21 1:01 PM
3
• To reduce the risk of re or electrical shock, do not expose the product to rain or moisture.
• The product should not be exposed to any dripping or splashing liquid.
• Objects lled with liquids, such as vases, should not be placed on the product.
• Keep the remote control battery away from children. Dispose of used battery promptly,
replace only with a battery of the correct type.
• Protect the power cord from damage. Do not pull push the power cord excessively, and take
care not to let the power cord become pinched, particularly at or near the plug.
• Keep the product away from heat sources such as heat registers, stoves or other appliances
that produce heat.
• Avoid direct sunshine and covering vents. Do not operate in a sealed box and be sure to
have enough room for heat exchange.
• Avoid opening the cover. Do not open the cover, or touch the inner parts, refer servicing to
our customer service.
SAFETY INSTRUCTIONS AMPLIFIER FEATURES

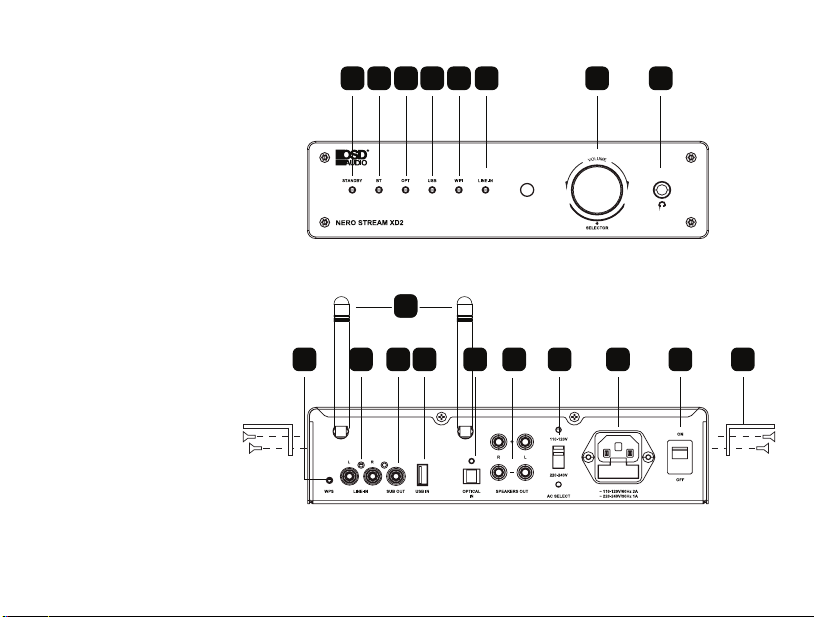

1. Power Indicator
2. Bluetooth® Indicator
3. OPT Indicator
4. USB Indicator
5. Wi-Fi® Indicator
6. Line In Indicator
7. Volume Knob/Input Selector
8. Head Phone Jack
9. Antenna
10. WPS
11. Line In
12. SUB Out
13. USB In
14. Optical Input
15. Speaker Outputs -L/R
16. Voltage Switch
17. Power Input
18. On/O Switch
19. Optional TV/Wall Mount Brackets
71 2 3 456 8
15
9
16
1110 12
13
17 18 19
14
NERO STREAM XD2 MANUAL R1.indd 2-3 2/3/21 1:01 PM
3
• To reduce the risk of re or electrical shock, do not expose the product to rain or moisture.
• The product should not be exposed to any dripping or splashing liquid.
• Objects lled with liquids, such as vases, should not be placed on the product.
• Keep the remote control battery away from children. Dispose of used battery promptly,
replace only with a battery of the correct type.
• Protect the power cord from damage. Do not pull push the power cord excessively, and take
care not to let the power cord become pinched, particularly at or near the plug.
• Keep the product away from heat sources such as heat registers, stoves or other appliances
that produce heat.
• Avoid direct sunshine and covering vents. Do not operate in a sealed box and be sure to
have enough room for heat exchange.
• Avoid opening the cover. Do not open the cover, or touch the inner parts, refer servicing to
our customer service.
SAFETY INSTRUCTIONS AMPLIFIER FEATURES
1. Power Indicator
2. Bluetooth® Indicator
3. OPT Indicator
4. USB Indicator
5. Wi-Fi® Indicator
6. Line In Indicator
7. Volume Knob/Input Selector
8. Head Phone Jack
9. Antenna
10. WPS
11. Line In
12. SUB Out
13. USB In
14. Optical Input
15. Speaker Outputs -L/R
16. Voltage Switch
17. Power Input
18. On/O Switch
19. Optional TV/Wall Mount Brackets
71 2 3 456 8
15
9
16
1110 12
13
17 18 19
14
NERO STREAM XD2 MANUAL R1.indd 2-3 2/3/21 1:01 PM
5

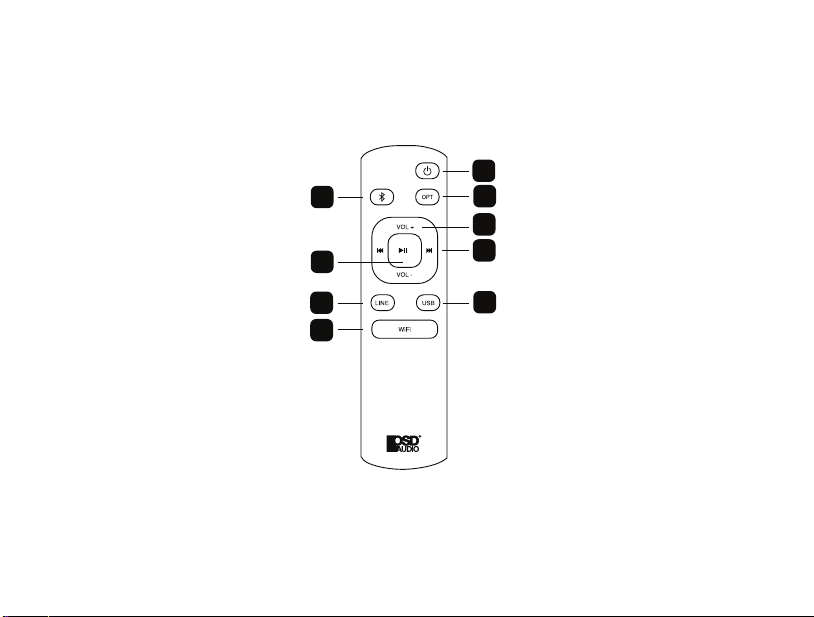

1. On/O Button
2. Optical Source
3. Volume +/-
4. Previous/Next
5. USB Source
6. Wi-Fi® Source
7. Line Source
8. Play/Pause
9. Bluetooth Source
2
1
3
4
5
6
7
8
9

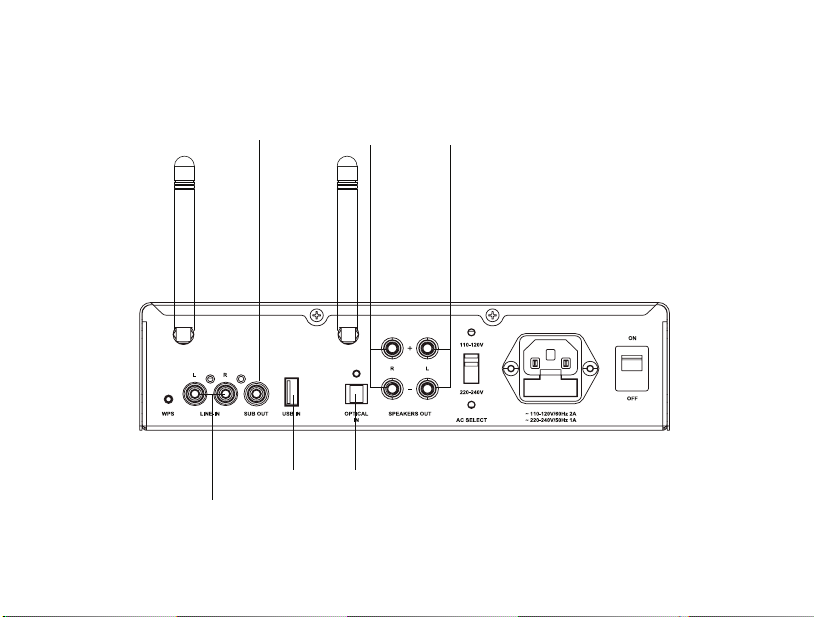

REMOTE FEATURES CONNECTION DIAGRAM
TO
SUBWOOFER
RCA LINE
INPUT SOURCE
USB INPUT
SOURCE
TO RIGHT
SPEAKER
TO LEFT
SPEAKER
OPTICAL INPUT
SOURCE
NERO STREAM XD2 MANUAL R1.indd 4-5 2/3/21 1:01 PM
5
1. On/O Button
2. Optical Source
3. Volume +/-
4. Previous/Next
5. USB Source
6. Wi-Fi® Source
7. Line Source
8. Play/Pause
9. Bluetooth Source
2
1
3
4
5
6
7
8
9
REMOTE FEATURES CONNECTION DIAGRAM
TO
SUBWOOFER
RCA LINE
INPUT SOURCE
USB INPUT
SOURCE
TO RIGHT
SPEAKER
TO LEFT
SPEAKER
OPTICAL INPUT
SOURCE
NERO STREAM XD2 MANUAL R1.indd 4-5 2/3/21 1:01 PM
7
Bluetooth®Pairing:
1. Press the Bluetooth® on the remote to
activate the Bluetooth source.
2. Activate Bluetooth on your phone/tablet and
start searching for new Bluetooth devices.
3. When your phone/tablet nds NERO
STREAM XD2, choose this unit and begin
pairing.
4. To unpair an existing source, press and
hold the Bluetooth button on the remote for 3
seconds.

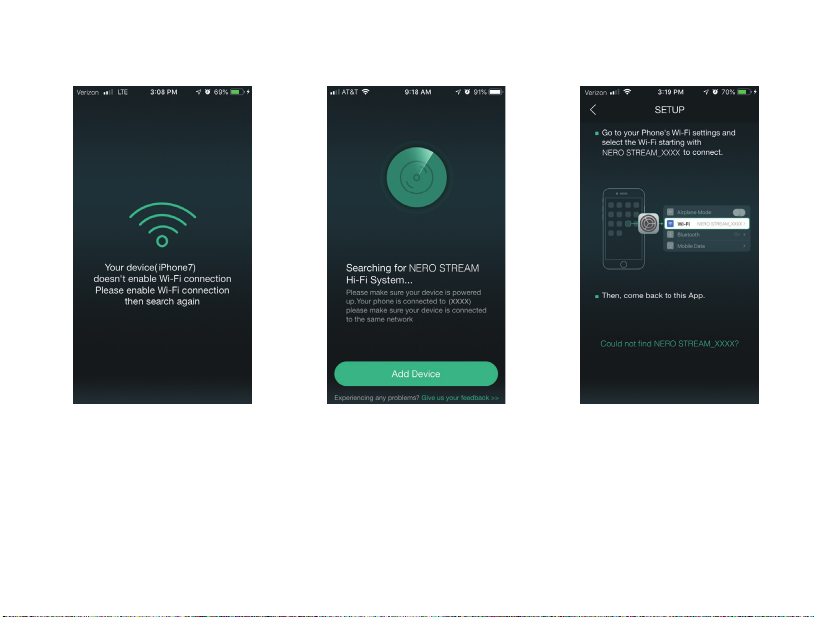

Wi-Fi®Connection:
1. Download and install the OSD Audio App for
your iOS or Android device.
2. Press the Wi-Fi® button on the remote to
activate the Wi-Fi source.
3. WPS: - Link your device to the NERO
STREAM and your Wi-Fi network by following
the setup steps in the app.
Enable Wi-Fi®
Be sure your phone or tablets
Wi-Fi is turned on.
Wi-Fi Network
Be sure the NERO is powered
up and your phone or tablet is
set to the same Wi-Fi network
as the NERO.
Set Up
In your devices Wi-Fi settings
look for NERO STREAM_XXXX
and select to connect.
1. Connect the power cord to the back of the
amplier then connect it to a wall outlet.
2. Connect your devices to a suitable input (see
page 5).
3. Turn the power button to the On position, after
two seconds the unit will enter working status
and the input indicator will light up.
4. Press the Bluetooth®, OPT, LINE or AUX button
on the remote or the volume knob to choose a
audio source. Control the playback via the remote
control by pressing the buttons.
Note: Always press the desired source button on
the remote control for the audio source to work.
Connect Your Device:
Connect your subwoofer to SUB out.
Connect your CD player via its RCA cable to the
RCA L/R input. Make sure you connect the “L” plug
to the left input channel and the “R“ plug to the
right input channel.
Connect your phone/tablet/MP3 via an AUX cable
to Line In.
Connect your DVD player via its optical ber cable
to the Optical Input.
Connect your speakers to the Speaker
Output. Make sure you connect the -/+ and
the L/R cables to the right input.
SETUP APP CONTROL / USER INTERFACE
NERO STREAM XD2 MANUAL R1.indd 6-7 2/3/21 1:01 PM
7
Bluetooth®Pairing:
1. Press the Bluetooth® on the remote to
activate the Bluetooth source.
2. Activate Bluetooth on your phone/tablet and
start searching for new Bluetooth devices.
3. When your phone/tablet nds NERO
STREAM XD2, choose this unit and begin
pairing.
4. To unpair an existing source, press and
hold the Bluetooth button on the remote for 3
seconds.
Wi-Fi®Connection:
1. Download and install the OSD Audio App for
your iOS or Android device.
2. Press the Wi-Fi® button on the remote to
activate the Wi-Fi source.
3. WPS: - Link your device to the NERO
STREAM and your Wi-Fi network by following
the setup steps in the app.
Enable Wi-Fi®
Be sure your phone or tablets
Wi-Fi is turned on.
Wi-Fi Network
Be sure the NERO is powered
up and your phone or tablet is
set to the same Wi-Fi network
as the NERO.
Set Up
In your devices Wi-Fi settings
look for NERO STREAM_XXXX
and select to connect.
1. Connect the power cord to the back of the
amplier then connect it to a wall outlet.
2. Connect your devices to a suitable input (see
page 5).
3. Turn the power button to the On position, after
two seconds the unit will enter working status
and the input indicator will light up.
4. Press the Bluetooth®, OPT, LINE or AUX button
on the remote or the volume knob to choose a
audio source. Control the playback via the remote
control by pressing the buttons.
Note: Always press the desired source button on
the remote control for the audio source to work.
Connect Your Device:
Connect your subwoofer to SUB out.
Connect your CD player via its RCA cable to the
RCA L/R input. Make sure you connect the “L” plug
to the left input channel and the “R“ plug to the
right input channel.
Connect your phone/tablet/MP3 via an AUX cable
to Line In.
Connect your DVD player via its optical ber cable
to the Optical Input.
Connect your speakers to the Speaker
Output. Make sure you connect the -/+ and
the L/R cables to the right input.
SETUP APP CONTROL / USER INTERFACE
NERO STREAM XD2 MANUAL R1.indd 6-7 2/3/21 1:01 PM
9
SYSTEM FEATURES
APP CONTROL / USER INTERFACE

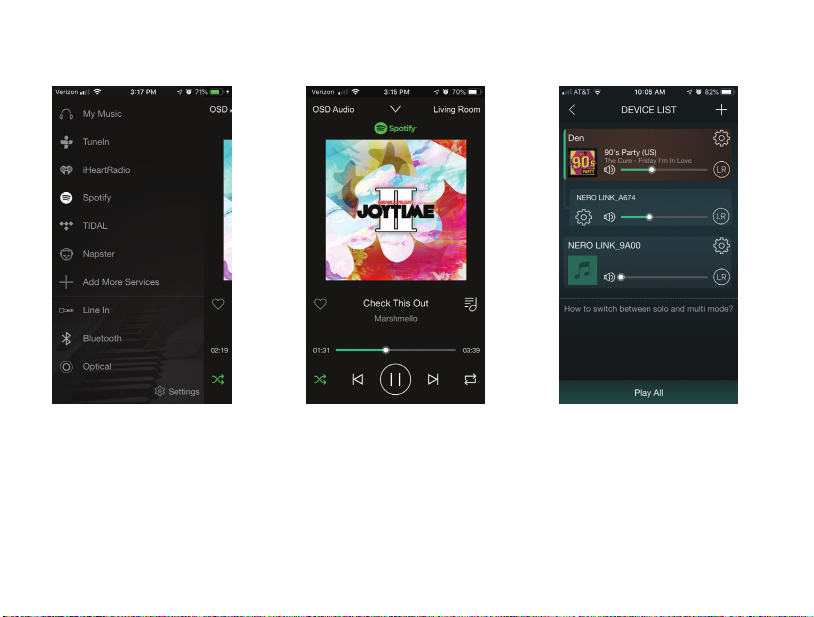

Stream & Select
Swipe right to view and select
a streaming service or source
input device.
Home Screen
Current song title, artist &
album art are shown along
with controls.
Device List
Choose which devices/zones
are connected and being used
and select separate volume
and source input for each
device/zone.
Multi-Device
Stream or play music from
dierent source devices
Multi-User
Multiple users can control the
audio source as well as the
room or zone it’s playing in.
Multi-Room
Connect multiple NERO
STREAMS to create a whole
house audio system.
NERO STREAM XD2 MANUAL R1.indd 8-9 2/3/21 1:02 PM
9
SYSTEM FEATURES
APP CONTROL / USER INTERFACE
Stream & Select
Swipe right to view and select
a streaming service or source
input device.
Home Screen
Current song title, artist &
album art are shown along
with controls.
Device List
Choose which devices/zones
are connected and being used
and select separate volume
and source input for each
device/zone.
Multi-Device
Stream or play music from
dierent source devices
Multi-User
Multiple users can control the
audio source as well as the
room or zone it’s playing in.
Multi-Room
Connect multiple NERO
STREAMS to create a whole
house audio system.
NERO STREAM XD2 MANUAL R1.indd 8-9 2/3/21 1:02 PM
11
PROBLEM POSSIBLE CAUSE
No Power - The power cord is disconnected.
- Poor connection at the wall socket or the wall socket is
inactive.
No Sound - The speakers are disconnected.
- Volume control at lowest level.
- Check if the signal cables are damaged.
- Check if the LEDs are blinking. If not, re start the amplier and
ensure that the LED displays is in standby. If it still doesn’t work,
contact customers service.
Sudden Sound Loss - Check the audio source.
Poor Sound Quality - Audio source problem
- Bad or incorrect speakers connections.
- Treble and bass control are too low.
LED O - Check if the amplier is connected with the power outlet
and conrm that the voltage regulator works.
SPECIFICATIONS
TROUBLE SHOOTING
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG,
Inc. and any use of such marks by OSD Audio is under license. Other trademarks and
trade names are those of their respective owners.
Amplier: Class D
Output Power: 100W @ 4 Ohm
Max Output Power: 400W
Frequency response: 20Hz ~ 20KHz
Impedance: 8 - 4 Ohm
Inputs: Wi-Fi®, Bluetooth®, Optical, USB, AUX (RCA)
Outputs: Speaker, Subwoofer, 3.5mm Headphone Jack
DAC: Cirrus Logic CS8416 24 Bit/192kHz DAC
Wi-Fi Frequency: 2.4 GHz
Bluetooth Version: 4.2 w/ aptX™
Dimensions: 9.5 x 8.5 x 2.5” inch
Weight: 6.8 lbs
NERO STREAM XD2 MANUAL R1.indd 10-11 2/3/21 1:02 PM
Inhaltsverzeichnis
Andere OSD Audio Verstärker Handbücher
OSD Audio
OSD Audio NERO MAX12 Bedienungsanleitung
OSD Audio
OSD Audio XPA1000 Bedienungsanleitung
OSD Audio
OSD Audio BLACK THEATRO X11 Bedienungsanleitung
OSD Audio
OSD Audio NERO XA5180 Bedienungsanleitung
OSD Audio
OSD Audio BLACK SRT1 Bedienungsanleitung
OSD Audio
OSD Audio NERO XA7180 Bedienungsanleitung
OSD Audio
OSD Audio SMP200 Bedienungsanleitung
OSD Audio
OSD Audio AMP120 Bedienungsanleitung
OSD Audio
OSD Audio M14 Bedienungsanleitung
OSD Audio
OSD Audio XPA1000 Bedienungsanleitung
OSD Audio
OSD Audio BLACK THEATRO X11 Bedienungsanleitung
OSD Audio
OSD Audio XMP500DSP Bedienungsanleitung
OSD Audio
OSD Audio Mono Subwoofer Amplifier Bedienungsanleitung
OSD Audio
OSD Audio SMP1000 DSP Bedienungsanleitung
OSD Audio
OSD Audio NERO XA3200 Bedienungsanleitung
OSD Audio
OSD Audio SMP300 Bedienungsanleitung
OSD Audio
OSD Audio XMP60 Merkblatt
OSD Audio
OSD Audio NERO MAX12 Bedienungsanleitung
OSD Audio
OSD Audio XMP100 Bedienungsanleitung
OSD Audio
OSD Audio XMP300 Bedienungsanleitung
