OSD Audio NERO XD Bedienungsanleitung

HI-FI DAC POWER

AMPLIFIER

NERO XD

O W N E R S M ANU A L

Table of C ontent

Parts 3-4

Operation 4-5

Troubleshooting 6

Safety Instructions 7

Speciﬁcations 7

Warranty Info 8

Parts

1. Power Indicator

2. Bluetooth I ndicator

3. OPT Indicator

4. Line In I ndicator

5. AUX Indicator

6. Remote Sensor

7. Volume Knob/Input Selector

8. Antenna

9. RCA L/R

10. SUB Out

11. Line In

12. Optical Input

13. Speaker Output - L/R

14. Speaker Output + L/R

15. Power Input

16. On/O Switch

Inc luding:

Instructions Manual

Remote Control

9 10 11

1 2 3 4567

12 13 14 15 16

NERO XD

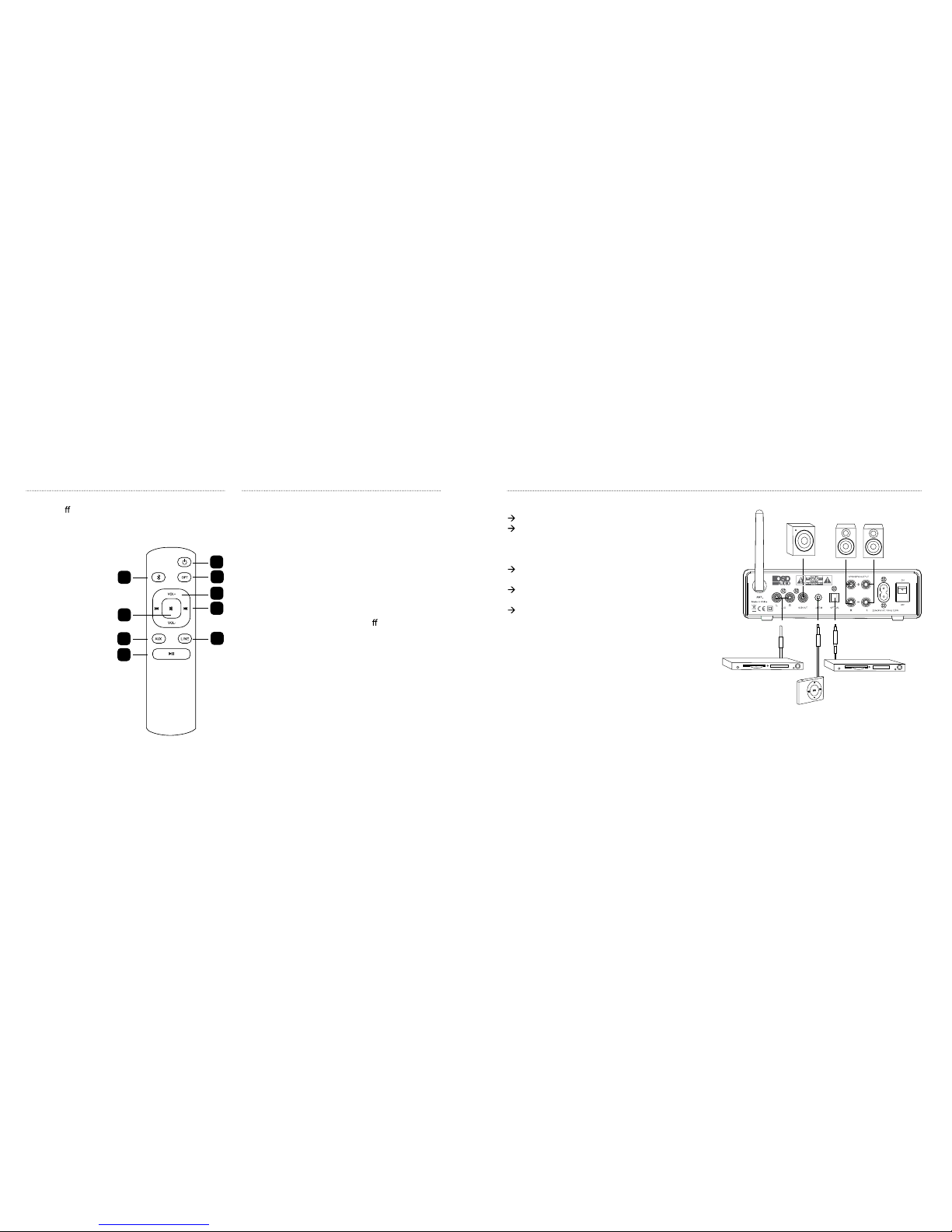

Parts Operation

1. On/O Button

2. Optical Source

3. Vol ume +/-

4. Previous/Next

5. Line In Source

6. Play/Pause

7. AUX Source

8. Mute

9. Bluetooth Source

1. Connect the power cord to the back of the

ampliﬁer then connect it to a wall outlet.

2. Connect your devicesto a suitable input (more

instructionson page 6).

3. Turn the power button to the On position, after

two seconds the unit will enter working status

and the input indicator will lit up.

4. Press the Bluetooth, OPT,LINEor AUX button

on the remote or the vol ume knob to cho ose a

audio so urce.

Control the playback via the remote control by

pressing the buttons.

Note: The ampliﬁer will shut o automatically

if the temperature exceeds185°F, to indicate

thisthe Power indicator will turn orange.The

ampliﬁer w ill re-start automatically when the

temperature hasdropped below 140±10°F.

Bluetooth Pairing:

1. Press the Bluetooth on the remote to activate

the Bluetooth source.

2. Activate Bluetooth on your phone/tablet and

start searching for new Bluetooth devices.

3. When your phone/tablet ﬁ nds OSD NERO XD,

choose thisunit and begin pairing up.

Operation

Connect Your Device:

Connect your subwoofer to SUBout.

Connect your CD player via its RCA cable to

the RCA L/Rinput. Make sure you connect

the “L” plug to the left input channel and the

“R“ plug to the right input channel.

Connect your phone/tablet /MP3 vi a an AUX

cable to Line In.

Connect your DVD player via i ts opti cal ﬁ ber

cable to the Optical Input.

Connect your speakers to the Speaker

Output. Make sure you connect the -/+ and

the L/Rcablesto the right input.

Note: Remember to press the desired source

button on the remote control for the audio

source to work.

Troubleshooting

Problem Possible Cause

No power - The power cord is

disconnected.

- Poor connection at the wall

socket or the wall socket is

inactive.

No sound - The speakers are

disco nnected.

- Vol ume control at lowest level.

- Check if the signal cables are

damaged..

- Check if the LEDs are blinking.

If not, re start the a mpliﬁer and

ensure that the LED displays is

in standby. If it still doesn’t work,

contact customers service.

Suddenly no

sound during

operation

- Check if the au dio so urce

works.

- Maybe the product has

entered into over-heat protection

mode.

Bad sound - Audio source problem

- Bad or incorrect speakers

connections.

- Treble and bass control are

too low.

LED o - Check if the ampliﬁer is

connected with the power outlet

and conﬁrm that the vol tage

regulator works.

´To reduce the risk of ﬁre or electrical shock, do

not expose the product to rain or moisture.

´The product should not be exposed to any

dripping or splashing liquid.

´Objects ﬁlled with liquids, such as vases,

should not be placed on the product.

´Keep the remote control battery away from

children. Dispose of used battery promptly,

replace only with a battery of the correct type.

´Protect the power cord from damage.

Do not pull push the power cord excessively,

and take care not to let the power cord

become pinched, particularly at or near

the plug.

´Keep the product away from heat sources such

as heat registers, stoves or other appliances

that produce heat.

´Avoid direct sunshine and covering vents.

Do not operate in a sealed box and be sure to

have enough room for heat exchange.

´Avoid opening the cover. Do not open the

cover, or touch the inner parts, refer

servicing to our customer service.

Power supply AC 120V/60Hz ~ 220V/50Hz

Max output power 200W

Frequency response 20Hz ~ 20KHz

Impendance 4ohm

Bluetooth range 33 feet

Dimensions 7.5 x 5.5 x 2” inch

Weight 2.8 lbs

The Bluetooth® word mark and logos are registered

trademarks owned by Bluetooth SIG,. Inc. and any

use of such marks by OSD is under license.

Other trademarks and trade names are those of their

respective owners.

Safety Instructions Speciﬁcations

Warranty Information

All OSD AUDIO electronics have (2) year Limited Warranty against defects in materials and workmanship.

Proof of purchase must accompany all claims. During the warranty period OSD AUDIO will replace any

defective part and correct any defect in workmanship without charge for either parts or labor

OSD AUDIO may replace returned electronics with a product of equal value and performance. In such

cases, some modications to the mounting may be

necessary and are not OSD AUDIO’s responsibility.

Damage to or destruction of components due to application of excessive power voids the warranty on

those parts. In these cases, repairs will be made on the basis of the retail value of the parts and labor. To

return for repairs, you must email customer service at RMA@audiogeargroup.com for a Returned

Merchandise Authorization (RMA) number then the unit must be shipped to OSD AUDIO at the owner’s

expense, along with a note explaining the nature of service required. Be sure to pack the product(s) in a

corrugated container with at least 3 inches of resilient material to protect the unit from damage in

transit.

This Warranty Does Not Cover: Damage caused by abuse, accident, misuse, negligence, or improper

operation (installation) • Any products that have been altered or modied • Any product whose

identifying number of decal, serial #, etc. has been altered, defaced or removed • Normal wear and

maintenance.
