OSPRI LHSW200 Bedienungsanleitung
LHSW200 User Manual V7.0

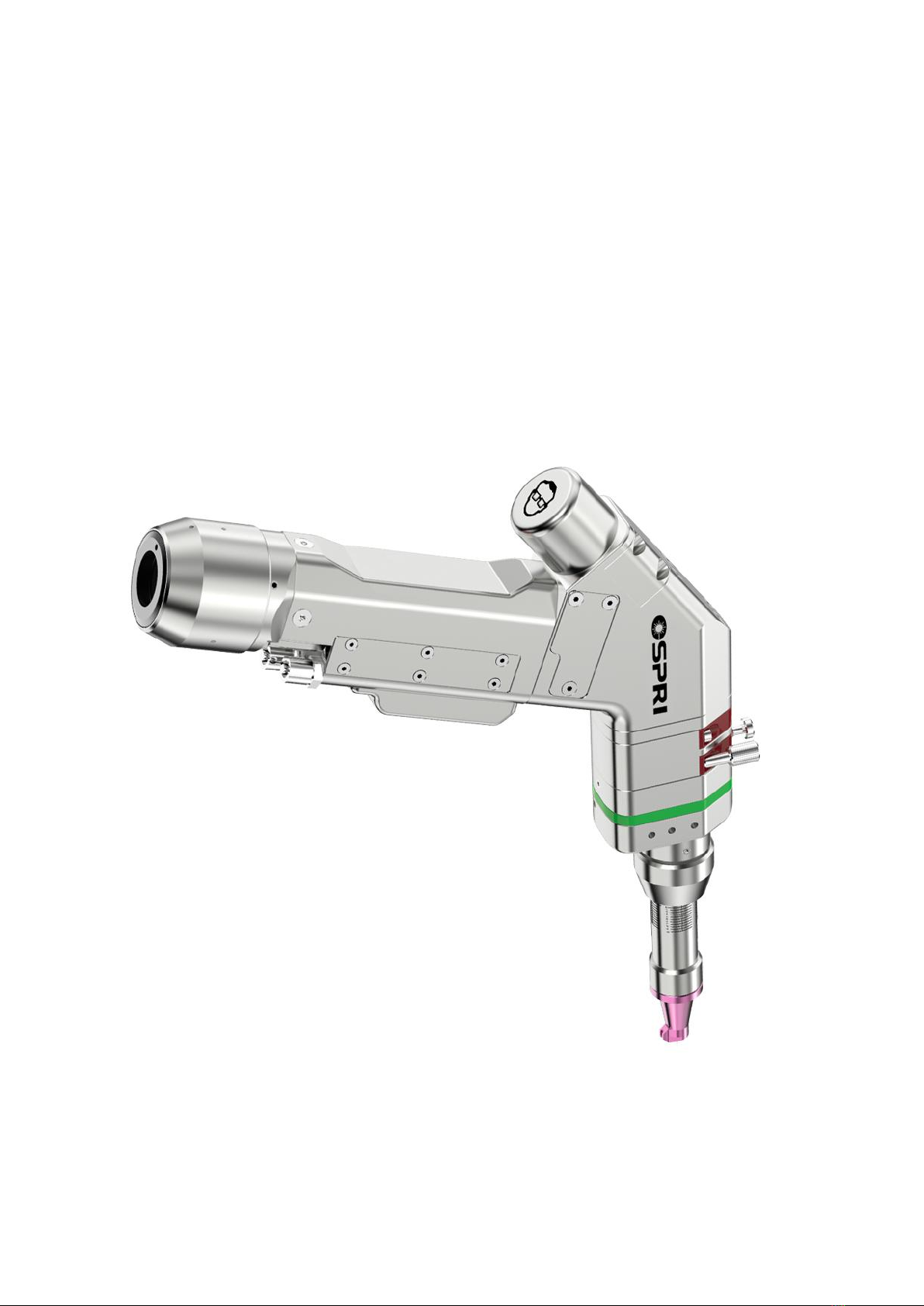

Product Description
CONTENTS
Chapter 1 Application Methods
Application Methods...................................................................... 01
Chapter 2 General Introduction
2.1 Product Parameter ..................................................................02
2.2 Product Feature ......................................................................02
Chapter 3 Structural Feature
3.1 Brief Description of Product Structure .....................................03
3.2 Brief Description of Product Parts ...........................................04
Chapter 4 Product Installation
5.1 Maintenance of Protection Window.........................................12
5.2 Maintenance of Collimation Lens........................................... 14
5.3 Maintenance of Focus Lens....................................................15
Chapter 5 Product Maintenance
4.1 LHSW200 Dimension Drawing................................................05
4.2 Welding Head Connection.......................................................06
4.2.1 Cooling Water Connection....................................................06
4.2.2 Gas Connection....................................................................07
4.2.3 Fixed Mount Installation for Wire Feeding…………………...08
4.2.4 Methods to Find the Focus………….......................………...08
4.3 QBH Fiber Connection......……………………………......……..09
Chapter 6 Wiring Connection
6.1 Wiring Diagram.......................................................................16
6.2 Controller Wiring Definition.....................................................16
6.3 Touch Screen Instruction........................................................18
Chapter 7 Technique Parameter
7.1 Welding Parameter Table ........................................................27

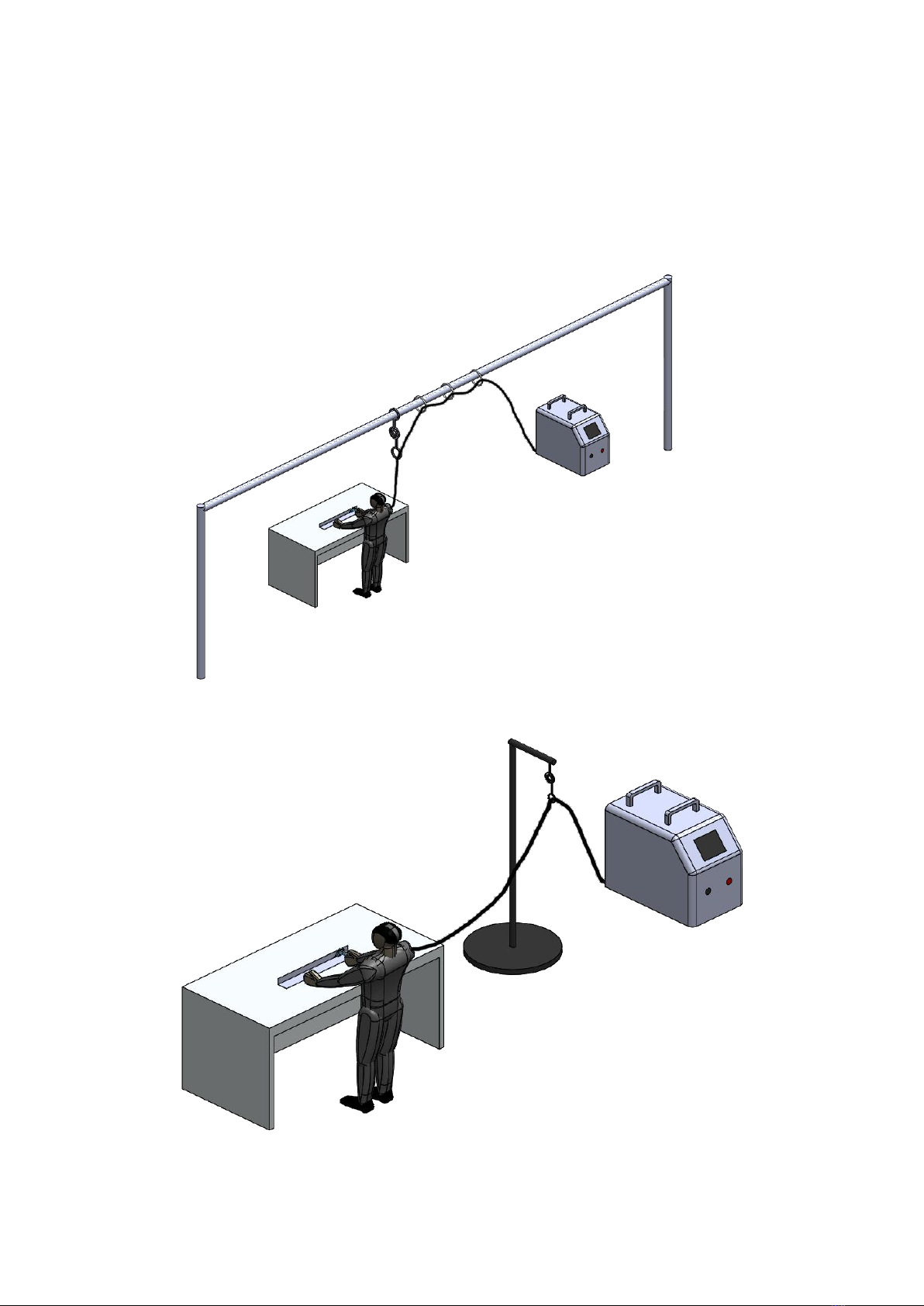

Chapter 1 Application Methods
01
Method 1：
Method 2：
2.1 Product Parameter
2.2 Product Feature
02
Chapter 2 General Introduction
Product Name Handheld Wobble Welding Head
Model LSHW200
Connector Type QBH
Wavelength 1080±10nm
Laser Power 2KW
Focus Length 125mm/150mm
Collimation Length 50mm
Nozzle M13*0.75
Wobbling Speed 0~4000mm/s
Wobbling Range 0~5mm
Gas Blowing Way Coaxial Blowing
Gas Pressure ≤1Mpa
Protection Window 20x3 mm
Net Weight 0.94KG
① User-friendly for maintenance with dual cartridges of protection windows
design,to extend service lifespan of focus lens；
② Made of high-precition industial machinery, 0.94KG in weight is portable
to carry;
③Various nozzles to meet different welding technical demands;
④ Water cooling for all optics and welding head cavity;
⑤ Capactive safety protection to avoid laser damage during handheld
operation;
⑥ Ergonomi design for comfortable operation
03
Chapter 3 Structural Feature
3.1 Brief Description of Product Structure
QBH Connector
Collimator
Protection
Window Cartidge Wobble&Focus
Part
Focus
Protection
Window
Welding
Protection
Window
Gas Blowing&Focusing
Module
04
3.2 Brief Description of Product Parts
① QBH Module: Locked connection between QBH fiber tip and handheld
welding head;
② Collimation Module: Convert the diverged beam into parallel beam;
③ Wobbling Focus Part: Focus the parallel beam into a spot and control
the wobbling trajectory of range 0~5mm;
④ Focus Protection Window Cartridge: Avoid dirts from entering onto the
focus lens, which can extend the service lifespan of focus lens;
⑤ Welding Protecion Window Cartridge: Prevent the dusts and spatters
entering the head and protect the focus lens;
⑥ Gas Blowing&Focusing Module: Adjusting focus, and blowing gas to
prevent the workpiece from being oxidized, by destroying the laser effect
on the workpiece surface of the ionosphere to form isolation the workpiece
and air.
Chapter 4 Product Installation

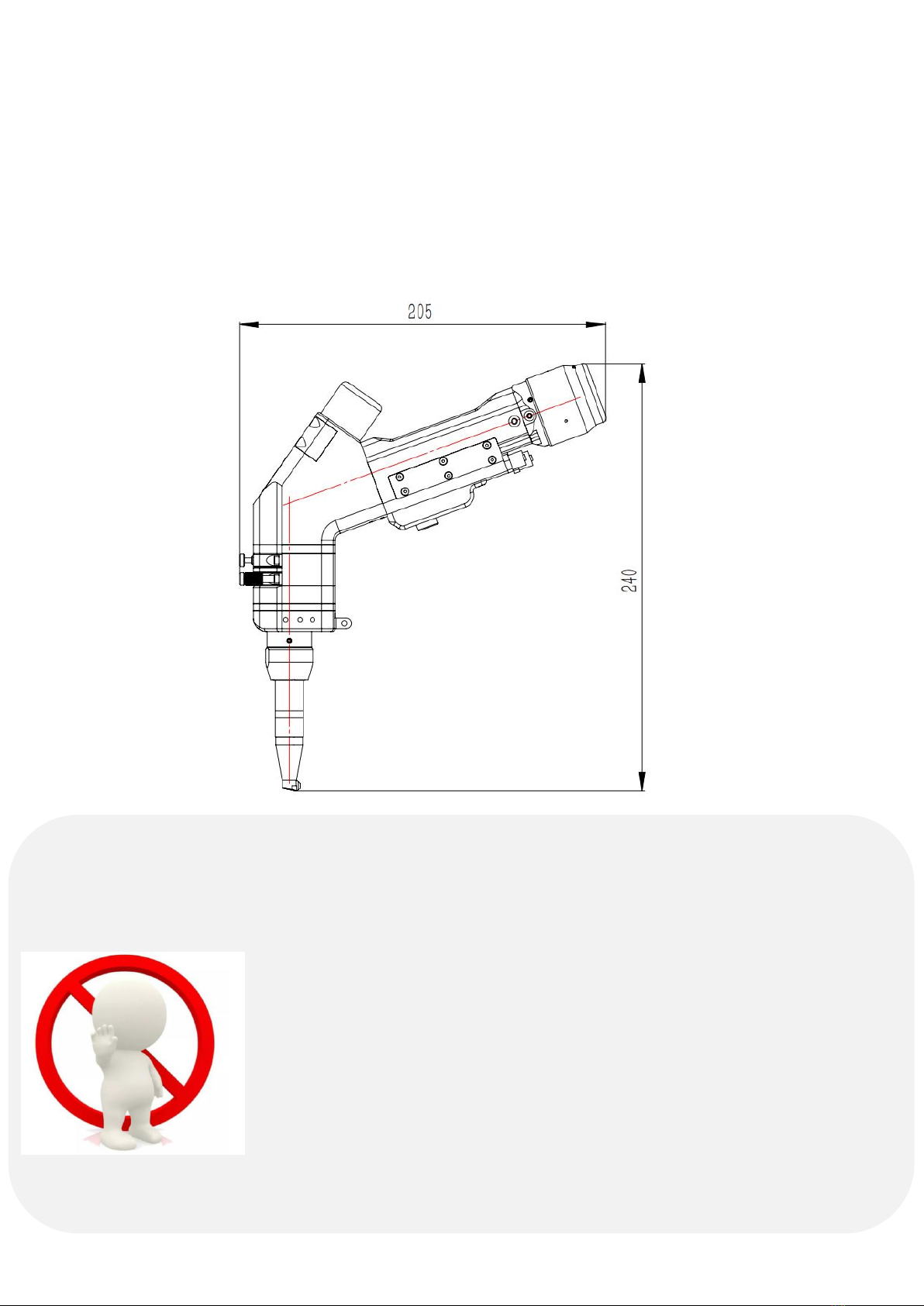

4.1 LHSW200 Dimension Drawing
05
For collimation length F50mm and focus length F150mm
Attention
Attention
1.Ensure standard and reliable grounding before power on;
2.Clean the QBH fiber tip carefully before connect it to the
welding head as any dirst and dust would caused optics
burned inside;
3.Clean and dust-free environment is required when
replacing protection window.
4.LHSW200 welding head is not allowed to work without
water cooling;
5.Hot plugging is forbiden;
6.Ensure the red light comes out of the nozzle before firing
the laser;
4.2 Welding Head Connection
06

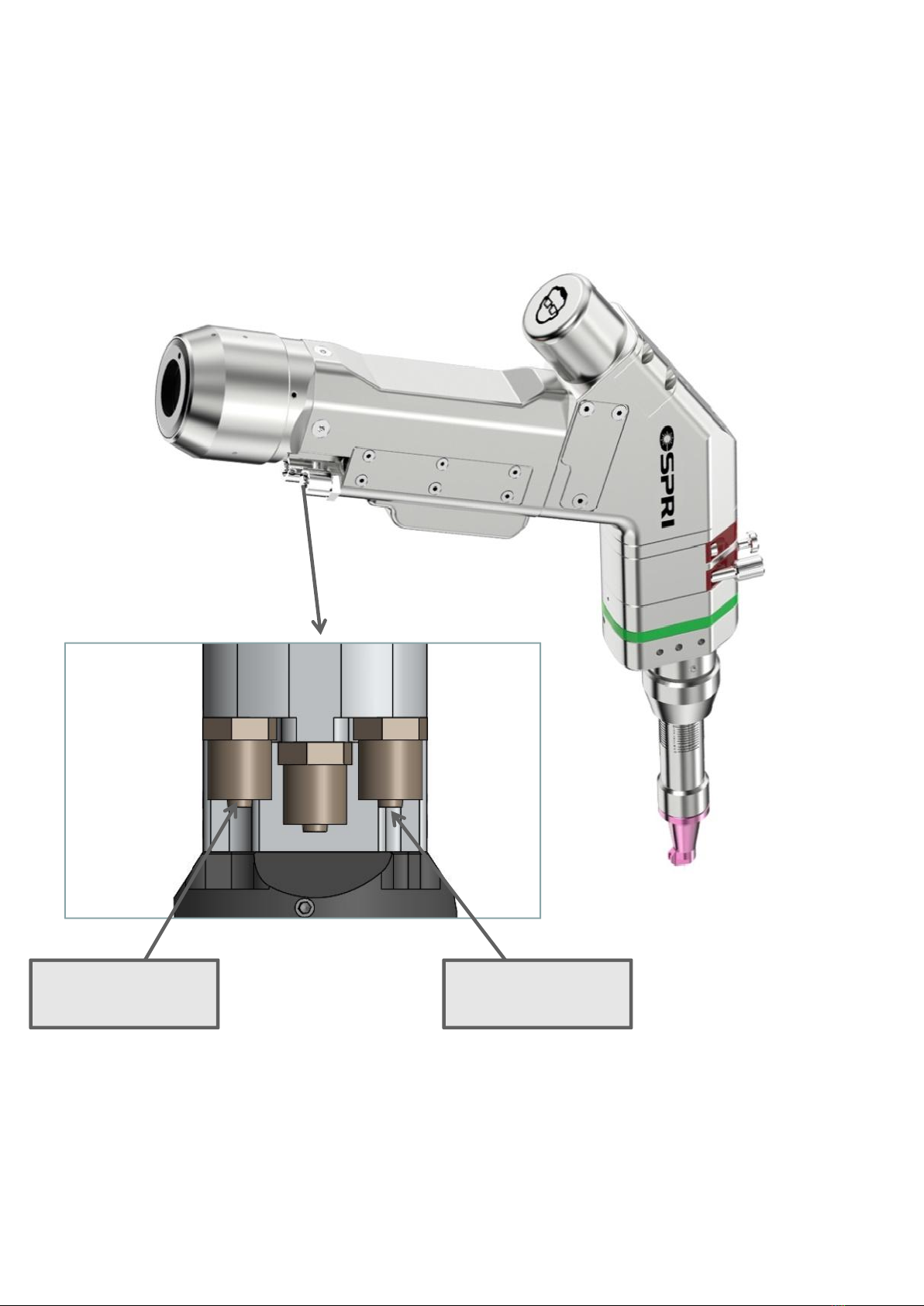

4.2.1 Cooling Water Connection
Integrated design for water cooling system:
one inlet and one outlet cooling connection
Cooling Water
Hose φ6mm
Cooling Water
Hose φ6mm

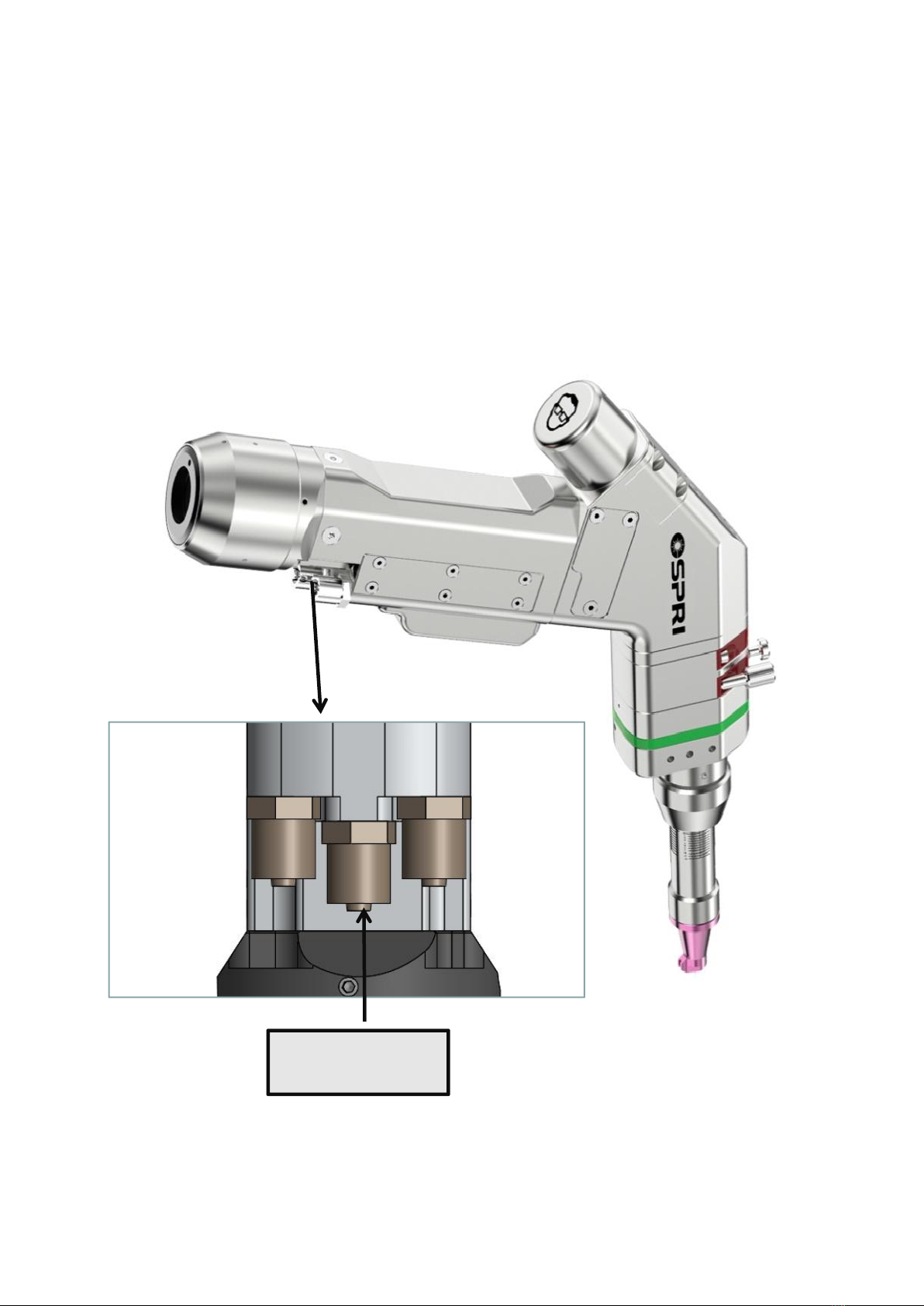

4.2.2 Gas Connection
07
Attention：Gas should be filtered and dried otherwise the
protective window would be contaminated and damaged.
① Gas connector shoule be connected with φ6mm hose and input
protective gas, with suggested input flow ＜30L/Min, which will protect
the weld material surface and extend the lifespan of protective window.
High purity of N2 and Argon gas is suggested to process
Protective Gas
Hose φ6mm
08

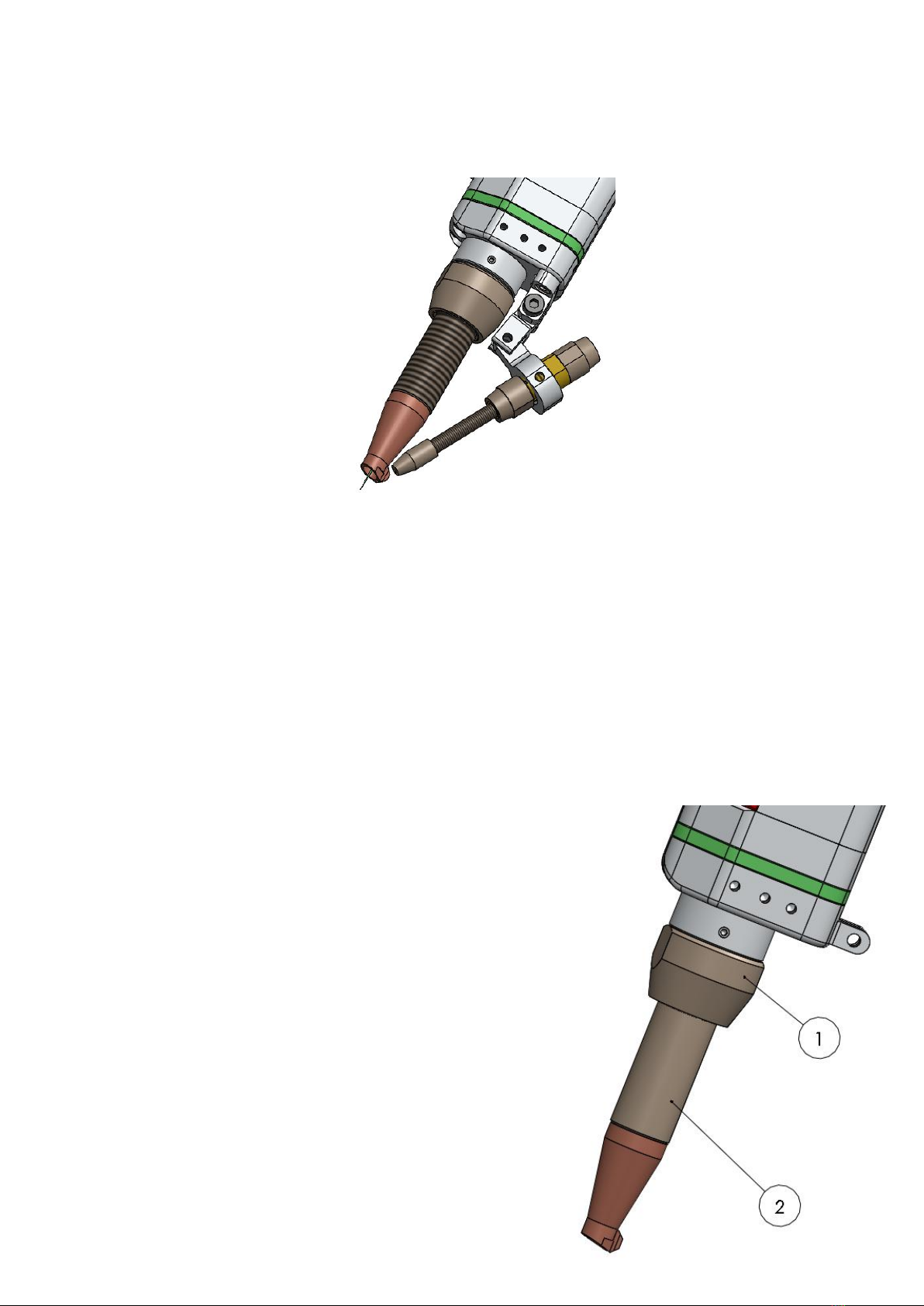

Due to the different datum of every laser source,
here we introduce methods to find the focus
point:
a) Loosen the part ①, fit the tube part ② where
the smallest point of red light appears ( this
point does not coincide with the laser focus)
b) Turn off the ‘PE Protect’ in control panel and
set the laser power at 150W approximately.
Then aim the hand-held welding head at the
stainless steel sheet and, point the laser and
move the head up and down. The focus point is
where the spark is greatest;
c) To set laser power to 250W around and
operate in the same way with alumium sheet
instead of stainless steel will help find the focus
point more precisely.
4.2.3 Fixed Mount Installation for Wire Feeding
4.2.4 Methods to Find the Focus
