Quick Installation Guide
ET1212Pp-S-DR/ version 2.2
Quick Installation Guide
ET1212Pp-S-DR
Description: Industrial Grade 10/100/1000Base-TX (PoE+) to 1000Base-FX Ethernet Media
Converter
Overview: ET1212Pp-S-DR is a DIN rail type media converter that supports external SFP. It is a
industrial grade product whose operating temperature range is -10 ℃to 60
℃.ET1212Pp-S-DR supports 10/100/1000M Ethernet port and 1000M SFP port. The
Ethernet port supports both half-duplex and full-duplex mode. Users can use different
type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.
Package Content
⚫Media Converter x 1
⚫Quick Start Guide x 1
⚫Din Rail mount bracket x 1
Read Before Install
◎Keep power off during installation
◎use Antistatic Wrist Strap correctly
◎Make sure using correct power supply, voltage must match
◎Make sure enough power supply from PSU that will not overload
◎Double check the wiring ( +/- ) is correct.
◎Keep installation dry and clean.
◎Do not open the chassis
OT Systems Ltd. | www.ot-systems.com
Quick Installation Guide
ET1212Pp-S-DR/ version 2.2

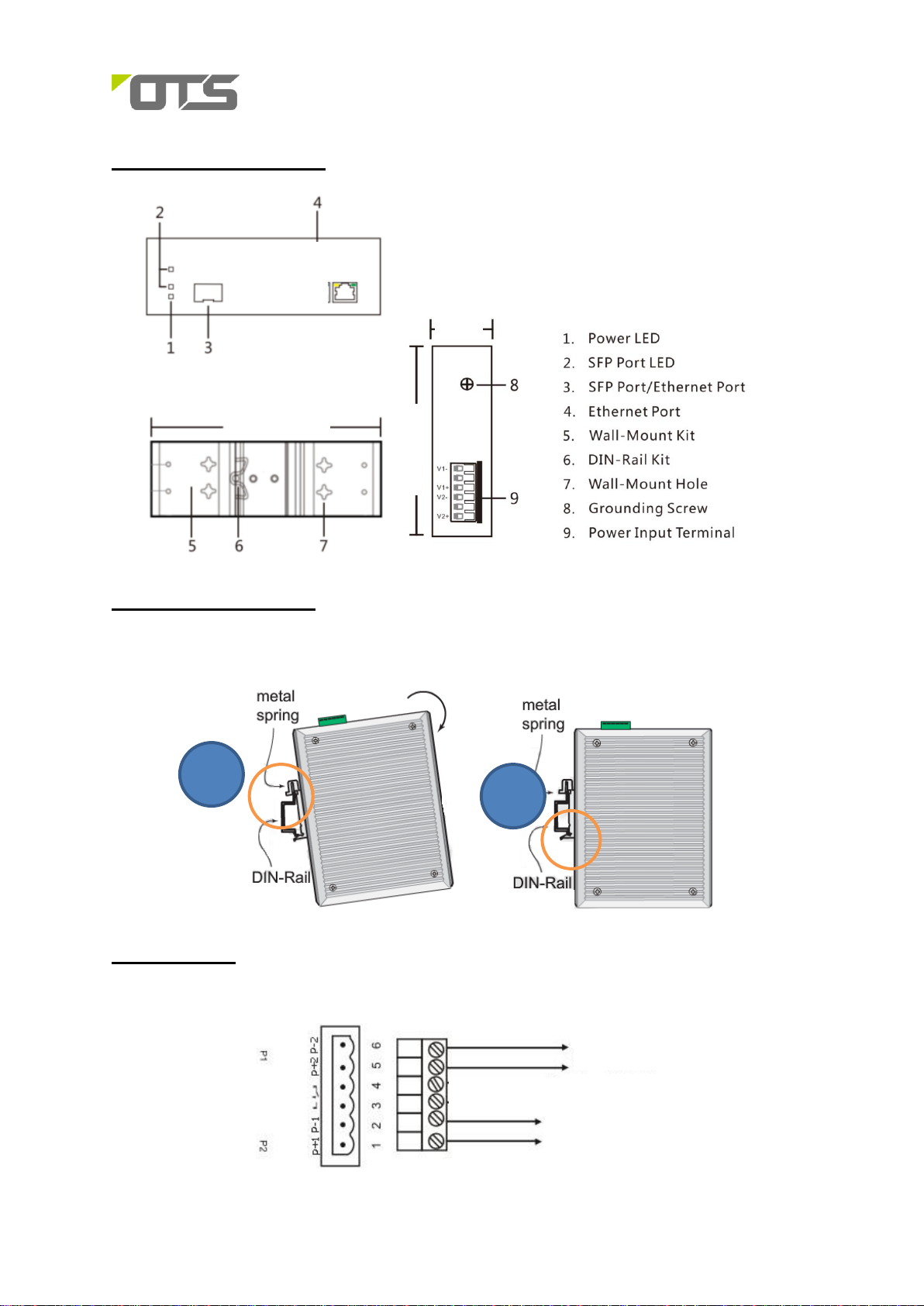

Physical Description
DIN Rail Installation
DIN rail. Installation methods are as follows:
Power Input
DC 48-56V Power Redundant input available, connect to phoenix contact PWR1 and PWR2
1
2
Power in 1 1
Power in 21
118mm
33
86mm
OT Systems Ltd. | www.ot-systems.com
Quick Installation Guide
ET1212Pp-S-DR/ version 2.2
PoE Output
IEEE 802.3af/at, per port 30W, 1/2(+), 3/6(-)
Setup and States
a) Connect the Ethernet port of the media converter to a PoE IP camera (PoE device) or network
device with a network cable.
b) Insert the appropriate SFP into the SFP port. Connect the fiber cable from the device (media
converter or switch) on the other end to the LC connector of the SFP.
c) After the device is powered on, the PWR indicator will all be on. If the indicators are not on,
check the power supply connection.
d) After all cables are correctly connected, the indicators will be lit as per port status LEDs.
e) LED
Indicators
Description
Power :PWR
ON
POWER ON
OFF
NO POWER input
SFP port：LK/ACT
ON
SFP connected
Blink
Transmitting or receiving data
OFF
SFP disconnected
LAN port states（Yellow）
ON
Connected
Blink
Transmitting or receiving data
OFF
Disconnected
LAN port （Green）
ON
POE ON
OFF
POE OFF
FALL
Blink
Operating
General
To ensure trouble free transportation and storage, all OT Systems products must be thoroughly
inspected, tested and properly packed before delivery. Check the product upon receipt for any
visible damage which may have been caused during shipment.
-END-
