Assembly and Operating Instructions for Outback®

Jupiter 4 Burner Gas BBQ

Drawings are not to scale.

Specifications subject to change

without prior notice.

WARNING

• For outdoor use only. Not for commercial use.

• Read instructions before using the appliance. Failure to follow instructions could

result in death, serious bodily injury, and/or property loss.

• Warning: accessible parts may be very hot. Keep young children and pets away.

• Do not move the appliance during use.

• Turn off the gas supply at the gas bottle after use.

• Any modification of the appliance, misuse, or failure to follow the instructions may

be dangerous and will invalidate your warranty. This does not affect your statutory

rights.

• Retain these instructions for future reference.

• Leak test annually, and whenever the gas bottle is removed or replaced. Check that

the hose connections are tight and leak test each time you reconnect the gas bottle.

• For Flare-up control please refer to the ‘OPERATION’ section of this manual.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and

contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use must not be

stored in the vicinity of this or any other

appliance.

MS4491

CODE PART QTY Outback®

Jupiter 4 Burner Gas BBQ

HOOD

A1 Hood (Pre-Assembled to Body) 1 

A2 Hood Handle 1 

A3 Heat Indicator 1 

A4 Warming Rack 1 

BODY

B1 Barbecue Body 1 

B2 Burner 4 

B3 Control Panel 1 

B4 Knob 4 

B5 Hose and Regulator Assembly 1 

B6 Large Lava Rock in Basket 1 

B7 Small Lava Rock in Basket 1 

B8 Grill W ith Hole 1 

B9 Round Grill 1 

B10 Cooking Grill 1 

B11 Drip Tray Left Bracket 1 

B12 Drip Tray Right Bracket 1 

B13 Drip Tray 1 

B14 Drip Pan 1 

B15 Ignition Button 1 

TROLLEY

C1 Side Burner Shelf 1 

C2 Side Burner Shelf Panel 1 

C3 Side Shelf 1 

C4 Side Shelf Panel 1 

C5 Tool Hook 1 

C6 Side Burner Grid 1 

C7 Knob Bezel 1 

C8 Side Burner Knob 1 

C9 Side Burner 1 

C10 Left Cabinet Panel 1 

C11 Right Cabinet Panel 1 

C12 Upper Support 1 

C13 Door Handle 2 

C14 Left Door 1 

C15 Right Door 1 

C16 Rear Panel 1 

C17 Bottom Panel 1 

C18 Front Wheel Skirt 1 

C19 Storage Unit 1 

C20 Caster 2 

C21 Lockable Caster 2 

HARDWARE

D1 M6x35 Bolt 8 

D2 ST4.0x10 Screw 21 

D3 M6x15 Bolt 26 

D4 M6 Nut 14 

D5 M4x10 Bolt 6 

D6 M4 Nut 3 

Pre-Assembled Component

Quantity varies according to model purchased

 Appearance, size, and construction may differ according to model purchased

Parts List

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

Parts Diagram

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

B11 B12

B15

B10

B13

C16

C13

C14 C15

B14

C20

C21

C12

C11

C10

C17

C18

C19

Hardware Reference Diagram

Specifications subject to change without prior notice.

D3 D4

Assembly

IMPORTANT!

• TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set.

• Remove any internal component or packaging from the barbecue body.

• Whilst every care is taken in the manufacture of this product, care must be taken during assembly in

case sharp edges are present.

• Please read the Important Information section carefully before assembly and use of your

barbecue.

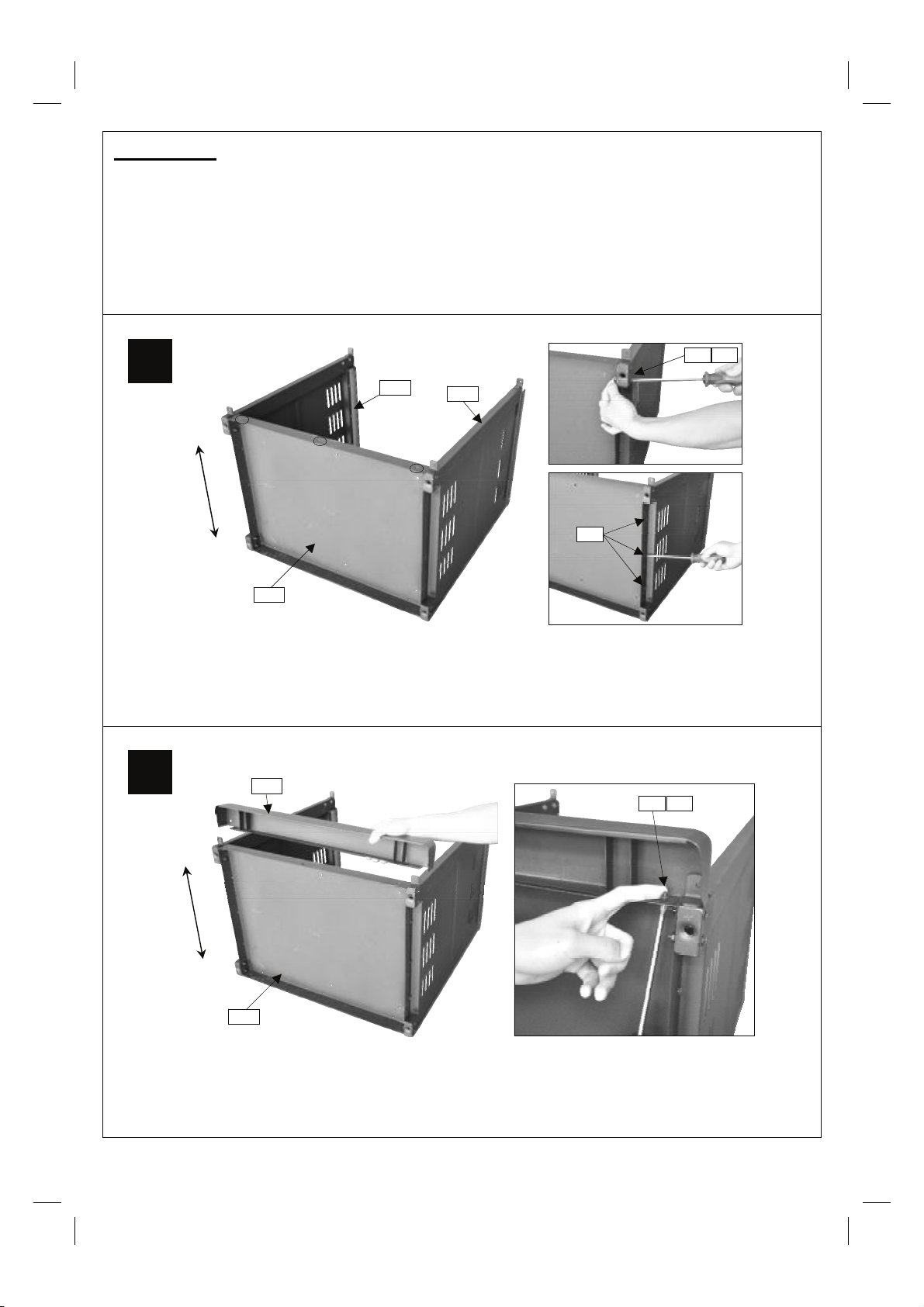

Attach the Left Cabinet Panel (C10) and Right Cabinet Panel (C11) to the Bottom Panel (C17)

using M6x35 Bolts (D1x8pcs) and M6 Nuts (D4x8pcs), ST4.0x10 Screw (D2x6pcs) as shown.

Please note: Three small holes on bottom panel should be located at the front of BBQ.

C17

Attach the Front Wheel Skirt (C18) onto the Bottom Panel (C17) using M4x10 Bolts

(D5x3pcs) and M4 Nuts (D6x3pcs) as shown.

C18

C10 C11

D5 D6

C17

Front

Rear

Front

Rear

Attach the Rear Panel (C16) to the cabinet assembly using ST4.0x10 Screws

(D2x7pcs) as shown.

C16

C19

Attach the Storage Unit (C19) onto the Bottom Panel (C17) using M6x15 Bolts

(D3x4pcs) as shown.

Bottom View

Attach the Drip Tray Left Bracket (B11) to the left cabinet panel using ST4.0x10 Screws

(D2x2pcs) as shown. Repeat above process for Drip Tray Right Bracket (B12).

Please note: Drip tray brackets will attach at a slight angle.

Front

B11

Attach the Upper Support (C12) to the left/right cabinet panel using M6x15 Bolts (D3x4pcs).

Rear

C12

Side view of drip tray bracket

Remove the retaining bolts from one Door Handle (C13), and then attach the door

handle onto the Left Door (C14) using the retaining bolts as shown.

Repeat above process for Right Door (C15).

Carefully turn the cabinet upside-down.

Attach the Lockable Casters (C21x2pcs) into the rear side holes of the left/right cabinet panel

and the Casters (C20x2pcs) into the front side holes of the left/right cabinet panel, as shown.

C21

C20

C13

C14

Carefully place the Barbecue Body (B1) onto the cabinet assembly and fix using

M6x15 Bolts (D3x4pcs) as shown.

Fit the doors to the cabinet by depressing the spring pins and placing into the cabinet.

Attach Side Shelf Panel (C4) onto Side Shelf (C3) using M6x15 Bolts (D3x2pcs) and M6 Nut

(D4x2pcs) as shown.

Connect the Hose and Regulator Assembly (B5) to the barbecue.

Ensure the mating faces of the connection are clean and not damaged. Do not use any sealing

tape, paste, or liquid on the connection. The nut must be tightened with the use of a spanner.

Do not use force which may damage the assembly.

C4 D3
