ASSEMBLY & INSTRUCTION MANUAL

INb1a019_UK

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY

846-103V70

SAFETY INSTRUCTIONS

1

1. Read the instruction manual carefully before use and keep it for

future reference. Failure to comply with the instructions can result

in death, serious injury or property damage.

2. For outdoor use ONLY! Do not use indoors.

3. Do not use below ground level.

4. The accesible parts can get very hot. Keep small children, elderly

people and animals away from the gas grill. Grill glove is adviced.

5. Do not move the product while it is alight.

6. Turn off the gas supply at the gas cylinder when the grill is not in

use or after use.

7. Any modification of the product, misuse or failure to follow the

instructions may be dangerous and will void the warrenty.

8. Check your gas grill anually for leaks. Check whether the hose

connections are tight and leak test them each time you reconnect

the gas cylinder.

9. Do not use the gas grill within 1 meter of combustible materials

or surfaces.

10. LP gas cylinders should not be placed directly underneath the grill.

11. Open the hook of the grill before lighting.

12. Do not leave the grill unateended when it is lit.

13. Be careful when opening the hook, as the hot steam inside is

released upon opening.

14. Do not cover the grill untill it has completely cooled down.

15. Do not use aerosols near the grill.

16. Do not store or use petrol or other flammable vapours or liquids in

the vicinity of this gas grill or any other appliance.

17. If you smell gas, turn off the gas supply at the gas cylinder;

extinguish any open flame; open the hood. If still have it, stop use.

2

PART LIST

No. No.

Pic. Pic.

Qty Qty

1

2

3

4

5A

5B

5C

6A

6B

7

8

9

10

11

12

13

14

15

21

A

B

C

E

1

1

2

3

1

1

2

1

1

2

2

2

1

1

1

2

2

32

4

1

1

1

2

G

H

J

F2

2

2

1

22

23

2

1

M4 *8 screw

+2(spare)

M5*12 screw

Top door pin

Bottom door pin

M3*nut

M3*10 screw

M3*10 self-tap screw

3

Note: Please do not tight the screws and nuts till all assembly steps completed.

Assembly

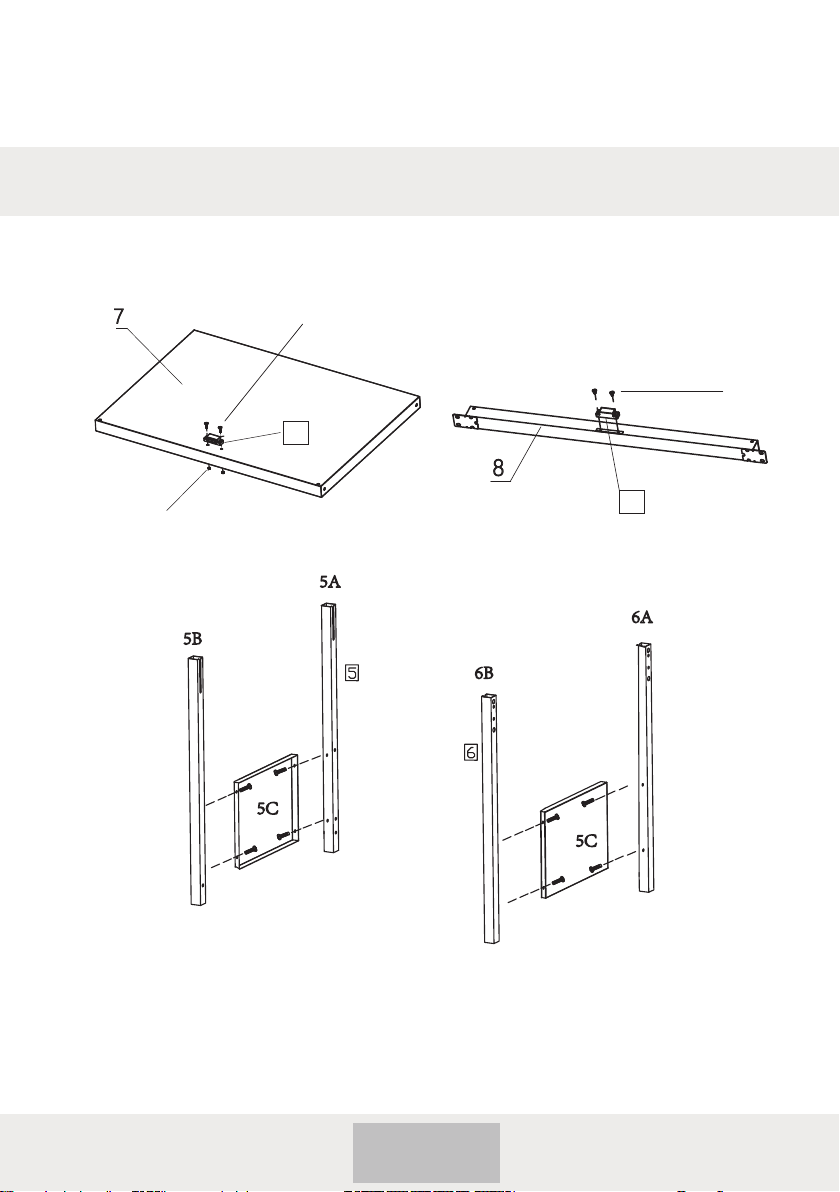

1. Assemble the LH and RH frame plates (5C) to LH & RH

legs (5A, 5B, 6A & 6B) with 8pcs M5 screws (B).

M3*10 st x 2

M3 nut x 2

M3 * 10 screw x 2

22

22

4

Assembly

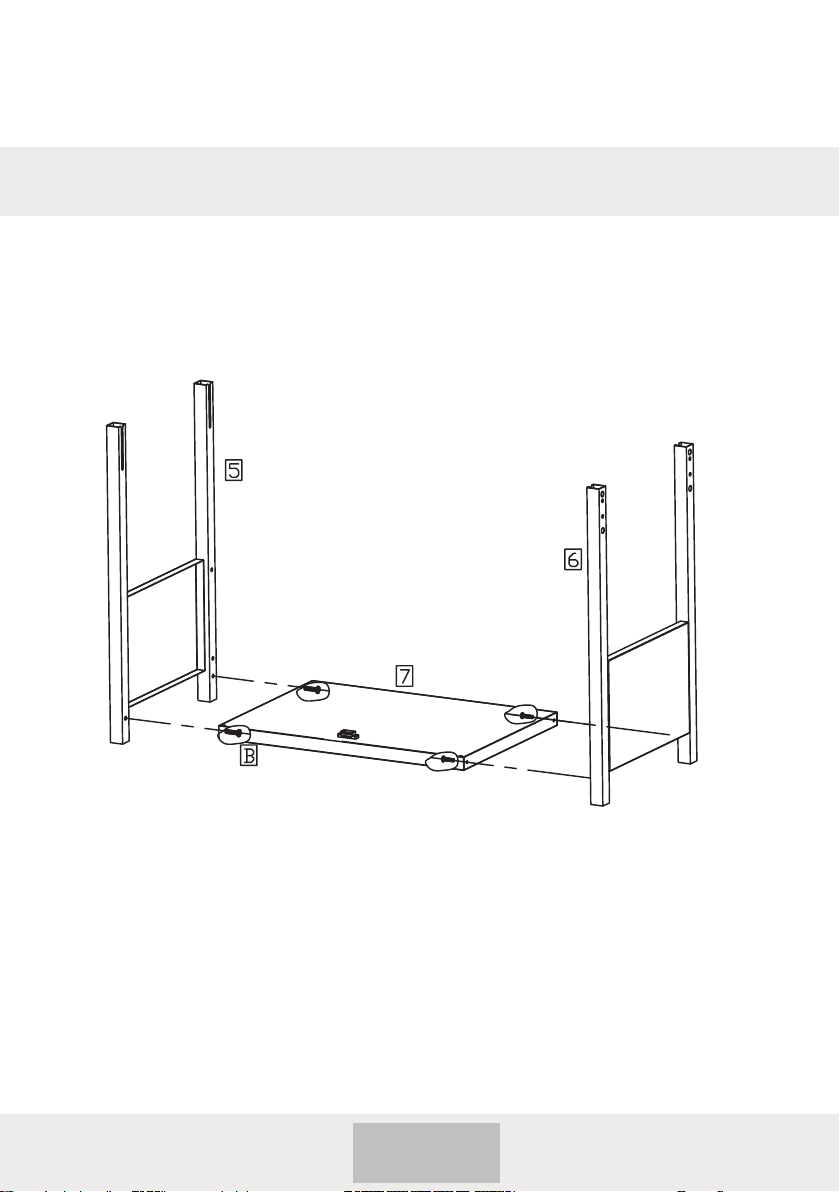

2. Assemble the LH and RH frame to bottom shelf (7)

with 4pcs M5 screws (B).

5

Assembly

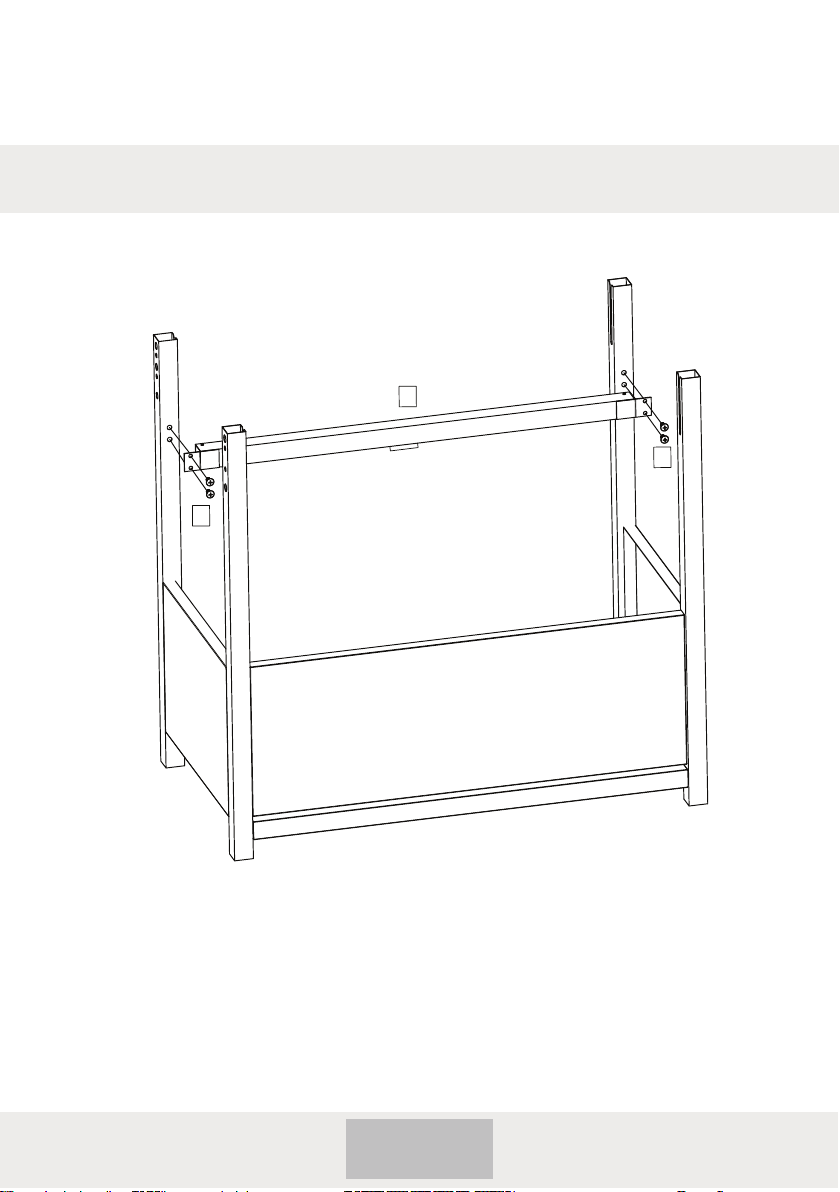

3. Assemble the back shelf (9) to the frames with 4 pcs M5

screws (B).

9

B

B

6

Assembly

8

B

B

4. Assemble the front beam (8) to the front of frames with 4pcs

M5 screws (B).

7

Assembly

5. Assemble the 4pcs wheels (10&11) to the end of frame legs.

Note: the 2pcs wheels with break (10) are always in the same

side.

8

Assembly

6. The body (1) is slided into the frame legs with 8 pcs pre-assembled

M5 screws (See detailed pic.). Tight screws after body slided into

position.

Note: make sure the 8pcs screws are pre-assembled before sliding.

Thermometer (23) is fixed to the lid by its own screw.
