Outwell ONS LIGHT UNIT SET Bedienungsanleitung
INNOVATIVE FAMILY CAMPING
UK: INSTRUCTION MANUAL
DE: GEBRAUCHSANWEISUNG
DK: BRUGERVEJLEDNING
FR: MODE D'EMPLOI
NL: GEBRUIKSAANWIJZING
CZ: NÁVOD K POUŽITÍ
NO: BRUKERVEILEDNING
ONS LIGHT
UNIT SET
MODEL: 651157
UK: Patent pending
DE: Patent angemeldet
DK: Patentanmeldt
FR: Brevet en instance
NL: Patent aangevraagd
CZ: Patent v řízení
NO: Patentsøkt
32
IMPORTANT
Read the instructions before using the appliance. Keep these instructions for future reference.
WARNINGS
• Do not stare into the operating lamp. This can be harmful to the eyes.
• The aluminium part of the light unit (silver coloured part) can get warm during, and after use, take care when handling the light units.
• When children are using the product, please ensure close supervision to reduce the risks.
• Please keep the product on a dry place to avoid rain, risk of electric shock.
• Do not expose product to fire or temperatures above 55°C, risk of explosion.
• Store the product in a cool and dry place, when not in use.

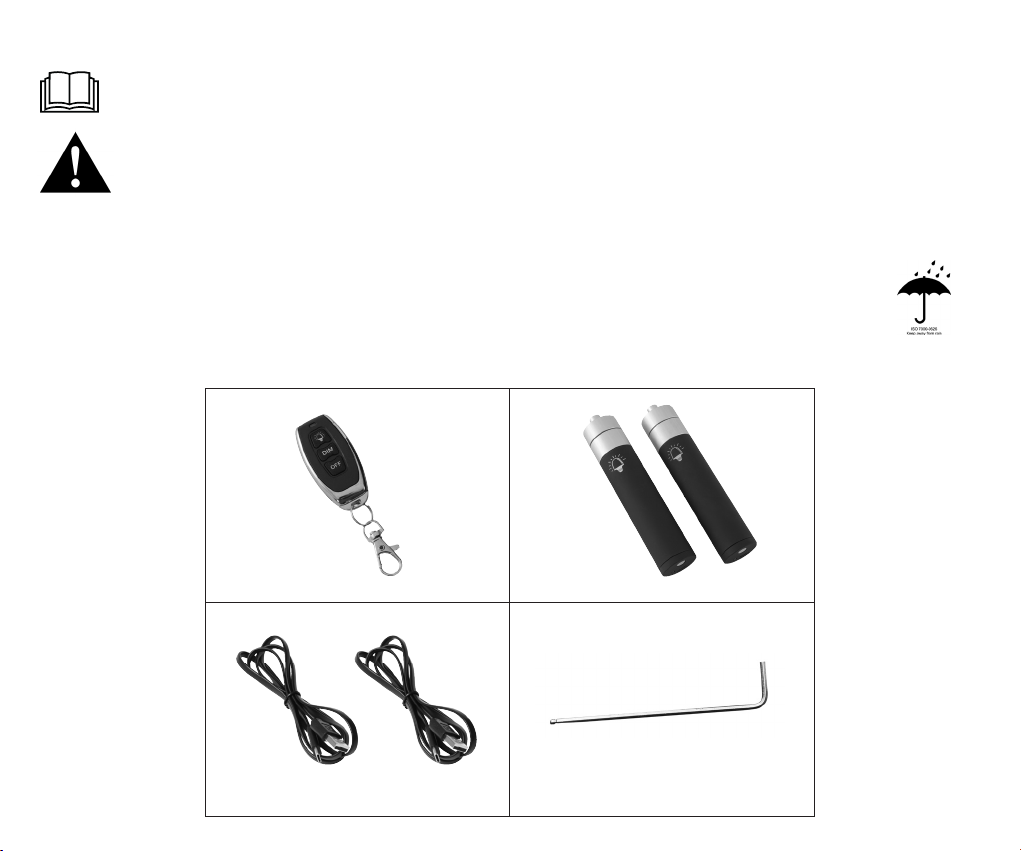

Product content
UK: INSTRUCTION MANUAL
3. Charging Cables
2. Light Units
4. 1.5 mm hex key
1. Remote Control
3

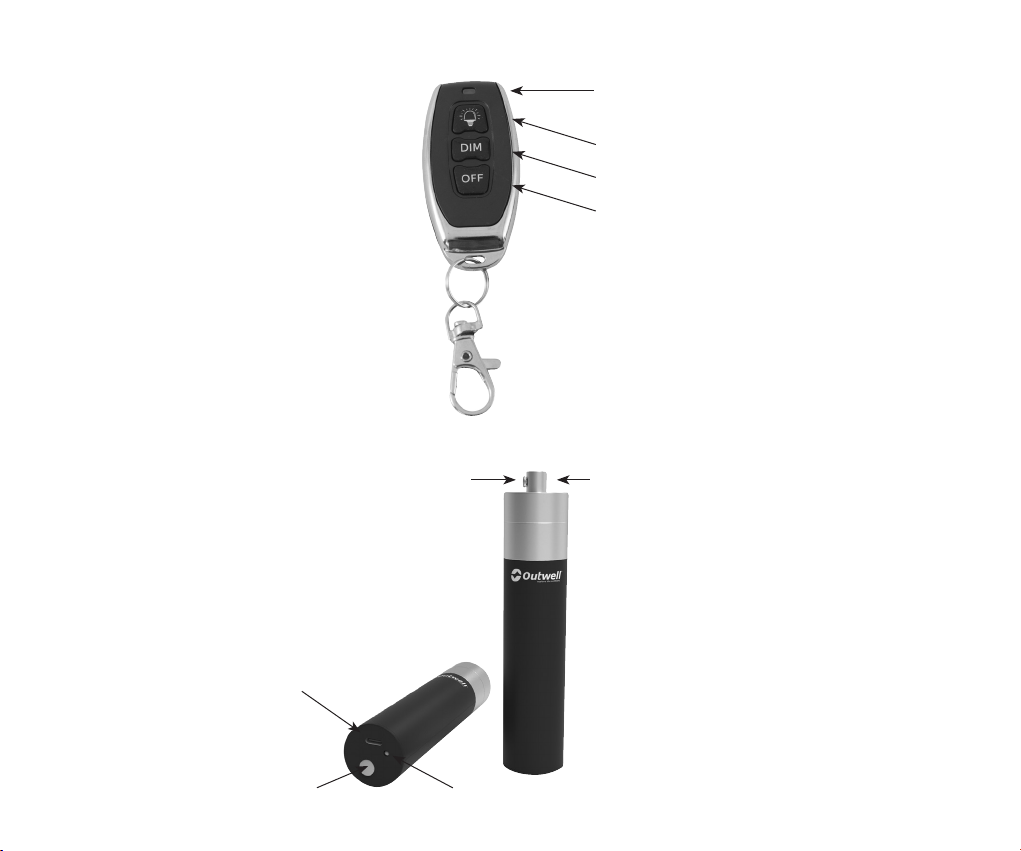

Overview of remote control
Overview of Light Unit
UK: INSTRUCTION MANUAL
5. ON button
10. Set screw
6. DIM button
11. Operating buttom
7. OFF button
12. Charge LED
13. USB C Charge port
8. Indicator LED
9. LED beading port/
light source output
54
UK: INSTRUCTION MANUAL
Overview of installation in tent/awning
14. Light Unit Pocket with Light Unit
installed at the front of tent/awning.
15. Light Unit Pocket with Light Unit
installed at the rear of tent/awning.
16. Opening for charging cable on
bottom of Light Unit pockets.
5
UK: INSTRUCTION MANUAL
Instructions for use
The ONS Light Unit Set can only be used together with ONS compatible Outwell tents or awnings.
The ONS Light Unit Set is required to use the Outwell Nightlight System on compatible tents or awnings.
Before first use, make sure the light units are fully charged. See section 3.
1. Installation in tent/awning
Place one ONS Light Unit in each pocket.
Insert the Light Beading end into the opening of the Light Beading port (9) on the light unit, until the Light Beading reaches a stop inside the
light unit. This means that the black part of the Light Beading will sit just below the outer surface of the light unit head. Do not use excessive
force to install the Light Beading into the Light Beading port (9). Make sure the set screw (10) is backed out enough to allow the Light Beading
to be inserted.
If needed use the set screw (10) to lock the Light Beading into the light unit. Take care not to overtighten the set screw. The set screw should only
just touch the Light Beading. In many circumstances, the Light Beading will stay in place, in the light unit, without tightening the set screw.

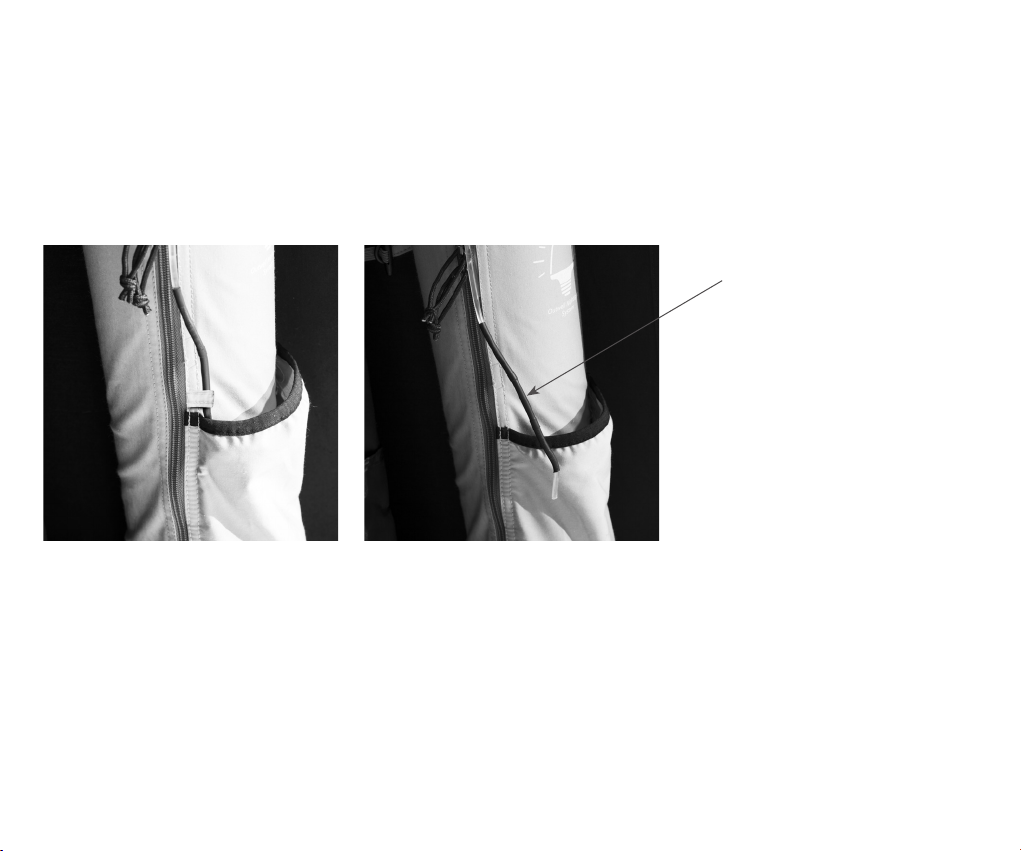

To install the ONS Light Units in the tent or
awning locate the ONS pockets.
Free the Light Beading from the retainer
inside the pocket.
1. 2. Light Beading
76
UK: INSTRUCTION MANUAL
2. Operating the Outwell Nightlight System
To operate the Outwell Nightlight System press the ON button (5) to switch on the light. Press the DIM button (6) to toggle between the three
brightness levels. Press the OFF button (7) to switch off the light. The Light Units will remember the last selected brightness level when you
switch them off by the remote. When you switch them on again, using the remote, they will start at that same selected brightness level.
3. Charging the light units
Insert the USB C end of the charging cables (3) into the USB C charge port (13) on the light units. Connect the other end of the charging cables
to a suitable USB power source.
The charging LED (12) will light red when charging. It will change to green light, when fully charged.
If desired, the light units can be charged while installed in the tent/awning. To do so, insert the charging cable (3) through the opening in the
bottom of the light unit pockets (16), and follow the charging instructions above.
4. Troubleshooting
Problem: Solution:
The lamps do not light when switched on by the remote: Check if the light unit can be switched on using the operating
button (11) on the bottom of the light unit. If this doesn’t work,
recharge the light units.
The remote doesn’t work. The indicator LED (8) is not flashing,
when pressing the buttons on the remote:
Replace the batteries in the remote.
See section 5.
The range of the remote have decreased,
or the buttons of the remote needs to be pressed hard
to operate:
Replace the batteries in the remote.
See section 5.
The two light units have come out of sync. Eg. one is on the
brightest setting, the other on a dimmed setting (this happens
when one light unit receives a signal from the remote,
but the other unit doesn’t):
Set one light unit to the brightest setting using the remote.
Set the other unit to the brightest setting using the operating
button (11) on the bottom of the unit.
The units are now in sync. again.
7
UK: INSTRUCTION MANUAL
5. Cleaning & maintenance
Visually check the general condition of the light units and the accessories on a regular basis.
The light units and remote can be cleaned with a damp cloth if necessary.
WARNING: Do not use sharp or hard objects or cleaning agents for cleaning as these may damage the product.
Replacing the remote batteries:
Reassemble the remote using reverse order
of the above. Take care to install all
components, so nothing gets pinched and
take care not to overtighten the screws.
Remove the three screws using a Philips 0
screwdriver.
Lift the PCB (green part) with the battery
holder out of the remote housing.
Slide the black battery retainer out of the
battery holder, using a fingernail.
Remove the two CR2016 batteries from the battery retainer and
replace with new batteries. Observe the polarity of the batteries.
Take care to dispose of the used batteries according to local regulations.
1.
4. 5.
2. 3.
98
UK: INSTRUCTION MANUAL
6. Storage
If the light units are not used for a long time, they should be recharged every 12 months.
Store the Light Unit Set in a cool and dry place.
7. Light Source: LED
The light source and control gear is not replaceable. Making the light source and control gear replaceable would
also introduce weak points in the construction, that could reduce the lifetime of the product.
8. Instruction for disassembling when the product has reached the end of its usable life
All disassembly can be done with hand, no tools required. Unless otherwise noted.
Unscrew top part of aluminium
head, counterclockwise.
Remove bottom cap, twisting it
gently clockwise until it comes
loose with an audible click.
Gently remove it, observing not
to damage the three-pin
connector attaching it the to the
upper inner circuit board.
Unscrew the lower part of the
aluminium head containing the
LED module, counterclockwise.
Take care not to damage the
wires.
Remove the two shell parts from
each other, by gently pressing
along the seams to release the
tabs holding them together.
Do not use excessive force.
Do this on both seams.
1. 2. 3. 4.
9
UK: INSTRUCTION MANUAL
9. Disposal
Light Units:
Follow the disassembly instructions in section 8.
Disconnect wires from circuit board by the white pin connectors.
Remove outer circuit board from bottom cap by using Philips 0 screwdriver.
Remote:
Follow the disassembly instructions in section 5.
Dispose of batteries as battery waste.
Dispose of circuit boards and LED module as electronic waste.
Dispose of plastic parts as plastic waste.
Dispose of aluminium parts as metal waste.
All according to local regulations.
Do not dispose of any batteries with general household waste.
10. Technical data
Light Unit:
3.7 V , 0.8A
Battery type: Lithium-ion
Battery: 3.7V 5.000 mAh
Input: 5V , 1A
Remote:
6V , 10mA
Battery type: 2 pcs CR2016
IP44
433 Mhz
Outwell Customer Service
e-mail: [email protected]
Tel.: +45 70 50 59 00
1110
WICHTIG
Lesen Sie die Gebrauchsanweisung, bevor Sie das Gerät benutzen.
Bewahren Sie diese Gebrauchsanweisung zum späteren Nachschlagen auf.
HINWEISE
• Blicken Sie nicht direkt in die Lampe, wenn sie in Betrieb ist. Dies kann den Augen schaden.
• Der Aluminiumteil der Leuchteinheit (silberfarbener Teil) kann sich während und nach dem Gebrauch erwärmen.
Gehen Sie daher vorsichtig mit den Leuchteinheiten um.
• Kinder dürfen das Produkt nur unter strenger Aufsicht verwenden, um die Risiken zu verringern.
• Bewahren Sie das Produkt an einem trockenen Ort auf, um Regeneinfluss und die Gefahr eines Stromschlags zu vermeiden.
• Das Produkt nicht dem Feuer oder Temperaturen über 55 °C aussetzen, es besteht Explosionsgefahr.
• Lagern Sie das Produkt an einem kühlen und trockenen Ort, wenn es nicht in Gebrauch ist.
Lieferumfang
des Produkts
DE: GEBRAUCHSANWEISUNG
3. Ladekabeln
2. Leuchteinheiten
4. 1,5 mm Sechskantschlüssel
1. Fernbedienung
