PACIFIC CYCLE IF Reach Bedienungsanleitung
IF Reach owner manual
IF Reach
Owner manual
IF Reach owner manual
Features
•Based on our performance Reach compact
folding bike, with added patented IF folding
mechanism.
•A folding bike with standard geometry and
riding position.
•Single-action, 5-second fold, no tools
required and no parts need to be removed.
•Folds as small as a folding bike with 16"
wheels.
•Can be rolled on wheels when folded, a
"never carry" bike.
•The gear ratio of full sized touring bikes -
24~96 inch.
•Comfortable ride front and rear suspension.
•Rigid small wheels for agile acceleration
and fast stopping.
•Small front area for better aerodynamics.
•Stiff frame and swing arm for high power
efficiency.
•Small folded size for convenient
transportation and storage.
2
Specification
Frame Pacific Reach AL7005 w/IF
folding system
Front Fork Pacific Reach AL7005 trailing
link suspension
Seat post Promax Alloy Post 31.6mm
Tires/Tubes Primo Comet 20x1-3/8 (37-
451)
Rims Alex DA22 32H w/GSW
Hubs Chosen Alloy 32H
Crankset Drive Line 53/39T 170mm
Cassette sprockets Sun Race 11-32T 9speed
Derailleur Microshift 2 x 9 speed
Shifters Microshift thumb-tap shifter
w/optical gear indicator
Saddle Velo
Pedals VP Folding
Suspension Unit Pacific Elastomer 120mm or Air
125mm
Handlebars Alloy butted 500mm
Stem Pacific IF stem
Brakes Tektro liner spring design
Options Carrying bag
The specifications are subject to change without notice.
IF Reach owner manual
3
CAUTION!
Never place your hands and fingers inside the
following folding part / mechanism.
IF Reach owner manual
Assembly Procedures
Step 1:
Opening the box –(1) a 99% assembled IF Reach, (2) seat / seat
post, (3) pedals.
4
IF Reach owner manual
Step 2:
With IF Reach on your, begin by raising the handle bars to close the
stem hinge. Secure the stem hinge by rotating the locking lever
toward the stem.
Note: Be sure to check the stem hinge is locked in place and secure.
5
IF Reach owner manual
Step 3:
To unfold the IF Reach; place your left hand on the handle bar left
grip with right hand holding the top tube near the seat tube.
Move your right hand away from you and then back in a clockwise
motion and your left hand slightly pushing the frame forward.
6
IF Reach owner manual
Step 3 (continued):
Use your right palm to push the top tube by the seat tube to put the frame
into position.
Secure the frame together by rotating the frame locking lever forward and
down into the front connector. Securely lock the locking lever in place by
securing the quick release clamp into the closed position.
7
Caution: Keep your hand
away from folding areas! Note: Do not grasp the rod when
rotating, possible fingers trapping.
IF Reach owner manual
Step 5:
Install the pedals. Turn the right
pedal clock-wise and the left pedal
counterclockwise to tighten.
8
Step 4:
Insert seat post to seat tube and clamp.
Assemble the seat onto seat post.
Note: Do not raise the seat post higher
than the minimum insertion mark (the
upper one).
IF Reach owner manual
How to fold.
Press pedals outer body inward toward
frame and rotate body upward to fold
compact.
While standing on the left side of the
bike; open the quick release lever.
With an open hand press the locking
lever toward the frame and upward. Rotate the locking lever toward the
rear of the bike to release the tension
in the locking system.
IF Reach owner manual
10

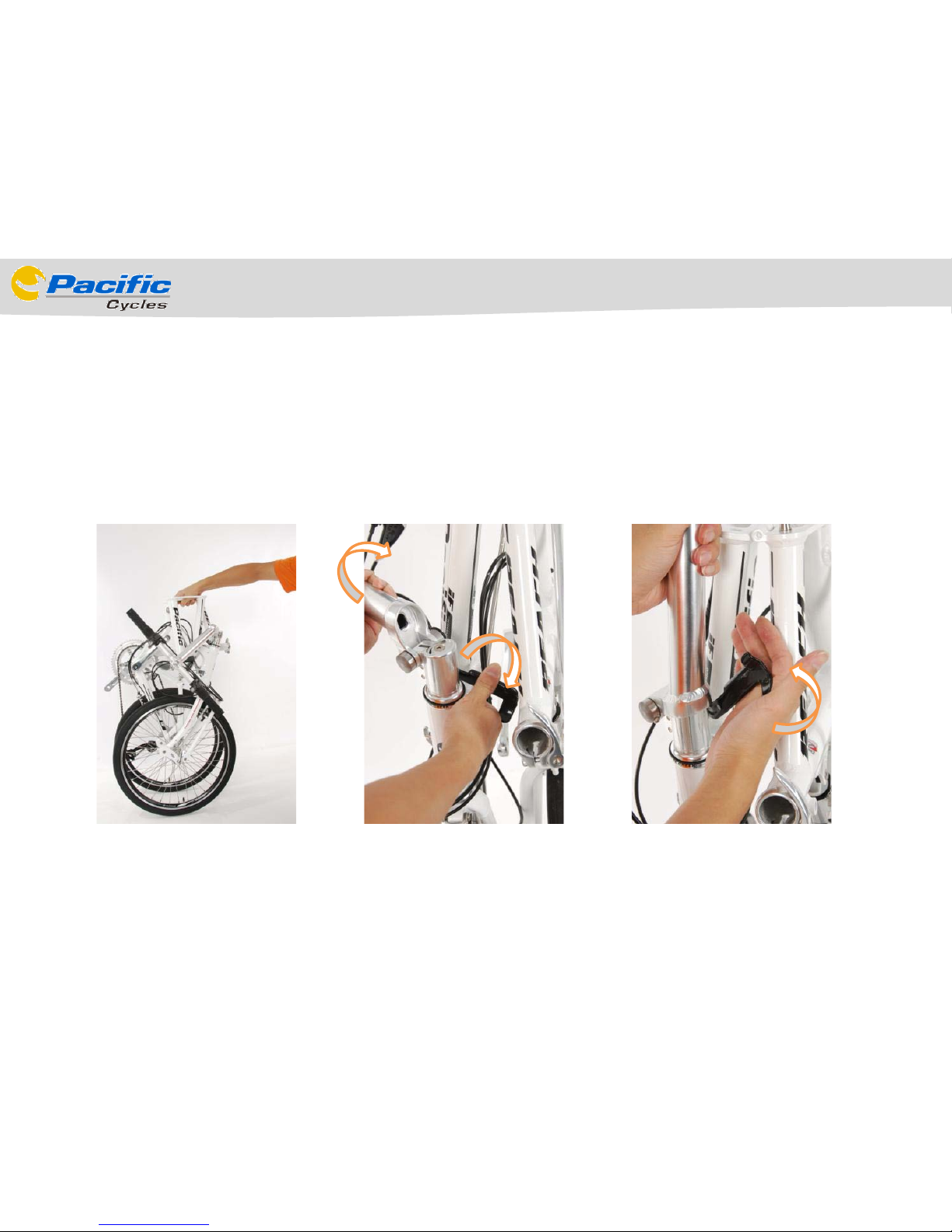

How to fold ..
Begin with your left hand on the left handle bar
grip and your right hand on the saddle.
The frame will hinge open by pulling your left hand
toward you and either pushing away with your
right hand or holding the rear in place.
Rock the frame upward
with your right hand and
pull the front backward
and together in one
motion so the wheels
meet and the magnet
catches.
