Packard Bell T19 Montageanleitung

Disassembly Manual EasyNote J2 series

Page 1 of 15

Disassembly Manual

T19

version change by date

0.1 Copied text from written notes DE 18-10-2005

0.2 Added photos & corrected layout DE 19-10-2005

Disassembly Manual EasyNote J2 series

Page 2 of 15

Battery & Dummy Cards

1. Remove the Battery.

2. Take out the (dummy) Memory Card.

3. Take out the (dummy) PCMCIA Card.

Figure 1

Bottom Cover

1. Remove 3 x A screws from the Bottom Cover (fig. 1).

2. Slide out the Bottom Cover as indicated.

Disassembly Manual EasyNote J2 series

Page 3 of 15

Figure 2

Hard Disk Drive

1. Remove 3 x A screws.

2. Slide out the Hard Disk Drive (HDD) Assembly.

3. Remove 1 x A screw from the HDD Mounting Bracket and remove it.

Figure 3

Disassembly Manual EasyNote J2 series

Page 4 of 15

4. Remove 4 x B screws from the HDD Bracket and remove it.

Figure 4

Memory Module

1. Remove the Memory DIMM(s) from the Memory Slot(s).

Optical Disk Drive

1. Push out the Optical Disk Drive (ODD).

2. Remove 1 x A screw from the ODD Mounting Bracket and remove it.

Figure 5

Disassembly Manual EasyNote J2 series

Page 5 of 15

3. Remove 2 x C screws from the ODD Bracket and remove it from the ODD.

Figure 6

4. Remove 1 x A screw and 1 x D screw from the ODD Frame and remove it.

Figure 7

CPU Module

1. Disconnect the CPU Fan Cable.

2. Remove 2 x A screws from the CPU Fan Assembly and remove it.

3. Remove 4 x A screws from the CPU Heatsink and remove it.

4. Unlock the CPU Module and remove it.

Disassembly Manual EasyNote J2 series

Page 6 of 15

Figure 8

Video Graphics Accelerator Board

1. Remove 2 x C screws from the Video Graphics Accelerator (VGA) Board.

2. Remove the VGA Board.

3. Disconnect the VGA Connectors from the VGA Board.

Figure 9

Keyboard

1. Push up the 3 Clips at the top of the Keyboard to unlock it.

2. Flip over the Keyboard and disconnect the Keyboard Flatcable.

Disassembly Manual EasyNote J2 series

Page 7 of 15

Figure 10

Mainboard

1. Remove 2 x E screws from the Rear of the unit.

2. Remove 2 x A screws from the Battery Connector Bracket and remove it.

Figure 11

3. Remove 2 x F hexbolts from the VGA Connector (right side of unit).

Figure 12

Disassembly Manual EasyNote J2 series

Page 8 of 15

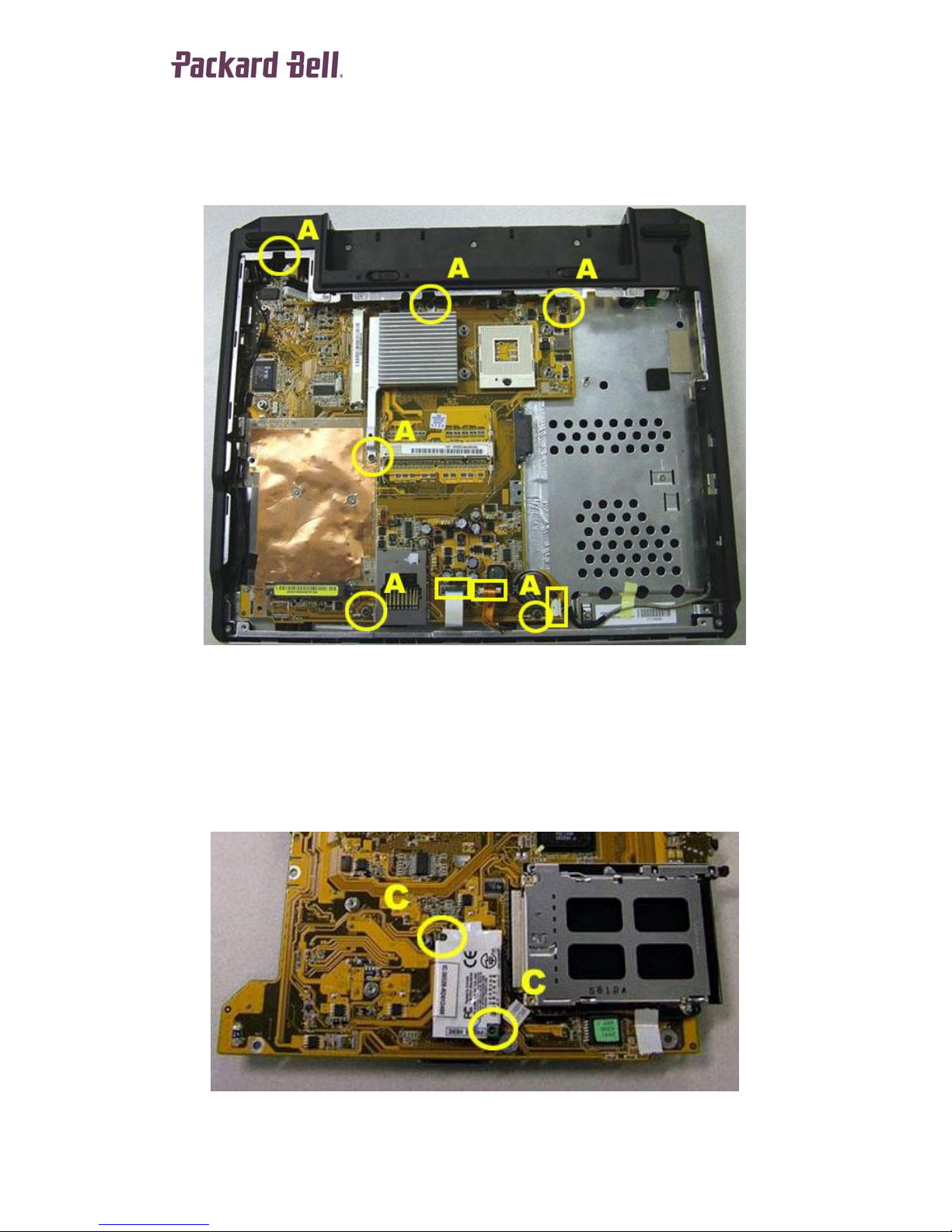

4. Remove 2 x A screws from the Chipset Heatsink and remove it.

5. Remove 4 x A screws from the Mainboard.

6. Disconnect the two (2) Flatcables from the Mainboard.

7. Slide the Mainboard out of the Bottom Base Assembly.

Figure 13

Modem

1. Remove 2 x C screws from the Modem.

2. Lift up the Modem and disconnect the Modem Cable.

3. Remove the Modem and Modem Cable.

Figure 14

Disassembly Manual EasyNote J2 series

Page 9 of 15

LCD Assembly

1. Push the Hinge Covers In + Up to release, then remove the Hinge Covers.

Figure 15

2. Push the LCD Assembly all the way open.

3. Remove 2 x E screws and Grounding Cable from the Left LCD Hinge.

4. Remove 2 x E screws and Grounding Cable from the Right LCD Hinge.

5. Take away the LCD Assembly and LCD Data Cables.

Figure 16

LCD Front Bezel

1. Remove four (4) Screw Covers from the LCD Front Bezel.

2. Remove 4 x E screws from the LCD Front Bezel.

3. Unclip the LCD Front Bezel from the LCD Assembly.

Disassembly Manual EasyNote J2 series

Page 10 of 15

Figure 17

LCD Assembly

1. Remove 2 x C screws from the Inverterboard.

2. Disconnect the Inverterboard Cables.

3. Remove the Inverterboard.

4. Remove 2 x E screws from the Right & Left LCD Bracket.

5. Remove the LCD Panel.

Figure 18

6. Remove 2 x A screws from the Right & Left LCD Hinges and remove them.
