Panasonic CQ-RDP102S Bedienungsanleitung

ORDERNo. ACED020485C3

AUTOMOTIVE CONSUMERELECTRONICS

CQ-RDP102S

CD Player / Receiver with CD Changer Control

SPECIFICATIONS

Specification*

General

Power Supply DC 12V (11V - 16V),

Test Voltage14.4V

NegativeGround

ToneControls Bass ; ±12dB at 100Hz

Treble; ±12dB at 10kHz

Current Consumption Less than2.5A(CD playmode,

0.5W×4ch)

MaximumPower Output 45W×4ch(at 4 )

Power Output 20W×4(DIN45 324, at 4 )

Speaker Impedance 4-8

Pre-AmpOutput Voltage 2V (CD mode)

Pre-AmpOutput Impedance 600

FM StereoRadio

FrequencyRange 87.5- 108MHz

UsableSensitivity 6dB/ V (S/N 30dB)

LW Radio

FrequencyRange 153 - 279kHz

UsableSensitivity 32dB/ V (S/N 20dB)

MWRadio

FrequencyRange 531 - 1,602kHz

UsableSensitivity 28dB/ V (S/N 20dB)

CD Player

Sampling Frequency 8 times oversampling

Pick-UpType Astigma 3-beam

Light Source SemiconductorLaser

Wavelength 780nm

FrequencyResponse 20Hz to20,000Hz (±1dB)

Signal toNoise Ratio 96dB

Dimensions** 178×50×150mm

Weight** 1.4kg

*Specificationsand thedesign are subject topossible

modification without notice duetoimprovements.

** Dimensionsand Weight shownare approximate.

2002 Matsushita Communication Industrial Co., Ltd. All rights

reserved. Unauthorized copying and distribution isaviolation of

law.

1. FEATUERS

-PLL (Phase Locked Loop) synthesized tuning.

-18-FM, 6-AMpresets with preset scan

-RDS(RadioData System) reception.

-Digital servo for reliableCD playback.

-Removableface plate.

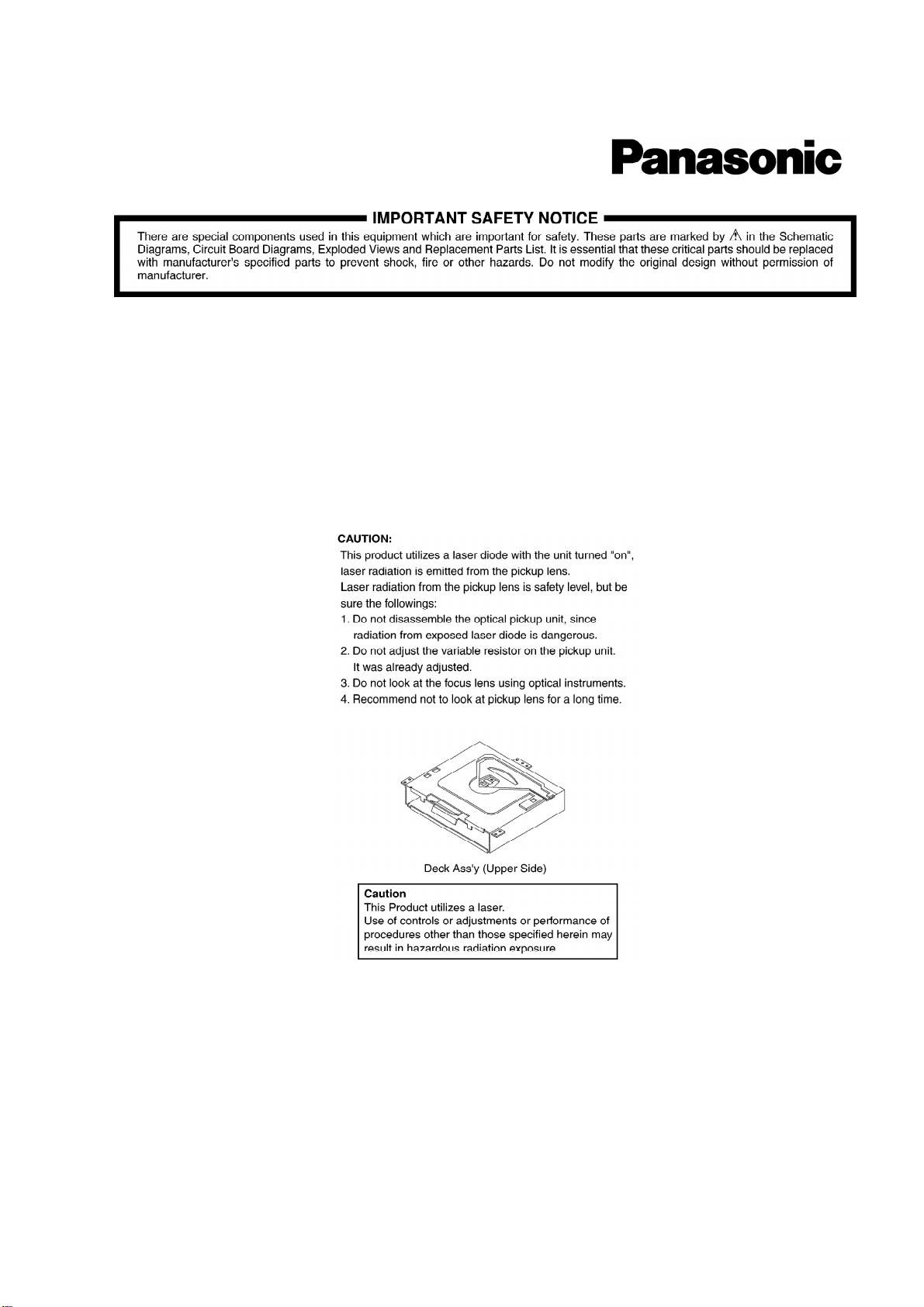

2. LASER PRODUCTS

3. REPLACEING THE FUSE

Use fuses of the same specifiedrating (15A). Using different substitutes orfuses withhigher

ratings, orconnecting the product directlywithout a fuse, couldcause fire ordamage tothe

stereounit.

4. MAINTENANCE

Yourproducts is designedand manufacturedtoensure a minimumof maintenance. Use a dry, a

soft clothforroutine exteriorcleaning. Neveruse benzine, thinnerorothersolvents.

5. NOTES

[RADIO BLOCK]

Donot align the AM/FM package block. Whenthe package block is necessary, it will be supplied

alreadyalignedat the factory.

[CD DECK BLOCK]

This model has no servoalignment points because microcomputercontrols the servocircuit.

6. DIMENSIONS

7. WIRING CONNECTION

8. BLOCK DIAGRAM

9. TERMINALS DESCRIPTION

9.1. MainBlock

IC600 : C2CBHF000217

Pin No. Port Descriptions I/O(V) FM(V) AM(V) CD (V)

1NC (Connecting to ground) - 0 0 0

2 NC (Connecting to ground) - 0 0 0

3 NC (Connecting to ground) - 0 0 0

4AVSS Analog ground - 0 0 0

5AF MUTE AF mute O 5.1 5.1 5.2

6AMP-CNT Power Amp. stand-by O 5.1 5.1 5.2

7AVREF Reference voltage - 5.1 5.1 5.2

8 CD-MISO CD data I 0 0 0

9CD-MOSI CD data O 0 0 2.4

10 CD-SCK CD clock O 0 0 5.1

11 CD.C DATA CD.CH data I 0 0 0

12 NC No connection - - - -

13 CD.C CLK CD.CH data shift clock I 0 0 0

14 REMOUT CD.CH remote cont. O 5.0 5.0 5.0

15 BZOUT Beep output O 0 0 0

16 PLL-MISO Data from PLL I 5.1 5.1 5.1

17 PLL-MOSI Data for PLL O 0 0 0

18 PLL-CLK Clock for PLL O 5.1 5.1 5.2

19 PLL-CE PLL chip enable O 0 0 0

20 NC No connection - - - -

21 NC No connection - - - -

22 NC No connection - - - -

23 NC No connection - - - -

24 CD-STB CD strobe O 0 0 5.1

25 CD-A0 CD address 0 O 0 0 4.4

26 CD-RST CD reset O 0 0 5.1

27 CD-RFOK CD RFOK signal I 0 0 5.0

28 CD-LOCK CD lock signal I 0 0 5.0

29 CD-LIMIT CD limitsw I 0 0 5.1

30 CD-SW2 CD SW2 I 5.1 5.1 0

31 NC No connection - - - -

32 NC No connection - - - -

33 Vss Ground - 0 0 0

34 S.LED SecurityLED on/off O 0 0 0

35 ST-IND FMstereo detection I 5.0 5.1 5.1

36 IC2-CLK Electronicvolumeclock O 5.1 5.1 5.2

37 IC2-DATA Electronicvolumedata I/O 5.1 0 5.2

38 NC No connection - - - -

39 NC No connection - - - -

40 NC No connection - - - -

41 LCD-MOSI LCD data output O 0 0 0

42 LCD-MISO LCD data input I 5.0 5.0 5.0

43 LCD-CLK LCD clock O 0 0 0

44 LCD-CE LCD chip enableoutput O 0 0 0

45 POWER LED Pilotlamp on O 0 0 0

46 ANT.CONT Motor antennacontrol O 5.1 5.1 0

47 NC No connection - - - -

48 NC No connection - - - -

49 REM-IN_SUB Remote control sig. sampling I 0 4.4 4.4

50 NC No connection - - - -

Pin No. Port Descriptions I/O(V) FM(V) AM(V) CD (V)

51 NC No connection - - - -

52 NC No connection - - - -

53 NC No connection - - - -

54 TEL-MUTE Notused - - - -

55 PANEL-DET Panel detect I 0 4.8 4.9

56 CD-ON CD power control O 0 0 5.1

57 PWR CNT Power control O 5.0 5.0 5.0

58 ACC-DET ACC detection I 5.1 5.1 5.1

59 RDSDATA RDSdata I 2.5 0 0

60 /RESET Reset input I 5.1 5.1 5.1

61 REM Remocon data input I 4.4 4.4 4.4

62 BATT Batterydetection I 5.1 5.1 5.1

63 RDSCLK RDSclock I 2.5 0 0

64 CD.C.STB CD.CH data strobe I 0 0 0

65 PWR-IC-MUTE Mute control O 5.1 5.1 5.1

66 CD-INSW1 CD insertdetection SW I 0 0 0

67 VSS Ground - 0 0 0

68 VDD +5Vpower supply - 5.1 5.1 5.1

69 X2 Crystal oscillator - 3.1 3.1 3.1

70 X1 Crystal oscillator - 2.2 2.2 2.2

71 Vpp (Ground pull-down) - 0 0 0

72 SUB-X2 Crystal oscillator - 3.1 3.1 3.1

73 SUB-X1 Crystal oscillator - 2.5 2.5 2.5

74 AVDD +5Vpower supply - 5.1 5.1 5.1

75 AVREF (Connecting to VDD) - 5.1 5.1 5.1

76 VSM_DET S-meter detection I 0 0 0

77 INITA Initial valueA I 0 0 0

78 INITB Initial valueB I 5.1 5.1 5.1

79 INITC Initial valueC I 5.1 5.1 5.1

80 INITD Initial valueD I 0 0 0

Note 1 :

Voltage measuerments are withrespect toground, witha voltmeter(internal resistance : 10M

ohms).

9.2. DisplayBlock

IC901 : YEAMLC75854T

Pin No. Port Descriptions I/O (V) (V)

1-8 SEG1-8 LCD segment O 2.5

9-35 SEG9-35 LCD segment O 2.5

36-39 NC No connection - -

40-43 COM1-4 LCD common O 2.5

44-49 KS1-6 Keydata output O 0.9

50-54 KI1-5 Keydata input I 0

55 TEST (Connecting to ground) - 0

56 VDD +5Vpower supply - 5.1

57 VDD1 Ground through capacitor - 3.3

58 VDD2 Ground through capacitor - 1.7

59 Vss Ground - 0

60 OSC CR oscillator - 3.9

61 DO Keydata output O 4.4

62 CE Chip enable I 0

63 CLK LCD clock I 0

64 DI LCD data input I 0

9.3. CD Servo Block

IC1 : C1BB00000665

Pin No. Port Descriptions I/O Vol.(V)

1D.GND Digital logicGround - 0

2 RFOK RFOK outputsignal O 5.0

3 /RST System reset I 5.1

4A0 Command/Parameter specification I 4.5

5 /STB Serial data strobe I 5.1

6 /SCK Data shift clock I 5.1

7SO Serial data O 0

8SI Serial data I 2.4

9XTALEN (Connecting to ground) - 0

10 D.VDD Digital logicpower supply - 5.0

11 DA.VDD DAC power supply - 4.8

12 R_OUT Audio R ch O 2.4

13 DA.GND DAC ground - 0

14 REGC Bypass capacitor for SCF regurator - 2.5

15 DA.GND DAC ground - 0

16 L_OUT Audio L ch O 2.4

17 DA.VDD DAC power supply - 4.8

18 R+ Notused - -

19 R- Notused - -

20 L- Notused - -

21 L+ Notused - -

22 X.VDD Crystal OSC power supply - 5.0

23 /XTAL Crystal OSC terminal - 2.4

24 XTAL Crystal OSC terminal - 2.2

25 X.GND Crystal OSC ground - 0

26 D.VDD Digital logicpower supply - 5.0

27 EMPH Notused - -

28 FLAG Notused - -

29 DIN DAC serial data I 2.6

30 DOUT DAC serial data O 2.6

31 SCKIN DAC shift clock I 2.7

32 SCKO DAC shift clock O 2.7

Pin No. Port Descriptions I/O Vol.(V)

33 LRCKIN DAC LRCK signal I 2.5

34 LRCK DAC LRCK signal O 2.5

35 HOLD/WDCK Notused - -

36 TX Notused - -

37 D.GND Digital logicGround - 0

38 C16M Notused - -

39 LIMIT (Connecting to VDD) - 5.0

40 D.VDD Digital logicpower supply - 5.0

41 LOCK EFMSYNC detection O 5.0

42 RFCK Notused - -

43 MIRR/WFCK Notused - -

44 PLCK Notused - -

45 D.GND Digital logicGround - 0

46 C1D1 Notused - -

47 C1D2 Notused - -

48 C2D1 Notused - -

49 C2D2 Notused - -

50 C2D3 Notused - -

51 D.VDD Digital logicpower supply - 5.0

52 PACK Notused - -

53 TSO Notused - -

54 TSI (Connecting to ground) - 0

55 /TSCK (Connecting to ground) - 0

56 TSTB (Connecting to ground) - 0

57 D.GND Digital logicGround - 0

58 TEST0 (Connecting to ground) - 0

59 TEST1 (Connecting to ground) - 0

60 ATEST Notused - 2.1

61 A.GND Analog logicGround - 0

62 FD Focusdrive O 2.6

63 TD Traking drive O 2.5

64 SD Sled drive O 2.5

65 MD Spindledrive O 2.6

66 DAC0 Notused - -

67 DAC1 Notused - -

68 DAC2 Notused - -

69 DAC3 Notused - -

70 A.VDD Analog logicpower supply - 5.0

71 EFM EFMsignal O 2.7

72 ASY Reference voltagefor EFMcomp. I 2.5

73 C3T Capacitor terminal for 3Tdetection - 2.7

74 RFI RF for EFMdata generation I 2.5

75 AGCO RF signal output(after gain adjustment) O 2.5

76 AGCI RF-AGC amp input I 2.5

77 RFO RF summing amp output O 2.8

78 EQ2 C/R terminal for RF amp equalizer - 2.6

79 EQ1 C/R terminal for RF amp equalizer - 0.5

80 RF- RF summing amp inverted input I 2.4

81 A.GND Analog logicGround - 0

82 A Photo detector Ainput I 2.7

83 C Photo detector C input I 2.5

84 B Photo detector B input I 2.7

85 D Photo detector D input I 2.5

86 F Photo detector F input I 3.0
