Panasonic SL-CT700GD Bedienungsanleitung

AD0212161C3

PortableCD Player

SL-CT700GD/ SL-CT700GK

Colours

(A)...................BlueType

(R)...................RedType

(S)...................SilverType

(W)..................White Type

SPECIFICATIONS

1. Accessories

-ACadaptorforSL-CT700GD

(N0JCCE000005)..........................................1pc.

-ACadaptorforSL-CT700GK

(N0JCCE000001)..........................................1pc.

-Stereoearphones

(L0BAB0000170)...........................................1pc.

-Wiredremote control

(N2QCBD000028).........................................1pc.

-External batterycase

(RFA1821-H)..................................................1pc.

-Rechargeablebatteries (withcase)

(RP-BP61GY-S).............................................2pcs.

-Soft case

(RFC0071-H)..................................................1pc.

2. Location of Controlsand Connection toOther

Equipment

3. Precaution of LaserDiode

Caution:

Thisproduct utilizes alaserdiodewiththeunitturnedon, invisible

laserradiation isemittedfromthepick-up lens.

Wavelength:780 nm

Maximumoutputradiation powerfrompick-up:100 W/VDE

Laserradiation fromthepick-up lensissafetylevel, butbesurethe

followings:

1. Donotdisassembletheoptical pick-up unit, since radiation from

exposedlaserdiodeisdangerous.

2. Donotadjust thevariableresistoron thepick-up unit. Itwas

alreadyadjusted.

3. Donotlookat thefocuslensusing optical instruments.

4. Recommend nottolookat pick-up lensforalong time.

4. Handling Precautions forTraverse Deck

Thelaserdiodeinthetraverse deck (optical pick-up)may break downduetopotential difference

causedbystaticelectricityofclothes or humanbody.

So, becareful ofelectrostaticbreakdownduring repairofthetraverse deck (optical pick-up).

4.1. Handling oftraverse deck (optical pick-up)

1. Donotsubject theoptical pick-up tostaticelectricityas itis

extremelysensitivetoelectrical shock.

2. To protect thelaserdiodeagainst electrostaticbreakdown, be

surethat theshortland oftheflexibleboard(FFCboard)shouldbe

short-circuitbysolderbeforeinserting ashortpinorsimilarobject

intothetipoftheflexibleboard. / (Referto Fig. 4-1. )

3. Take carenottoapplyexcessivestress totheflexibleboard(FFC

board).

4. Donotturnthevariableresistor(laserpoweradjustment). Ithas

alreadybeenadjusted. (Referto Fig. 4-1. )

Fig. 4-1.

4.2. Caution whenreplacing traverse deck

Thetraverse deck short-circuitsthefoil (B) toprotectthelaserdiodeagainstelectrostatic

breakdown. Besuretocutthefoil (B) beforemaking connection. Take carenottomake contact

withcutting pointeachother. (Referto Fig. 4-1. )

4.3. Grounding forelectrostaticbreakdownprevention

4.3.1. Humanbodygrounding

Use theanti-staticwriststraptodischargethestaticelectricityfrom your body. (Referto Fig. 4-2.

)

Fig. 4-2.

4.3.2. Worktablegrounding

Putaconductive material (sheet) or steel sheeton thearea wherethetraverse deck (optical pick-

up)isplaced, and ground thesheet. (Referto Fig. 4-3. )

Fig. 4-3.

Caution:

Thestaticelectricityofyourclothes will notbegroundedthrough

thewrist strap.

Sotake carenottolet yourclothes touchthetraverse deck (optical

pick-up).

5. Operation Checks and Component Replacement /

Procedures

-Thissection describes procedures forchecking theoperation of

themajorprintedcircuitboardsand replacing themain

components.

-Forreassemblyafteroperation checks orreplacement, reverse the

respectiveprocedures. Special reassemblyprocedures are

describedonlywhenrequired.

5.1. Checking forthemainP.C.B.

5.1.1. Checking for themainP.C.B. (A side)

-Check themainP.C.B. (Aside) as shownbelow.

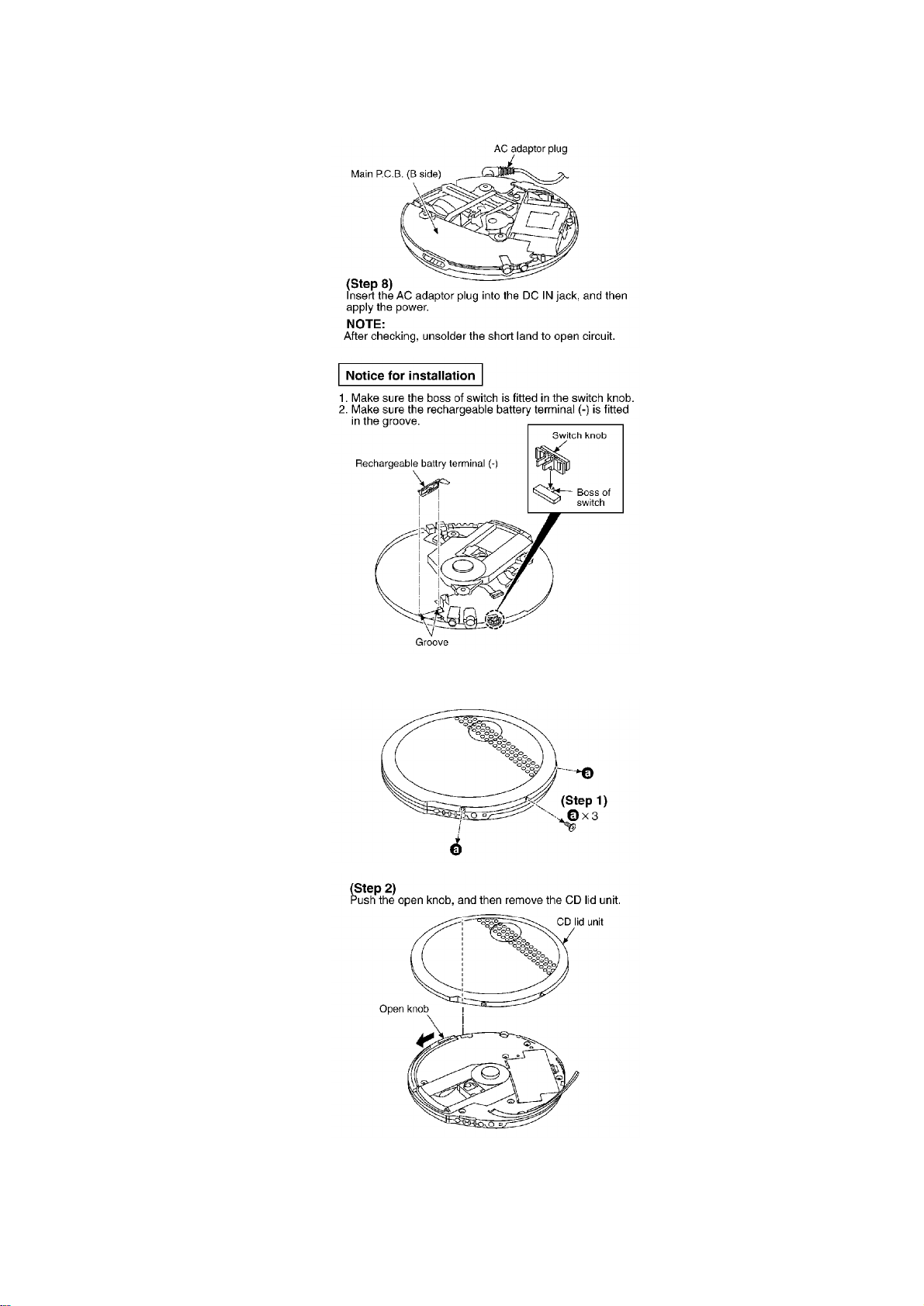

5.1.2. Checking for themainP.C.B. (B side)

-Follow the(Step1) -(Step5) ofitem5.1.1.

-Check themainP.C.B. (Bside) as shownbelow.

5.2. ReplacementfortheCD lidunit, shaft and axleholeboard

5.3. Replacementforthetraverse motorand optical pick-up

-Follow the(Step1) -(Step4) ofitem5.1.1.
