Panasonic AW-RP60G Bedienungsanleitung

DVQP2221ZA

W1219JW0 -PS

ENGLISH

For details of operating Remote Camera Controller AW-RP60G, please visit

the Panasonic website (https://pro-av.panasonic.net/manual/en/index.html),

and refer to the Operating Instructions (HTML or PDF).

Read this document when using the AW-RP60G Remote Camera Controller in

conjunction with AW-UE150 Series 4K Integrated Cameras.

Operating Guide

Remote Camera Controller

Model No. AW-RP60G

Connecting the Unit to AW-UE150 Series Cameras 3

Connection Example 3

Connections 4

Compatible Functions List 5

Menu (when AW-UE150 is connected) 7

Remote Controller Menu List 7

PAINT 8

SCENE 8

SHUTTER 8

CHROMA 9

GAIN 9

WHITE BALANCE 10

GAMMA 10

BLACK GAMMA 11

DRS 11

KNEE 12

WHITE CLIP 12

DTL 13

DOWNCON DTL 14

MATRIX 14

COLOR CORRECT 15

DNR 17

PEDESTAL 17

BRIGHTNESS 18

FUNCTION 19

USER ASSIGN 19

CAMERA INFO 19

PTZ INFO1 20

PTZ INFO2 20

HOUSING 20

CROP 20

MAINTENANCE 21

RP SETTING 21

RP INITIALIZE 21

RP VERSION 21

GPI TALLY 21

GPIO CAM SEL 21

GPO CAM.G 21

GPI PMEM 21

GPI PMEM.G 21

PMEM/TMEM 22

PMEM LIST 22

SETTING 22

SYSTEM 23

CAMERA 23

CONNECT SETTING 23

MANUAL IP SET/USER AUTH 23

AUTO IP SET 23

RP IP SET 23

TRACKING 23

- 2 -

Table of Contents

Connecting the Unit to AW-UE150 Series Cameras

Connection Example

Serial connection with AW-UE150

12 V IN

IR ID AUDIO IN

RS-422

SERVICE

MONI OUT 12G SDI OUT

3G SDI OUT G/L IN

LAN

LINK ACT

OPTICAL

External DC

power supply

LAN cable

(straight cable or cross cable)

PoE compatible switching hub

or injector

<RS-422> connector

LAN cable (straight cable)

4K Integrated Camera

AW-UE150

IP connection with AW-UE150

12 V IN

IR ID AUDIO IN

RS-422

SERVICE

MONI OUT 12G SDI OUT

3G SDI OUT G/L IN

LAN

LINK ACT

OPTICAL

External DC

power supply

LAN cable

(straight cable or cross cable)

LAN cable

(straight cable or cross cable)

PoE compatible

switching hub

connector

4K Integrated Camera

AW-UE150

- 3 -

Connecting the Unit to AW-UE150 Series Cameras

Connections

Set the connection setting to “Serial” or “LAN” in the [CONNECT SETTING] menu.

&211(&76(77,1*

CAM SEL

&$0

6HULDO

121

CONNECT

MODE

CAM1 CAM3 CAM4CAM2

CAM5 CAM7 CAM8CAM6

$:8(

When connecting, observe the following points.

Serial connection

Connect the <SERIAL CONT 1 to 5> connector on this unit to the <RS-422> connector on the AW-UE150 using a LAN

cable (sold separately).

Use a straight cable (category 5e or higher; up to 1000 m (3280 ft) in length) for the LAN cable.

Do not connect a cable for PoE supply to the <SERIAL CONT 1 to 5> connector of this unit.

LAN connection

Connect the <IP CONT> connector on this unit to the <LAN LINK/ACT> connector on the AW-UE150 using a LAN cable

(sold separately).

Use a straight cable or cross cable (category 5e or higher; up to 100 m (328.0 ft) in length) for the LAN cable (STP).

Configure the camera IP address and port number settings of the connection destinations in [SYSTEM] menu as well.

This unit can be powered using PoE. Use a switching hub with PoE support.

For details on switching hubs and PoE injectors that have been verified to support PoE, consult with your dealer.

- 4 -

Connecting the Unit to AW-UE150 Series Cameras

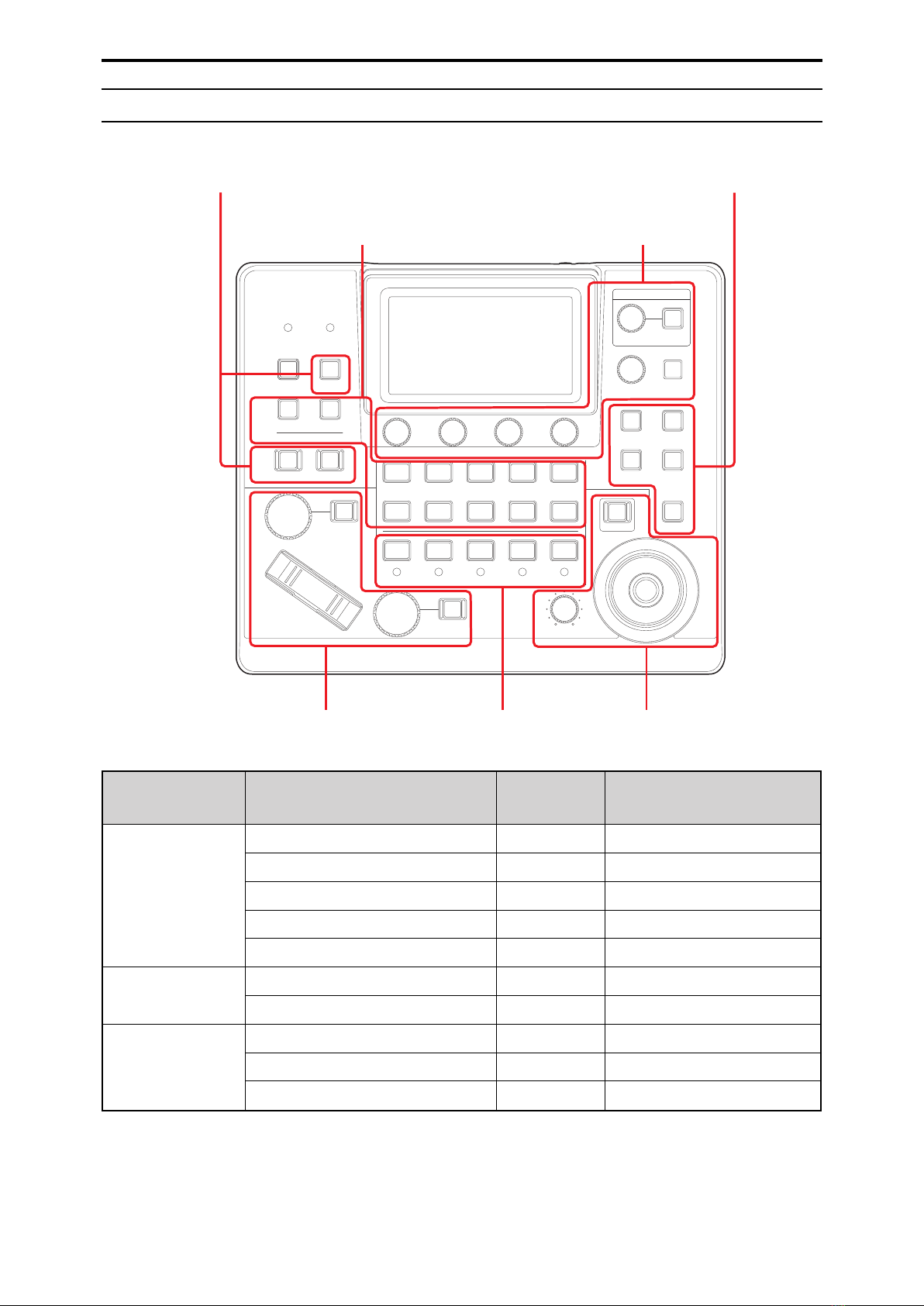

Compatible Functions List

There will be functions that are limited or disabled for some of the unit's buttons, dials, and other controls. Be sure to refer to the following

table.

ヱヰヸユンヮユワヶヴヵヰンユュユロユヵユヱンユヴユヵモヸャモヶヵヰリンリヴ・ヰヰヮョヰヤヶヴモヶヵヰヱヵ・チヴヱユユュ

ロヰヸラリ

ヤモヮユンモチヴユロユヤヵリヰワヱンユヴユヵチヮユヮヰンヺチヴユロユヤヵリヰワ

ヰヵモョ

ヸリュユ

ヵユロユ

モャャョヒ

ヒビピフブヒビピフブプヘベペヒパ

ョビョピョフヴユロユヤヵヰワバヰョョヤモヮユンモチヰヴュユヹリヵョブヶヴユンチヒヶヴユンチビヶヴユンチピユワモャロユヴラリョヵヱモワヵリロヵヶヴユンチフャモンヴモロモンヮ

Color adjustment section User button section

Preset memory

selection section

Menu operation

section

Pan and tilt

section

Camera

selection section

Focus, zoom and iris

section

Control panel Buttons, dials

✓: Enabled

×: Disabled

Remarks

Menu operation section

[CAMERA OSD SELECT] dial ✓

[F5] dial ✓

[F1], [F2], [F3], [F4] dials ✓

[CAMERA OSD ON/OFF] button ✓

[EXIT] button ✓

Camera selection sec-

tion

[CAMERA SELECTION 1 to 5] buttons ✓

Camera status LED ✓

Pan and tilt section

[ENABLE] button ✓

[PTZ SPEED] dial ✓

[PAN/TILT] lever ✓

- 5 -

Connecting the Unit to AW-UE150 Series Cameras

Control panel Buttons, dials

✓: Enabled

×: Disabled

Remarks

Focus, zoom and iris

section

[IRIS] dial ✓

[ZOOM] button ✓

[IRIS AUTO] button ✓

[FOCUS] dial ✓

[FOCUS AUTO] button ✓

Color adjustment sec-

tion

[BARS] button ✓

[AWB] button ✓

[ABB] button ✓

Preset memory selec-

tion section

[PRESET STORE] button ✓

[PRESET DELETE] button ✓

[PRESET MEMORY SELECTION 1 to 10]

buttons

✓

User button section

[USER 1] to [USER 4] buttons ✓

[SHIFT] button ✓

- 6 -

Connecting the Unit to AW-UE150 Series Cameras

Menu (when AW-UE150 is connected)

Remote Controller Menu List

When an AW-UE150 4K Integrated Camera is connected, the menu will be as follows. The setting values will vary depending on the con-

nected model. Depending on the model, unsupported functions will be displayed as [-].

For details on menu operations, refer to the following sections in the Operating Instructions.

“Basic operations for the menus”

PAINT

SCENE “SCENE” (see page 8)

SHUTTER “SHUTTER” (see page 8)

CHROMA “CHROMA” (see page 9)

GAIN “GAIN” (see page 9)

WHITE BALANCE “WHITE BALANCE” (see page 10)

GAMMA “GAMMA” (see page 10)

BLACK GAMMA “BLACK GAMMA” (see page 11)

DRS “DRS” (see page 11)

KNEE “KNEE” (see page 12)

WHITE CLIP “WHITE CLIP” (see page 12)

DTL “DTL” (see page 13)

DOWNCON DTL “DOWNCON DTL” (see page 14)

MATRIX “MATRIX” (see page 14)

COLOR CORRECT “COLOR CORRECT” (see page 15)

DNR “DNR” (see page 17)

PEDESTAL “PEDESTAL” (see page 17)

BRIGHTNESS “BRIGHTNESS” (see page 18)

FUNCTION

USER ASSIGN Refer to the following section in the Operating Instructions.

“FUNCTION”

CAMERA INFO “CAMERA INFO” (see page 19)

PTZ INFO1 Refer to the following section in the Operating Instructions.

“FUNCTION”

PTZ INFO2

HOUSING

CROP “CROP” (see page 20)

MAINTENANCE

RP SETTING Refer to the following section in the Operating Instructions.

“MAINTENANCE”

RP INITIALIZE

RP VERSION

GPI TALLY

GPIO CAM SEL

GPO CAM.G

GPI PMEM

GPI PMEM.G

PMEM/TMEM

PMEM LIST Refer to the following section in the Operating Instructions.

“PMEM/TMEM”

SETTING

SYSTEM

CAMERA Refer to the following section in the Operating Instructions.

“SYSTEM”

CONNECT SETTING

MANUAL IP SET/USER AUTH

AUTO IP SET

RP IP SET

TRACKING

- 7 -

Menu (when AW-UE150 is connected)

PAINT

SCENE

$:8(

6&(1(

SCENE

6&(1(



Item Setting details

SCENE Switches the shooting mode that matches the shooting situation.

SHUTTER

$:8(

6+877(5

MODE

2))شSPEED ELC LIMIT 

Item Setting details

MODE Selects the shutter mode for the camera.

SPEED Selects the shutter speed for the camera.

ELC LIMIT Sets the maximum shutter value for ELC operation.

- 8 -

Menu (when AW-UE150 is connected)

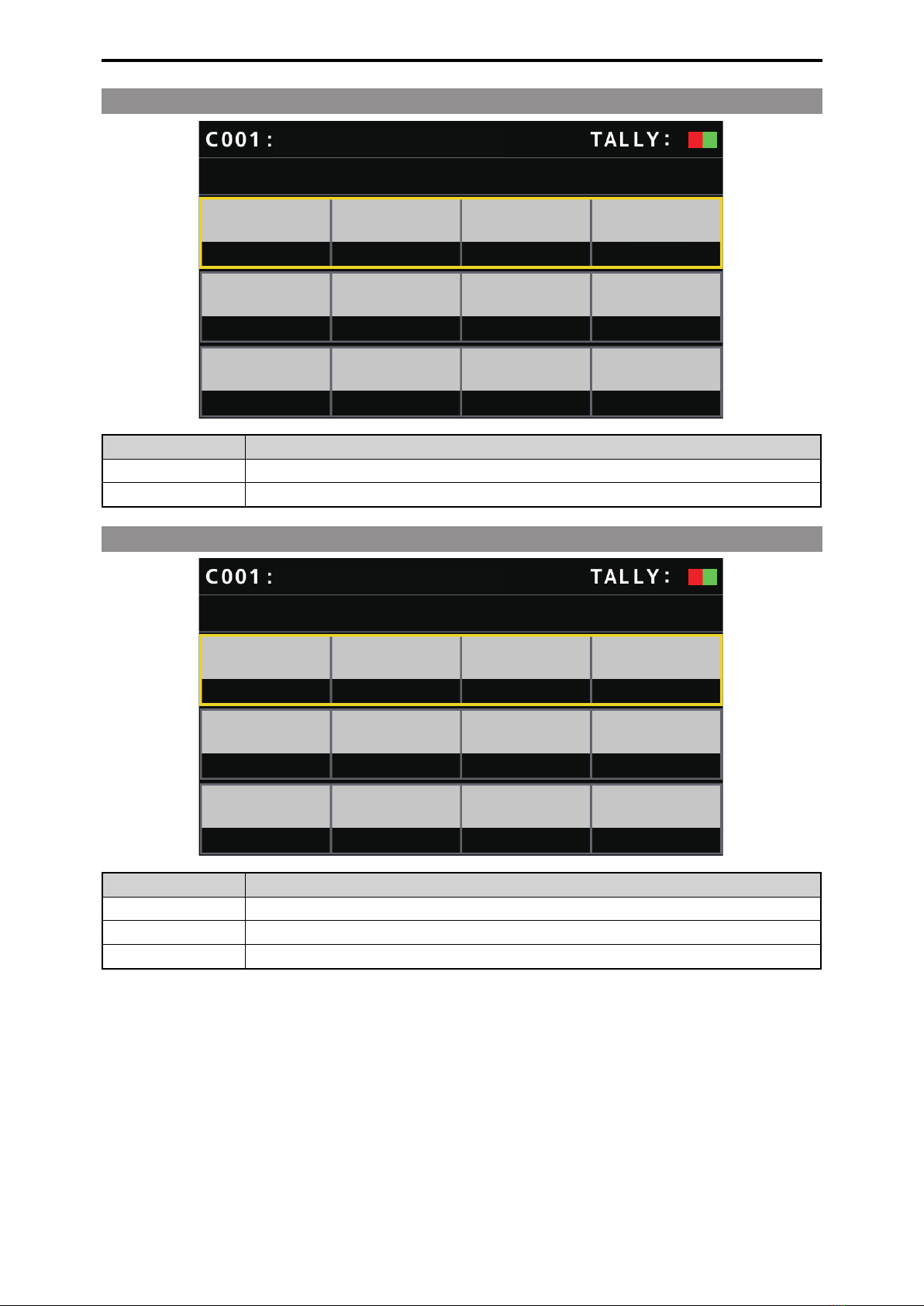

CHROMA

$:8(

&+520$

LEVEL

PHASE



Item Setting details

LEVEL Sets the color intensity of images.

PHASE Finely adjusts the color phase of images.

GAIN

$:8(

*$,1

S.GAIN AGC MAXGAIN

2))G%G%

Item Setting details

S.GAIN Sets the mode for super gain (increased sensitivity).

GAIN Adjusts the gain of images.

AGC MAX When “AUTO” is selected as the [GAIN] setting, the maximum gain-up amount can be set.

- 9 -

Menu (when AW-UE150 is connected)

WHITE BALANCE

$:8(

:+,7(%$/$1&(

MODE

$:%$



R GAIN B GAIN

COLOR

TEMP

OFFSET

2))1250$/ATW

TARGET B

ATW

TARGET R

ATW

SPEED 

Item Setting details

MODE Sets the white balance mode.

COLOR TEMP Allows you to specify the color temperature between 2000K and 15000K.

R GAIN Adjusts the gain of the R channel.

B GAIN Adjusts the gain of the B channel.

OFFSET When auto white balance is performed by setting [MODE] to “AWB A” or “AWB B”, sets the values for Rch

gain and Bch gain.

ATW SPEED Sets the control speed of the ATW function.

ATW TARGET R Finely adjusts the Rch output when converged in the auto tracking white balance operation.

ATW TARGET B Finely adjusts the Bch output when converged in the auto tracking white balance operation.

GAMMA

$:8(

*$00$

MODE

+'GAMMA

V-REC

KNEE SLP V-REC

KNEE PINT

F-REC

DYNAMIC

F-REC

BLK STR

Item Setting details

MODE Selects the type of gamma curve.

GAMMA Adjusts the gamma correction level. This is enabled only when [MODE] is set to other than “HLG”.

F-REC DYNAMIC Sets the dynamic range. This is enabled when [MODE] is “FREC” (FILM REC).

F-REC BLK STR Sets the black stretch. This is enabled when [MODE] is “FREC” (FILM REC).

V-REC KNEE SLP Sets the knee slope. This is enabled when [MODE] is “VREC” (VIDEO REC).

V-REC KNEE PINT Sets the knee point. This is enabled when [MODE] is “VREC” (VIDEO REC).

- 10 -
