Panasonic FV-05-11VKS1 Bedienungsanleitung
Service Manual
PEG1312055CE
Version:1301
CONTENTS
2. Parts Identification
4. Parts List
3.Wiring Diagram
PAGE
2~5
7~8
6
(North America Market)
Ventilating Fan
FV-05-11VKS1
WARNING
This service information is designed for experienced repair technicians only and is not designed for use by
the general public. It does not contain warnings or cautions to advise non-technical individuals of potential
dangers in attempting to service a product. Products powered by electricity should be serviced or repaired
only by experienced professional technicians. Any attempt to service or repair the product or products dealt
with in this service information by anyone else could result in serious injury or death.
IMPORTANT SAFETY NOTICE
There are special components used in this equipment which are important for safety. These parts are
marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential
that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire
or other hazards. Do not modify the original design without permission of manufacture.
We suggest to handle such parts after the static electricity prevention.
It is forbidden to touch the PCB parts by bare hands during the repairing process.
1. Specifications
1
1
1.Specifications
Specifications for Base Model fans
HVI Certified performance based on HVI Procedures 915,916,and 920.
Specifications for Multi Speed fans
Model No. Air
direction
Exhaust 4or6
Voltage
(V)
Frequency
(Hz)
Noise
(sones)
Speed
(rpm)
Power
(W)
Weight
lb.
Duct
diameter
(inches)
Air volume
at 0.1"WG
(CFM)
FV-05-11VKS1
<0.3
<0.3
0.4
3.5
5.5
9.5
740
795
915110
50
80 10.6(4.8)
120 60
(k )g
Reference performance based on HVI Procedures 915, 916,and 920. [(*) Standby wattage.]
Model No. Air
direction
Exhaust
Voltage
(V)
Frequency
(Hz)
Noise
(sones)
Speed
(rpm)
Weight
lb.
Duct
diameter
(inches)
Air volume
at 0.1"WG
(CFM)
FV-05-11VKS1
<0.3
<0.3
<0.3
<0.3
<0.3
<0.3
<0.3
<0.3
8.0
4.3
6.5
3.6
5.5
3.5
2.7
2.4
870
835
795
760
745
730
740
725
80
60
40
0
90
70
50
30
100
10.6(4.8)
4or6
120 60
0.5
(k )g
Power
(W)
2
FV-05-11VKS1
Main Body Section

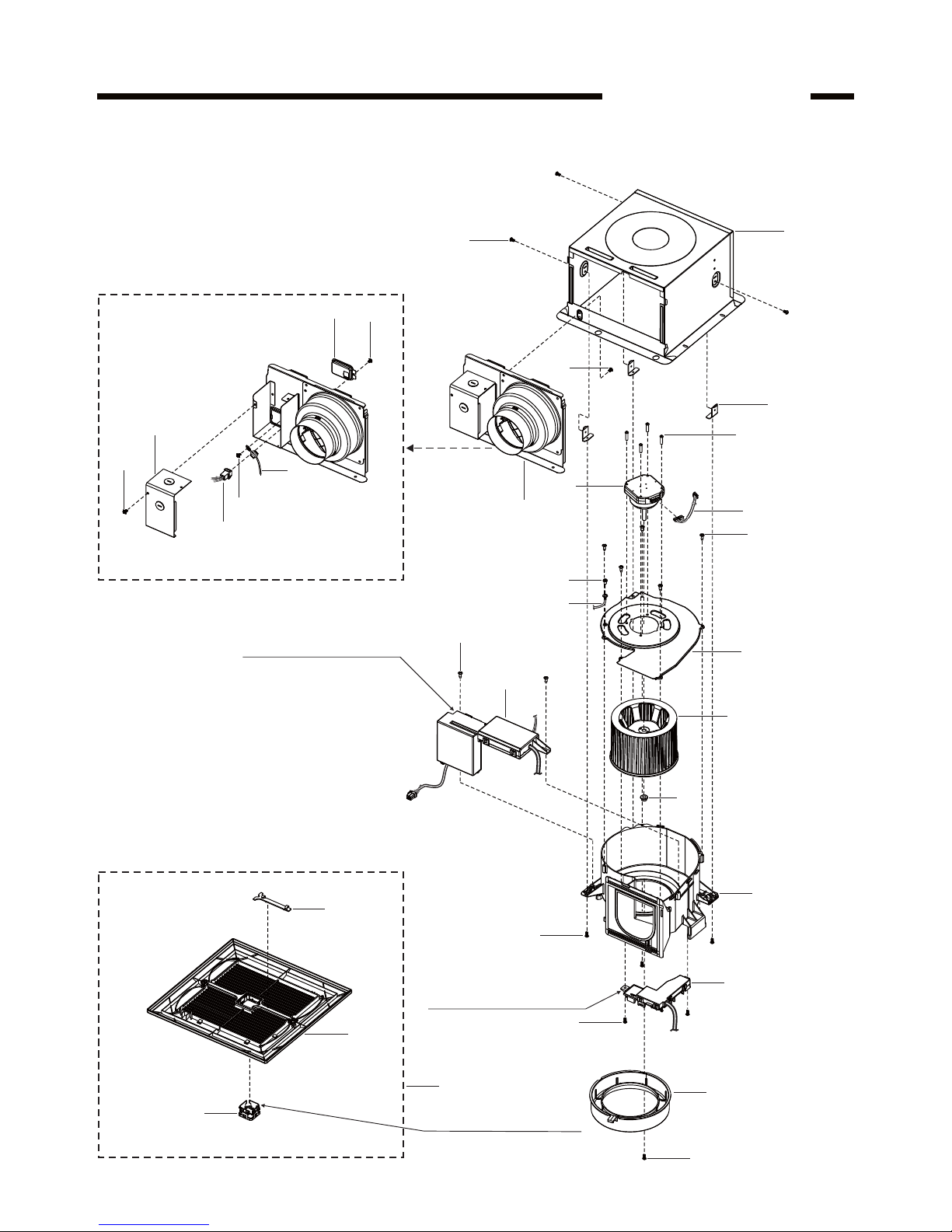

2.Parts Identification
A
(3pcs)
1
7
2
6
5
C
4
3
B
B
(3pcs)
D
(4pcs)
B
8
9
E
(5pcs)
C
10
11
12
Main PCB Section
Base PCB Section
14
A
(3pcs)
E
(2pcs)
16
E
(2pcs)
(23)
E
18
19
17
20 Ornamental Cover
13
15
3
2.Parts Identification
G
(3pcs)
G
(4pcs)
24
22
21
E
23
Main PCB Section
Base PCB Section
FV-05-11VKS1
25
27
28
29
G
(2pcs)
30
31
33
32
26
(2pcs)
1,Please note that above parts with(No.31,32,33) are the optional parts base on
different customer’s request.
2,If install the motion sensor control,please remove the ornamental cover and
replace the sensor cover.
Sensor Cover
Condensation Sensor Module
Nite-Glo LED Night Light Module Motion Sensor Module
TM
4
2.Parts Identification
Packing Section
34
35
36
37
38
39
40
41
42
FV-05-11VKS1
5
2.Parts Identification
Main Label
46
47
4845
49
44
FV-05-11VKS1
FAN
US
LISTED
E78414
43
08VSL3082
Not for use in cooking area-See installation
instructions Non destiné à la zone de cuisson -Voir
instructions d’installation.
se
/
/
.No usar en áreas donde
cocine - Consulte las instrucciones de instalación.
6
3.Wiring Diagram FV-05-11VKS1
Multi-Speed switch
Pulg ‘N Play
module slot
Pulg ‘N Play
module slot
Switch for power
Fan body
DC-Motor
Junction box
Black Live
Neutral
(Power supply)
AC120V 60Hz
Red
Red
Green Earth ground
Green
White
(114°C Fuse)
Thermally
protected
Hi/Low switch:When plug in
Multi-Speed module;
On/Off switch:When plug in
other Plug’N Play modules.
(Non-powered control wires)
7
4.Parts List FV-05-11VKS1
No. Part No. Part Name Q'ty Remark
1 FFV1600138S Frame Assembly 1
2 FFV0000147S Adapter Assembly 1
3 FFV0900053S Connector Plate 1
4 FFV1340008S Earth Lead Wire Assembly 1
5 FFV0900051S Connector Assembly 1
6 FFV2800021S Junction Cover 1
7 FFV0800001S Casing Support 3
8 FFV3702255S Motor Assembly 1
9 FFV4620109S Motor Lead Wire Assembly 1
10 FFV3702256S Motor Support 1
11 FFV0400114S Blade 1
12 FFV7020021S Nut 1 For Fixing Blade
13 FFV3740030S Main PCB Section 1
14 FFV0790108S Casing 1 Include 4pcs Sponge
15 FFV0410004S Base PCB Section 1 Not Include Multi-Speed Module
16 FFV4300149S Orifice 1
17 FFV3402167S Louver Section 1 Include Insulation Plate&Ornamental Cover
18 FFV2520025S Insulation Plate 1
19 FFV3402168S Louver Assembly 1
20 FFV2220074S Ornamental Cover 1
A FFV7000065S Bind Screw 6
B FFV7000108S Truss Tap Screw 3
C FFV7000203S Earth Lead Wire Screw 2 For Fixing Earth Lead Wire
D FFV7000109S Stainless Steel Screw 4 For Fixing Motor Assembly
E FFV7000089S Truss Tap Screw 11
F FFV7000191S Bind Screw 1 For Fixing Light Kit Cover Assembly
No. Part No. Part Name Q'ty Remark
21 FFV3740027S Main PCB Box 1
22 FFV3740028S Main PCB Assembly 1
23 FFV4620110S Power Lead Wire 1
24 FFV3740014S Main PCB Cover 1
E FFV7000089S Truss Tap Screw 1 For Fixing Main PCB Cover
G FFV7000145S Truss Tap Screw 7 For Fixing Main PCB Assembly
Main Body Section
Main PCB Section
8
4.Parts List FV-05-11VKS1
No. Part No. Part Name Q'ty Remark
25 FFV5530071S Multi-Speed Module 1
26 FFV0900063S Connector Cover 2
27 FFV0410001S Base PCB Cover 1
28 FFV5530072S Variable Speed Switch 1
29 FFV0410002S Base PCB Assembly 1
30 FFV0410003S Base PCB Box 1
31 FFV0010237S Condensation Sensor Module 1
32 FFV3740029S Motion Sensor Module 1 Include Sensor Cover
33 FFV3420080S Nite-Glo LED Night Light Module 1
G FFV7000145S Truss Tap Screw 2 For Fixing Base PCB Assembly
No. Part No. Part Name Q'ty Remark
34 FFV2230024S Hanger Assembly 1
35 FFV4710381S Louver Case Assembly 1
36 FFV4650016S Poly Cover 1
37 FFV2540178S Installation Instructions 1 English,For USA/CA Market
38 FFV2540179S Installation Instructions 1 Spanish,For USA Market
(38) FFV2540180S Installation Instructions 1 French,For CA Market
39 FFV0010238S Accessory A 1
40 FFV4710382S Left Pad 1
41 FFV4710383S Right Pad 1
42 FFV9001115S Packing Case Assembly 1
No. Part No. Part Name Q'ty Remark
43 FFV5530073S Switch Indication 1 Stuck On Switch Unit
44 FFV5530074S Speed Switch Label 1 Stuck On Base PCB Box
45 FFV4020823S Name Plate 1 Stuck On Frame Assembly
46 FFV0810011S Caution Label 1 1 Stuck On Frame Assembly
47 FFV0810010S Caution Label 1 Stuck On Frame Assembly
48 FFV6730045S Warning Label 1 Stuck On Frame Assembly
49 FFV2260003S UL Mark 1 Stuck On Frame Assembly
Main Label
Base PCB Section
Packing Section
TM
