Panasonic FV-NLF46RES Bedienungsanleitung

Service Manual

PEG1609027CE

Version:1601

CONTENTS

1.Parts Identification

2.Wiring Diagram

3.Parts List

PAGE

Ventilating Fan

FV-NLF46RES

1~2

(North America Market)

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by

the general public. It does not contain warnings or cautions to advise non-technical individuals of potential

dangers in attempting to service a product. Products powered by electricity should be serviced or repaired

only by experienced professional technicians. Any attempt to service or repair the product or products dealt

with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are

marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential

that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire

or other hazards. Do not modify the original design without permission of manufacture.

We suggest to handle such parts after the static electricity prevention.

It is forbidden to touch the PCB parts by bare hands during the repairing process.

1. Parts Identification

FV-NLF46RES

Main Body Section

LIGHT

(2pcs)

(2)

(2pcs)

(4pcs)

(2pcs)

(7pcs)

(2pcs)

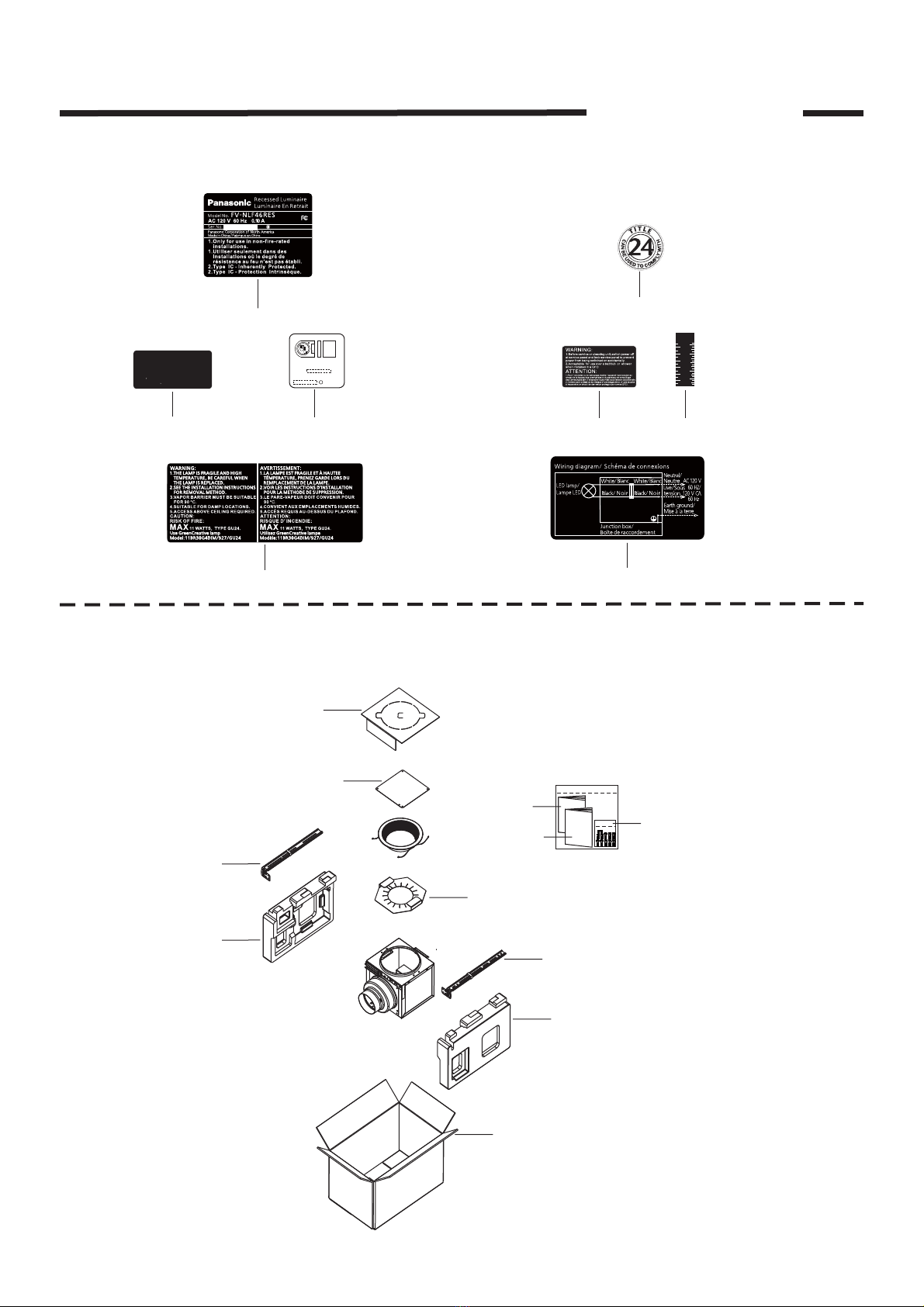

1. Parts Identification

Main Labels

Packing Section

12 13

14 18

Panasonic

Inch

60 2

23 24

CAUTION:

2.1m(7feet)above the floor.

To reduce the risk of injury to persons,install fan at least

ATTENTION:

Afin de reduire les risques de blessures corporelles,

Installer le ventilateur a au moins 2,1m(7 pieds)du sol.

protected branch circuit.

(2pcs)

FV-NLF46RES

LUMINAIRE

SAFETY USCA

CERTIFIED

C2013 UL LLC

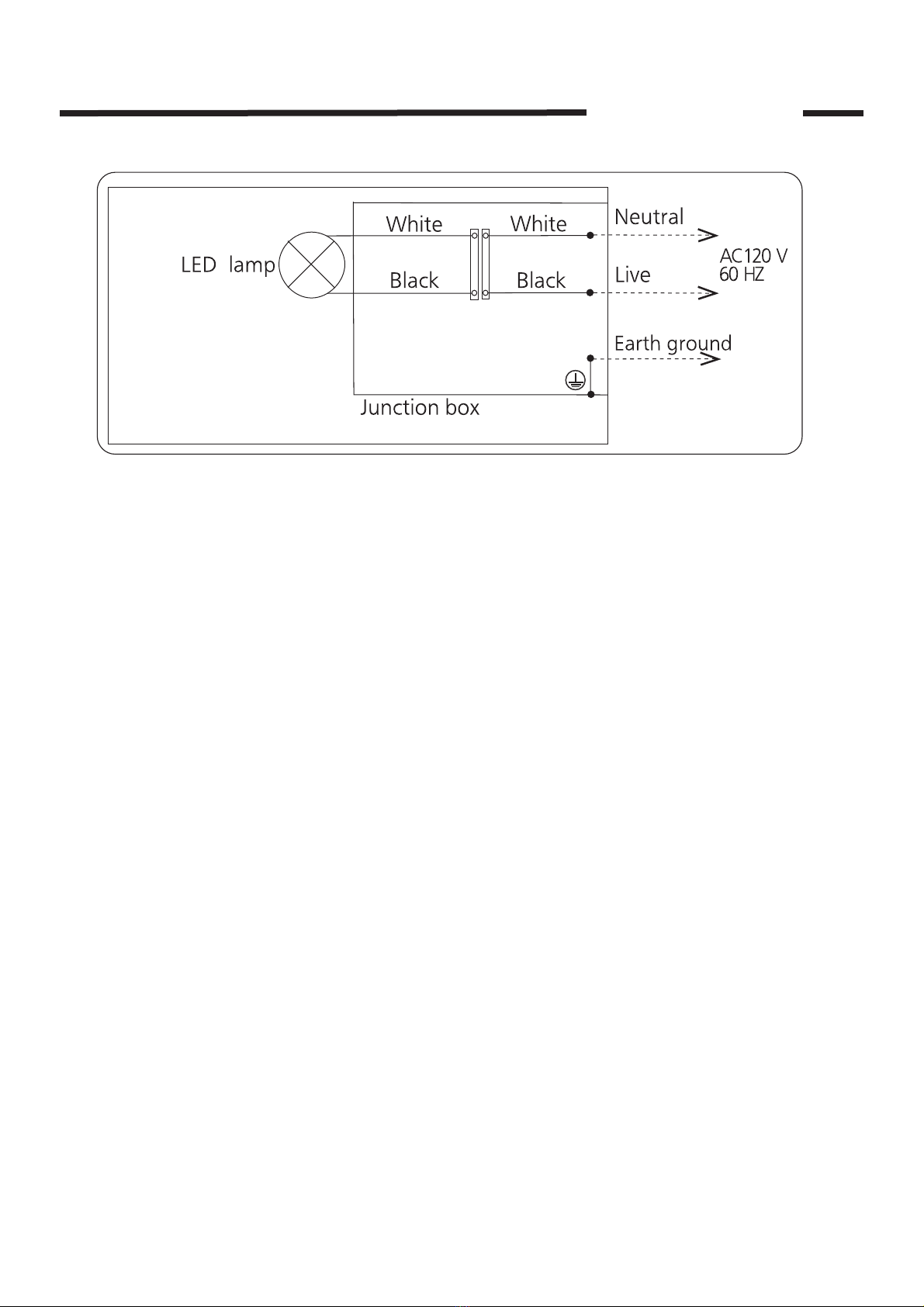

2. Wiring diagram

FV-NLF46RES

3. Parts List

FV-NLF46RES

No. Part No. Part Name Q'ty Remark

1 FFV6710026S Wiring Cover Unit 1

2 FFV0420027S Bracket Cover 2

3 FFV1600150S Frame Assy 1

4 FFV0000125S Adapter Assembly 1

5 FFV3402103S Earth Lead Wire 1

6 FFV0900056S Connector Assembly L 1

7 FFV2800015S Junction Box 1

8 FFV1600151S Frame Cover Assy 1

9 FFV3410044S Light Unit Assembly 1

10 FFV5840030S Trim Assembly 1

A FFV7000108S Truss Tap Screw 1

B FFV7000018S Truss Tap Screw 17

C FFV7000211S Earth Screw Assy 1 For Fixing Earth Lead Wire

D FFV7000202S Bind Tap Screw 2

11 FFV4020860S Name Plate 1

12 FFV6730041S Warning Label 1

13 FFV2260005S UL Mark 1

14 FFV6730100S Warning Label 1

15 FFV4730001S T24 Mark Label 1

16 FFV0810002S Caution Label 1

17 FFV5720015S Scale Tape 1

18 FFV6730101S Wiring Label 1

19 FFV5840031S Trim Plate Assembly 1

20 FFV0000162S Adapter Panel 1

21 FFV5840032S Trim Pad 1 1

22 FFV2540199S Operation Instructions 1 English

23 FFV2540200S Operation Instructions 1 Spanish&French

24 FFV0010236S Accessory A 1

25 FFV0420028S Bracket Assembly 1 2

26 FFV4710405S Left Pad 1

27 FFV0420029S Bracket Assembly 2 2

28 FFV4710406S Right Pad 1

29 FFV9001226S Packing Case Assy 1

Main Body Section

Packing Section

Main Labels
