Panasonic FV-0511VF1 Bedienungsanleitung

Service Manual

PESMX2140001CE

Version:2101

CONTENTS

1.Specification

2.Parts Identification

3.Wiring Diagram

PAGE

2 ~ 4

Ventilating Fan

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by

the general public. It does not contain warnings or cautions to advise non-technical individuals of potential

dangers in attempting to service a product. Products powered by electricity should be serviced or repaired

only by experienced professional technicians. Any attempt to service or repair the product or products dealt

with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are

marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential

that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire

or other hazards. Do not modify the original design without the manufacturer’s approval.

.Please have a static electricity depletion process in place before handling these components.

. Please use gloves when handling PCB parts during the repair process.

FV-0511VF1

4.Parts List 6

(North AmericaMarket)

1. Specification

Speciﬁcation for base Model fans

HVI Certified performance based on HVI Procedures 915, 916, and 920.

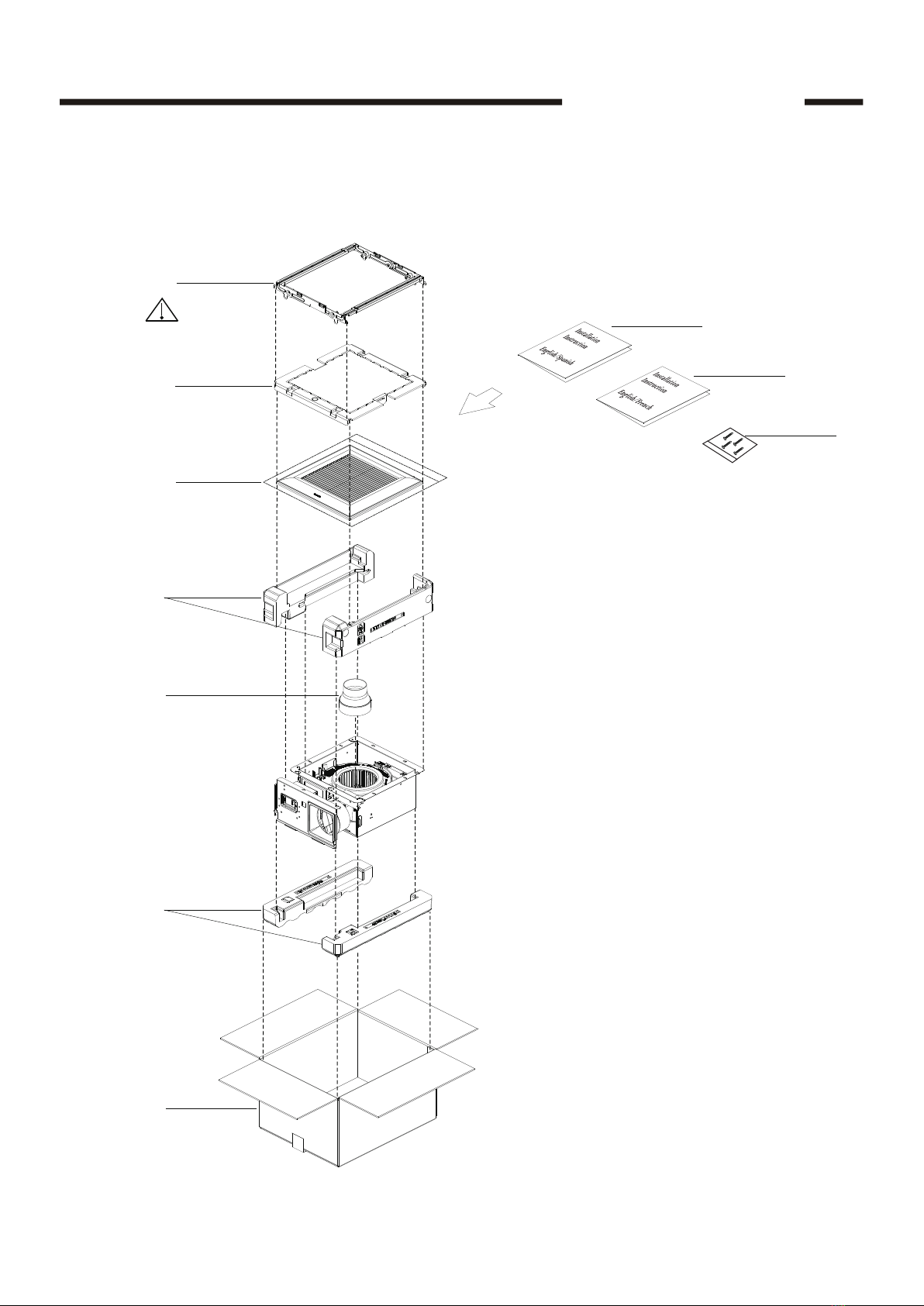

2. Parts Identification

Main Body Section

FV-0511VF1

(5 pcs)

(3 pcs)

(2 pcs)

910

(2 pcs)

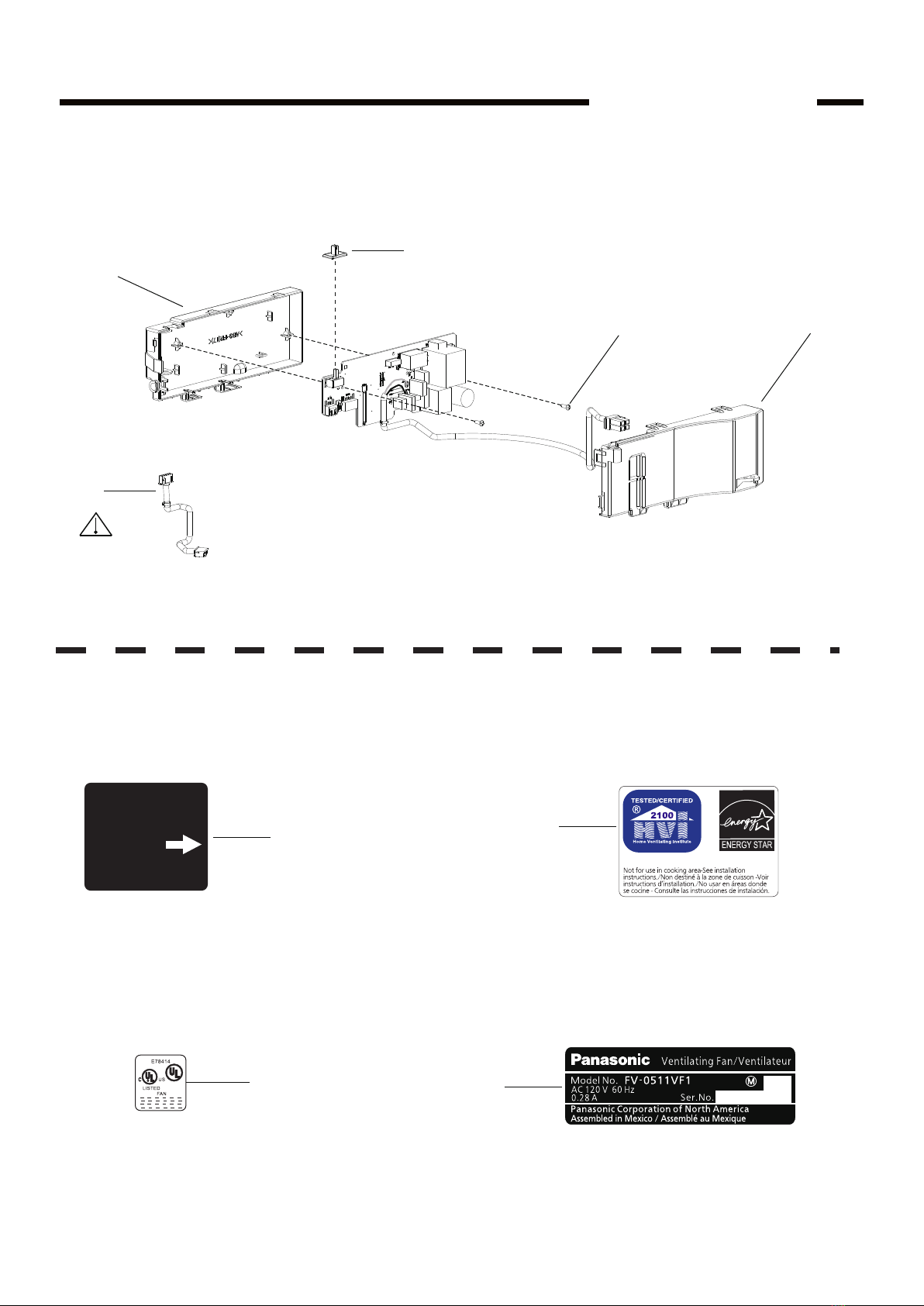

2.Parts Identiﬁcation

Main PCB Section

FV-0511VF1

(2 pcs) 16

Main Label

Secure screw

tightly for

ground continuity

Vissez

fermement

pour la continuité

de la mise à la terre

18 19

20 21

2. Parts Identification

FV-0511VF1

Packing Section

Fan body

Main control circuit

motor

Black

White

Green

Junction box Power switch Live (Fan)

Neutral

(Ground wire)

AC 120 V 60 Hz

(Power supply)

Main

control

circuit

Wire connectors

Earth ground

Conduit

Earth

ground

Live (Fan)

Switch box

Neutral

AC 120 V 60 Hz

(Power supply)

White

Black

Green

Switch

4. Parts List

FV-0511VF1

Main Body Section

No. Part No. Part Name Q'ty Remark

1FFV511VF1900 Frame Assembly 1

2FFV511VF1910 Adapter Assembly 1

3FFV0900052S Connector Plate 1

4FFV511VF1301 Connector Assembly (V) 1

5FFV3450010S Earth Lead wire 1

6FFV2800027S Junction Cover 1

7FFV511VF1M2 Motor 1

8FFV511VF1904 Motor Support 1

9FFV511VF1802 Blade 1

10 FFV11VF15000 Main PCB Section 1

11 FFV7020021S Nut 1

12 FFV511VF1906 Casing section 1

13 FFV3400146S Grill Assembly 1

AFFVXTT4-8FFJ Screw (ST4-8) 7

BFFVXYM4DC8BN Screw w/washer(M4-8) 1

CFFV7000089S Screw (ST4-12) 7

Main PCB Section

No. Part No. Part Name Q'ty Remark

14 FFV511VF1991 Main PCB Box 1

15 FFV510VS1M9 Speed Switch 1

16 FFV510VS1992 Main PCB Cover 1

17 FFV511VF1321 Motor Lead Wire 1

D FFVXTN268GFJ Screw 1

Main Label

No. Part No. Part Name Q'ty Remark

18 FFV51VHL1051 Instruction Label 1

19 FFV0810011S Caution Label 1

20 FFV2260003S Holograph label 1

21 FFV511VF1050 Name Plate 1

Packing Section

No. Part No. Part Name Q'ty Remark

22 FFV11QCL1920 Hanger Assy 1

23 FFV511VF1450 Louver Pad Assy 1

24 FFV4650016S PolyCover with Print 1

25 FFV511VF1891 Top Pad 1

26 FFV511VF1922 Adapter Connector 1

27 FFV511VF1892 Bottom Pad 1

28 FFV511VF1400 Packing Case Assy 1

29 FFV511VF1420 Installation Inst (ES) 1

30 FFV511VF1421 Installation Inst (EF) 1

31 FFV11KSL1M031A Accesory A 1

Service Manual

PESMX2140001CE

Version:2101

CONTENTS

1.Specification

2.Parts Identification

3.Wiring Diagram

PAGE

2 ~ 4

Ventilating Fan

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by

the general public. It does not contain warnings or cautions to advise non-technical individuals of potential

dangers in attempting to service a product. Products powered by electricity should be serviced or repaired

only by experienced professional technicians. Any attempt to service or repair the product or products dealt

with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are

marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential

that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire

or other hazards. Do not modify the original design without the manufacturer’s approval.

.Please have a static electricity depletion process in place before handling these components.

. Please use gloves when handling PCB parts during the repair process.

FV-0511VFC1

4.Parts List 6

(North AmericaMarket)

1. Specification

Speciﬁcation for base Model fans

HVI Certified performance based on HVI Procedures 915, 916, and 920.

2. Parts Identification

Main Body Section

FV-0511VFC1

(5 pcs)

(4 pcs)

(2 pcs)

910

(2 pcs)
