Panasonic FV-0511VQ1 Bedienungsanleitung

Service Manual

PESMX1710004CE

Version:1701

Ventilating Fan

FV-0511VQ1

CONTENTS

1.Specifiaction

2.Parts Identification

3.Wiring Diagram

PAGE

2~4

4.Parts List 6~7

(North America Market)

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by

the general public. It does not contain warnings or cautions to advise non-technical individuals of potential

dangers in attempting to service a product. Products powered by electricity should be serviced or repaired

only by experienced professional technicians. Any attempt to service or repair the product or products dealt

with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are

marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential

that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire

or other hazards. Do not modify the original design without the manufacturer’s approval.

.Please have a static electricity depletion process in place before handling these components.

. Please use gloves when handling PCB parts during the repair process.

1. Specification

Model No.

Air

direction

Voltage

(V)

Frequency

(Hz)

Duct

diameter

(Inches)

Air volume

at 0.1"WG

(CFM)

Noise

(sones)

Speed

(rpm)

Power

(W)

Weight

lb. (kg)

50 < 0.3 756 4.1

80 < 0.3 821 6.0

110 < 0.3 957 10.8

FV-0511VQ1 9.3 (4.2)Exhaust 120 60 4 or 6

HVI Certified performance based on HVI Procedures 915, 916, and 920.

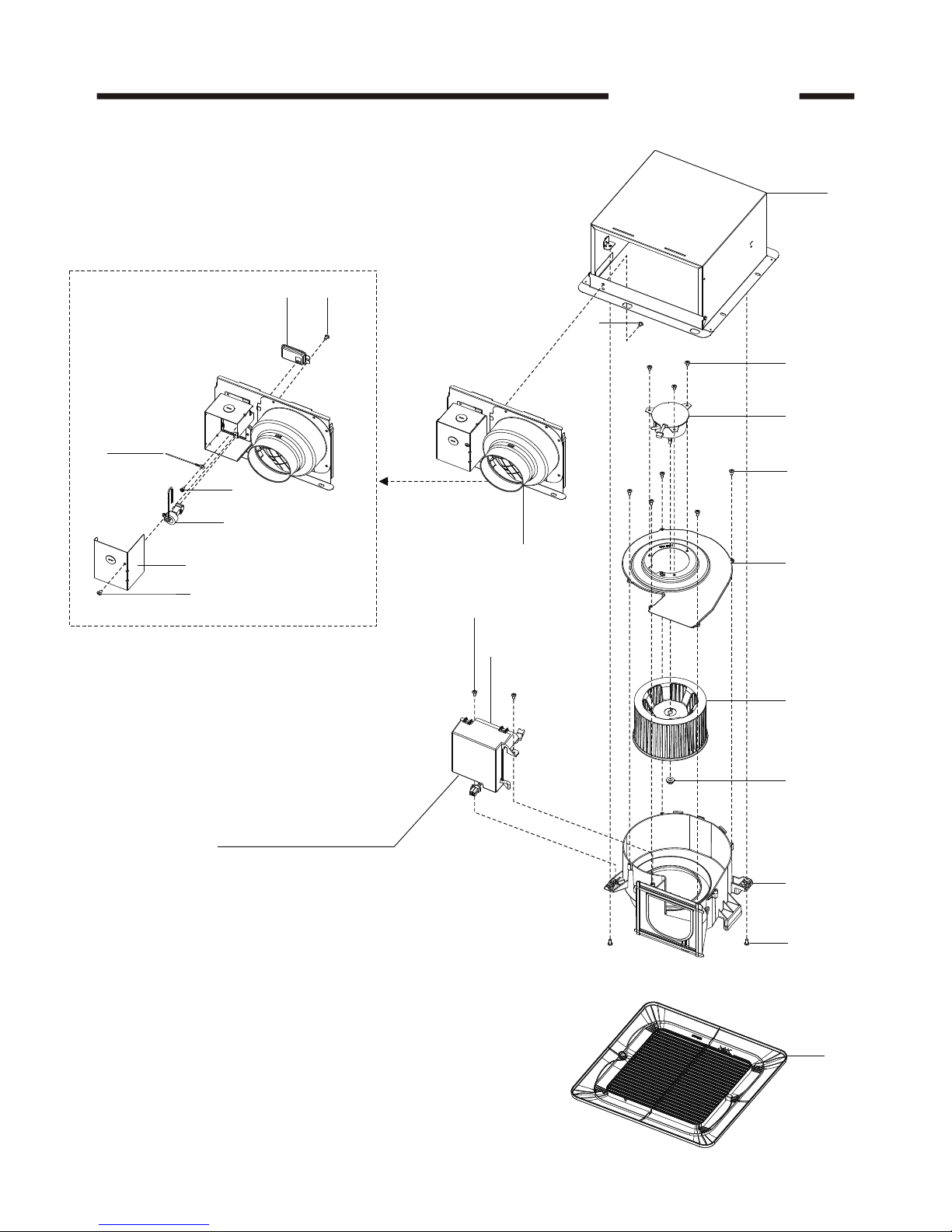

1. Parts Identification

Main Body Section

(3pcs)

(5pcs)

(2pcs)

FV-0511VQ1

Main PCB Section

2. Parts Identification

FV-0511VQ1

Main Label

(3pcs)

2. Parts Identification

Packing Section

FV-0511VQ1

Main control circuit

Fan body

Motor

Junction box

AC120V

60Hz

(Power supply)

White

Black

Live

(Fan)

Neutral

Green

(Ground wire)

Main control

circuit

BLACK

WHITE

GREEN

Wire nuts

Junction

box

120 VAC

LINE IN

Switch box

Conduit

Ground wire

Live

Neutral

Ground wire

4. Parts List

Main Body Section

No. Part No. Part Name Q'ty Remark

1 FFV11QCL1900A Frame Assembly 1

2 FFV11VQC1910 Adapter Assembly 1

3 FFV08VKS3M915 Connector Plate 1

4 FFV11QCL1331 Ground Wire 1

5 FFV11QCL1301A Connector Assy 1

6 FFV11QCL1912A Junction Cover 1

7 FFV11QCL1M20A Motor 1

8 FFV11QCL1904C Motor Support 1

9 FFVM11KSL1802B Blade 1

10 FFV25RG50810A Nut 1

11 FFV11QCL1906B Casing 1

12 FFV0511VQL1UPCB Main PCB section 1

13 FFV1115VQ1A Grill Assembly 1

A FFVXYM4-E8FJ Screw (M4-8) 1

B FFVXTT4-8FFJ Screw (ST4-8) 5

C FFVXTT4-12GFJ Screw (ST4-12) 7

D FFVXYM4DC8BN Screw w/washer (M4-8) 1

E FFVXSB4-12FJ Screw (M4-12) 2

Main PCB Section

No. Part No. Part Name Q'ty Remark

14 FFV15VQ10991D Main PCB Box 1

15 FFV11QCL1992C MAIN PCB Cover 1

F FFVXTN3-8GFJ Screw (M3-8) 3

FV-0511VQ1

4. Parts List

FV-0511VQ1

Main Label

No. Part No. Part Name Q'ty Remark

16 FFV11QCL1012A CFM Label 1

17 FFV11VQ10050 Name Plate 1

18 FFV08VSL3M082A Caution Label 1 1

19 FFV08VQ3M0082A Caution Label 1

20 FFV08VQL5M051A Warning Label 1

21 FFV11KSL1M020 Holograph Label 1

Packing Section

No. Part No. Part Name Q'ty Remark

22 FFV11QCL1920 Hanger Assy 1

23 FFV08VQ3M0137A Grill Pad Assy 1

24 FFV11VK1M0010 Poly Cover 1

25 FFV15VQ10420A Installation Inst 1 English / Spanish For USA Market

26 FFV15VQ10421 Installation Inst 1 English / French For CANADA Market

27 FFV11KSL1M031A Accessory A 1

28 FFV11QCL1891 Left Pad 1

29 FFV11QCL1892 Right Pad 1

30 FFV11VQ10400A Packing Case Assy 1
