INTRODUCTION

KX-F680BX/KX-F2681BX

SAFETY PRECAUTIONS

1. Before servicing, unplug the power cord to prevent an electric shock.

2. When replacing parts, use only the manufacturer’s recommended components.

3. Check the condition of the power cord. Replace if wear or damage is evident.

4. After servicing, be sure to restore the lead dress, insulation barriers, insulation papers, shields, etc.

5. Before returning the serviced equipment to the customer, be sure to perform the following insulation resistance

test to prevent the customer from being exposed to shock hazards.

INSULATION RESISTANCE TEST

1. Unplug the power cord and short the two prongs of the plug with a jumper wire.

2. Turn on the power switch.

3. Measure the resistance value with an ohmmeter between the jumpered AC plug and each exposed metal cabinet part

(screwheads, control shafts, handle brackets, etc.).

“Note: Some exposed parts may be isolated from the chassis by design. These will read infinity.

4. If the measurement is outside the specified limits, there is a possibility of a shock hazard.

The equipment should be repaired and rechecked before it is returned to the customer.

FOR SERVICE TECHNICIANS

ICs and LSIs are vulnerable to static electricity.

When repairing, the following precautions will help prevent recurring malfunctions.

1) Cover the plastic parts boxes with aluminum foil.

2) Ground the soldering irons.

3) Use a conductive mat on the worktable.

4) Do not touch IC or LSI pins with bare fingers.

Exposed

metal

part

Ohmmeter

Resistance = more than 5M ¶

(at DC 500 V)

|6|

KX-F680BX/KX-F2681BX

BATTERY CAUTION

AC CAUTION

For safety, before closing the lower cabinet , please make sure of the following precautions.

@ The earth lead is fixed by the screw.

A The AC connector is connected properly.

B Wrap the AC lead around the plastic belt 3 times.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the

manufacture. Discard used batteries according to following caution:

Disposal of lithium batteries should be performed by permitted, professional disposal firms knowledgeable in state govern-

ment federal and local hazardous materials and hazardous waste transportation and disposal requirements.

Battery continues to have no transportation limitations as long as they are separated to prevent short circuits and packed

in strong packaging.

Commercial firms that dispose of any quantity of lithium cells should have a mechanism in place to account for their ulti-

mate disposition. This is a good practice for all types of commercial or industrial waste.

Recommend Type Number: CR2032 (BATT) Manufactured by MATSUSHITA

CR2032 (BATT) Manufactured by SONY

(BOTTOM VIEW)

AC lnlet

AC Lead

AC Connector

Earth Lead

Earth

Lead

Earth Lead

Screw

Washer

|7|

INTRODUCTION

KX-F680BX/KX-F2681BX

PERSONAL SAFETY PRECAUTIONS

Be careful not to let your hair, clothes fingers, accessories, etc., become caught in any moving sections of the unit.

These are driven by the carriage monitor, and the slow down gear, the paper feed roller, the pressure roller, the eject roller,

the spur, the pick-up roller, etc., which are driven by the paper feed motor. These separation roller and document feed roller

which are rotated by the document feed motor and a gear which makes the two rollers rotate.

Also, the spurs are metal and sharply pointed. Be careful not to touch them accidentally by hand.

Document rollers

Document feed gear

Separation roller gear

|8|

KX-F680BX/KX-F2681BX

SPECIFICATIONS

1. Applicable Lines:

2. Document Size:

3. Effective Scanning Width:

4. Printing Paper Size:

5. Effective Printing Width:

6. Transmission Time*:

7. Scanning Density:

8. Halftone Level:

9. Scanner Type:

10. Printer Type:

11. Data Compression System:

12. Modem Speed:

13. Operating Environment:

14. Dimensions (H ~W~D):

15. Mass (Weight):

16. Power Consumption:

17.Power Supply:

18.Total Recording Time:

Public Switched Telephone Network

Max. 216 mm (8 1/2

) in width

Max. 600 mm (23 5/8

) in length

208 mm(8 3/16

)

216 mm ~ max. 50 m (8 1/2

~164

) roll

208 mm (81/2

)

Approx.15 sec/page (Original mode)

Approx.30 sec/page (G3 Normal mode)

Horizontal : 8 pels/mm (203 pels/inch)

Vertical : 3.85 lines/mm (98 lines/inch) -Standard mode

7.7 lines/mm (196 lines/inch) -Fine/Halftone mode

15.4 lines/mm (392 lines/inch) -Superfine mode

64-level

CCD image sensor

Thermal printing

Modified Huffman (MH), Modified READ (MR)

9600/7200/4800/2400 bps; Automatic Fallback

5-35 (41-95 °F), 45-80 % RH (Relative Humidity)

118 ~351 ~265 mm (4 21/32

~13 13/16

~10 7/16

)

Approx. 3.7 kg (8.2 lb.)

Standby: Approx. 3.5W / Transmission: Approx. 16W

Reception: Approx. 28W / Copy: Approx. 40W

Maximum: Approx. 120W

220-240V AC, 50/60Hz

Approx, 18 minutes (including the greeting message)

Recording time may be reduced by caller side background noise.

KX-A106

KX-A116

KX-A125

Parts No.

Standard Thermal Recording Paper

Description

OPTIONAL ACCESSORIES

Super Thermal recording Paper

(Like plain paper)

Comment

216 mm ~ 30 m (8

~98') roll,

with 25 mm (1") core

216 mm ~ 50 m (8

~164') roll,

with 25 mm (1") core

216 mm ~30 m (8

~98') roll,

with 25 mm (1") core

*Transmission speed depends upon the contents of the pages, resolution, telephone line conditions and capability of

receiving unit. 15 second speed based upon CCITT/ITU No.1 Test Chart.

Design and specifications are subject to change without notice.

|9|

INTRODUCTION

KX-F680BX/KX-F2681BX

Control panel

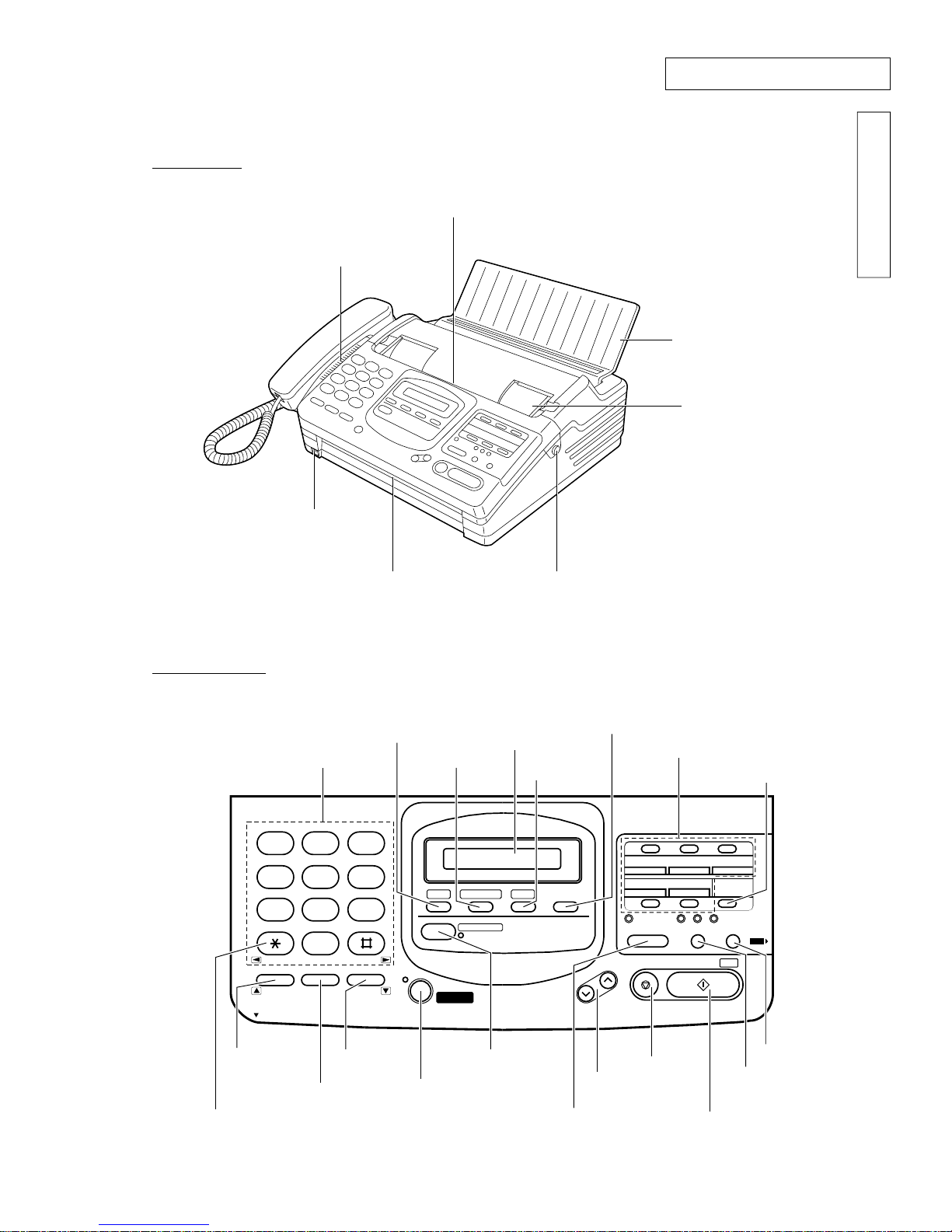

LOCATION OF CONTROLS

Front View

REDIAL/PAUSE

QUICK

MUTE

SLOW

MIC

DIGITAL

SP-PHONE

HELP DIRECTORY MENU RESOLUTION

AUTO RECEIVE

FAX/MSG.SYS.

CALLS

VOLUME

STOP START/COPY/ SET

NEW MSGS.

PLAY BACK

MAIL BOX ERASE

123

RINGER

HANDSET

SPEAKER

OPEN

123

678

910

LOWER

FLASH

456

789

TONE

ABC DEF

GHI JKL MNO

PQRS TUV WXYZ

TONE

FLASH

QUICK MUTE

SLOW

REDIAL/PAUSE DIGITAL

SP-PHONE

AUTO RECEIVE

VOLUME

STOP

NEW MSGS. PLAY BACK START/COPY/SET

MAIL BOX

ERASE

Dial keypad

HELP

DIRECTORY

Display panel

RESOLUTION

Direct call stations

LOWER

Front lid open buttonDocument exit

Microphone

Document feeder tray

Speaker

Document entrance

Document guide(s)

|10 |

KX-F680BX/KX-F2681BX

Digital answering system

Voice mailbox

Tone remote control system

Integrated telephone system

One-touch dialer (10 phone number)

50-station speed dialer

Electric telephone directory

Digital Hands-free speaker phone

General

Desktop type

LCD (Liquid Crystal Display) readout

Silent ring fax recognition system

Help function

Copier function

Facsimile

Automatic document feeder (up to 15 sheets)

64-level halftones

Resolution: standard/fine/super fine/halftone

Delayed transmission

Ring pattern detection

Overseas transmission mode

Remote fax receiving using an extension phone

Junk mail prohibitor

FEATURES

NEW MSGS

PLAY BACK MAIL BOX ERASE

123

SELECT

REC CHECK

GREETING

REPEAT SKIP MEMO/

2WAY REC

REC

CHECK

REPEAT

SKIP

MEMO/2WAY REC

_Answering control buttons

|11 |

INTRODUCTION

KX-F680BX/KX-F2681BX

Helpful hint:

If assistance is needed, press HELP . The unit will print a quick reference.

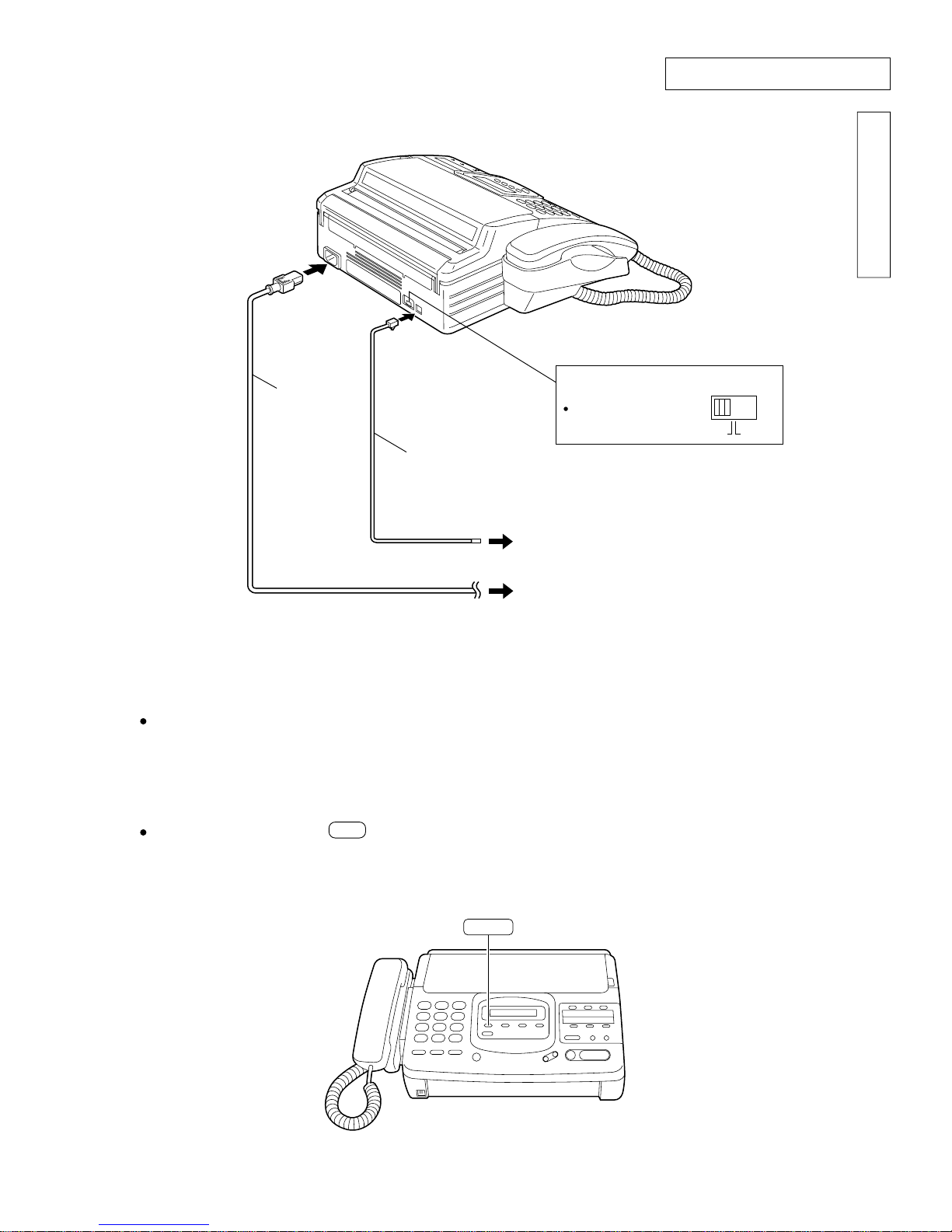

CONNECTION

Note:

When you operate this product, the power outlet should be near the product and easily accessible.

HELP

Single telephone line

Power outlet

(220-240 V)

Telephone line cord

Power cord

Dialing mode switch:

Set to TONE.

If you cannot dial,

set to PULSE.

DIALING MODE

TONE PULSE

|12 |

KX-F680BX/KX-F2681BX

Hooks

Triangles

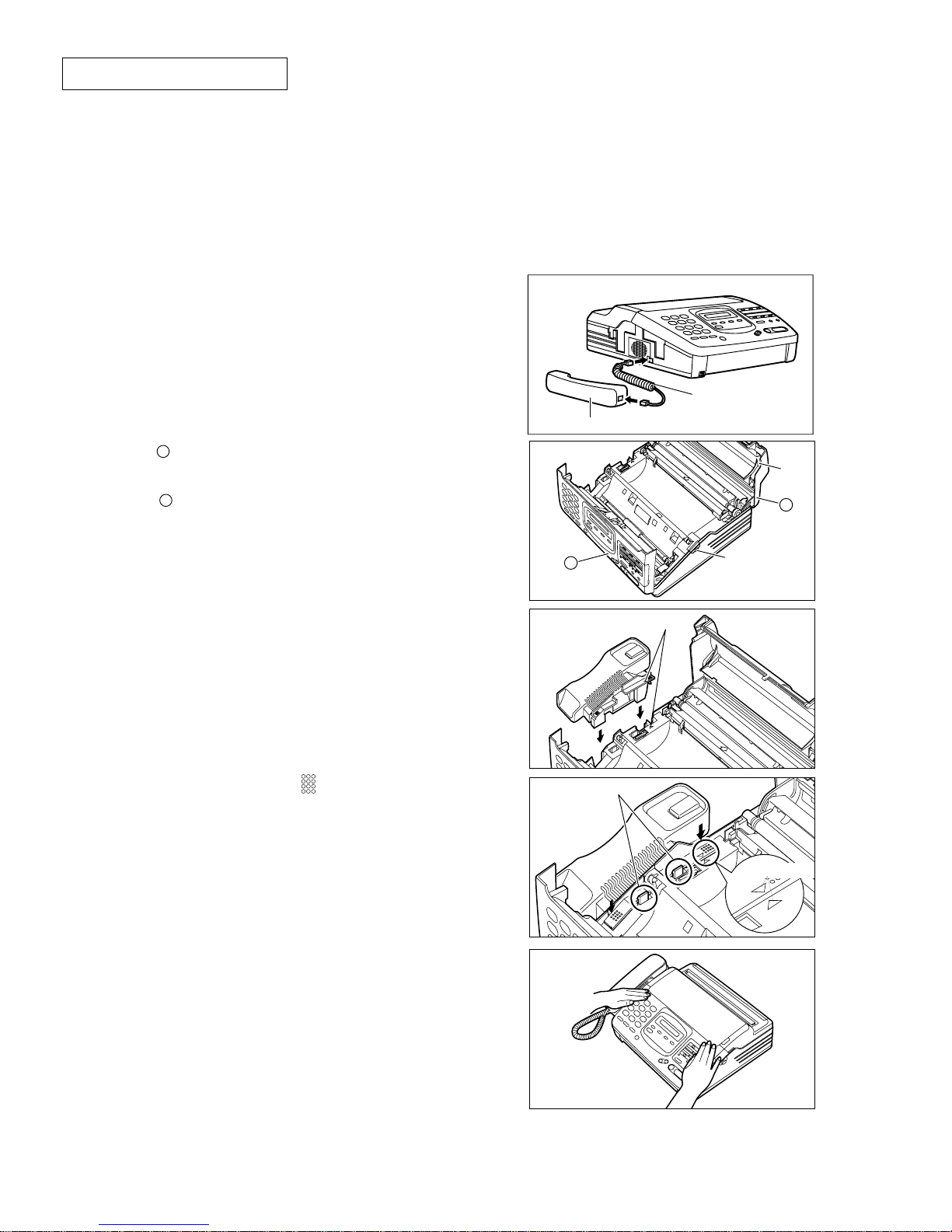

INSTALLATION

Handset

Handset cord

If you want to use this unit with a handset, install the handset and handset cradle.

To save space or to use the unit mainly for faxes, you may remove the handset cradle.

Even if the handset and handset cradle are not installed, you can make or answer calls using the SP-PHONE button.

When you do not use the handset and handset cradle.

1. Installing the handset cradle

Connect the handset cord.

AOpen the front lid by pressing the front lid open

button.

Open the back lid by lifting up the tabs located

on the both side.

Insert the handset cradle by matching the triangles.

Place the handset on the handset cradle and close

the lids securely.

Press down the marked on the handset cradle

until clicks in to place.

Make sure the two hooks lock the handset cradle

firmly.

Tab

Front lid open

button

Triangles

|13 |

INTRODUCTION

KX-F680BX/KX-F2681BX

2. Installing the recording paper

Open the back lid by lifting up the tabs located

on the both side.

Install a recording paper roll in the unit.

Make sure that the shiny side of the paper is

facing down and there is no stack, tape, or

glue residue on the paper roll.

incorrectcorrect

1 Insert the leading edge of the recording paper

between the recording paper roller and the

silver plate.

2 Insert the paper under the back lid and pull a

few centimeters of paper out of the unit.

3 Close the back lid by gently pressing down on

both ends, and tear off the excess paper by

pulling it toward you.

Note:

Only use the included roll of paper or specified recording

paper, or else the print quality may be affected and/or

excessive thermal head wear may occur.

To order recording paper.

Tab

Recording paper roller

Silver plate

Back lid
