Panasonic KX-PD381DLE8 Bedienungsanleitung

Facsimile

Quick Reference Guide

Model No. KX-PD381DLE8

KX-PD381DWE8

KX-PD381DLE8

Main unit:

Portable handset:

KX-PD381

KX-FKD502

Thank you for purchasing a Panasonic product.

This guide explains some basic features and operations, but not all of them.

For further details, see the Japanese operating instructions.

This product is designed for use in Japan.

Panasonic cannot provide service for this product if used outside Japan.

KX-PD381DLE8 includes 1 portable handset and 1 main unit.

KX-PD381DWE8 includes 2 portable handsets and 1 main unit.

Any details given in this guide are subject to change without notice.

This unit is equipped with the voice guide features. (Japanese only)

For details about voice guide, please see page 10.

Table of Contents

Finding the controls ......................................................................................2

Installations and connections .......................................................................4

Setting your fax telephone number...............................................................7

Setting your logo...........................................................................................8

Character input and command key table ......................................................9

Voice guide .................................................................................................10

Automatic dialing on the main unit..............................................................11

Automatic dialing on the portable handset (KX-FKD502)...........................13

Intercom......................................................................................................15

Sending faxes .............................................................................................16

Receiving faxes .........................................................................................17

Operating the built-in answering device......................................................20

Call block ....................................................................................................22

Specifications .............................................................................................23

KX-PD381DLE8DWE8QG.indb1KX-PD381DLE8DWE8QG.indb1 2011/10/1217:28:132011/10/1217:28:13

Finding the controls

Main unit

Liquid crystal display

Function/Set button

To register a function or apply a setting.

Caller ID Log/Fax Print button starts a search in

— the Number Display (Caller ID) log.

— the fax list stored in memory.

— printing a fax.

Caller ID Log/Fax Print indicator lights when

—

a call was missed. (For Number Display service users.)

— a fax was stored in memory.

Flash button (For call waiting service users.)

Erase button

Auto Answer button & indicator

— light on: answering device activated.

— light off: used as a regular telephone.

Playback button plays back recorded messages.

Record button records a telephone conversation.

To record a telephone conversation, press

(Playback/Record) (Cancel the

precaution voice message).

To stop recording, press (Stop).

Fax button starts faxing.

Copy button starts copying.

Stop button

One-touch Dial buttons

Block button for undesired calls

Redial button

To redial the telephone numbers in the redial list. The

last 10 telephone numbers dialed are stored in memory.

Secure button

While the unit is ringing, press this button. The unit

announces a message to the caller. The message

is announced in Japanese and means “This unit is

currently set to Caller Verifying mode. Could you please

speak out your name?”.

To talk to the caller, lift the handset.

To hang up, press .

Enhanced Record button records the previous

1 minute of the current telephone conversation.

To record the previous 1 minute of telephone

conversation, press (Enhanced record).

To stop recording, press (Stop).

Window sensor button

Phonebook button

To use the phonebook.

Volume control button

To adjust the volume (see below).



To adjust the ringer volume when the unit is on

standby, press (Select

“  ”)

(Function/Set) (press repeatedly)

(Stop).

To adjust the receiver volume while talking, press

repeatedly.

To adjust the speaker volume while listening to the

recorded messages or using the monitor, press

repeatedly.

Resolution button selects the resolution when faxing or

copying.

Select button

Tone button switches to tone dialing.

Sharp button

Monitor button

Hold/Intercom button

KX-PD381DLE8DWE8QG.indb2KX-PD381DLE8DWE8QG.indb2 2011/10/1217:28:132011/10/1217:28:13

Finding the controls

Portable handset (KX-FKD502)

Do not cover the

microphone while

talking.

Earpiece

Microphone





To start a search in the

Number Display log. (For

Number Display service

users.)





To redial the telephone

numbers in the redial list.

The last 10 telephone

numbers dialed are stored

in memory.





To change Hiragana to

Kanji.





To adjust the volume.





To adjust the ringer

volume when the portable

handset is on standby,

press (Select “ 呼出

音量”)

(press repeatedly)

or .





To adjust the receiver

volume while talking,

press repeatedly.





To adjust the speaker

volume while listening to

the recorded messages or

using the speakerphone,

press repeatedly.

How to use key





To make/answer calls.





To put a call on hold.





To page the main unit and/or

portable handset(s).





To end a call.





To end or exit from editing or

other operations.





To use the speakerphone.

Sharp button

Key lock button

To lock the portable handset so that no calls or

settings can be made. To turn key lock on, press this

button for about 3 seconds until a single beep is heard.

To turn key lock off, press this button for about 3

seconds until a single beep is heard.

Dial buttons

Tone button

To switch to tone dialing.

Liquid crystal display

Portable handset number and

name

When using the

speakerphone

No link to the main unit

Battery strength

Function menu that is

controlled by , or

How to use buttons

, and buttons refer to the

function displayed on the bottom of the

display. They function differently

depending on the mode.





To answer a second call on the other

call, press . (For call waiting

service users.)





To make a voice call using

One-touch dialer.

KX-PD381DLE8DWE8QG.indb3KX-PD381DLE8DWE8QG.indb3 2011/10/1217:28:132011/10/1217:28:13

Installations and connections

Installing the ink film

When the unit runs out of ink film, the following message will be displayed.

Install a new ink film.

2Pull up the green lever

and open the back cover.

1Open the control panel.

4If the ink film is slack, tighten it by

winding this gear (orange).

3Insert the ink film.

Flat white surface

Glass

Insert the orange

gear into the left slot

of the main unit.

Insert the white

gear into the right slot

of the main unit.

6Close the control panel.

5Close the back cover pressing

“ ” down on both sides

until it clicks into place.

Replacement ink film:

KX-FAN190 (15 m) 714

KX-FAN190W (15 m x 2) 1,208

KX-FAN191 (15 m)*1893

KX-FAN191W (15 m x 2)*11,523 As of October 2011 Tax included

*1 KX-FAN191/KX-FAN191W leaves a fainter print trail on the film

than KX-FAN190/KX-FAN190W does.



Do not place the ink film on the back side of

the control panel. Any ink adhering to the glass

or flat white surface may cause black or white

lines to appear on the recording paper or the

recipient's fax.



 













KX-PD381DLE8DWE8QG.indb4KX-PD381DLE8DWE8QG.indb4 2011/10/1217:28:132011/10/1217:28:13

Installations and connections

Installing recording paper (A4 size)

2Set up the recording paper stands.

Pull out the front stand first.

Recording paper

Printing side is

on the back.

3Insert the recording paper into the

recording paper tray. (Up to 15 sheets)

Fan the stack of recording paper.

①Remove the recording paper and fold the recording

paper stands in.

②Close the recording paper tray.

Folding the recording paper tray

1Open the recording paper tray.

KX-PD381DLE8DWE8QG.indb5KX-PD381DLE8DWE8QG.indb5 2011/10/1217:28:142011/10/1217:28:14

Installations and connections

Connecting the main unit

1Raise the antenna.

Power cord

Telephone line cord

(supplied accessory) Wall jack

Power outlet

(AC 100 V)

4Connect the telephone line cord.

3Connect the power cord.

2Connect the cord and

place the handset on

the main unit.

After connecting...

①This unit will automatically select the dialing mode

(Pulse/Tone).

②When the following is displayed, press

(Function/Set) to set the date

and time.

③Enter the correct year/month/day.

Example: October 1, 2011

Press .

④Enter the correct hour/minute in a 24-hour

clock entry.

Example: 15:45(3:45 PM)

Press .

⑤Press (Function/Set).

⑥

When the following is displayed, press

(Stop).

If you cannot make a call...

Set the dialing mode with the main unit.

1. Press (Function/Set).

Press

3. Press (Function/Set).

4. Press (Select button) repeatedly until the

desired setting is selected.

Example : : Auto (Default)

 : Tone

  : Pulse (20 PPS)

 : Pulse (10 PPS)





5. Press (Function/Set).

6. If you have selected “  ”, “20” or “10”, press

(Stop).

To adjust the date and time

1. Press (Function/Set), then press

2. Press (Function/Set).

3. Enter the correct year/month/day/hour/minute.

4. Press (Function/Set), then press

(Stop).



 









 































 















































 









KX-PD381DLE8DWE8QG.indb6KX-PD381DLE8DWE8QG.indb6 2011/10/1217:28:152011/10/1217:28:15

Installations and

connections

Setting your fax telephone

number

Setting up the portable handset

(KX-FKD502)

1Press on the battery cover and slide the cover

off.

2Insert the battery into the compartment and close the

battery cover.

After your Panasonic battery is fully charged,

it will last up to about 5 hours of conversation.

Battery

Power outlet

(AC 100 V)

Charger

3Connect the charger to the power outlet, then place

the portable handset on the charger for about

10 hours.

1Press (Function/Set).

3Press (Function/Set).

6Press (Stop).

4Enter your fax telephone number, up to 20 digits.

Example: +098 7654··

2Press .

5Press (Function/Set).



The (Tone) button replaces

the digit with “+”.

The (Hold/Intercom) button

replaces the digit with a space.

To correct a mistake, press

(Flash/Erase).















KX-PD381DLE8DWE8QG.indb7KX-PD381DLE8DWE8QG.indb7 2011/10/1217:28:152011/10/1217:28:15

4Enter your logo, up to 30 characters, using the dial

keypad.

To enter Alphabets easily, press (Playback/

Record) repeatedly and select “”.

For details, see the table on page 9 for instructions.

Setting your logo

1Press (Function/Set).

3Press (Function/Set).

6Press (Stop).

Example: Micah

1. Press once.

2. Press six times.

3. Press six times.

4. Press to move the cursor to the next space

and press four times.

5. Press five times.

5Press (Function/Set).

2Press .

















































































Cursor

















Cursor

KX-PD381DLE8DWE8QG.indb8KX-PD381DLE8DWE8QG.indb8 2011/10/1217:28:152011/10/1217:28:15

Character input and command key table

Pressing the dial keys will select a character as shown below.

Character Hiragana*1Katakana Alphabets Numbers

Display of the

main unit and the

portable handset

   

Dial key

Main

(

unit

)

Portable

handset

(

KX-FKD502

)









@ . _ – & $ ¥ %

+ = ^

      

       

       

        

    

       

      

      

 

    

 ’”

 



 

Command keys

(Main unit), (Portable handset) Used to change the character

input mode.

(Main unit)*2, (Portable handset) Used to move the cursor to the

left and right.

(Main unit), (Portable handset) Used to delete a character.

To delete the character on the

cursor and one(s) to its right,

press this button for 2 seconds

or more.

(Main unit), (Portable handset) Used to insert a space.

*1 Only for the portable handset KX-FKD502.

*2 On the main unit, the cursor cannot be moved to the left.

The characters on the display are somewhat different from those shown in the character input and command key table.

KX-PD381DLE8DWE8QG.indb9KX-PD381DLE8DWE8QG.indb9 2011/10/1217:28:152011/10/1217:28:15

1010

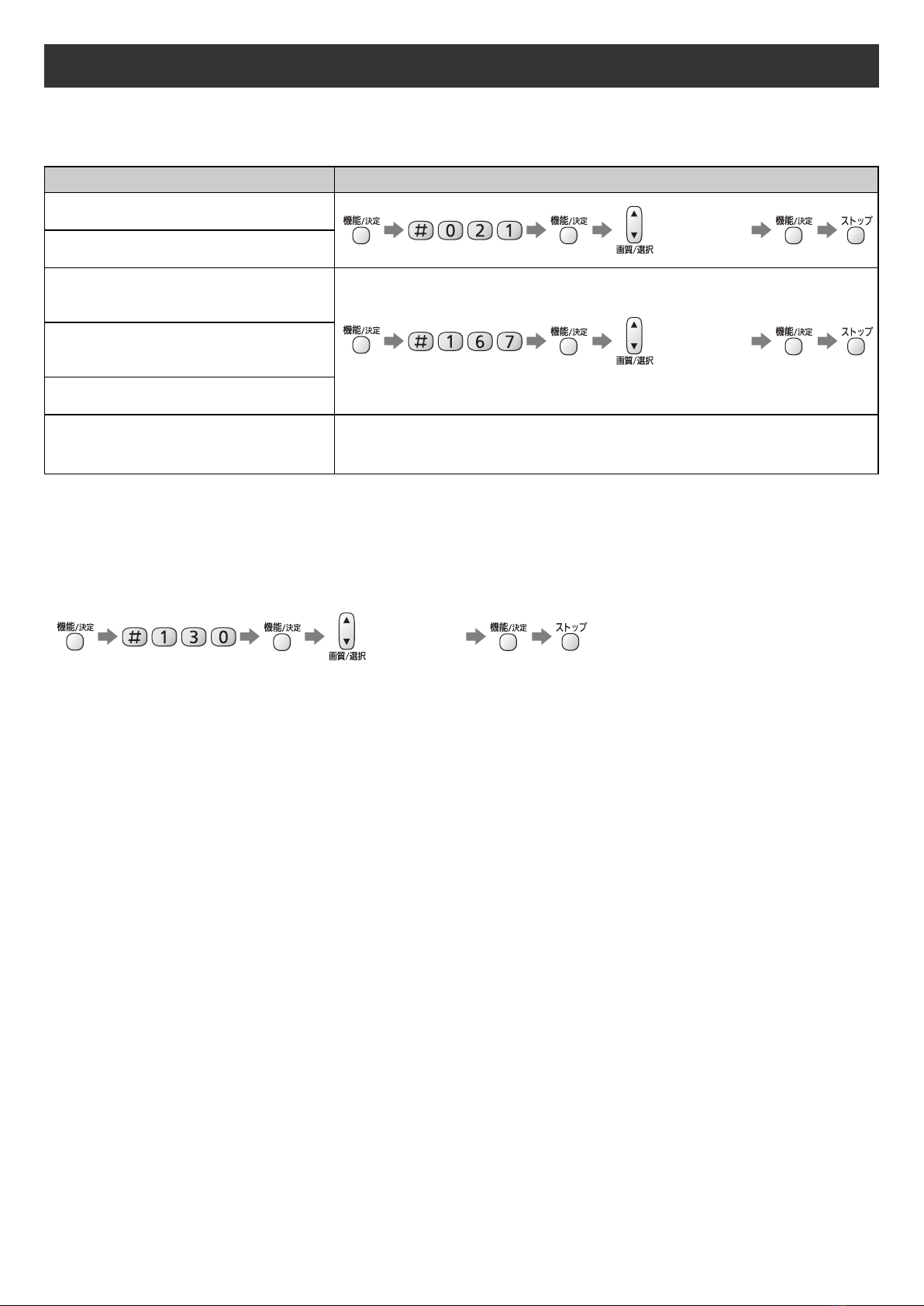

Voice guide

Operation guide

The unit starts the following voice guidance in Japanese:

Operations To cancel the operation guide (using the main unit)

Send a fax

(Select “ﾅｼ ”)



Copy

Store telephone numbers in the

one-touch dialers

(Select “ﾅｼ ”)



Make a call using the phonebook/

redial/one-touch dialer/caller ID log

Print fax documents from the memory

Change the ink film The operation guide for changing the ink film cannot be prevented from

starting.

Reading-out dial

The unit announces the dialed number in Japanese.



To cancel the reading-out dial

(Select “ ﾅｼ ”)

KX-PD381DLE8DWE8QG.indb10KX-PD381DLE8DWE8QG.indb10 2011/10/1217:28:152011/10/1217:28:15

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panasonic Faxgerät Handbücher

Panasonic

Panasonic UF-6950 - Panafax - Multifunction Montage- und Wartungsanleitung

Panasonic

Panasonic KX-PW201CL Bedienungsanleitung

Panasonic

Panasonic Panafax UF-127M Bedienungsanleitung

Panasonic

Panasonic Panafax DX-800 Montage- und Wartungsanleitung

Panasonic

Panasonic KX-FT982HK Bedienungsanleitung

Panasonic

Panasonic KX-FPC185C Bedienungsanleitung

Panasonic

Panasonic KX-FT932BR-B Bedienungsanleitung

Panasonic

Panasonic KX-F170 Bedienungsanleitung

Panasonic

Panasonic KX-FP151E Bedienungsanleitung

Panasonic

Panasonic KX-FT901BX Bedienungsanleitung

Panasonic

Panasonic KX-FT981LA-B Bedienungsanleitung

Panasonic

Panasonic KX-PW10CL Bedienungsanleitung

Panasonic

Panasonic KX-FP155 Bedienungsanleitung

Panasonic

Panasonic KX-FP101NZ Bedienungsanleitung

Panasonic

Panasonic KX-FP215 Bedienungsanleitung

Panasonic

Panasonic KX-PW102CW Bedienungsanleitung

Panasonic

Panasonic KX-F2781NZ Bedienungsanleitung

Panasonic

Panasonic KX-FP300E Bedienungsanleitung

Panasonic

Panasonic KX-PD502DL Bedienungsanleitung

Panasonic

Panasonic Panafax UF-260 Bedienungsanleitung

Panasonic

Panasonic Panafax UF-150 Betriebsanleitung

Panasonic

Panasonic UF-6300 Bedienungsanleitung

Panasonic

Panasonic KX-FT25LA Bedienungsanleitung

Panasonic

Panasonic Panafax UF-490 Bedienungsanleitung

Beliebte Faxgerät Handbücher anderer Marken

Samsung

Samsung SF-515 Bedienungsanleitung

Radio Shack

Radio Shack TFX-1031 Bedienungsanleitung

imagistics

imagistics 2030 Handbuch

Furuno

Furuno FAX-30 Bedienungsanleitung

Savin

Savin 3740 Handbuch

Sharp

Sharp FO-51 Bedienungsanleitung

Muratec

Muratec MFX-C3035 Bedienungsanleitung

Canon

Canon FAX-L400 Bedienungsanleitung

Ricoh

Ricoh 1000L Kurzanleitung

Sharp

Sharp FO-3150 Bedienungsanleitung

Kyocera

Kyocera KM-F1060 Bedienungsanleitung

Sharp

Sharp FO-2970M Bedienungsanleitung

Canon

Canon JX510P Bedienungsanleitung

Mita

Mita LDC-870 Handbuch

Brother

Brother MFC 640CW - Color Inkjet - All-in-One Bedienungsanleitung

Samsung

Samsung FX100 Handbuch

Sharp

Sharp MX-FXX1 Bedienungsanleitung

Develop

Develop ineo 25e Bedienungsanleitung
