Panasonic KX-PD582DLE9 Bedienungsanleitung
Facsimile
Quick Reference Guide
Model No. KX-PD582DLE9
KX-PD582DWE9
KX-PD582DLE9
Main unit:
Portable handset:
KX-PD582
KX-FKD504
Thank you for purchasing a Panasonic product.
This guide explains some basic features and operations, but not all of them.
For further details, see the Japanese operating instructions.
This product is designed for use in Japan.
Panasonic cannot provide service for this product if used outside Japan.
KX-PD582DLE9 includes 1 portable handset and 1 main unit.
KX-PD582DWE9 includes 2 portable handsets and 1 main unit.
Any details given in this guide are subject to change without notice.
This unit is equipped with the voice guide features. (Japanese only)
Cancel the voice guide features after installations and connections.
This guide explains the procedures without the voice guide.
For details about voice guide, please see page 10.
Table of Contents
Finding the controls .....................................................................................2
Installations and connections ......................................................................4
Setting your fax telephone number to the main unit ....................................7
Setting your logo to the main unit ................................................................8

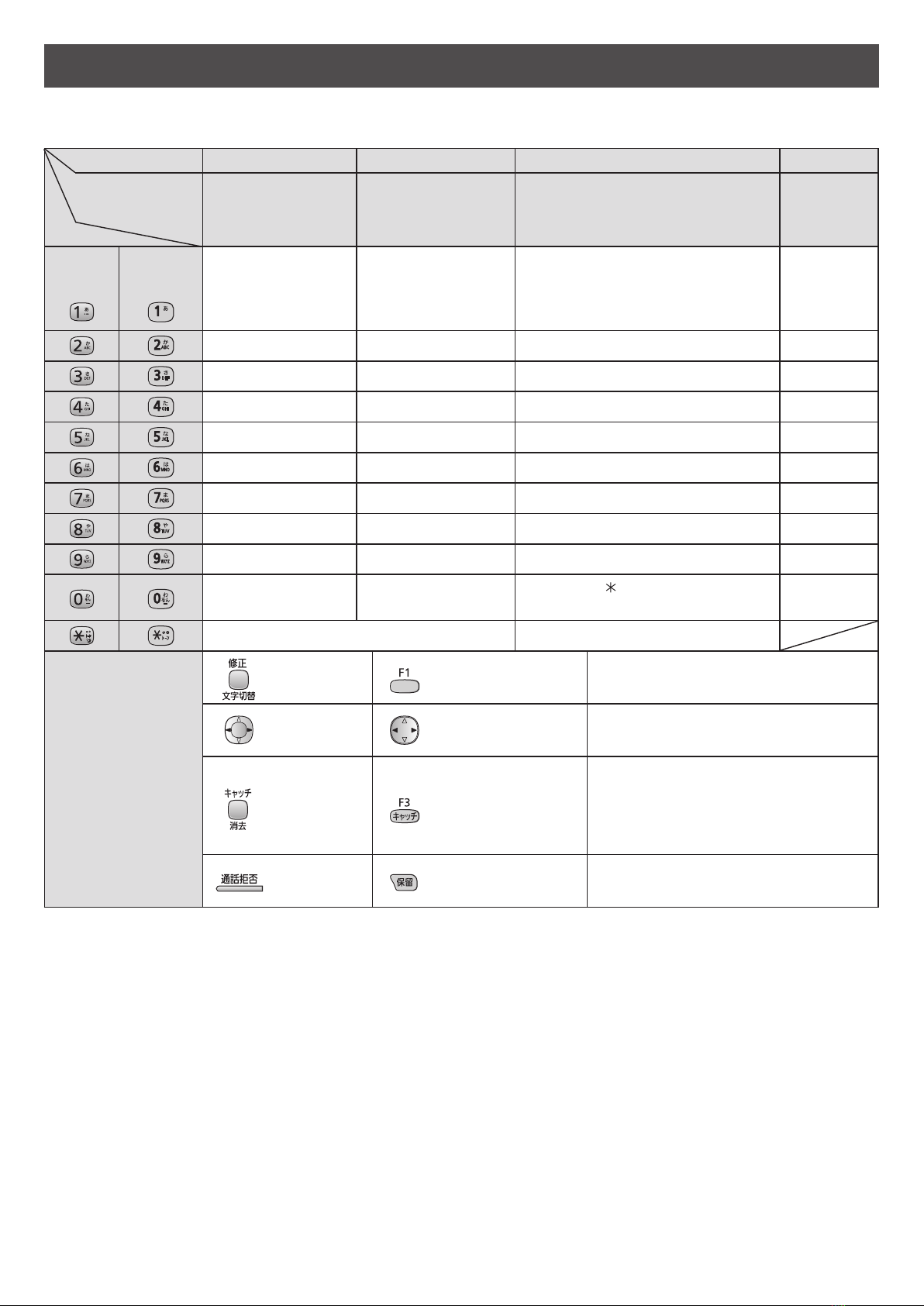

Character input and command key table .....................................................9
Voice guide ................................................................................................10
Automatic dialing on the main unit .............................................................11
Recording a telephone conversation on the main unit...............................12
Automatic dialing on the portable handset (KX-FKD504) ..........................13
Recording a telephone conversation on the portable handset
(KX-FKD504) .............................................................................................14
Intercom .....................................................................................................15
Sending faxes ............................................................................................16
Copying documents ...................................................................................16
Receiving faxes ........................................................................................17
Operating the built-in answering device .....................................................20
Night mode ...............................................................................................22
Setting the unit to automatically answer incoming calls
to enable you to check the caller’s voice when you are at home ............22
Call block ...................................................................................................23
SD Memory Card .......................................................................................24
Trademarks ................................................................................................25
Specifications .............................................................................. Back cover
2
Finding the controls
Main unit
1 Liquid crystal display
2 Edit/Character Input Mode button
3 Flash button (For call waiting service users.)
Erase button
4 Speed Dialer button
5 Auto Answer button & indicator
— light on: answering device activated.
— light off: used as a regular telephone.
6 SD Memory Card slot (See page 24)
7 Playback button plays back recorded messages.
8 Caller ID Log/Fax Print button starts a search in
— the Number Display (Caller ID) log.
— the fax list stored in memory.
Caller ID Log/Fax Print indicator lights when
—
a call was missed. (For Number Display service users.)
— a fax was stored in memory.
9 Hold/Intercom button
10
Monitor button
11
Block button for undesired calls
12
Secure button
While the unit is ringing, press this button. The unit
announces a message to the caller. The message
is announced in Japanese and means “This unit is
currently set to Caller Verifying mode. Could you please
speak out your name?”.
To talk to the caller, lift the handset.
To hang up, press .
Resolution button selects the resolution when faxing
or copying.
13
Record button records a telephone conversation.
14
Enhanced Record button records the previous
10 minutes of the current telephone conversation.
If an SD Memory Card is available (inserted), the
telephone conversation will be recorded to the SD
Memory Card.
To record the previous 10 minutes of telephone
conversation, press (Enhanced record).
To stop recording, press (Stop).
15
Volume/Change/Phonebook/Redial key
To adjust the volume (see below).
To change Hiragana into Kanji.
To adjust the ringer volume when the unit is on
stand by, press (Select “”)
機能/
決定 (Function/Set) (press repeatedly)
(Stop).
To adjust the receiver volume while talking,
press repeatedly.
To adjust the speaker volume while listening to
the recorded messages or using the monitor,
press repeatedly.
To use the phonebook.
To redial the phone numbers in the redial
list. The last 10 phone numbers dialed are
stored in memory.
機能/
決定 To register a function or apply a setting.
16
Fax button starts faxing.
17
Copy button starts copying.
18
Stop button
19
Tone button switches to tone dialing.
Night mode button
20
Sharp button
Key lock button can lock the main unit so that no calls
or settings can be made. To turn key lock on, press this
button for about 3 seconds until a single beep is heard.
To turn key lock off, press this button for about
3 seconds.
3
Finding the controls
Portable handset (KX-FKD504)
Do not cover the
microphone while
talking.
Earpiece
Microphone
●
To start a search in the
Number Display log. (For
Number Display service
users.)
●
To redial the telephone
numbers in the redial list.
The last 10 telephone
numbers dialed are stored
in memory.
●
To change Hiragana to
Kanji.
●
To adjust the volume.
■
To adjust the ringer
volume when the portable
handset is on standby,
press (Select “ 呼出
音量”)
(press repeatedly)
or .
■
To adjust the receiver
volume while talking,
press repeatedly.
■
To adjust the speaker
volume while listening to
the recorded messages or
using the speakerphone,
press repeatedly.
How to use key
●
To make/answer calls.
●
To put a call on hold.
●
To page the main unit and/or
portable handset(s).
●
To end a call.
●
To end or exit from editing or
other operations.
●
To use the speakerphone.
Sharp button
Key lock button
● To lock the portable handset so that no calls or
settings can be made. To turn key lock on, press this
button for about 3 seconds until a single beep is heard.
● To turn key lock off, press this button for about
3 seconds until a single beep is heard.
Dial buttons
Tone button
● To switch to tone dialing.
Liquid crystal display
Portable handset number and
name
When using the
speakerphone
No link to the main unit
Battery strength
Function menu that is
controlled by , or
, and buttons refer to the
function displayed on the bottom of the
display. They function differently
depending on the mode.
●
To answer a second call on the other
call, press . (For call waiting
service users.)
How to use buttons
●
To make a voice call using
One-touch dialer.
When talking on the
telephone, ensure that
the earpiece is at the
position of your ear.
4
Installations and connections
When the unit runs out of the ink film, the following message will be displayed.
Install a new ink film.
Installing the ink film
2Pull up the green lever
and open the back cove
r.
1
Open the control panel.
Replacement ink film:
KX-FAN190 (15 m) 714
KX-FAN190W (15 m x 2) 1,208
KX-FAN191 (15 m)*1 893
KX-FAN191W (15 m x 2)*1 1,523 As of February 2013 Tax included
*1 KX-FAN191/KX-FAN191W leaves a fainter print trail on the film
than KX-FAN190/KX-FAN190W does.
3
Insert the ink film.
Do not place the ink film on the back side of
the control panel. Any ink adhering to the glass
or flat white surface may cause black or white
lines to appear on the recording paper or the
recipient’s fax.
Insert the orange
gear into the left slot
of the main unit.
Insert the white gear into the right slot
of the main unit.
4If the ink film is slack, tighten it by
winding this gear (orange).
Flat white surface
Glass
5 Close the back cover pressing
“ ” down on both sides
until it clicks into place.
6 Close the control panel.
5
Installations and connections
Installing recording paper (A4 size)
2
Set up the recording paper stands.
Pull out the front stand first.
Recording paper
Printing side is
on the back.
3
Insert the recording paper into the
recording paper tray. (Up to 15 sheets)
Fan the stack of recording paper.
1
Open the recording paper tray.
1 Remove the recording paper and fold the recording
paper stands in.
2 Close the recording paper tray.
Folding the recording paper tray
6
Installations and connections

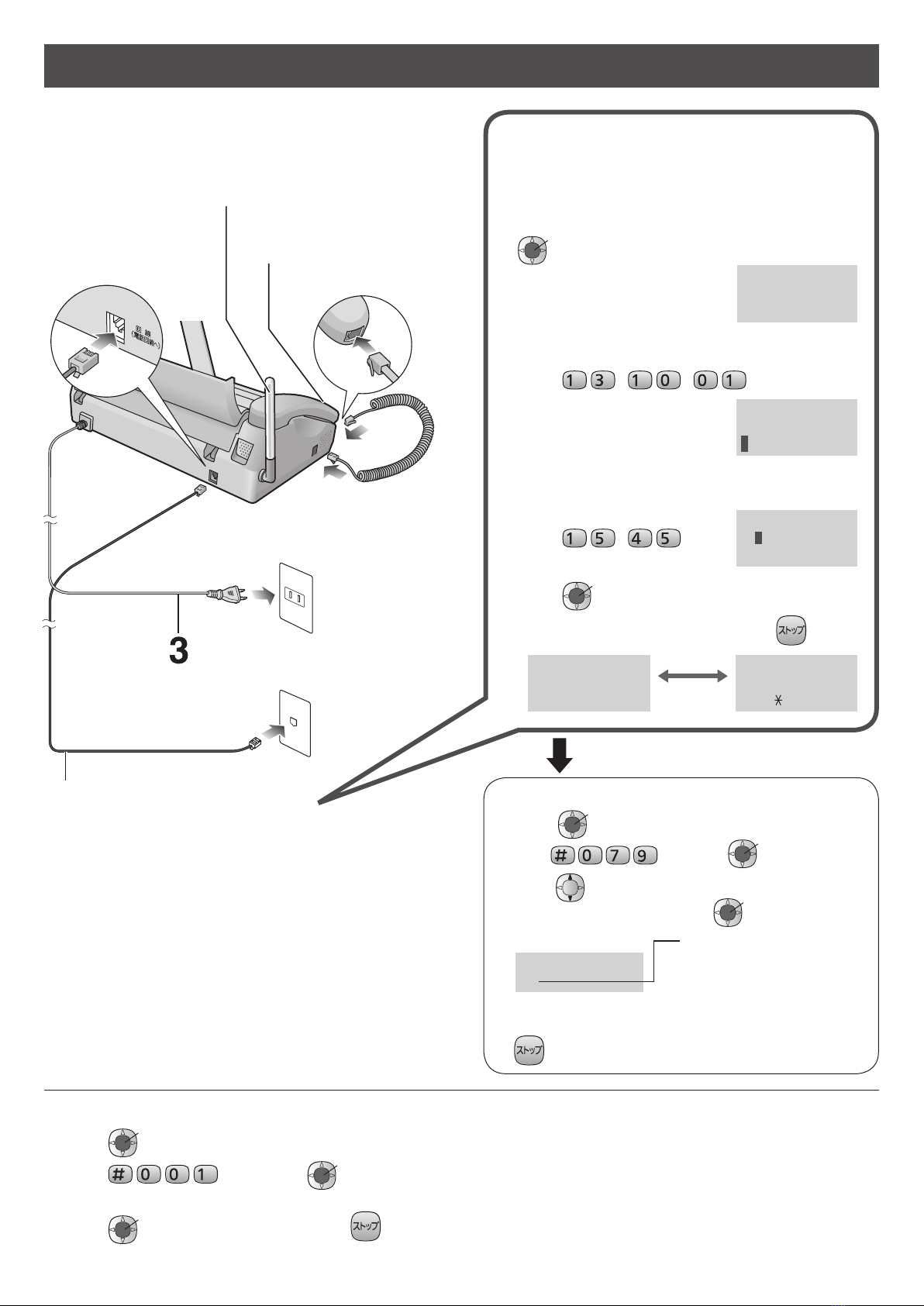

Connecting the main unit
1
Raise the antenna.
4
3
2 Connect the cord and
place the handset on
the main unit.
Connect the telephone line cord.
Telephone line cord
(supplied accessory)
Connect the power cord.
Wall jack
Power cord
Power outlet
(AC 100 V)
After connecting...
① This unit will automatically select the dialing mode
(Pulse/Tone).
② When the following is displayed, press
機能/
決定 (Function/Set) to set the date
and time.
③ Enter the correct year/month/day.
Example: October 1, 2013
Press .
④ Enter the correct hour/minute in a 24-hour
clock entry.
Example: 15:45 (3:45 PM)
Press .
⑤ Press
機能/
決定 (Function/Set).
⑥
When the following is displayed, press
(Stop).
If you cannot make a call...
Set the dialing mode with the main unit.
1. Press
機能/
決定 (Function/Set).
2.
Press , then press
機能/
決定
(Function/Set).
3.
Press (Search button) repeatedly until the desired
setting is selected, then press
機能/
決定
(Function/Set).
Example: : Auto (Default)
: Tone
: Pulse (20 PPS)
: Pulse (10 PPS)
4. If you have selected “ ”, “
” or “
”, press
(Stop).
To adjust the date and time
1. Press
機能/
決定 (Function/Set).
2. Press
, then press
機能/
決定 (Function/Set).
3. Enter the correct year/month/day/hour/minute.
4. Press
機能/
決定 (Function/Set), then press
(Stop).
♯
Alternating
display
7
Installations and
connections
Setting your fax telephone
number to the main unit
1 Press
機能/
決定 (Function/Set).
3 Press
機能/
決定 (Function/Set).
6 Press (Stop).
4 Enter your fax telephone number, up to 20 digits.
Example: +098 7654··
2 Press .
5 Press
機能/
決定 (Function/Set).
Setting up the portable handset
(KX-FKD504)
1 Press on the battery cover and slide the cover
off.
2 Insert the battery into the compartment and close the
battery cover.
After your Panasonic battery is fully charged,
it will last up to about 5 hours of conversation.
Battery
Power outlet
(AC 100 V)
Charger
3 Connect the charger to the power outlet, then place
the portable handset on the charger for about
10 hours.
Do not remove
the orange
vinyl film.
The (Tone) button replaces the digit with “+”.
The (Block) button replaces the digit with a
space.
To correct a mistake, press (Flash/Erase).
8

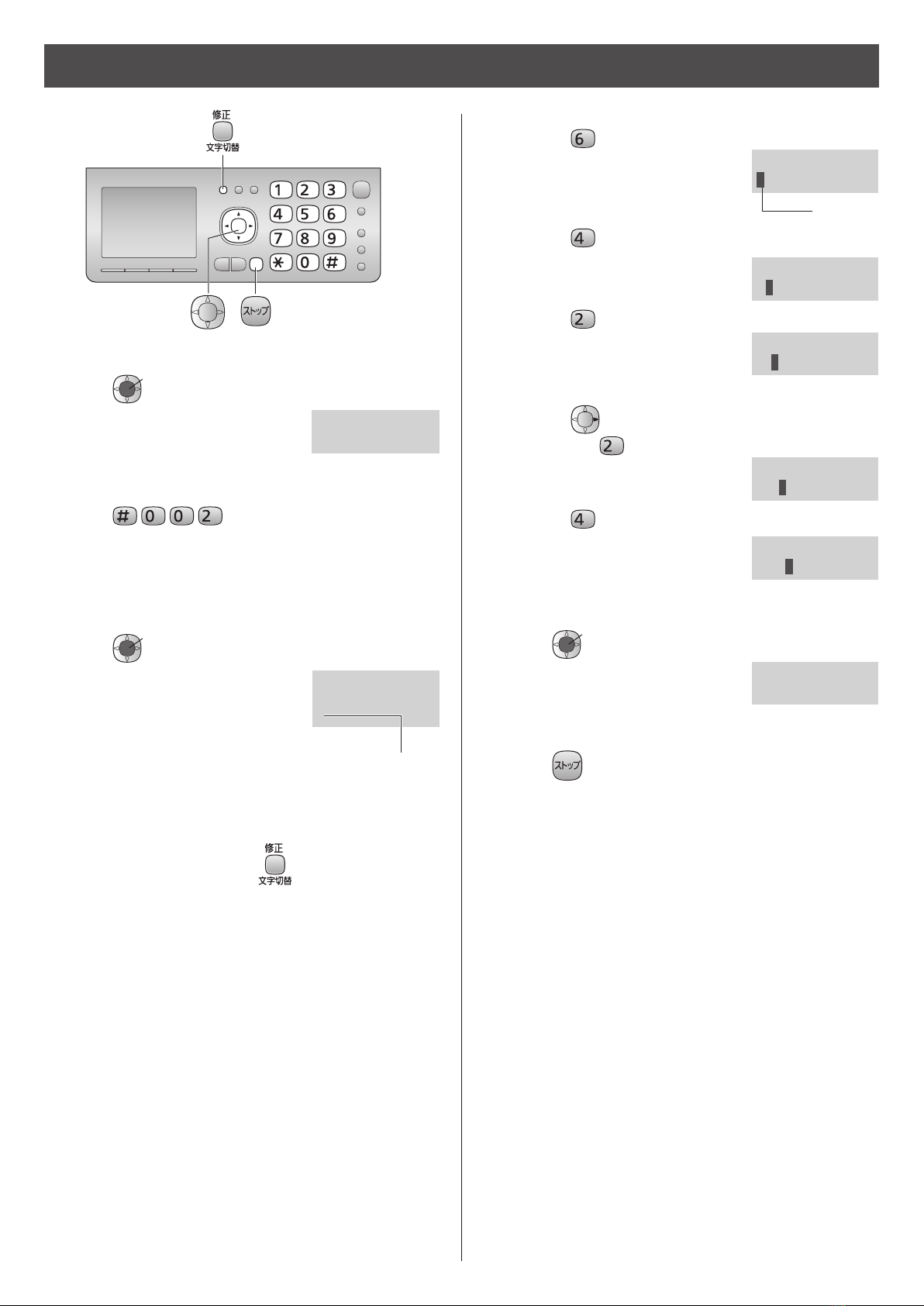

4 Enter your logo, up to 30 characters, using the dial
keypad.
To enter Alphabets, press (Edit/Character input
mode) repeatedly and select “” (Alphabets and
sign input mode).
For details, see the table on page 9 for instructions.
1 Press
機能/
決定 (Function/Set).
3 Press
機能/
決定 (Function/Set).
6 Press (Stop).
Example: Micah
1. Press once.
2. Press six times.
3. Press six times.
4. Press to move the cursor to the next space
and press four times.
5. Press five times.
5 Press
機能/
決定 (Function/Set).
2 Press .
Cursor
Cursor
Setting your logo to the main unit
9
Pressing the dial keys will select a character as shown below.
Character Hiragana Katakana Alphabets Numbers
Display of the main
unit and the portable
handset ［漢］ ［ｶﾅ］ ［英］ ［数］
Dial key
Main
(
unit
)
Portable
handset
(
KX-FKD504
)
@ . _ – & $ ¥ % + = ~ ^
ー ’”
Command keys
(Main unit) (Portable handset) Used to change the character input
mode.
(Main unit) (Portable handset) Used to move the cursor to the left
and right.
(Main unit) (Portable handset)
Used to delete a character. To delete
the character on the cursor and one(s)
to its right, press this button for
2 seconds or more.
(Main unit) (Portable handset) Used to insert a space.
The characters on the display are somewhat different from those shown in the character input and command key table.
Character input and command key table
10
Operation guide
The unit starts the following voice guidance in Japanese:
Operations To cancel the operation guide (using the main unit)
Send a fax
機能/
決定 (Function/Set)
機能/
決定 (Function/Set)
(Select “ ”)
機能/
決定 (Function/Set)
Copy
Add entries to the phonebook
機能/
決定 (Function/Set)
機能/
決定 (Function/Set)
(Select “ ”)
機能/
決定 (Function/Set)
Store phonebook entries in the speed
dialer
Make a call using the phonebook/redial/
speed dialer/caller ID log
Change the ink film The operation guide for changing the ink film cannot be prevented from
starting.
Reading-out dial
The unit announces the dialed number in Japanese.
To cancel the reading-out dial
機能/
決定 (Function/Set)
機能/
決定 (Function/Set)
(Select “”)
機能/
決定 (Function/Set)
Reading-out phonebook
The unit reads out stored names* when the phonebook is searched.
To cancel the reading-out phonebook
機能/
決定 (Function/Set)
機能/
決定 (Function/Set)
(Select “”)
機能/
決定 (Function/Set)
Incoming name announcement (for Number Display service
subscribers only)
The unit announces the caller’s name* when a call is received from a caller whose name and telephone number are
stored in the phonebook.
To cancel the incoming name announcement
機能/
決定 (Function/Set)
機能/
決定 (Function/Set)
(Select “”)
機能/
決定 (Function/Set)
Voice guide
* Names will only be read out when their “ ” (readings) are stored in katakana in the phonebook.
Alphabets, numbers and symbols in “ ” are not read out.
Dieses Handbuch passt für folgende Modelle
3
Inhaltsverzeichnis
Andere Panasonic Faxgerät Handbücher
Panasonic
Panasonic UF-8300 Bedienungsanleitung
Panasonic
Panasonic KX-FPG175 Bedienungsanleitung
Panasonic
Panasonic Panafax UF-6000 Bedienungsanleitung
Panasonic
Panasonic KX-FLB851 - All-in-One Flatbed Laser Fax Bedienungsanleitung
Panasonic
Panasonic KXF150 - CONSUMER FACSIMILE Bedienungsanleitung
Panasonic
Panasonic KX-PD303DL Bedienungsanleitung
Panasonic
Panasonic Panafax DX-2000 Bedienungsanleitung
Panasonic
Panasonic KX-PD551D Bedienungsanleitung
Panasonic
Panasonic KX-FL401E Bedienungsanleitung
Panasonic
Panasonic KX-FP207FX Bedienungsanleitung
Panasonic
Panasonic Panafax UF-250 Bedienungsanleitung
Panasonic
Panasonic KX-FLB851E Bedienungsanleitung
Panasonic
Panasonic Panafax UF-140 Bedienungsanleitung
Panasonic
Panasonic KX-FP121NZ Bedienungsanleitung
Panasonic
Panasonic Panafax UF-744 Bedienungsanleitung
Panasonic
Panasonic KX-PW503DL Bedienungsanleitung
Panasonic
Panasonic KXF1150 - MFD FAX PRINTER Bedienungsanleitung
Panasonic
Panasonic KX-F750 Kurzanleitung
Panasonic
Panasonic KX-F700C Bedienungsanleitung
Panasonic
Panasonic KX-PW76CL Bedienungsanleitung
