Panasonic KX-PW601DL Bedienungsanleitung

Facsimile

Quick Reference Guide

Model No.

Table of Contents

Finding the controls ……………………………………………………………2

Installations and connections …………………………………………………4

Setting the date and time ………………………………………………………7

Setting your facsimile telephone number ……………………………………7

Setting your logo…………………………………………………………………8

Character input and command key table ……………………………………9

Automatic dialing on the main unit……………………………………………10

Automatic dialing on the portable handset …………………………………12

Intercom between the main unit and portable handset ……………………14

Sending faxes …………………………………………………………………15

Receiving faxes ………………………………………………………………16

Operating the built-in answering device ……………………………………18

Individual e-mail services ……………………………………………………19

Specifications…………………………………………………………Back cover

Thank you for purchasing a Panasonic facsimile.

●This guide explains some basic features and operations, but not all of them.

For further details, see the Japanese operating instructions.

●This product is designed for use in Japan.

Panasonic cannot provide service for this product if used outside Japan.

●Any details given in this guide are subject to change without notice.

KX-PW601DL

KX-PW601DW

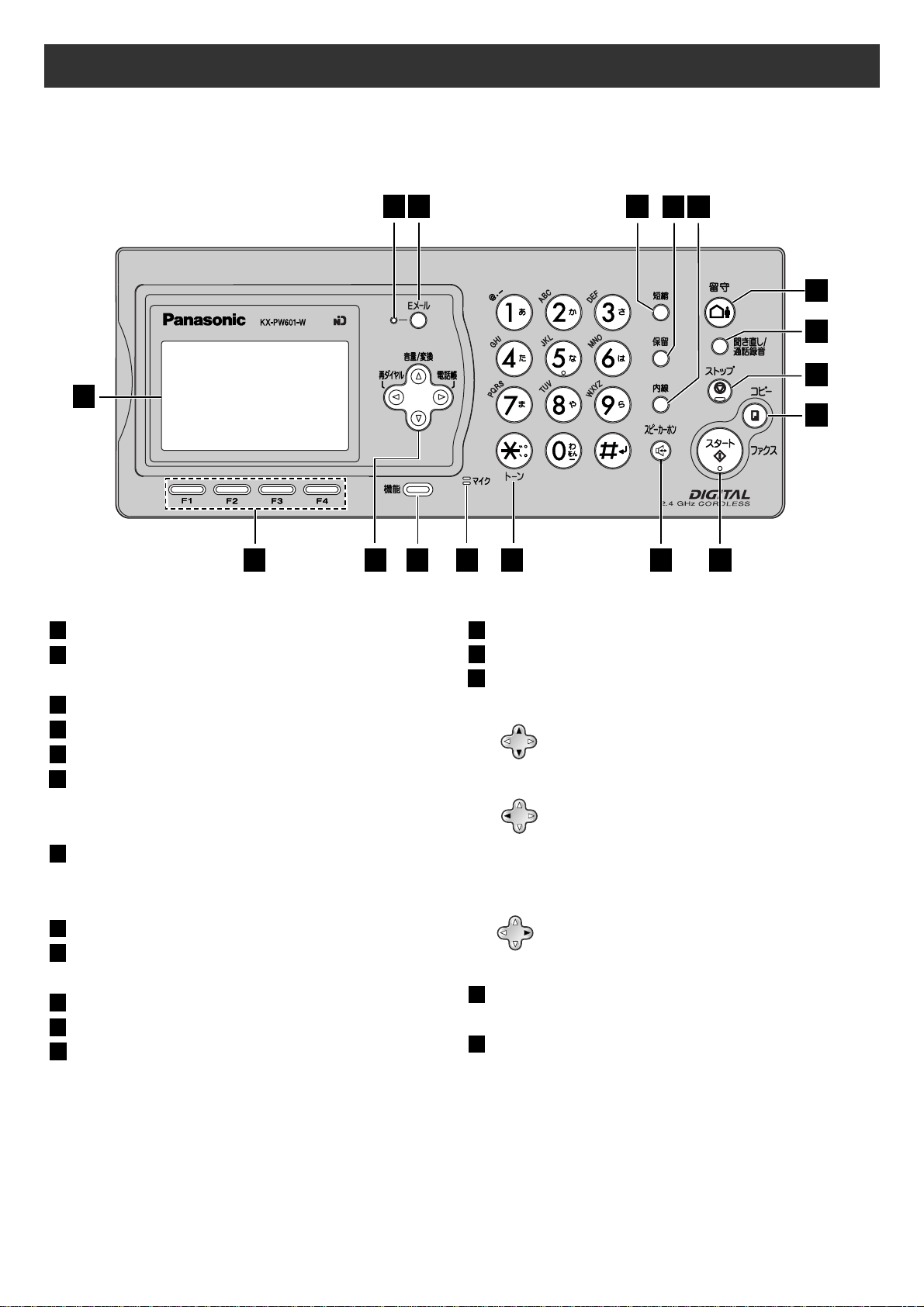

Finding the controls

Main unit (control panel)



145

10111213141516

E-Mail indicator

E-Mail button

Pause button

Speed Dialer button

Hold button

Intercom button

Auto Answer button & indicator

—light on: answering device activated.

—light off: used as a regular telephone.

Replay button plays back recorded

messages.

Record button records telephone calls.

Stop button

Copy button starts copying.

Mute button

Start/Fax button starts faxing.

Speakerphone button & indicator

Tone button switches to tone dialing.

Microphone

Function button initiates programming.

Volume/Redial/Phonebook/

Addressbook key

To adjust the volume.

To change Hiragana into Kanji.

To redial the phone numbers in

the redial list. The last 10 phone

numbers dialed are stored in

memory.

To use the phonebook and the

addressbook.

Multi-operation buttons refer to the

function displayed on the display panel.

Liquid crystal display

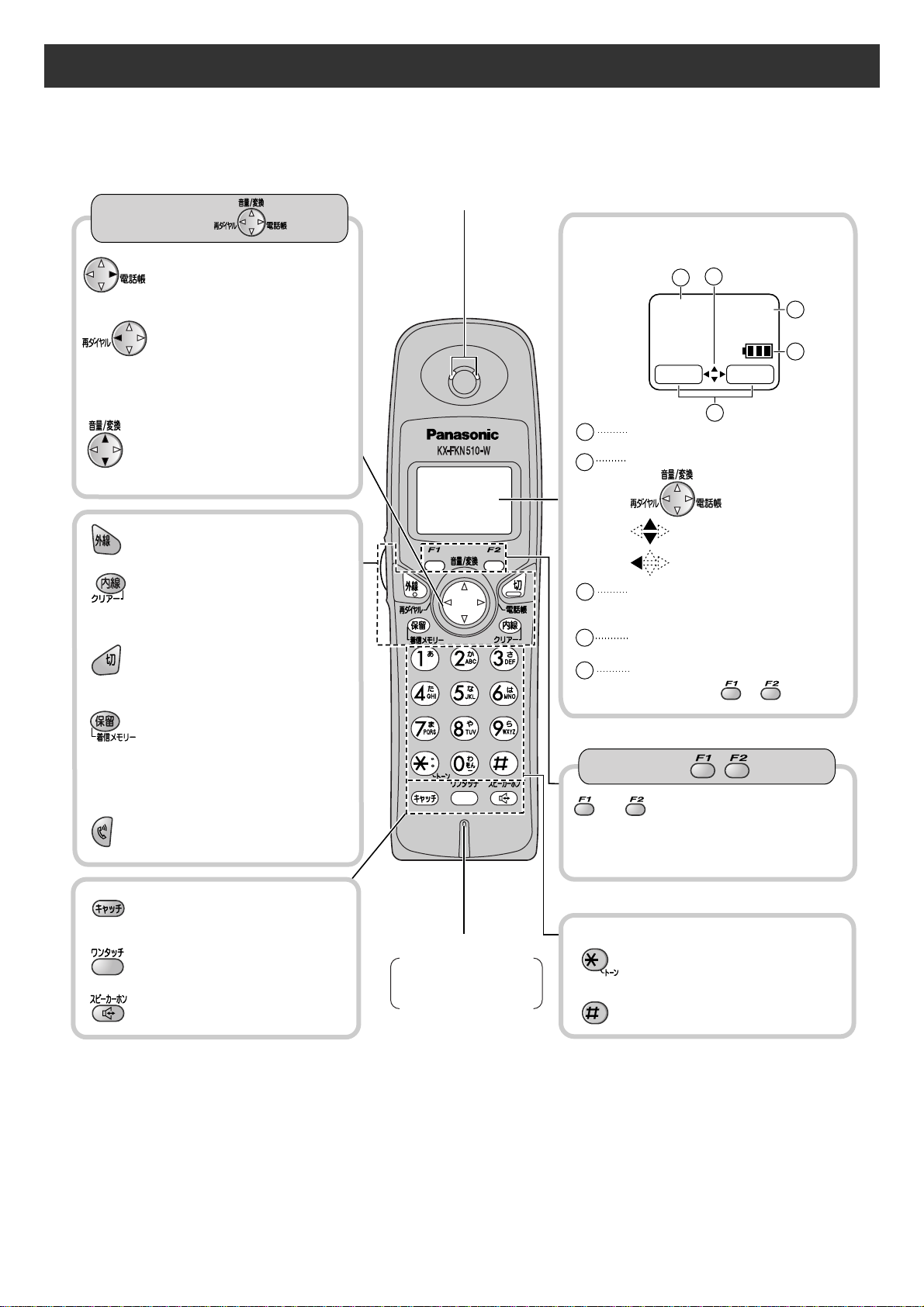

Finding the controls

Portable handset



●



For call waiting service

users.

●



To use the one-touch dial.

●



To use the speakerphone.

LCD (with back light)

Earpiece

Microphone

Do not cover the

microphone while

talking.



●



Displays battery strength, telephone

numbers etc.

1Portable handset number



●



To adjust the volume.

●



To change Hiragana into

Kanji.

●



To redial the phone

numbers in the redial

list. The last 10 phone

numbers dialed are

stored in memory.

●



To use the phonebook.



How to use key

機能

子機

圏外

留守



Function menu that is

controlled by or .

4Battery strength

2Indicates which directions the

key can be tilted.

up and down

left

3Out of range

(Walk closer to the main unit.)

Note:

●



If you use the portable handset near a microwave oven which is being used, noise may be heard from

the earpiece or the speaker. Move away from the microwave oven and closer to the main unit.



How to use buttons

and buttons refer to the function

displayed on the bottom of the display.

They function differently depending on

the mode.

Sharp button

Dial buttons



Tone button

●



To switch to Tone dialing mode.



●



To make/answer calls.

●



To page the main unit or

another portable handset.

●



To clear letters/numbers.

●



To end a call.

●



To end or exit from editing or

other operations.

●



To put a call on hold.

●



To start a search in the

Number Display log.

(For caller ID display service

users.)

●



To adjust the receiver tone

quality.

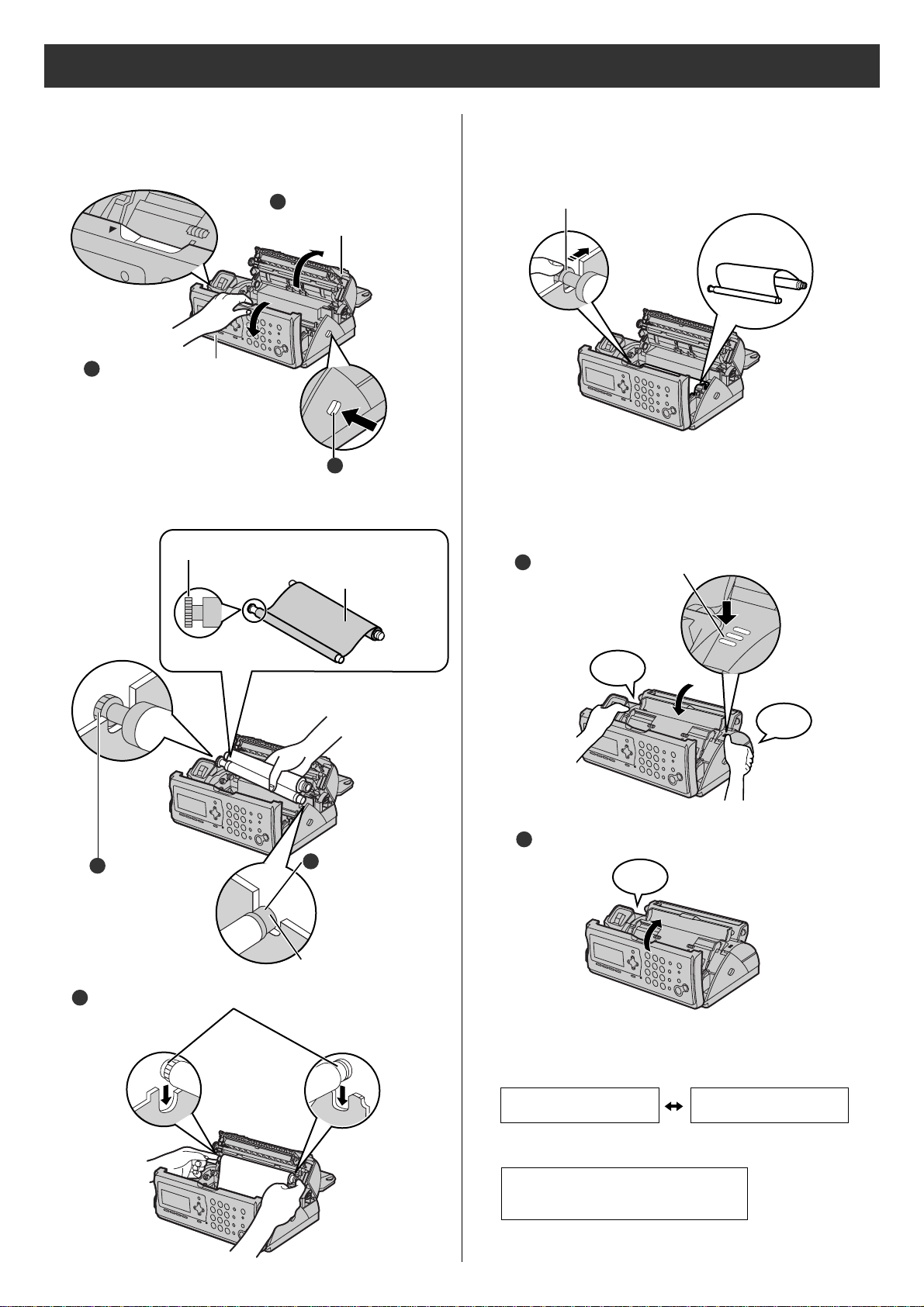

Installations and connections

Installing the ink film

2Insert the ink film.

1Open the control panel and the back cover.

Do not

be slacken.

押す

Click

開く

Open the control

panel until it locks.

3If the ink film is slack, tighten it by winding the “T”

shaped gear.

4Close the back cover and the control panel until they

lock.

●When the unit runs out of ink film, the following

message will be displayed.

Install a new ink film.

・As of June 2003. ・Tax not included.

ﾌｨﾙﾑ

か

ﾞ

なくなりました

U23

品番

：

ｰ

FAN142

ﾌｨﾙﾑ

か

ﾞ

なくなりました

U23

交換

してくた

ﾞ

さい

Replacement ink film:

KX-FAN142 (35 m) ¥1250

Open the back cover

until it locks.

Press here.

Find the “T”shaped gear (blue).

Ink film

Blue core

Insert the “T”

shaped gear

(blue) into the

left slot of the

main unit.

Insert the white core into the slots.

Insert the blue

core into the

right slot of the

main unit.

Click

To close the back cover, press here.

Close the control panel until it locks.

Installations and connections

Installing recording paper

(A4

size)

3Install the recording paper cover on the recording

paper tray by sliding it down from the top.

Recording

paper tray

Tab

Slot

Recording

paper cover

Recording

paper tray



Printing

side is on

the back

Recording

paper cover

Recording

paper tray

Fan the stack of recording paper (A4 size).

Insert the recording paper into the recording

paper tray. (Up to 30 sheets)

Close the paper entrance cover by leaning it

back.

2Insert the recording paper into the recording paper tray.

Open the paper entrance cover until it locks.

1Install the recording paper tray.

Separate the recording paper cover from the

recording paper tray.

Insert the left tab on the recording paper tray into

the left slot of the main unit.

Insert the right tab into the right slot of the main unit.

Connecting the main unit

Installations and connections

3Charge the battery in the charger for 10 hours.

Plug Charger

AC adaptor

Power outlet

(AC 100 V)

Connector

Battery

Battery cover

Click

Black

Red

Setting up the portable handset

●After your Panasonic battery is fully charged,

it will last up to about 7 hours of conversation.

Power cord

Telephone

line cord

Wall jack

Power outlet

(AC 100V)

3Connect the power

cord.

2Connect the telephone line

cord (Supplied accessory).

1 Connect the cord and place the handset on the

main unit.

Click

停電用

電話機回線

（電話回線へ）

Click

After the Power On...

This unit will automatically select the dialing

mode (Tone/Pulse).

充電中充電完了

●While charging. ●Charging completed.

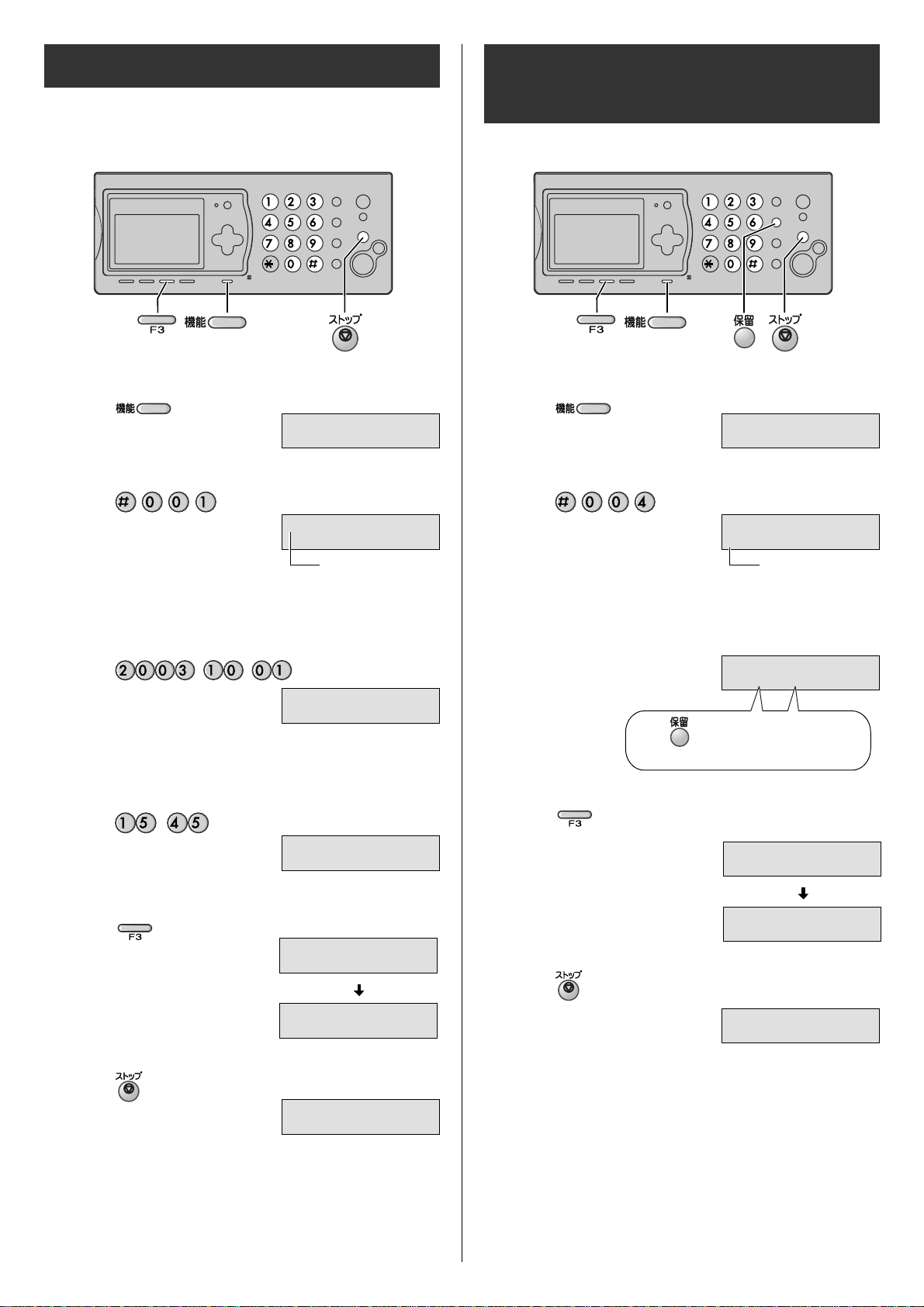

Setting the date and time

1Press (Function).

2Press .

3Enter the correct year/month/day.

Example: October 1, 2003

Press .

3Enter your facsimile telephone number, up to 20

digits.

Example: 098 765 43 · ·

4Enter the correct hour/minute in a 24-hour clock entry.

Example: 15:45 (3:45 PM)

Press . 4Press (Set/Register).

決定/登録

5Press (Set/Register).

決定/登録

6Press (Stop).

5Press (Stop).

Setting your facsimile

telephone number

機能登録ﾓｰﾄﾞ

■2

003

年

月

日

：

Cursor

Example :

2003

年

月

日

■2

：

■2

003

年

月

日

：

■2

003

年

月

日

：

登録

しました

月

日

ｱ

：

用件録音

ｱ

：

件

Example :

1Press (Function). 機能登録ﾓｰﾄﾞ

2Press .

あなたの

電話番号

■■

．．．．．．．．．．．．．．．．

Cursor

あなたの

電話番号

09876543

■■

．．．．．．

The (Space) button replaces

the digit with a space.

あなたの

電話番号

■0

9876543．．．．．．

登録

しました

月

日

ｱ

：

用件録音

ｱ

：

件

Example :

4. Press to move the cursor to the next space

and press four times.

2Press .

3Enter your logo, up to 30 characters, using the dial

keypad.

●To enter English characters easily, press

(Character input mode) repeatedly and select

“英” (English and sign input mode).

●For details, see the table on page 9 for instructions.

文字切替

5Press (Stop).

Setting your logo

2. Press six times.

3. Press six times.

5. Press five times.

Example: Micah

1. Press once.

4Press (Set/Register).

決定/登録

1Press (Function). 機能登録ﾓｰﾄﾞ

月

日

ｱ

：

用件録音

ｱ

：

件

Example :

Cursor

Mi c

Mica

Mica h

Micah

>

登録

しました

名前(印刷用)

＞＿

Cursor

Character input and command key table

、、。、。

“かな”

Hiragana

“英”

English

“カナ”

Katakana

“数”

Numbers

!？/ー#‚;: ｜・’”

（）

[]

｛｝〈〉「」

ワヲンー！？ ( )

あいうえおぁぃぅぇぉ

かきくけこ

さしすせそ

たちつてとっ

なにぬねの

はひふへほ

まみむめも

やゆよゃゅょ

らりるれろ

わをんー！？ ( )

アイウエオァィゥェォ @・ｰ&＄¥%＋=

〜^

DEFdef

GHI gh i

JKL j k l

MNOmn o

PQRSpqrs

TUVtuv

WXYZwxyz

カキクケコ

サシスセソ

タチツテトッ

ナニヌネノ

ハヒフヘホ

マミムメモ

ヤユヨャュョ

ラリルレロ

ABCabc

、。

Character

Dial key

Used to change the character input mode.

Used to move the cursor to the left and right.

Used to delete a character.

Used to insert a space.

Command keys

(Main unit), (Portable handset)

文字切替

(Main unit), (Portable handset)

クリアー

(Main unit), (Portable handset)

●When entering e-mail address, the small letters are displayed before the capital letters.

●When entering e-mail address, you can not enter the following symbols: 、。ー.「」

●When entering e-mail address, you can enter only English and Numbers.

●When entering e-mail message, pressing enables you to begin the new line. ( “ ” is displayed.)

●The display items of the main unit are somewhat different from those of the portable handset.

Portable

(

handset

)

Main

(

unit

)

Pressing the dial keys will select a character as shown below.

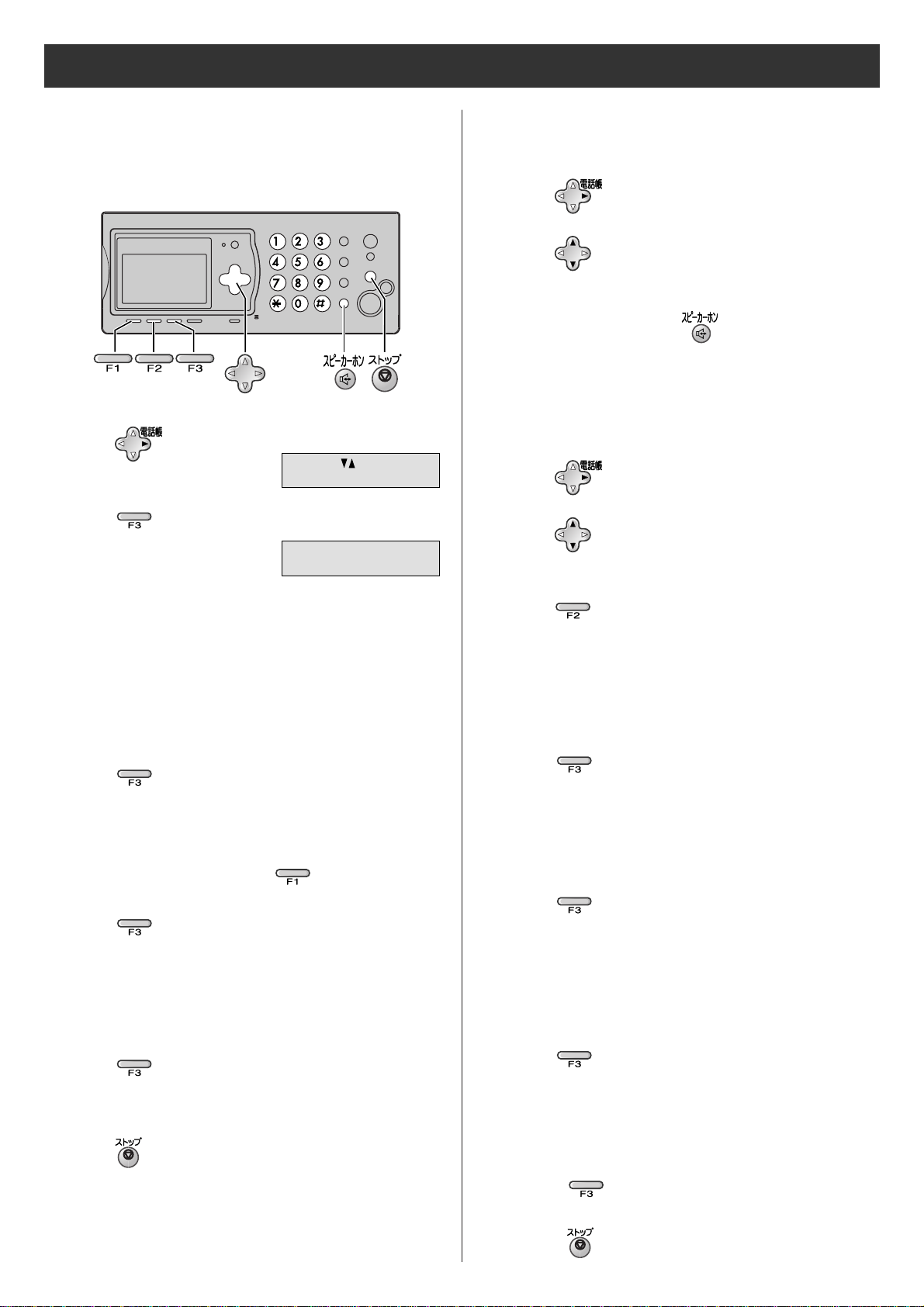

Automatic dialing on the main unit

Storing names and telephone

numbers in the phonebook

Making a voice call using the

phonebook

1Press (Phonebook).

2Press (Set/Register).

●“XXX” shows the remaining

station numbers you can

store.

●You can program up to 150

stations, including 4 pre-

programmed stations.

決定/登録

3Enter the name, up to 20 characters (see the table on

page 9 for instructions).

4Press (Set/Register) twice.

決定/登録

5Enter the telephone number, up to 24 digits.

●To correct a mistake, press (Clear).

クリアー

8Press (Set/Register).

●To program other items, repeat steps 3 to 8.

決定/登録

9Press (Stop) to exit the program.

2Press (Search button) repeatedly until the

desired name is displayed.

3Lift the handset or press (Speakerphone).

Editing a stored name or number

in the phonebook

3Press (Edit).

修正

4Edit the name (see the table on page 9 for

instructions).

●If you do not need to edit the name, skip to step 5.

5Press (Set/Register).

決定/登録

8Edit the telephone number.

●If you do not need to edit the telephone number,

skip to step 9.

9Press (Set/Register).

決定/登録

1Press (Phonebook).

2Press (Search button) repeatedly until the

desired name is displayed.

6Press (Set/Register).

決定/登録

7If necessary, enter the group number (1-9).

6Edit the kana.

●If you do not need to edit the kana, skip to step 7.

7Press (Set/Register).

決定/登録

10If necessary, enter the correct group number.

11Press (Set/Register).

決定/登録

電話帳空

き

ｱ

×××

件

検索

は

[ｱｱ]

を

押

す

12Press (Stop) to exit the program.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panasonic Faxgerät Handbücher

Panasonic

Panasonic KX-PD725DL Bedienungsanleitung

Panasonic

Panasonic KX-FL501AL Bedienungsanleitung

Panasonic

Panasonic Panafax UF-550 Bedienungsanleitung

Panasonic

Panasonic KX-FM106 Bedienungsanleitung

Panasonic

Panasonic Panafax UF-490 Bedienungsanleitung

Panasonic

Panasonic KX-PD205DL Bedienungsanleitung

Panasonic

Panasonic KX-FHD331 Bedienungs- und Montageanleitung

Panasonic

Panasonic Panafax UF-127M Bedienungsanleitung

Panasonic

Panasonic KX-FP151 Bedienungsanleitung

Panasonic

Panasonic Panafax UF-755 Bedienungsanleitung

Panasonic

Panasonic KX-FP343AL Bedienungsanleitung

Panasonic

Panasonic KX FP205 - B/W Thermal Transfer Bedienungsanleitung

Panasonic

Panasonic KX-FP270 Bedienungsanleitung

Panasonic

Panasonic KX-F1000NZ Bedienungsanleitung

Panasonic

Panasonic KX-FM205 Bedienungsanleitung

Panasonic

Panasonic KX-FL313HK Bedienungsanleitung

Panasonic

Panasonic KX-FM220 Bedienungsanleitung

Panasonic

Panasonic KX-PD625DL Bedienungsanleitung

Panasonic

Panasonic Panafax DX-2000 Bedienungsanleitung

Panasonic

Panasonic KX-FPC141 Bedienungsanleitung

Panasonic

Panasonic KX-FLB881E Bedienungsanleitung

Panasonic

Panasonic Panafax UF-6200 Bedienungsanleitung

Panasonic

Panasonic Panafax UF-123 Bedienungsanleitung

Panasonic

Panasonic KX-FLM600 Bedienungsanleitung

Beliebte Faxgerät Handbücher anderer Marken

Samsung

Samsung SF-515 Bedienungsanleitung

Radio Shack

Radio Shack TFX-1031 Bedienungsanleitung

imagistics

imagistics 2030 Handbuch

Furuno

Furuno FAX-30 Bedienungsanleitung

Savin

Savin 3740 Handbuch

Sharp

Sharp FO-51 Bedienungsanleitung

Muratec

Muratec MFX-C3035 Bedienungsanleitung

Canon

Canon FAX-L400 Bedienungsanleitung

Ricoh

Ricoh 1000L Kurzanleitung

Sharp

Sharp FO-3150 Bedienungsanleitung

Kyocera

Kyocera KM-F1060 Bedienungsanleitung

Sharp

Sharp FO-2970M Bedienungsanleitung

Canon

Canon JX510P Bedienungsanleitung

Mita

Mita LDC-870 Handbuch

Brother

Brother MFC 640CW - Color Inkjet - All-in-One Bedienungsanleitung

Samsung

Samsung FX100 Handbuch

Sharp

Sharp MX-FXX1 Bedienungsanleitung

Develop

Develop ineo 25e Bedienungsanleitung
