Panasonic KX-PW608DL Bedienungsanleitung

Facsimile

Quick Reference Guide

Model No. KX-PW608DL

KX-PW608DW

KX-PW608DL

Main unit:

Portable handset:

KX-PW608

KX-FKN516

Thank you for purchasing a Panasonic facsimile.

This guide explains some basic features and operations, but not all of them.

For further details, see the Japanese operating instructions.

This product is designed for use in Japan.

Panasonic cannot provide service for this product if used outside Japan.

KX-PW608DL includes 1 portable handset and 1 main unit.

KX-PW608DW includes 2 portable handsets and 1 main unit.

Any details given in this guide are subject to change without notice.

This unit is equipped with the voice guide features. (Japanese only)

For details about voice guide, please see page 10.

Table of Contents

Finding the controls …………………………………………………………… 2

Installations and connections ………………………………………………… 4

Setting your facsimile telephone number …………………………………… 7

Setting your logo ……………………………………………………………… 8

Character input and command key table …………………………………… 9

Voice guide…………………………………………………………………… 10

Automatic dialing on the main unit ………………………………………… 11

Automatic dialing on the portable handset (KX-FKN516) ……………… 13

Intercom ……………………………………………………………………… 14

Sending faxes ……………………………………………………………… 15

Receiving faxes ……………………………………………………………… 16

Operating the built-in answering device ………………………………… 18

Night mode…………………………………………………………………… 20

Call block …………………………………………………………………… 21

SD Memory Card …………………………………………………………… 22

Trademarks ………………………………………………………………… 23

Specifications ……………………………………………………… Back cover

KX-PW608DL_DW_QG.indb 1 2008/12/18 13:22:53

Finding the controls

Main unit

12 3 4 6

15 16 19181713

Liquid crystal display

The display turns off after about 2 minutes

of inactivity.

To turn on the display, press (Stop).

Call/Fax List button starts a search in

— the Number Display (Caller ID) log.

— the fax list stored in memory.

Call/Fax List indicator lights when

— a call was missed.(For Number Display

service users.)

— a fax was stored in memory.

Speed Dialer button

Function button initiates programming.

Volume/Change/Redial/Phonebook key

To adjust the volume (see below).

To change Hiragana into Kanji.



To adjust the ringer volume when the unit

is on stand by

(Select “”) (Set)

(press repeatedly)



To adjust the receiver volume while

talking, press repeatedly.

To adjust the speaker volume while

listening to the recorded messages or

using the monitor, press repeatedly.

To redial the phone numbers in

the redial list. The last 10 phone

numbers dialed are stored in

memory.

To use the phonebook.

Auto Answer button & indicator

—light on: answering device activated.

—light off: used as a regular telephone.

Playback button plays back recorded

messages.

Flash button (For call waiting service users.)

Fax button starts faxing.

Copy button starts copying.

Power indicator

SD Memory Card cover

SD indicator

Multi-operation buttons refer to the function

displayed on the display panel.

Hold button

Intercom button

Monitor button

Tone button switches to tone dialing.

Night mode button

Sharp button

Key lock button can lock the main unit so

that no calls or settings can be made. To

turn key lock on, press this button for about

3 seconds until a single beep is heard.

“ ” is displayed.

To turn key lock off, press this button for

about 3 seconds.

Stop button

KX-PW608DL_DW_QG.indb 2 2008/12/18 13:22:58

Finding the controls

Portable handset (KX-FKN516)

●



To change Hiragana into

Kanji.

●



To adjust the volume.

●



To redial the phone

numbers in the redial

list. The last 10 phone

numbers dialed are

stored in memory.

●



To make/answer calls.

●



To put a call on hold.

●



To start a search in the

Number Display log.

(For Number Display

service users.)

●



To use the speakerphone.

●



For call waiting service

users.

●



To clear letters/numbers.

Sharp button

Key lock button

●To lock the portable handset so that no calls or setings

can be made. To turn key lock on, press this button for

about 3 seconds until a single beep is heard.

●“ ” is displayed.

●To turn key lock off, press this button for about 3

seconds until a single beep is heard.

●



To use the phonebook.

and buttons refer to the function

displayed on the bottom of the display.

They function differently depending on

the mode.

Dial buttons

Earpiece Liquid crystal display

Microphone

Do not cover the

microphone while

talking.

Function menu that is

controlled by or

Portable handset number

(and name)

No link to the main unit

Battery strength

Tone button

●To switch to tone dialing.

●



To end a call.

●



To end or exit from editing or

other operations.

How to use key

How to use buttons

Secure button

●



While the portable handset is

ringing, press this button.

The portable handset

announces a message to the

caller . The message is

announced in Japanese and

means “This unit is currently

set to Caller Verifying mode.

Could you please speak out

your name?”

To talk to the caller,

press .

To hung up, press .

Mute button

●



To mute your voice to the

other party by pressing this

button for about 2 seconds.

(To release the mute,

press this button again.)

●



To page the main unit

and/or portable handset(s).

■To adjust the ringer

volume when the portable

handset is on stand by

(Select “呼出音量”)

(press

repeatedly) or

■To adjust the receiver

volume while talking,

pressrepeatedly

■To adjust the speaker

volume while listening to

the recorded messages or

using the speakerphone,

press repeatedly

KX-PW608DL_DW_QG.indb 3 2008/12/18 13:22:59

Installations and connections

When the unit runs out of ink film, the following message will be displayed.









  

Install a new ink film.

Installing the ink film

1Open the control panel.

2Open the back cover.

3Insert the ink film.

If the ink film is slack, tighten it by

winding this gear (orange).

Insert the white gear into the right slot

of the main unit.

Insert the orange

gear into the left slot

of the main unit.

5Close the back cover pressing

“ ” down on both sides

until it clicks into place.

6Close the control panel.

Replacement ink film:

KX-FAN190 (15 m) 714

KX-FAN190W (15 m X 2) 1,208

KX-FAN191 (15 m) (*1) 893

KX-FAN191W (15 m X 2) (*1) 1,523 As of January 2009. Tax included.

*1 KX-FAN191/KX-FAN191W leaves a fainter print trail on the film

than does the KX-FAN190/190W.

KX-PW608DL_DW_QG.indb 4 2008/12/18 13:23:00

Installations and connections

Installing recording paper (A4 size)

2Set up the recording paper stands.

Pull out the front stand first.

3Insert the recording paper into the

recording paper tray. (Up to 15 sheets)

�Fan the stack of recording paper.

Recording paper

� Printing side is

on the back.

1Open the recording paper tray.

1Remove the recording paper and fold the recording

paper stands in.

2Close the recording paper tray.

Folding the recording paper tray

KX-PW608DL_DW_QG.indb 5 2008/12/18 13:23:03

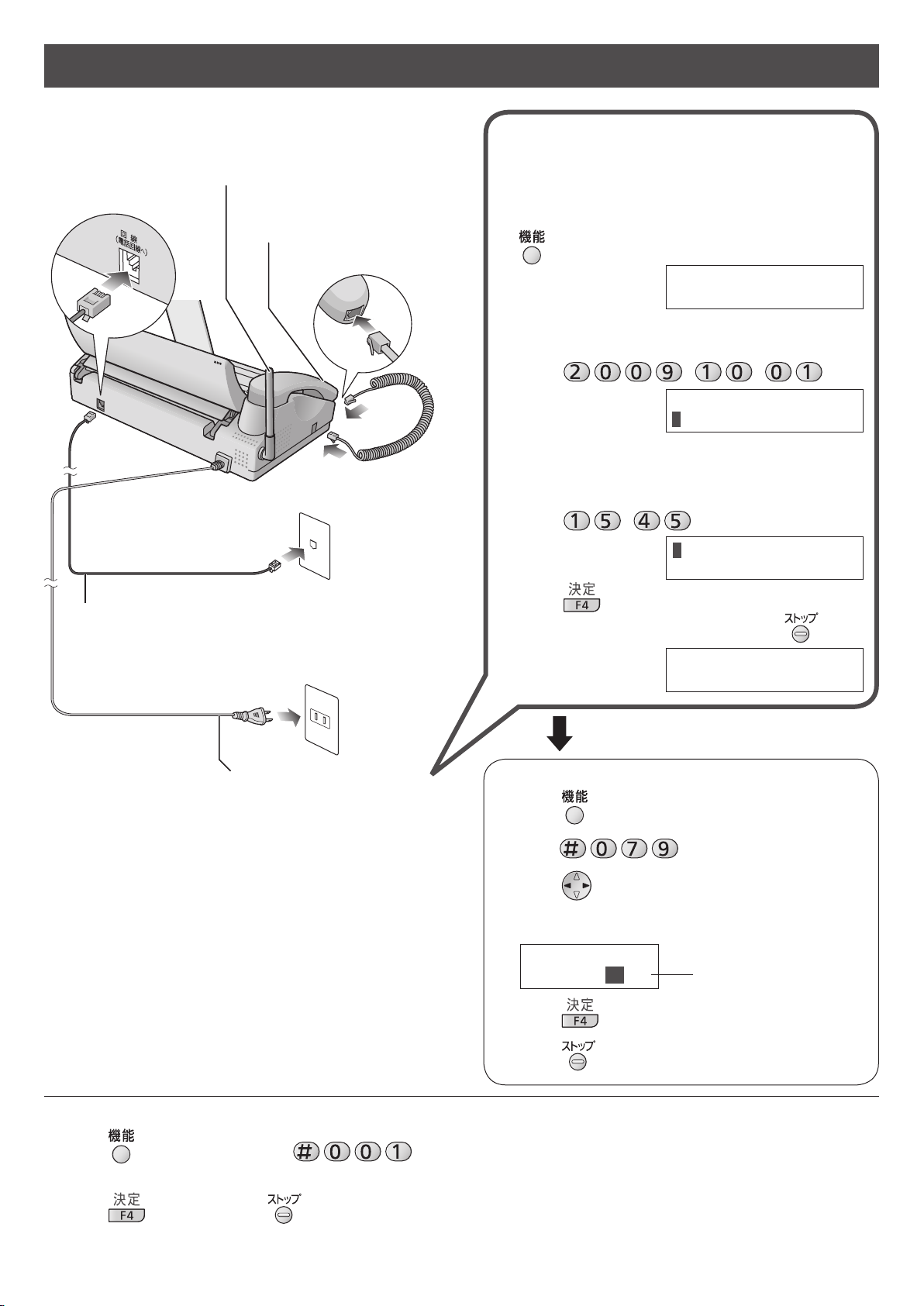

Installations and connections

Connecting the main unit

1Raise the antenna.

Power cord

Telephone line cord

(supplied accessory)Wall jack

Power outlet

(AC 100 V)

3Connect the telephone line cord.

4Connect the power cord.

2Connect the cord and

place the handset on

the main unit.

After the Power On...

1This unit will automatically select the dialing mode

(Pulse/Tone).

2When the following is displayed, press

(Function) to set the date and time.

3Enter the correct year/month/day.

Example: October 1, 2009

Press .

4Enter the correct hour/minute in a 24-hour

clock entry.

Example: 15:45 (3:45 PM)

Press .

5Press (Set)

6When the following is displayed, press

(Stop).













































 







If you cannot make a call...

Set the dialing mode with the main unit.

1. Press (Function).

Press

3. Press (Search button) repeatedly until the

desired setting is selected.

4. Press (Set).

5. Press (Stop).

Example :

 : Tone

  : Pulse (20 PPS)

 : Pulse (10 PPS)

: Auto (Default)



 







To adjust the date and time

1. Press (Function), then press

2. Enter the correct year/month/day/hour/minute.

3. Press (Set), then press

(Stop).

KX-PW608DL_DW_QG.indb 6 2008/12/18 13:23:05

Installations and

connections

Setting your facsimile

telephone number

1Press (Function).

5Press (Stop).

3Enter your facsimile telephone number, up to

20 digits.

Example: +098 7654··

2Press .

4Press (Set).

Example :

Setting up the portable handset

(KX-FKN516)

1Press on the battery cover and slide the cover.

2Insert the battery into the compartment and close the

battery cover.

After your Panasonic battery is fully charged,

it will last up to about 5 hours of conversation.

Battery

Power outlet

(AC 100 V)

Charger

3Connect the charger to the power outlet, then place

the portable handset on the charger for about

10 hours.







































The (Tone) button replaces

the digit with “+”.

The (Hold) button replaces the digit

with a space.

To correct a mistake, press

(Erase).









KX-PW608DL_DW_QG.indb 7 2008/12/18 13:23:07

3Enter your logo, up to 30 characters, using the dial

keypad.

To enter English characters easily, press

(Character input mode) repeatedly and select

“英” (English and sign input mode).

For details, see the table on page 9 for instructions.

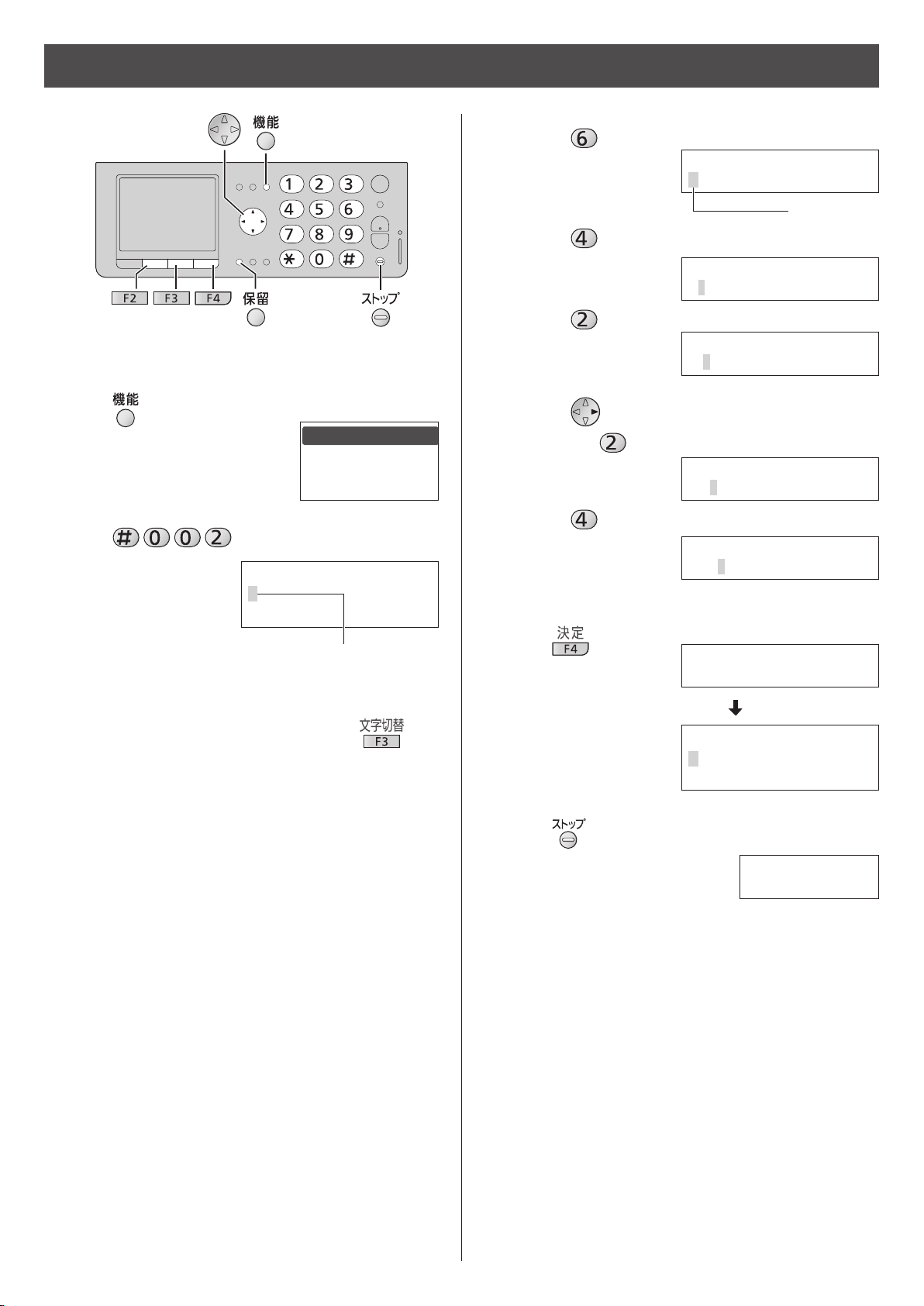

Setting your logo

1Press (Function).

5Press (Stop).

Example: Micah

1. Press once.

2. Press six times.

3. Press six times.

4. Press to move the cursor to the next space

and press four times.

5. Press five times.

4Press (Set).

2Press .

Example :









 















 















 















 















 















 







Cursor 









 









Cursor

























KX-PW608DL_DW_QG.indb 8 2008/12/18 13:23:08

Character input and command key table

Pressing the dial keys will select a character as shown below.

Character Hiragana Katakana English Numbers

Display of the

main unit and the

portable handset

［漢］［ｶﾅ］［英］［数］

Dial key

Main

(

unit

)

Portable

handset

(

KX-FKN516

)







 @ . _ – & $ ¥ % + = ~^

      

        

       

        

    

       

      

      

             ’”

     

   

Command keys

(Main unit), (Portable handset)

Used to change the character input

mode.

(Main unit), (Portable handset) Used to move the cursor to the left

and right.

(Main unit), (Portable handset) Used to delete a character.

(Main unit), (Portable handset) Used to insert a space.

The characters on the display are somewhat different from those shown in the character input and command key table.

KX-PW608DL_DW_QG.indb 9 2008/12/18 13:23:10

1010

Operation guide

The unit starts the following voice guidance in Japanese:

Operations To cancel the operation guide (using the main unit)

Send a fax

(Select “なし ”)

Copy

Add entries to the phonebook

(Select “なし ”)

Store phonebook entries in the speed dialer

Make a call using the phonebook/redial/

speed dialer/call memory

Change a ink film (Select “なし ”)

Reading-out dial

The unit announces the number dialed in Japanese, when you make a call with the main unit.

To cancel the reading-out dial

(Select “なし”)

Reading-out phonebook

The unit reads out stored names* when the phonebook is searched.

To cancel the reading-out phonebook

(Select “なし”)

Incoming name announcement (for Number Display service

subscribers only)

The unit announces the caller’s name* when a call is received from a caller whose name and phone number are

stored in the phonebook.

To cancel the incoming name announcement

(Select “なし”)

Voice guide

* Names will only be read out when their “ フリガナ ” (readings) are stored in katakana in the phonebook.

English, numbers and signs in “ フリガナ ” are not read out.

KX-PW608DL_DW_QG.indb 10 2008/12/18 13:23:11

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panasonic Faxgerät Handbücher

Panasonic

Panasonic KX-PD681DLE9 Bedienungsanleitung

Panasonic

Panasonic KX-PD101DL Bedienungsanleitung

Panasonic

Panasonic Panafax UF-490 Bedienungsanleitung

Panasonic

Panasonic KX-FM106 Bedienungsanleitung

Panasonic

Panasonic KX-FC248HK Bedienungsanleitung

Panasonic

Panasonic KX-FT937LA-B Bedienungsanleitung

Panasonic

Panasonic KX-FT33 Series Bedienungsanleitung

Panasonic

Panasonic KX-FP181E Bedienungsanleitung

Panasonic

Panasonic KX-FL503HK Bedienungsanleitung

Panasonic

Panasonic KX-F2510NZ Bedienungsanleitung

Panasonic

Panasonic KX-F580BR Bedienungsanleitung

Panasonic

Panasonic KX-PW506DW Bedienungsanleitung

Panasonic

Panasonic KX-PW30CL Bedienungsanleitung

Panasonic

Panasonic Panafax UF-S2 Bedienungsanleitung

Panasonic

Panasonic KX-FP343HK Bedienungsanleitung

Panasonic

Panasonic KX-FP70CX Bedienungsanleitung

Panasonic

Panasonic KXF90 - CONSUMER FACSIMILE Bedienungsanleitung

Panasonic

Panasonic KX-FL611AL Bedienungsanleitung

Panasonic

Panasonic KX-F500 Bedienungsanleitung

Panasonic

Panasonic KX-FC265GR-T Bedienungsanleitung

Panasonic

Panasonic Panafax UF-4000 Bedienungsanleitung

Panasonic

Panasonic KX-FL611BL Bedienungsanleitung

Panasonic

Panasonic Panafax UF-490 Kurzanleitung

Panasonic

Panasonic KXF1600 - MFD FAX PRINTER Bedienungsanleitung

Beliebte Faxgerät Handbücher anderer Marken

Samsung

Samsung SF-515 Bedienungsanleitung

Radio Shack

Radio Shack TFX-1031 Bedienungsanleitung

imagistics

imagistics 2030 Handbuch

Furuno

Furuno FAX-30 Bedienungsanleitung

Savin

Savin 3740 Handbuch

Sharp

Sharp FO-51 Bedienungsanleitung

Muratec

Muratec MFX-C3035 Bedienungsanleitung

Canon

Canon FAX-L400 Bedienungsanleitung

Ricoh

Ricoh 1000L Kurzanleitung

Sharp

Sharp FO-3150 Bedienungsanleitung

Kyocera

Kyocera KM-F1060 Bedienungsanleitung

Sharp

Sharp FO-2970M Bedienungsanleitung

Canon

Canon JX510P Bedienungsanleitung

Mita

Mita LDC-870 Handbuch

Brother

Brother MFC 640CW - Color Inkjet - All-in-One Bedienungsanleitung

Samsung

Samsung FX100 Handbuch

Sharp

Sharp MX-FXX1 Bedienungsanleitung

Develop

Develop ineo 25e Bedienungsanleitung
