Panasonic TH-42PA60L Bedienungsanleitung

ORDERNO.ITD0604013AE

Plasma Television

TH-42PA60L

GP9DEChassis

Please fileand use thismanual together with the service manual for

Model No.TH-42PA60A, / Order No.ITD0603007.

SPECIFICATIONS

Specifications

Power

Source AC 110-220 V, 50 / 60 Hz

Power

Consumption

Averageuse 294 W

Standbycondition 0.3W

Plasma

Displaypanel

Drivemethod AC type

Aspect Ratio 16:9

Contrast Ratio Max 10000:1

Visiblescreensize / (No.

of pixels) 106 cmV

920 mm (W) × 518 mm (H) × 1,056 mm (diagonal)

Sound

Speaker 12 cm × 6cm × 2pcs, 8

AudioOutput 20 W(10 W+ 10 W), 10%THD

Receiving

Systems / / Band

name

Receiving

Channels/

Regular

TV) VHFBAND UHFBAND CATV

2-13 (NTSC M USA) 14-69 (NTSC M USA) 1-125 (USACATV)

Aerial

- Rear VHF/ UHF

Operating

Conditions Temperature : 0°C - 40 °C

Humidity: 20 %- 80 %RH (non-condensing)

Connection

Terminals

AV1InputAUDIO L-R RCAPIN Type× 2 0.5V[rms]

VIDEO RCAPIN Type× 1 1.0V[p-p] (75 )

S VIDEO Mini Din4-pin Y: 1.0V[p-p] (75 ) C: 0.286 V[p-p] (75 )

AV2InputAUDIO L-R RCAPIN Type× 2 0.5V[rms]

VIDEO RCAPIN Type× 1 1.0V[p-p] (75 )

COMPONENT Y 1.0V[p-p] (including synchronization)

PB/CB, PR/CR±0.35 V[p-p]

AV3InputAUDIO L-R RCAPIN Type× 2 0.5V[rms]

VIDEO RCAPIN Type× 1 1.0V[p-p] (75 )

COMPONENT Y 1.0V[p-p] (including synchronization)

PB/CB, PR/CR±0.35 V[p-p]

Others HDMI Input TYPE AConnector

AudioInput RCAPIN Type× 2 0.5V[rms]

Monitor

Output AUDIO L-R RCAPIN Type× 2 0.5V[rms] (high impedance)

VIDEO RCAPIN Type× 1 1.0V[p-p] (75 )

Dimensions

( W× H × D )

1,068 mm × 701 mm × 97 mm (TV Set only)

1,068 mm × 764 mm × 320 mm (WithPedestal)

Weight

29.0kgNet (TV Set only)

31.0kgNet (WithPedestal)

Notes

-Design and Specificationsaresubject to changewithoutnotice. Weightand Dimensionsshown areapproximate.

Unauthorized copying and distribution isaviolation of law.

1. Difference PCB Structure sheet

Print List

Board

name Part No. Function Remarks

TH-42PA60A TH-42PA60L

C1 TNPA3799AB Data Draiver(Left)

C2 TNPA3800AB Data Draiver(Right)

STZTNP01BMTB Format Converter, Plasma AI

Processor

H TNPA3760AC AV Terminal, AV switch

HC TNPA3852 JIG Connection

K TNPA3603AH Remote receiver, LED, Keyscan

PTNPA3911AB PowerSupply

PA TNPA3761AH DC-DC Converter, PowerSOS

STNPA3604AD PowerSwitch

SC TNPA3794AB ScanDrive

SD TNPA3875AB ScanOut (Lower)

SS TNPA3795AB SustainDrive

SU TNPA3874AB ScanOut (Upper)

DG TNPA3756CQ TNPA3756CY Digital Signal Processor Changed

TA TNPA3768AC ----- Tuner Deleted

TU ----- TNPA3851 Tuner Added

2. Service Mode Function

MPU controls the functions switching foreachIICs through IIC bus inthis chassis. The

following setting and adjustment canbe adjustedbyremote control inService Mode.

2.1. How to enter SERVICE1

1. Insound menu, set BASS to MAXIMUM, and set TREBLE to

MINIMUM.

2. Set the Volume to minimum, and set the off timer.

3. Simultaneouslypress Recall button on remote control and DOWN

button [ ]on the TV set.

2.2. How to enter SERVICE2

1. Set the channel to CH99.

2. Select the EQ 12kHz.

3. Press Mute button on remote control and DOWNbutton [ ]

on the TV set.

Note:

To exitto Service mode, press EXITor Power button on remote

control.

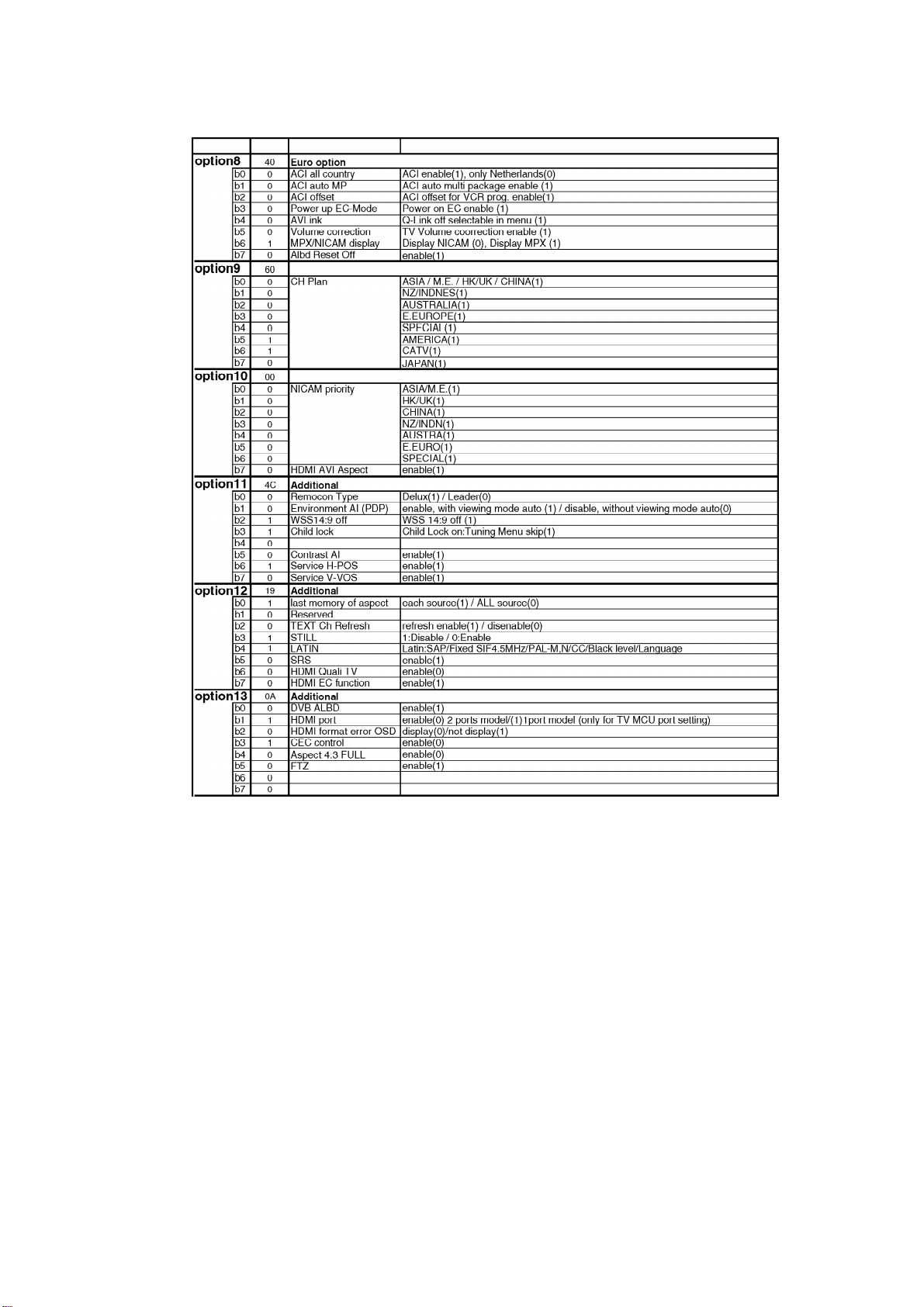

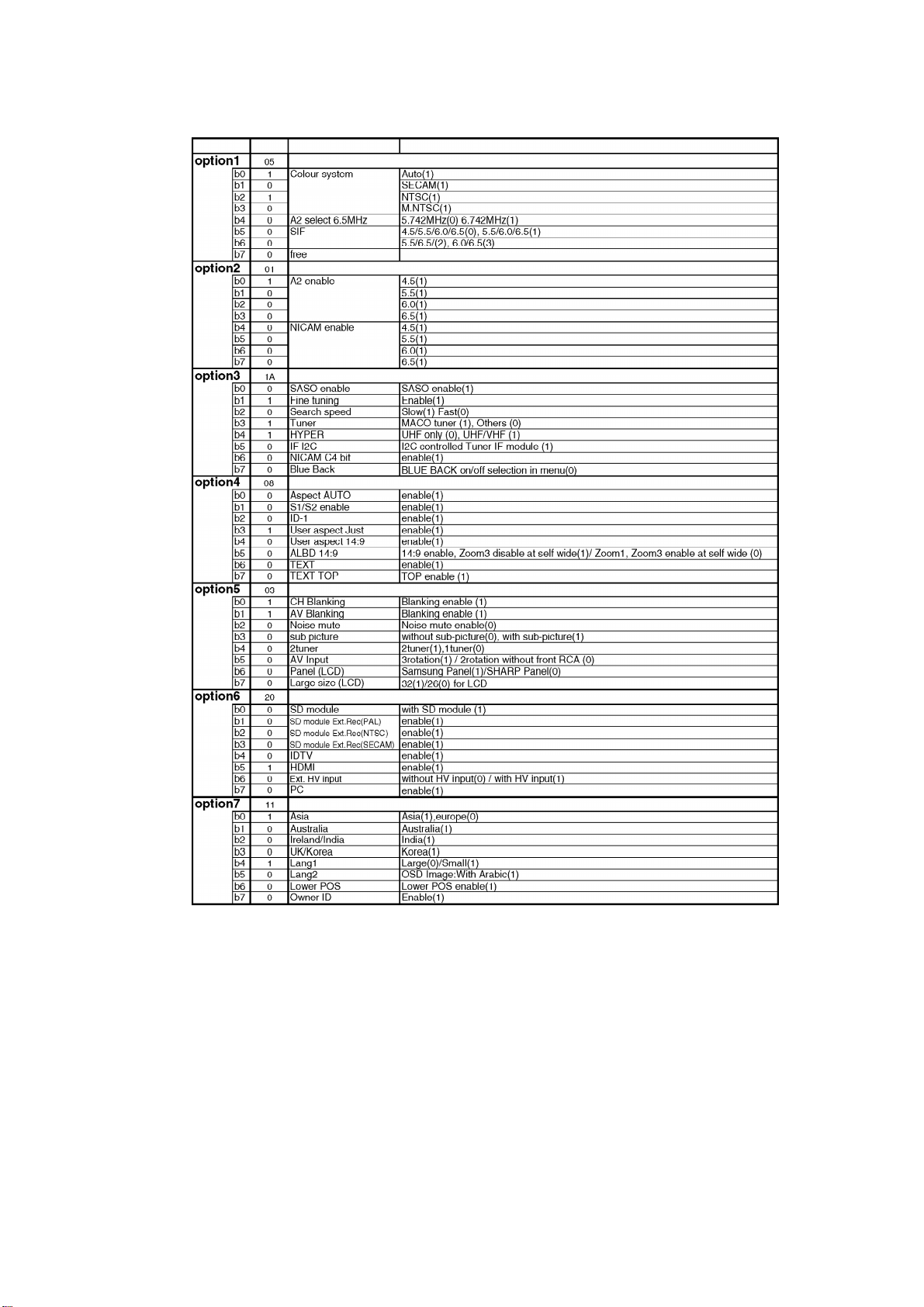

2.3. Option Description

3. Adjustment

3.1. PALpanel white balance adjustment

Instrument Name Connection Remarks

-W/B pattern (PAL-M or NTSC signal)

-Color analyzer (Minolta CA-100 or equivalent) RFinput

Panel surface Usersetting: Normal

Procedure Remarks

-Asing timeislonger than 15min.

-Make surethefrontpanel to beused on thefinal set isfitted.

-Make sureacolor signal isnotbeing shown beforeadjustment.

-Putthecolor analyzer wherethereislittlecolour variation.

Complete theadjustmentwithin 10 minutes after theturn on electricity.

Turn on thepower supplyagain when itisnotpossibleto complete itbyaging etc.

1. Displaythewhite balance pattern.

2. Check that thecolor balance is“cool”.

3. Enter the<Service1> mode.

4. Select “G-CUTOFF” item, using thecolor-key“Red” or “Green”, and set to “128”, using thecolor-

key“Yellow” or “Blue”.

Also, “B-CUTOFF” and “R-CUTOFF” set to “128”.

5. Set “G-DRIVE” at “224”.

6. Touch thesignal receiver ofcolor analyzer to thehighlightwindow’scenter, and adjust B drive

and R driveso x, ybecomethe“Color balance Cool” in thebelowtable.

7. Set “ALL-DRIVE” to “252”.

8. Set colorbalance to “Normal”.

9. FixG cutoff , B cutoff and R cutoff at “128”.

10. FixG driveat “224”.

11. Adjust B driveand R driveso thehighlightwindow’sx, ybecomethe“Color balance “Normal”

in thebelowtable.

12. Set “ALL-DRIVE” to “252”.

13. Set color balance to “Warm”.

14. Set G cutoff, B cutoff and R cutoff to “128”.

15. Set G driveto “224”.

16. Adjust B driveand R driveso thehighlightwindow’sx, ybecomethe“Color balance Warm”

shown in thebelowtable.

17. Set “ALL-DRIVE” to “252”.

Picture menu : Dynamic

ASPECT: 16:9

-Highlightsection

Signal amplitude75%

3.2. HD white balance adjustment

Instrument Name Connection Remarks

-1080i W/B Pattern

-Color analyzer(Minolta CA-100 or equivalent)

-RF input

-Panel surface Usersetting: Normal

Procedure Remarks

-Asing timeislonger than 15min.

-Make surethefrontpanel to beused on thefinal set isfitted.

-Make sureacolor signal isnotbeing shown beforeadjustment.

-Putthecolor analyzer wherethereislittlecolour variation.

Complete the adjustment within10 minutes afterthe turnon electricity.

Turnon the powersupplyagainwhenit is not possible tocomplete it

byaging etc.

1. Displaythewhite balance pattern.

2. Check that thecolor balance is“cool”.

3. Enter the<Service1> mode.

4. Select “G-CUTOFF” item, using thecolor-key“Red” or “Green”, and set to “128”, using thecolor-

key“Yellow” or “Blue”.

Also, “B-CUTOFF” and “R-CUTOFF” set to “128”.

5. Set “G-DRIVE” at “224”.

6. Touch thesignal receiver ofcolor analyzer to thehighlightwindow’scenter, and adjust B drive

and R driveso x, ybecomethe“Color balance Cool” in thebelowtable.

7. Set “ALL-DRIVE” to “252”.

8. Set colorbalance to “Normal”.

9. FixG cutoff , B cutoff and R cutoff at “128”.

10. FixG driveat “224”.

11. Adjust B driveand R driveso thehighlightwindow’sx, ybecomethe“Color balance “Normal”

in thebelowtable.

12. Set “ALL-DRIVE” to “252”.

13. Set color balance to “Warm”.

14. Set G cutoff, B cutoff and R cutoff to “128”.

15. Set G driveto “224”.

16. Adjust B driveand R driveso thehighlightwindow’sx, ybecomethe“Color balance Warm”

shown in thebelowtable.

17. Set “ALL-DRIVE” to “252”.

Picture menu: Dynamic

ASPECT:16:9

-Highlightsection

Signal amplitude75%

*The Colorbalance

COOL

fromJapanese model

values.

3.3. Sub bright adjustment

Instrument Name Connection Remarks

1. PAL-M or NTSC signal generator (or RF) Connect tothe input terminal Usersetting: Normal

Procedure Remarks

-White balance adjustmentisfinished for each signal.

-Do adjustments in adarkroom.

-Complete theadjustmentwithin 10 minutes after theturn on electricity.

Turn on thepower supplyagain when itisnotpossibleto complete itbyaging etc.

1. Displaythe10 step gray-scalepattern for adjusting sub-brightfrom video input.

2. Use "Sub-Bright" in the<Sevice1> modeto adjust so the6th section showsup and the7th fades

away.

Data

Sub-Bright data addresses

Sub-Bright (upper) A0-0116

Sub-Bright (lower) A0-0117

Picture menu: Dynamic

Colorbalance: Normal

ASPECT: 16:9

3.4. ABLadjustment
