Service Manual

TOP NEXT

\ORDERNO.04-SM-008

Plasma TV

lTH-50PV30E

GP6DEChassis

Specifications

PowerSource 220 V-240 V50 Hz/60HzA.C.

PowerConsumption

Normaluse510 W

Standby1.8W(TVonly)

15.0W(TV+DVBsystemset torecord Timerprogrammes)

Power-OFF 1.0W

Plasma Displaypanel

Drivemethod ACtype

Aspect Ratio16:9

ContrastRatio3000:1

Screensize (No.of pixels)50-inch

1,106mm(W)×622 mm (H)×1,269mm(diagonal)

1,049,088(1,366(W)×768 (H)) [4,098× 768 dots]

Sound

SpeakerWoofer

80 mm×2,Tweeter16mm×73mm×8

AudioOutput26W[8W+8 W,5W+5 W](10%THD)

HeadphoneM3(3.5mm)Jack×1

Applicablesignals

Colour SystemNTSC, PAL, PAL60,ModifiedNTSC

Scanning format525 (480)/60i

60p,625(575)/50i

50p

PCsignalsXGA display

VGA,SVGA,XGA

SXGA,UXGA ...... (compressed)

Horizontalscanning frequency15 -110 kHz

Verticalscanning frequency48 -120 Hz

Receiving Systems/Band name

PALI UHF E21-68.

PAL525/60 Playbackof NTSCtapefromsomePALVideorecorders(VCR).

DVB Digitalterrestrial servicesviaUHF aerial input.

M.NTSC PlaybackfromM.NTSCVideorecorders(VCR).

NTSC (AV INPUTONLY)PlaybackfromNTSCVideorecorders(VCR).

OUTPUT

AUDIOOUTAUDIOL-R(RCAPinType×2)0.5Vrms

INPUT

AV3-FrontVIDEO(RCAPinType×2)1.0Vp-p(75 )

S-VIDEO(MINIDIN4-pin)Y:1.0Vp-p(75 )C:0.286Vp-p(75 )

AUDIOL-R(RCAPinType×2)0.5Vrms

AV4C-RearY1.0Vp-p(includingsynchronization)

PB/PR±0.35 Vp-p

PC(HIGH-DENSITYD-SUB15PIN) R,G, B/0.7Vp-p(75 )

HD,VD/1.0-5.0Vp-p (high impedance)

OthersSD Card slot×1, PCCardslot×1

INPUT/OUTPUT

AV1-Rear21Pinterminal (Audio/Videoin,TVout,RGBin)

AV2-Rear21Pinterminal (Audio/Videoin,Audio/Videoout,S-Videoin,Q-Link)

AV4-Rear21Pinterminal (Audio/Videoin,Audio/Videoout,S-Videoin,RGBin, Q-Link)

ANT-Rear UHF

OperatingConditions Temperature:0° -40°C

Humidity:20% -80%RH(non-condensing)

AccessoriesSupplied

OperatingInstructionsTQBC0728

MainsLeadK2CT3DH00017

http://servis-manual.com/

8SelfCheck

TOP PREVIOUS NEXT

1.Self-Checkisusedtoautomaticallycheck thebuslinesand hexadecimalcodeoftheTVset.

2.Togetinto theSelf-CheckmodepresstheDown(

)button on thecustomercontrolsatthefrontoftheset,atthesametimepressingthe

Statusbutton on theremotecontrol,andthescreenwill show:

IftheCCUportshavebeencheckedand found tobeincorrectornotlocatedthen “--”willappearin

placeof“O.K.”.

8.1PowerLEDBlinkingtimingchart

8.2NoPower

DisplayRef.NoDescriptionP.C.B.

MEMIC1008EEPROMDG-BOARD

GC2MIC1301GROBALCOREMAINDG-BOARD

GC2PIC1304GROBALCORESUBDG-BOARD

GC2SIC1302GROBALCORE3DComb DG-BOARD

GC2VIC1350GROBALCOREVScalarDG-BOARD

HAD IC1851HD-ADCONVERTERDG-BOARD

LSYNC IC2652SYNCPROCESSORH-BOARD

AVSWIC3200AVswitchH-BOARD

YUVSWIC1270YUV switchDG-BOARD

Tun1 TNR001TUNER1TU-BOARD

VIF---------

DAC1 IC3003Ext.DACDG-BOARD

MSPIC2002MultiSoundProcessorH-BOARD

SOUNDIC2401AUDIOAMPPA-BOARD

PANEL---PANEL ---

JPEGIC60JPEGI/FJG-BOARD

24.6.2004file://C:\Documents%20and%20Settings\Admin\Plocha\TH-50PV30E_GP6DE\s0800...

http://servis-manual.com/

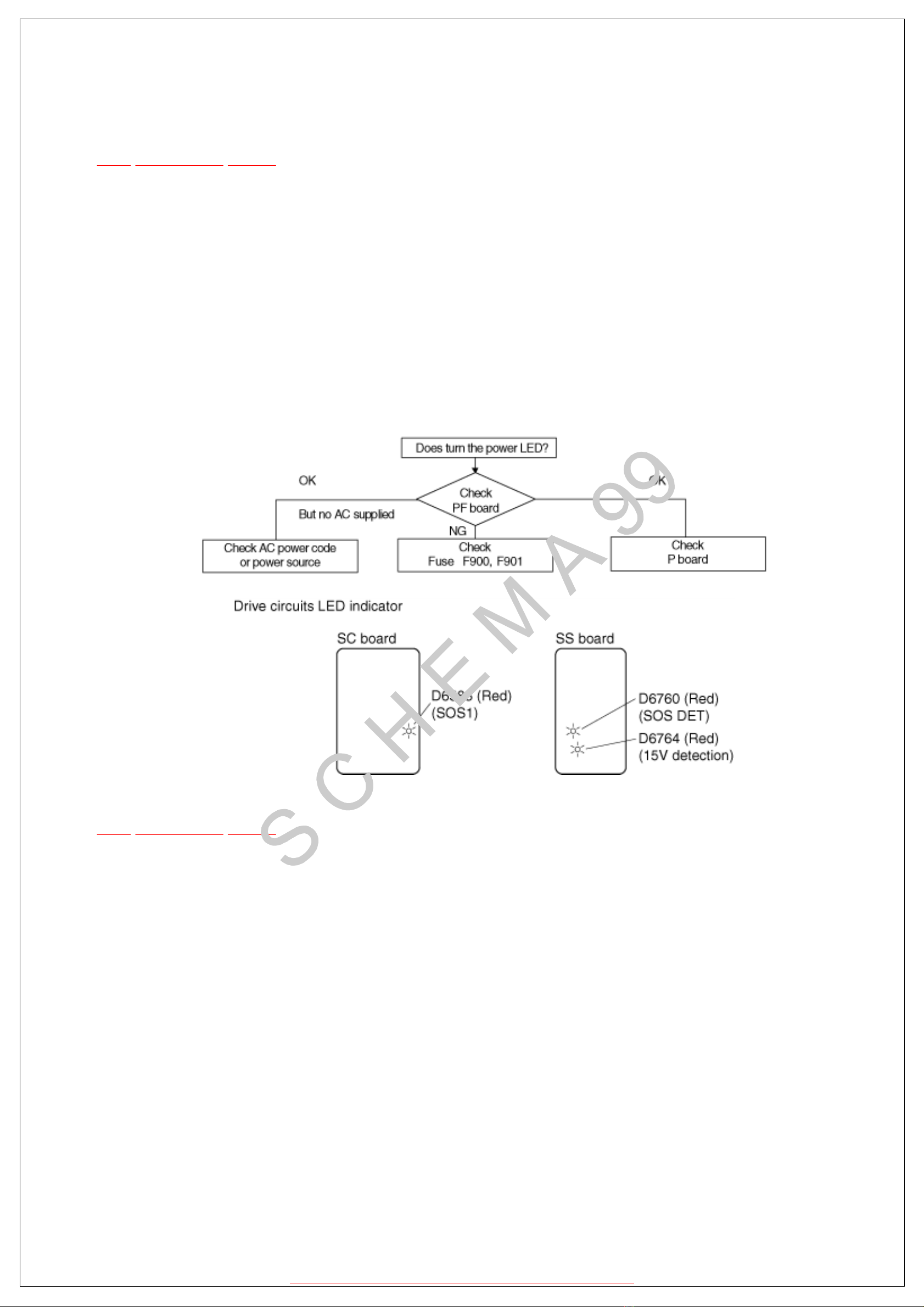

8.2No Power

TOP PREVIOUS NEXT

[Firstcheckpoint]

Therearefollowing3statesofNo Powerindication by powerLED.

1.Nolit

2.Greenislit thenturnsredblinkingafewsecondslater.

3.Only redislit.

1.Nolit

TOP PREVIOUS NEXT

24.6.2004file://C:\Documents%20and%20Settings\Admin\Plocha\TH-50PV30E_GP6DE\s0802...

http://servis-manual.com/

8.3No Picture

TOP PREVIOUS NEXT

24.6.2004file://C:\Documents%20and%20Settings\Admin\Plocha\TH-50PV30E_GP6DE\s0803...

http://servis-manual.com/

8.4Localscreenfailure

TOP PREVIOUS NEXT

Plasmadisplaymayhavelocalareafailureon thescreen. Fig-1 isthepossibledefectP.C.B.for

eachlocalarea.

Fig-1

TOP PREVIOUS NEXT

24.6.2004file://C:\Documents%20and%20Settings\Admin\Plocha\TH-50PV30E_GP6DE\s0804...

http://servis-manual.com/

9.1HowtoenterSERVICE1

TOP PREVIOUS NEXT

1.Insound menu,setBASS toMAXIMUM,and setTREBLEtoMINIMUM.

2.Simultaneouslypress INDEX button on remotecontroland DOWN button [

]on theTVset.

TOP PREVIOUS NEXT

24.6.2004file://C:\Documents%20and%20Settings\Admin\Plocha\TH-50PV30E_GP6DE\s0901...

http://servis-manual.com/

9.2HowtoenterSERVICE2

TOP PREVIOUS NEXT

1.SetthechanneltoCH99.

2.SelecttheJPEGViewer.

3.PressHOLDbutton on remotecontrol.

Note:

Toexit to Servicemode,pressNorPowerbutton on remotecontrol.

24.6.2004file://C:\Documents%20and%20Settings\Admin\Plocha\TH-50PV30E_GP6DE\s0902...

http://servis-manual.com/

TOP PREVIOUS NEXT

24.6.2004file://C:\Documents%20and%20Settings\Admin\Plocha\TH-50PV30E_GP6DE\s0902...

http://servis-manual.com/

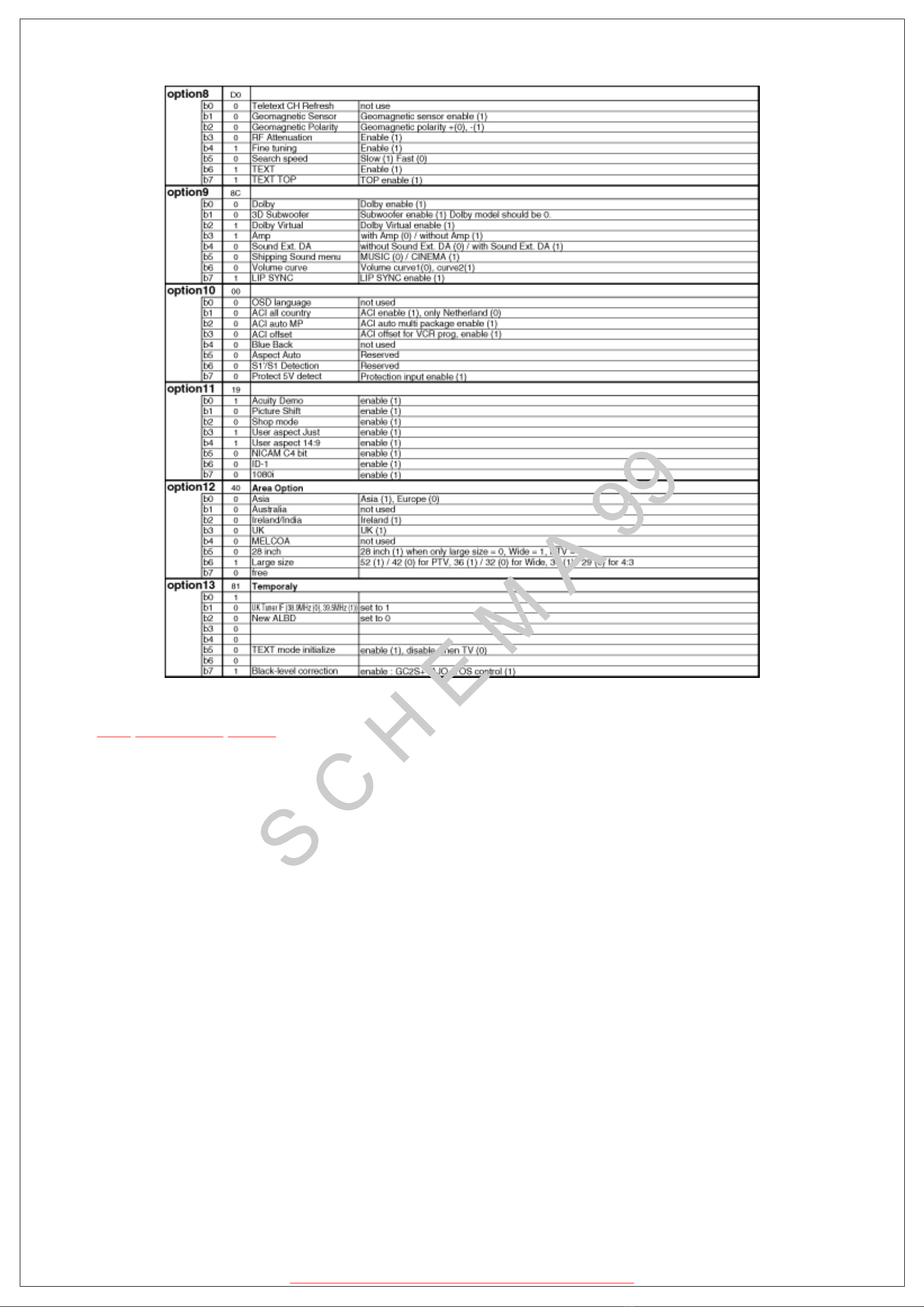

9.3OptionDescription

TOP PREVIOUS NEXT

24.6.2004file://C:\Documents%20and%20Settings\Admin\Plocha\TH-50PV30E_GP6DE\s0903...

http://servis-manual.com/

TOP PREVIOUS NEXT

24.6.2004file://C:\Documents%20and%20Settings\Admin\Plocha\TH-50PV30E_GP6DE\s0903...
