Panasonic KX-TS500HG Bedienungsanleitung
PQQX13969ZA F1003-0 D
Manufactured by Panasonic
Communications (Malaysia) Sdn. Bhd.
Senai Malaysia
For your future reference
Serial No.
(found on the bottom of the unit)
Date of purchase
Name and address of dealer
Integrated Telephone System
Operating Instructions
Model No. KX-TS500HG
Pulse-or-tone dialing capability
PLEASE READ BEFORE USE AND SAVE.
KX-TS500HGW
This equipment is designed for use on
Hungary only.
In the event of problems, you should contact
your equipment supplier in the first instance.
1999/5/EC

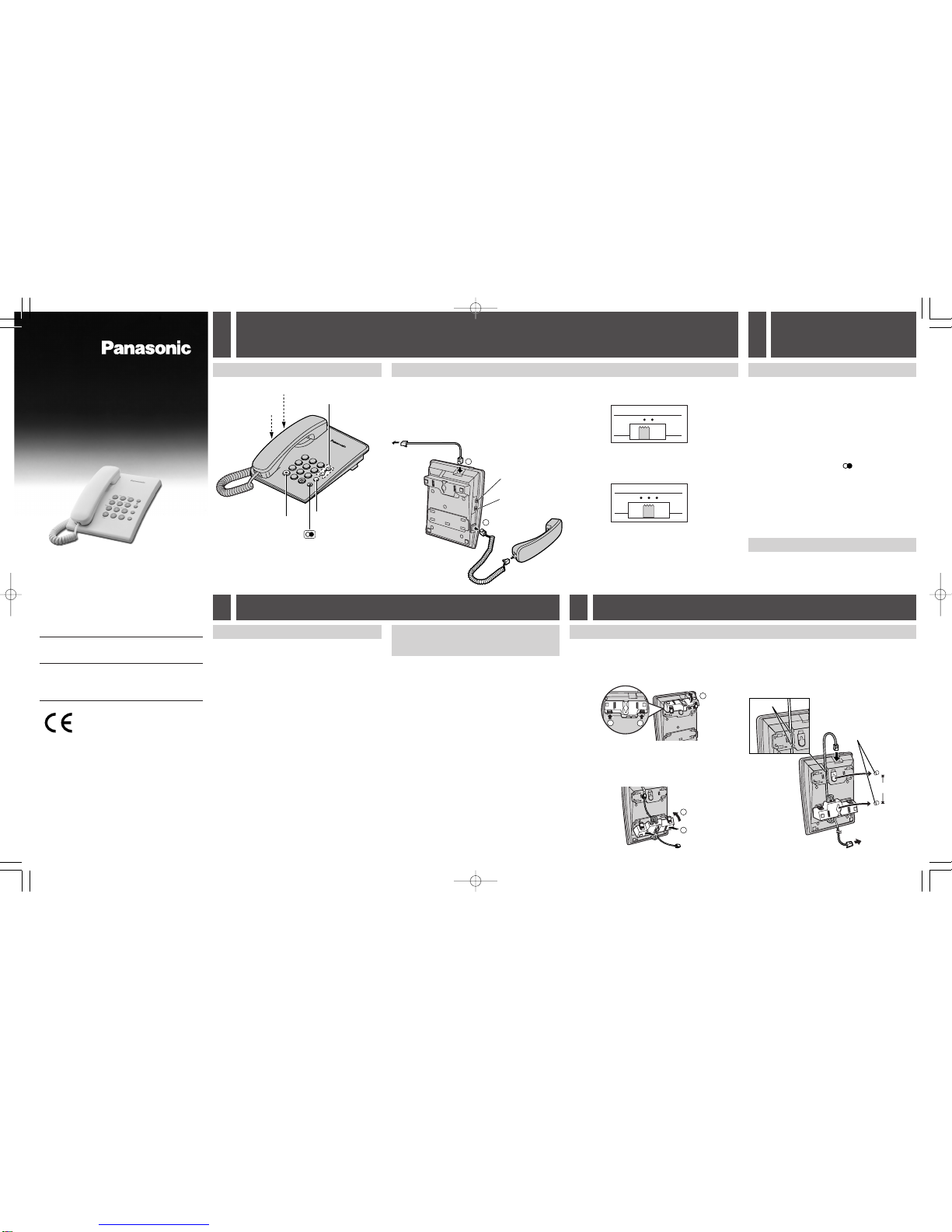

1Getting Started
1-A Location of controls 1-B Settings
2
ABC
3
DEF
1
5
JKL
6
MNO
4
GHI
8
TUV
9
WXYZ
7
PQRS
0
TONE
($) Button (3-B) (R) Button
(3-A)
RINGER Selector
(1-B)
Button (2-A)
DIALING MODE Selector
(1-B)
VOLUME (^), (_)
Buttons (2-A)
R
1Connect the telephone line cord (1).
2Connect the handset cord (2), then confirm
the dial tone.
To Single-Line
Telephone Jack
Handset Cord
Handset
Telephone Line Cord
RINGER Selector
DIALING MODE
Selector
1
2
TONE PULSE
DIALING MODE
HIGH OFF
RINGER
3Set the DIALING MODE selector to TONE.
≥If you cannot dial, set to PULSE.
4Set the RINGER selector to HIGH, LOW or
OFF.
(Ex. “LOW” is selected.)
∑Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . one
∑Handset Cord . . . . . . . . . . . . . . . . . . . . . . . . . one
∑Telephone Line Cord . . . . . . . . . . . . . . . . . . . one
Accessories (included)
≥When set to OFF, the unit will not ring.
2Operation
2-A Making Calls
1Lift the handset.
2Dial a phone number.
≥If you misdial, hang up and start again from
step 1.
3When finished talking, hang up.
To redial the last number dialed
Lift the handset. ➡Press .
To adjust the receiver volume (6 levels)
while talking
To increase, press (^).
To decrease, press (_).
≥After hanging up, the volume level will be saved.
(\\\)
4Things You Should Know
“
Things You Should Know3Special Features
3-A
Recall Button
Pressing (R) allows you to use special features
of your host PBX such as transferring an
extension call or accessing special telephone
services (optional) such as call waiting.
2-B Answering Calls
1When the unit rings, lift the handset.
2When finished talking, hang up.
3-B Temporary Tone Dialing
(For Rotary or Pulse Service Users)
Press ($) before entering access numbers
which require tone dialing.
≥The dialing mode changes to tone. You can enter
numbers to access answering services, electronic
banking services, etc. When you hang up, the
mode will return to pulse.
≥Access numbers entered after pressing ($) will not
be included when redialing.
4-A Wall Mounting
To Single-Line
Telephone Jack
Screws
8.3 cm
Hooks
The unit can be mounted on a wall.
1Press the tabs in the direction of the arrows
(1), then remove the wall mounting adaptor
(2).
3Install screws using the wall template below.
Connect the telephone line cord. Mount the
unit, then slide down.
≥Fasten the cord to prevent it from being
disconnected.
1
1
2
2Tuck the telephone line cord inside the wall
mounting adaptor, and push it in the direction
of the arrow (1and 2).
≥The word “UP WALL”should face upward.
1
2
EPQQX13969ZA03.10.102:43PMページ1
“
Things You Should Know
4-B Troubleshooting
Problem
The unit does not
work.
The call cannot be
connected even if
you dialed
correctly.
The unit does not
ring.
Remedy
≥Check the settings (1-B).
≥Check whether the
DIALING MODE selector
setting is correct or not
(1-B).
≥The RINGER selector is
set to OFF. Set to HIGH
or LOW (1-B).
To temporarily set the
handset down during
a conversation, place
it as shown here.
4-C Safety Instructions
Take special care to follow the safety suggestions
listed below.
Installations
Environment
1) Do not use this unit near water—for example,
near a bathtub, washbowl, sink, etc. Damp
basements should also be avoided.
2) The unit should be kept away from heat sources
such as radiators, kitchen range, etc. It also should
not be placed in rooms where the temperature is
less than 5oC or greater than 40oC.
Placement
1) Do not place heavy objects on top of this unit.
2) Care should be taken so that objects do not fall
onto, and liquids are not spilled into the unit. Do not
subject this unit to excessive smoke, dust,
mechanical vibration or shock.
3) Place the unit on a flat surface.
4-D Specifications
Power Source: From telephone line
Dimensions (H x W x D):
Approx. 96 mm x 150 mm x 200 mm
Mass (Weight): Approx. 475 g
Dialing Mode: Tone (DTMF)/Pulse
Operating Environment: 5 °C –40 °C
Specifications are subject to change without notice.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS PRODUCT TO RAIN OR ANY
TYPE OF MOISTURE.
If trouble occurs, disconnect the unit from the
telephone line and connect to a known working
phone. If the known working phone operates
properly, do not reconnect the unit until the trouble
has been repaired. If the known working phone does
not operate properly, consult your telephone
company.
Lightning surge
This unit has already been equipped with a built-in
lightning protection circuit. However, we recommend
that you install lightning protection on the telephone
line, if your area has a high incidence of lightning
strikes.
To install the above option, please contact your local
sales shop.
≥Lightning damage is not covered in the warranty
even if lightning protection is installed.
8.3 cm
Wall Template
EPQQX13969ZA03.10.102:43PMページ2
