Panasonic CT-32G19 Bedienungsanleitung

CT-32G9

CT-32G19

TQB2AA0513 40514

PRINTED IN USA

IMPRESO EN EE.UU

IMPRIMI:!: AUX I:!:TATS-UNIS

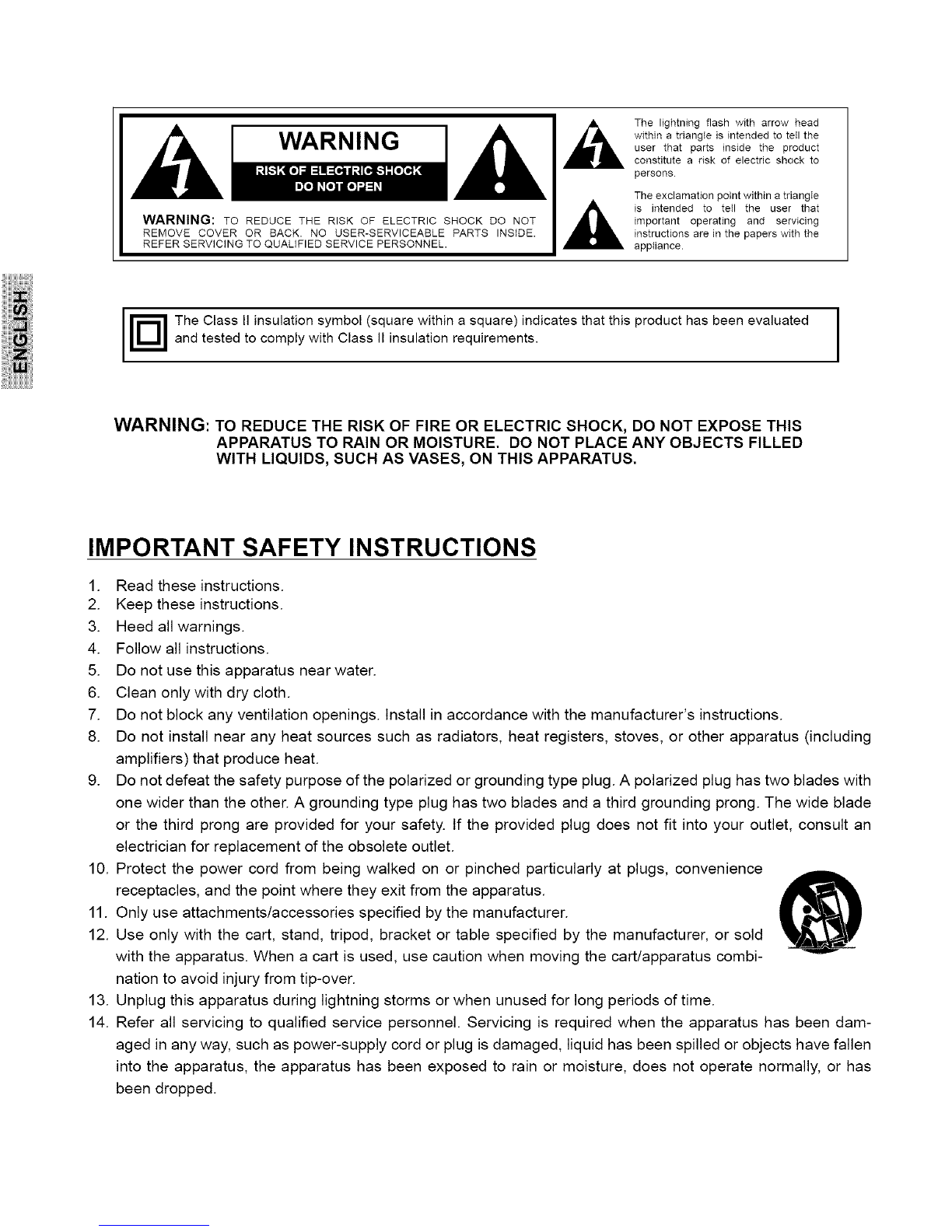

WARNING

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT

REMOVE COVER OR BACK. NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrow head

within a triangle is intended to tell the

user that parts inside the product

constitute a risk of electric shock to

persons.

The exclamation point within a triangIe

is intended to tetl the user that

important operating and servicing

instructions are in the papers with the

appliance.

The Class II insulation symbol (square within a square) indicates that this product has been evaluated I

and tested to comply with Class II insulation requirements. I

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPARATUS TO RAIN OR MOISTURE. DO NOT PLACE ANY OBJECTS FILLED

WITH LIQUIDS, SUCH AS VASES, ON THIS APPARATUS.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade

or the third prong are provided for your safety, tf the provided plug does not fit into your outlet, consult an

electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold

with the apparatus. When a cart is used, use caution when moving the cart/apparatus combi-

nation to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been dam-

aged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen

into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has

been dropped.

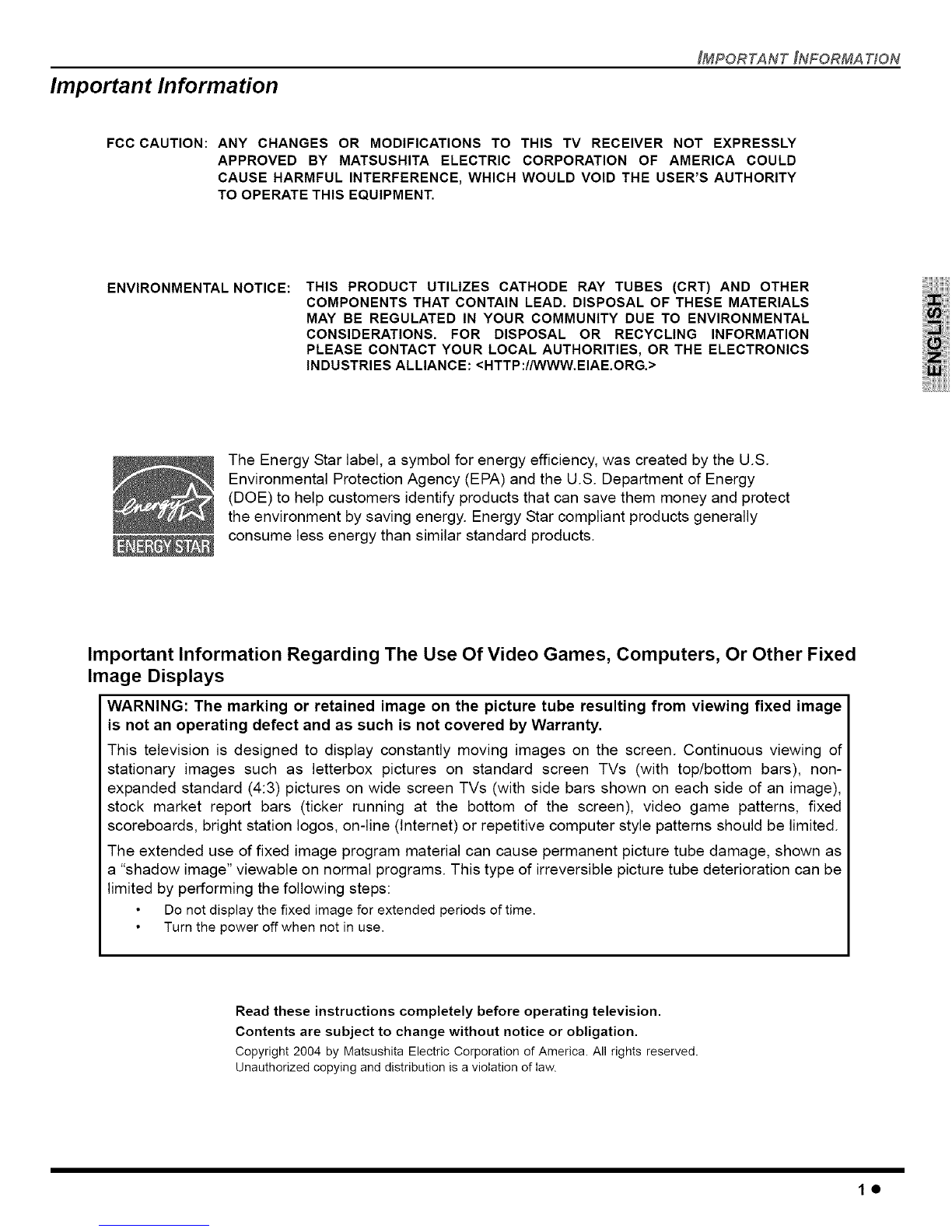

Important Information

IMPORTANTINFORMATION

FCC CAUTION: ANY CHANGES OR MODIFICATIONS TO THIS TV RECEIVER NOT EXPRESSLY

APPROVED BY MATSUSHITA ELECTRIC CORPORATION OF AMERICA COULD

CAUSE HARMFUL INTERFERENCE, WHICH WOULD VOID THE USER'S AUTHORITY

TO OPERATE THIS EQUIPMENT.

ENVIRONMENTAL NOTICE: THIS PRODUCT UTILIZES CATHODE RAY TUBES (CRT) AND OTHER

COMPONENTS THAT CONTAIN LEAD. DISPOSAL OF THESE MATERIALS

MAY BE REGULATED IN YOUR COMMUNITY DUE TO ENVIRONMENTAL

CONSIDERATIONS. FOR DISPOSAL OR RECYCLING INFORMATION

PLEASE CONTACT YOUR LOCAL AUTHORITIES, OR THE ELECTRONICS

INDUSTRIES ALLIANCE: <HTTP://WWW.EIAE.ORG.>

The Energy Star label, a symbol for energy efficiency, was created by the U.S.

Environmental Protection Agency (EPA) and the U.S. Department of Energy

(DOE) to help customers identify products that can save them money and protect

the environment by saving energy. Energy _ar compliant products generally

consume less energy than similar standard products.

Important Information Regarding The Use Of Video Games, Computers, Or Other Fixed

Image Displays

WARNING: The marking or retained image on the picture tube resulting from viewing fixed image

is not an operating defect and as such is not covered by Warranty.

This television is designed to display constantly moving images on the screen. Continuous viewing of

stationary images such as letterbox pictures on standard screen TVs (with top/bottom bars), non-

expanded standard (4:3) pictures on wide screen TVs (with side bars shown on each side of an image),

stock market report bars (ticker running at the bottom of the screen), video game patterns, fixed

scoreboards, bright station Iogos, on-line (tnternet) or repetitive computer style patterns should be limited.

The extended use of fixed image program material can cause permanent picture tube damage, shown as

a "shadow image" viewable on normal programs. This type of irreversible picture tube deterioration can be

limited by performing the following steps:

Do not display the fixed image for extended periods of time.

Turn the power off when not in use.

Read these instructions completely before operating television.

Contents are subject to change without notice or obligation.

Unauthorized copying and distribution is a violation of law.

1t1

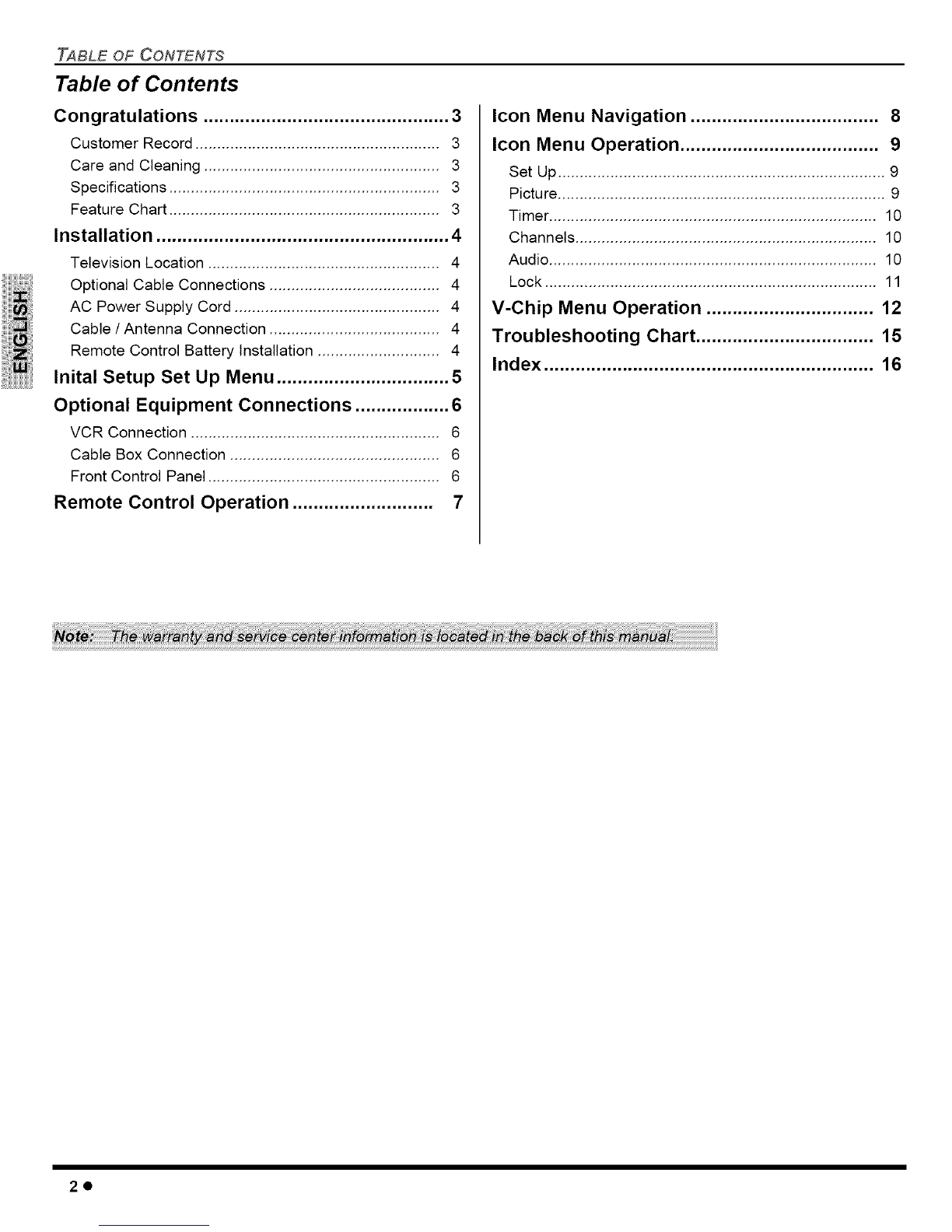

TABLE OF CONTENTS

Table of Contents

Congratulations ............................................... 3

Customer Record ........................................................ 3

Care and Cleaning ...................................................... 3

Specifications .............................................................. 3

Feature Chart .............................................................. 3

Installation ........................................................ 4

Television Location ..................................................... 4

Optional Cable Connections ....................................... 4

AC Power Supply Cord ............................................... 4

Cable /Antenna Connection ....................................... 4

Remote Control Battery Installation ............................ 4

Inital Setup Set Up Menu ................................. 5

Optional Equipment Connections .................. 6

VCR Connection ......................................................... 6

Cable Box Connection ................................................ 6

Front Control Panel ..................................................... 6

Remote Control Operation ........................... 7

Icon Menu Navigation .................................... 8

Icon Menu Operation ...................................... 9

Set Up........................................................................... 9

Picture ........................................................................... 9

Timer ........................................................................... 10

Channels ..................................................................... 10

Audio ........................................................................... 10

Lock ............................................................................ 11

V-Chip Menu Operation ................................ 12

Troubleshooting Chart .................................. 15

Index ............................................................... 16

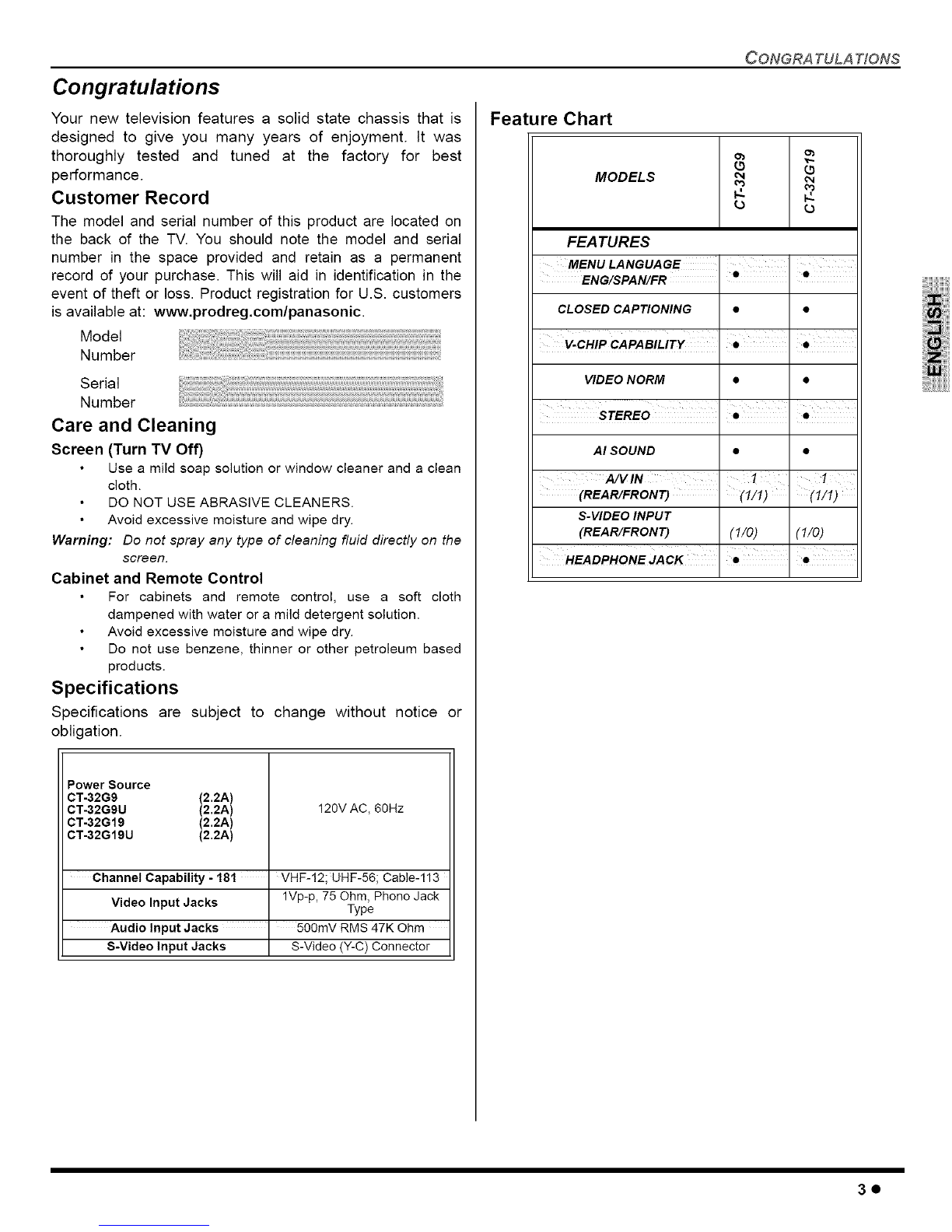

Congratulations

Your new television features a solid state chassis that is

designed to give you many years of enjoyment, tt was

thoroughly tested and tuned at the factory for best

performance.

Customer Record

The model and serial number of this product are located on

the back of the TV. You should note the model and serial

number in the space provided and retain as a permanent

record of your purchase. This will aid in identification in the

event of theft or loss. Product registration for U.S. customers

is available at: www.prodreg.com/panasonic.

Model

Number

Serial

Number

Care and Cleaning

Screen (Turn TV Off)

Use a mild soap solution or window cleaner and a clean

cloth.

DO NOT USE ABRASIVE CLEANERS.

Avoid excessive moisture and wipe dry.

Warning: Do not spray any type of cleaning fluid directly on the

screen.

Cabinet and Remote Control

For cabinets and remote control, use a soft cloth

dampened with water or a mild detergent solution.

Avoid excessive moisture and wipe dry.

Do not use benzene, thinner or other petroleum based

products.

Specifications

Specifications are subject to change without notice or

obligation.

Power Source

CT-32G9 (2.2A)

CT-32G9U (2.2A)

CT-32G19 (2.2A)

CT-32G19U (2.2A)

Channel Capability - 181

Video Input Jacks

120V AC, 60Hz

VHF-12; UHF-56; Cable-113

1Vp-p, 75 Ohm, Phono Jack

Type

Audio Input Jacks ' 500mY RMS 47K Ohm

S-Video Input Jacks S-Video (Y-C) Connector

Feature Chart

MODELS (5

¢N

FEATURES

MENU LANGUAGE

ENG/SPAN/FR . .

CLOSED CAPTIONING ••

V-CHIP CAPABILITY • •

VIDEO NORM • •

STEREO • •

AI SOUND • •

ALVIN 1

(REAR/FRONT) I(1/1)(1/1)

S-VIDEO INPUT

(REAR/FRONT) (1/0) (1/0)

I I

HEADPHONE JACK .•.•

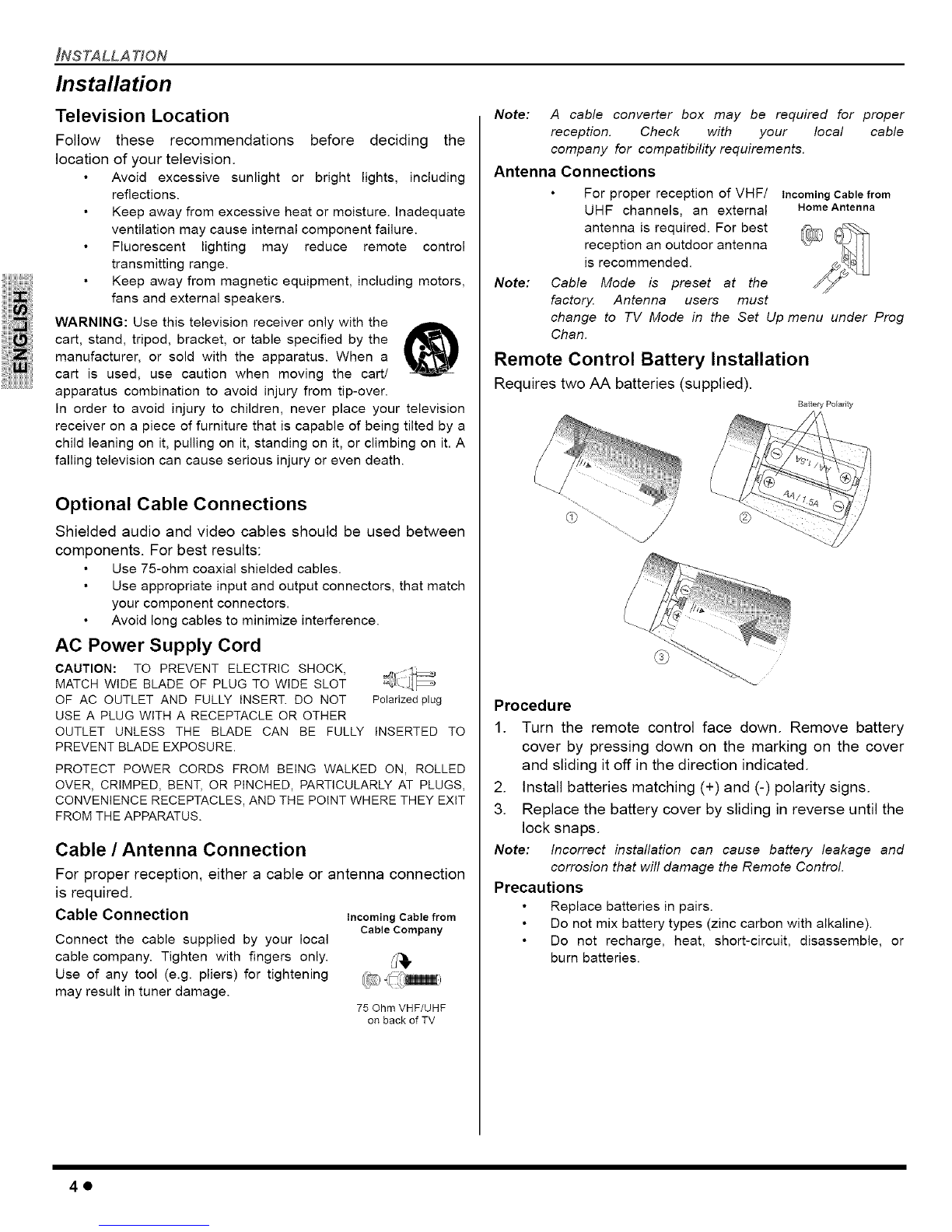

Installation

Television Location

Follow these recommendations before deciding the

location of your television.

Avoid excessive sunlight or bright lights, including

reflections.

Keep away from excessive heat or moisture. Inadequate

ventilation may cause internal component failure.

Fluorescent lighting may reduce remote control

transmitting range.

Keep away from magnetic equipment, including motors,

fans and external speakers.

WARNING: Use this television receiver only with the

cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a

cart is used, use caution when moving the cart/

apparatus combination to avoid injury from tip-over.

In order to avoid injury to children, never place your television

receiver on a piece of furniture that is capable of being tilted by a

child leaning on it, pulling on it, standing on it, or climbing on it. A

falling television can cause serious injury or even death.

Optional Cable Connections

Shielded audio and video cables should be used between

components. For best results:

Use 75-ohm coaxial shielded cables.

Use appropriate input and output connectors, that match

your component connectors.

Avoid long cables to minimize interference.

AC Power Supply Cord

CAUTION: TO PREVENT ELECTRIC SHOCK,

MATCH WIDE BLADE OF PLUG TO WIDE SLOT

OF AC OUTLET AND FULLY INSERT. DO NOT Polarized plug

USE A PLUG WITH A RECEPTACLE OR OTHER

OUTLET UNLESS THE BLADE CAN BE FULLY INSERTED TO

PREVENT BLADE EXPOSURE.

PROTECT POWER CORDS FROM BEING WALKED ON, ROLLED

OVER, CRIMPED, BENT, OR PINCHED, PARTICULARLY AT PLUGS,

CONVENIENCE RECEPTACLES, AND THE POINT WHERE THEY EXIT

FROM THE APPARATUS.

Cable /Antenna Connection

For proper reception, either a cable or antenna connection

is required.

Cable Connection

Connect the cable supplied by your local

cable company. Tighten with fingers only.

Use of any tool (e.g. pliers) for tightening

may result in tuner damage.

Incoming Cable from

Cable Company

75 Ohm VHF/UHF

on back of TV

Note: A cable converter box may be required for proper

reception. Check with your local cable

company for compatibility requirements.

Antenna Connections

For proper reception of VHF/ Incoming Cable from

UHF channels, an external Home Antenna

antenna is required. For best

reception an outdoor antenna

is recommended.

Note: Cable Mode is preset at the

factory. Antenna users must

change to TV Mode in the Set Up menu under Prog

Chan.

Remote Control Battery Installation

Requires two AA batteries (supplied).

Battery Polarity

Procedure

1. Turn the remote control face down. Remove battery

cover by pressing down on the marking on the cover

and sliding it off in the direction indicated.

2. Install batteries matching (+) and (-) polarity signs.

3. Replace the battery cover by sliding in reverse until the

lock snaps.

Note: Incorrect installation can cause battery leakage and

corrosion that will damage the Remote Control.

Precautions

Replace batteries in pairs.

Do not mix battery types (zinc carbon with alkaline).

Do not recharge, heat, short-circuit, disassemble, or

burn batteries.

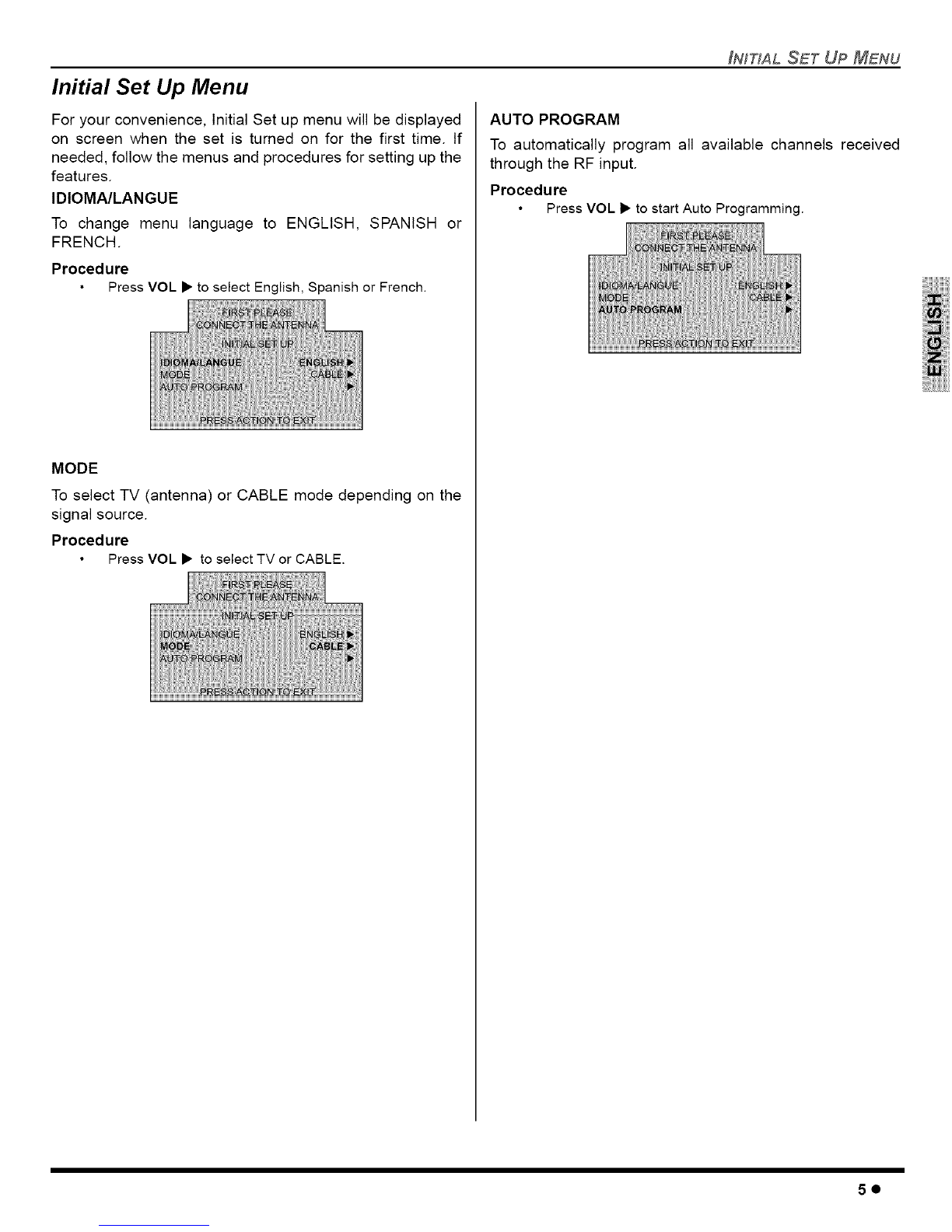

Initial Set Up Menu

For your convenience, Initial Set up menu will be displayed

on screen when the set is turned on for the first time. If

needed, follow the menus and procedures for setting up the

features.

IDIOMA/LANGUE

To change menu

FRENCH.

INITIAL SET UP MENU

AUTO PROGRAM

To automatically program all available channels received

through the RF input.

Procedure

Press VOL • to start Auto Programming.

language to ENGLISH, SPANISH or

Procedure

Press VOL • to select English, Spanish or French.

MODE

To select TV (antenna) or CABLE mode depending on the

signal source.

Procedure

Press VOL •to select TV or CABLE.

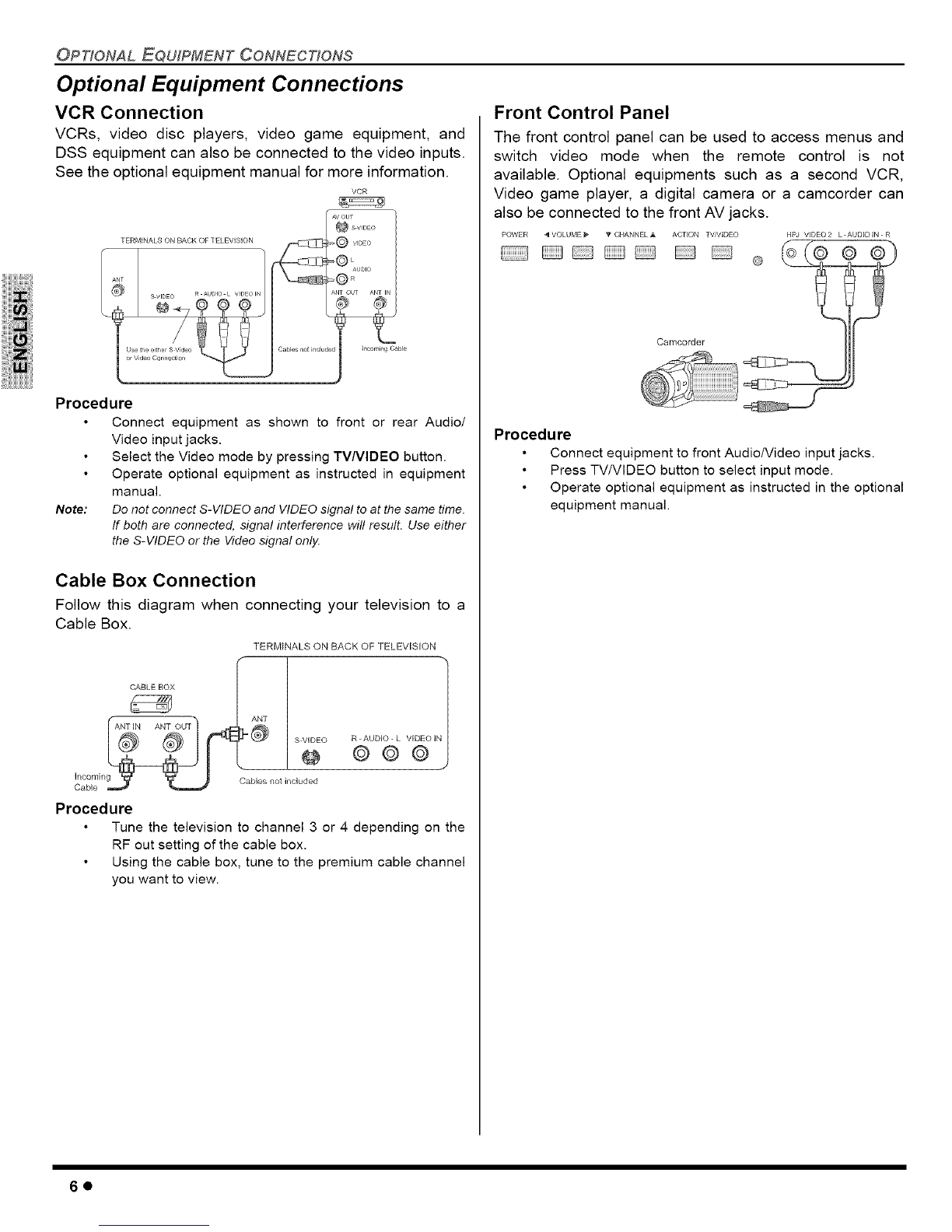

OPTIONAL EQUIPMENT CONNECTIONS

Optional Equipment Connections

VCR Connection

VCRs, video disc players, video game equipment, and

DSS equipment can also be connected to the video inputs.

See the optional equipment manual for more information.

VCR

Procedure

Connect equipment as shown to front or rear Audio/

Video input jacks.

Select the Video mode by pressing TVNIDEO button.

Operate optional equipment as instructed in equipment

manual.

Note: Do not connect S-VIDEO and VIDEO signal to at the same time.

If both are connected, signal interference wil! result. Use either

the S-VIDEO or the Video signal only.

Cable Box Connection

Follow this diagram when connecting your television to a

Cable Box.

TERMINALS ON BACK OF TELEVISION

i@ Isv,DEo

Procedure

Tune the television to channel 3 or 4 depending on the

RF out setting of the cable box.

Using the cable box, tune to the premium cable channel

you want to view.

Front Control Panel

The front control panel can be used to access menus and

switch video mode when the remote control is not

available. Optional equipments such as a second VCR,

Video game player, a digital camera or a camcorder can

also be connected to the front AV jacks.

POWER "_VOLUME_ _'CHANNELA ACTION TV/VIDFO HPJ VEDEO2 L-AUDEOIN R

® _@_@ @ @_

Camcorder

Procedure

Connect equipment to front Audio/Video input jacks.

Press TV/VlDEO button to select input mode.

Operate optional equipment as instructed in the optional

equipment manual.

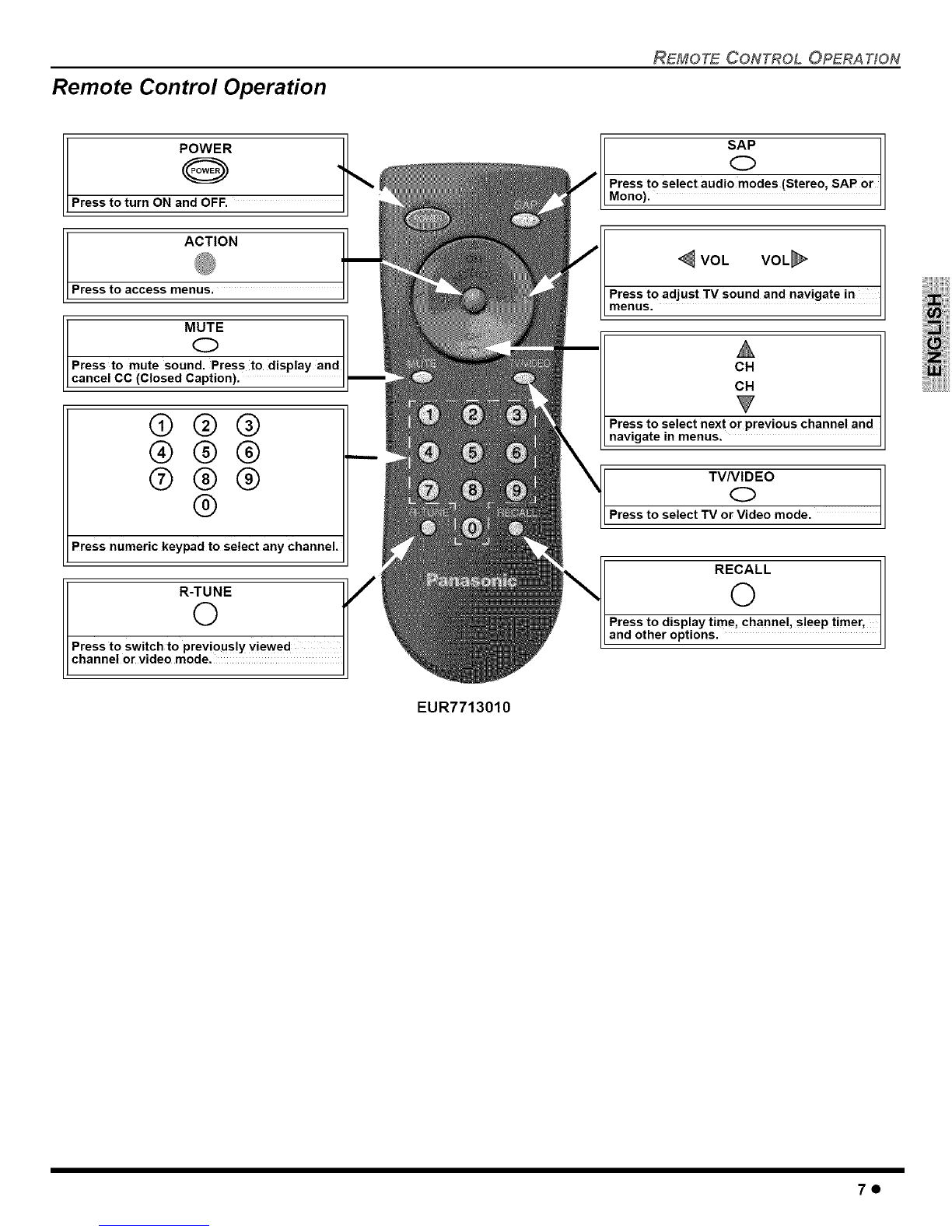

Remote Control Operation

REMOTE CONTROL OPERATION

POWER

Press to turn ON and OFF.

ACTION

Press to access menus.

MUTE

Press to mute sound. Press to display and

cancel CC (Closed Caption).

SAP

Press toselect audio modes (Stereo, SAP or

Mono).

VOL VOL_

Press to adjust TV sound and navigate in

menus,

Press to select next or previous channel and

navigate in menus.

TVNIDEO

Press to select TV or Video mode.

RECALL

Press to display time, channel, sleep timer,

and other options.

®@@

@®®

®®®

Press numeric keypad to select any channel.

R-TUNE

Press to switch to previouslY viewed

channel or video mode.

EUR7713010

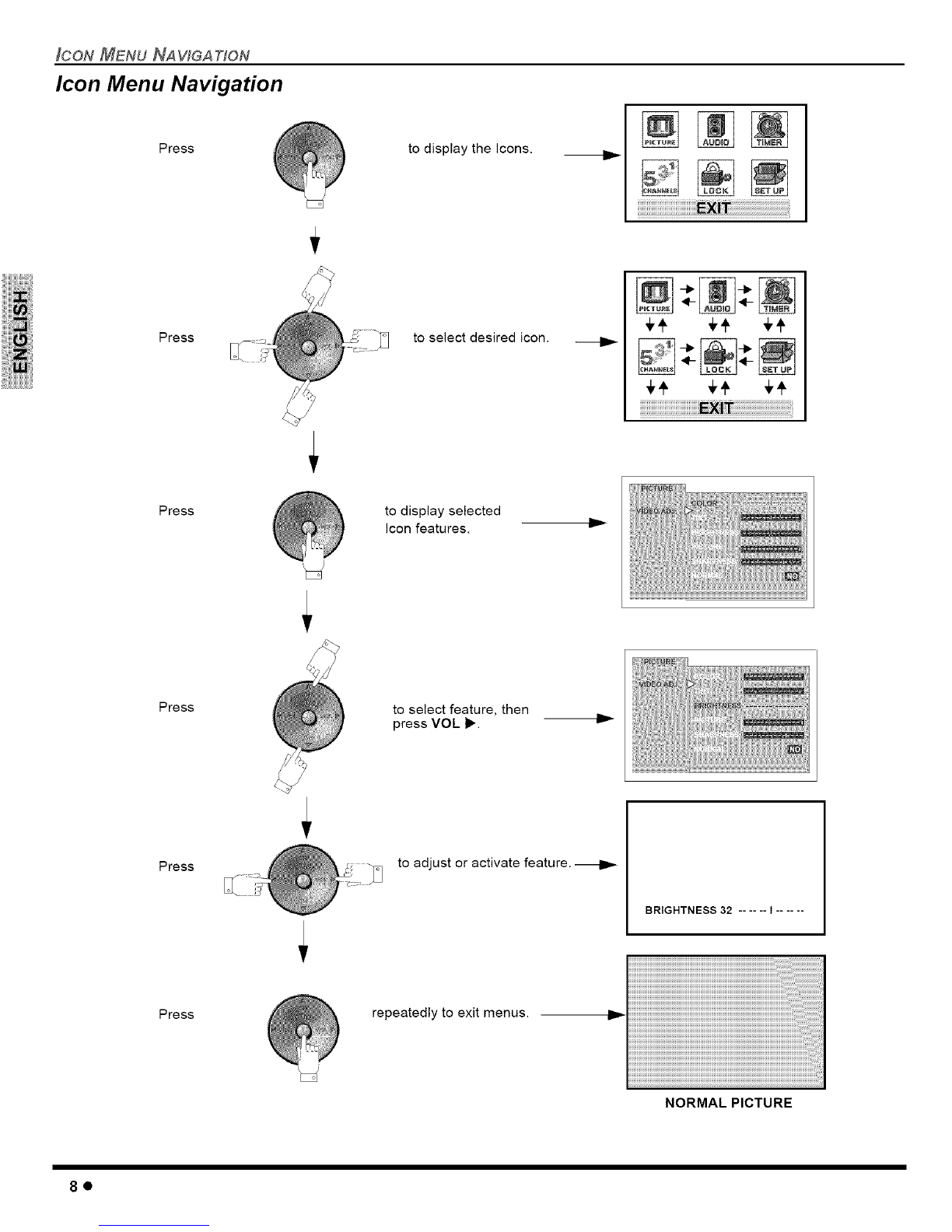

ICON MENU NAWGAT/ON

Icon Menu Navigation

Press to display the icons. mlD,_ @

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_!!_i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_!_!_

Press to select desired icon. 4,+ 4,+ 4,+

4,÷ 4,+ 4,+

Press to display selected

icon features.

Press

to select feature, then

press VOL 1_. "-

to adjust or activate feature.

BRIGHTNESS 32 ...... 1......

Press repeatedly to exit menus. v

NORMAL PICTURE

Andere Handbücher für CT-32G19

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panasonic Fernseher Handbücher

Panasonic

Panasonic CT27E33 - 27" TV Bedienungsanleitung

Panasonic

Panasonic CT27E33 - 27" TV Bedienungsanleitung

Panasonic

Panasonic TX-21FG50A Bedienungsanleitung

Panasonic

Panasonic Viera TH-32AS610A Montageanleitung

Panasonic

Panasonic Viera TH-37PX70B Bedienungsanleitung

Panasonic

Panasonic TX-55CR433E Bedienungsanleitung

Panasonic

Panasonic TX-28LD1L Bedienungsanleitung

Panasonic

Panasonic TC-21FX20RG Bedienungsanleitung

Panasonic

Panasonic QuintrixF TX-29PX10D Bedienungsanleitung

Panasonic

Panasonic QuintrixF TX-24PS1L Bedienungsanleitung

Panasonic

Panasonic TX-32CW304 Bedienungsanleitung

Panasonic

Panasonic TX-W32D2 Bedienungsanleitung

Panasonic

Panasonic Viera TX-L32E30Y Bedienungsanleitung

Panasonic

Panasonic CT24SL13 - 24" TELEVISION Bedienungsanleitung

Panasonic

Panasonic TX-21ST15M Bedienungsanleitung

Panasonic

Panasonic QuintrixF TX-29AS10C/B Bedienungsanleitung

Panasonic

Panasonic VIERA TX-40CS520E Montageanleitung

Panasonic

Panasonic TC-21FX20P Bedienungsanleitung

Panasonic

Panasonic TX-29AD1D Bedienungsanleitung

Panasonic

Panasonic TX-29PS10D Bedienungsanleitung

Panasonic

Panasonic TX-25LK1P Bedienungsanleitung

Panasonic

Panasonic TX-29E50D Bedienungsanleitung

Panasonic

Panasonic SuperFlat CT-F2993X Bedienungsanleitung

Panasonic

Panasonic TX-40C320E Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
