Panasonic TC-29P250H Bedienungsanleitung

Colour Television

Operating Instructions

Model No.

TQB4G0909

[ tau ]

FLA

DIGI

This is a combined Operating Instruction manual for all the above

series of models.

Please read these instructions before operating your set and

retain them for future reference.

100Hz PROGRESSIVE PIP TEXT TX-34P250T

TX-29P250X

TX-68P250Z

TX-80P250Z

TC-29P250H

TC-34P250H

Warnings and Cautions 4~5

Before Operating This Set 6~7

How to Use This Manual...................................................................................................................................................... 6

Battery Installation ............................................................................................................................................................... 6

Connecting the Aerial cable to the RF In Terminal .............................................................................................................. 7

Connecting the Plug to the Wall outlet ................................................................................................................................. 7

How to turn the Power On.................................................................................................................................................... 7

Location of Controls 8~9

Remote Control.................................................................................................................................................................... 8

Controls and Terminals on the TV........................................................................................................................................ 9

Connections 10~13

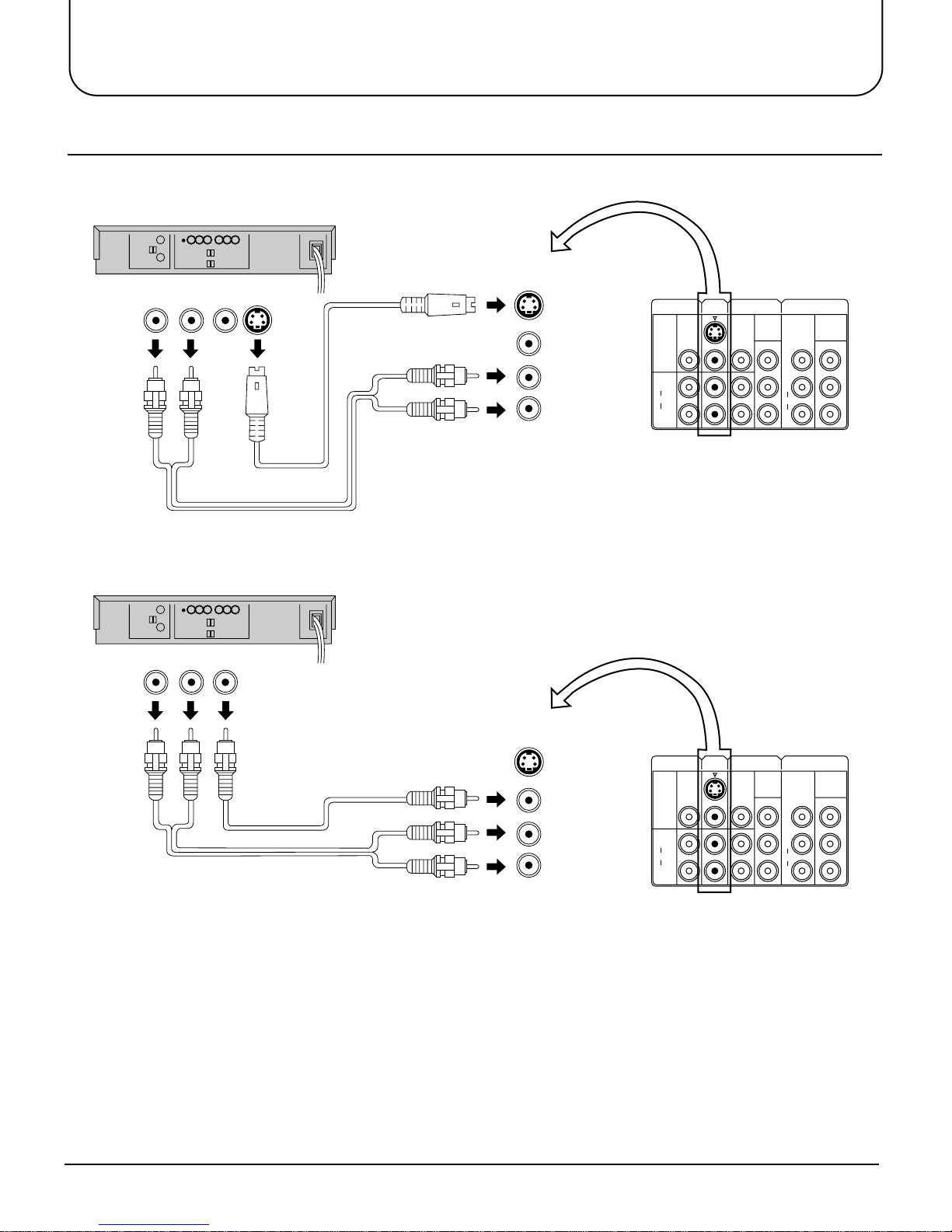

How to connect the “AV1, 2, 3 or 4” Input Terminals ......................................................................................................... 10

How to connect the DVD Input Terminals .......................................................................................................................... 11

How to connect the AV Monitor Output Terminals to other equipment .............................................................................. 11

How to connect the RGB Input Terminals.......................................................................................................................... 12

Connecting Headphones ................................................................................................................................................... 13

Dear Panasonic Customer

Welcome to the Panasonic family of customers. We hope that you will

have many years of enjoyment from your new colour television set.

To obtain maximum benefit from your set, please read these Instructions

before making any adjustments, and retain them for future reference.

Retain your purchase receipt also, and note down the Model Number and

Serial Number of your set in the space provided on the rear cover of

these Instructions.

Table of Contents

General Operation 14~15

How to switch the power ON or OFF ................................................................................................................................. 14

Programme Number Selection .......................................................................................................................................... 14

Direct Programme Number Selection ................................................................................................................................ 14

Volume Adjustment ............................................................................................................................................................ 15

Mute Button ....................................................................................................................................................................... 15

TV/AV Mode Selection....................................................................................................................................................... 15

Recall Button ..................................................................................................................................................................... 15

STR.................................................................................................................................................................................... 15

Function selection.............................................................................................................................................................. 15

Geomagnetic Correction 16

Using the On Screen Displays 17

Picture Menu 18~19

Sound Menu 20~21

Setup Menu 22~23

Tuning Menu 24~27

Channel Selection.............................................................................................................................................................. 24

Auto tune ........................................................................................................................................................................... 26

Manual tune ....................................................................................................................................................................... 27

Aspect Controls ................................................................................................................................................................. 28

Menu Operation 29

Multi PIP ............................................................................................................................................................................ 29

Channel search.................................................................................................................................................................. 30

Advanced Remote Control Operation 31

Stereo Reception ............................................................................................................................................................... 31

VCR / LD / DVD ................................................................................................................................................................. 32

TELE TEXT........................................................................................................................................................................ 33

Channel Allocation 36

Troubleshooting 37

Specifications 38~39

Table of Contents

Battery cautions

The incorrect use of batteries can cause electrolyte leakage which will corrode the Remote Control or cause the

batteries to burst.

Old Batteries New Batteries

Replace both batteries at the same time. Don't mix battery types

(alkaline with carbon zinc, etc.) Don't Recharge.

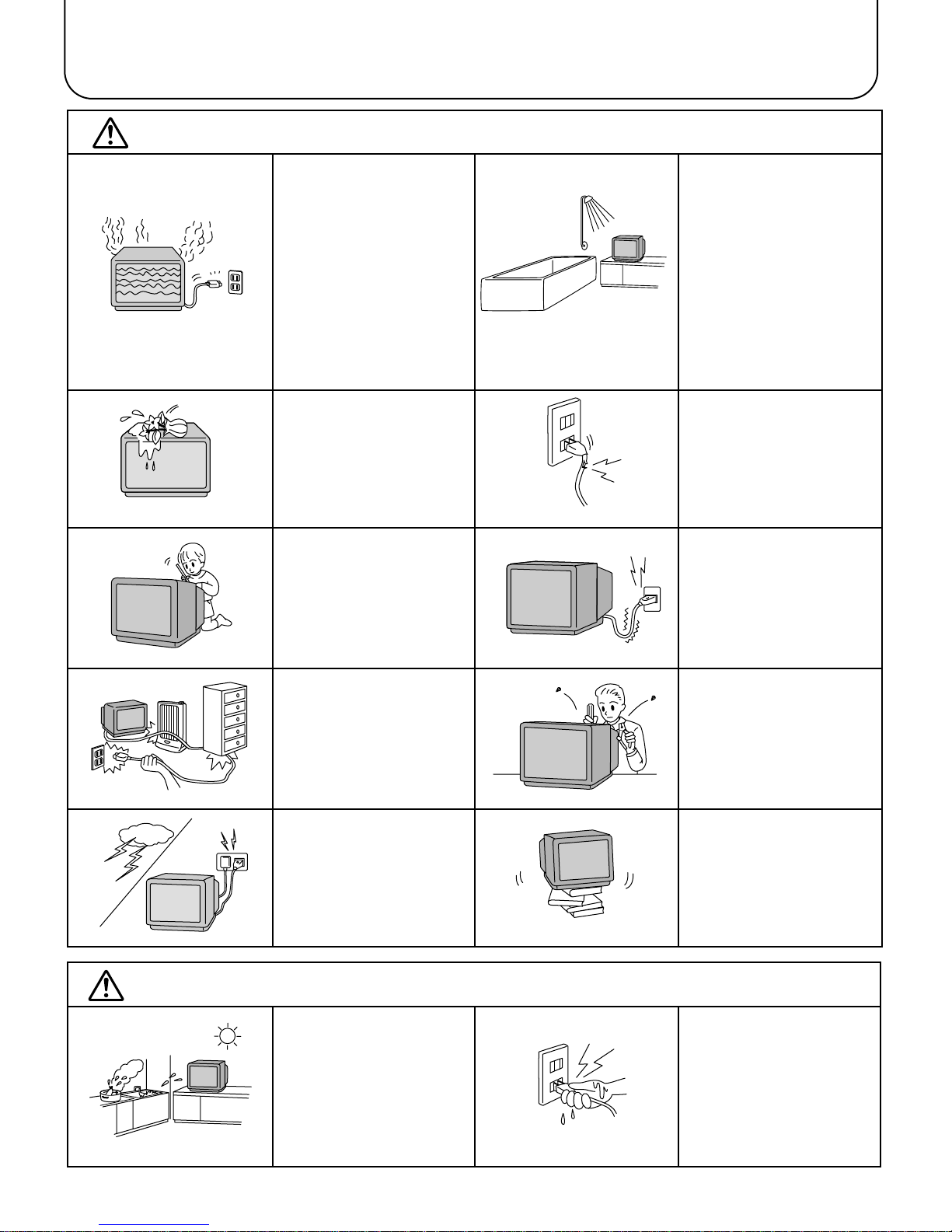

Warnings and Cautions

Warnings Unplug the power cord in the

event of any malfunction

(screen goes blank, no sound,

odd sounds, smoke or unusual

odors coming from the unit).

Unplug the power cord if

foreign matter or water falls

into the unit, or if the unit is

dropped or the cabinet is

damaged.

DO NOT place any of the

following on the unit:

Flower vases, flower pots,

cups, small metal objects, or

cosmetics containers,

chemicals or water.

DO NOT insert foreign objects

(metal or easily flammable

objects).

TAKE CARE NOT to damage

the power cord.

DO NOT touch the aerial cable

and this unit when there is

lightning.

DO NOT place in humid or

dusty location, or areas

exposed to smoke or steam.

DO NOT place in direct

sunlight and other sources

of direct heat.

DO NOT use this unit near

water. (Near a bath tub, etc.)

DO NOT use if the power cord

or power plug is damaged, or

if the plug does not fit tightly

into the socket.

DO NOT remove the rear

cover as live parts and High

Voltage components are

accessible when the rear

cover is removed.

DO NOT place in an unstable

location

DO NOT touch the power plug

if your hands are wet.

DO NOT use at a voltage other

than indicated

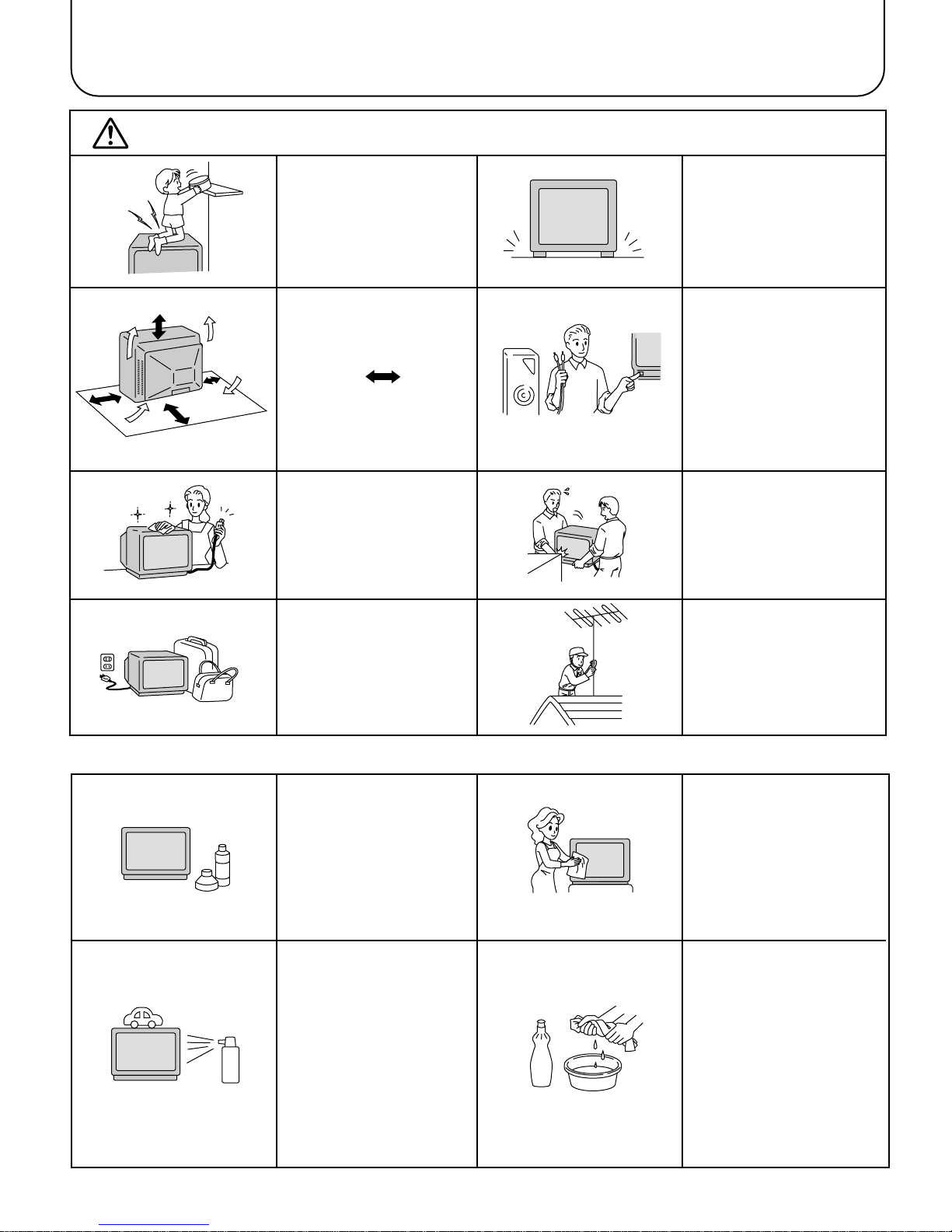

Cautions

DO NOT stand, or place heavy

objects on the unit.

Particular care should be taken

by families with small children.

Adequate ventilation is

essential to prevent failure of

electrical components, we

recommend that a gap of at

least 10 cm( ) is left all

around this unit even when it

is placed inside a cabinet or

between shelves.

Before cleaning, unplug the

power plug from the socket.

Unplug the power plug from the

socket if you are not going to

use the unit for an extended

period.

The unit contains many plastic

parts. For this reason DO NOT

use benzine, thinner or other

chemicals to clean the unit.

DO NOT bring into contact with

insecticide or other volatile

substances.

DO NOT allow the unit to come

into contact for extended

periods with rubber or vinyl

products.

Place in a safe location.

Turn the power “Off”before

connecting other electrical

equipment.

DO NOT joint the unit.

Ask your sales outlet to install

the aerial.

Dust will accumulate on the

picture screen. Please wipe

with a soft cloth from time to

time. If you use a chemically

treated cloth, please be careful

to follow the instructions that

come with the cloth.

Remove dirt and soiling by

wiping with a light cloth.

Evenif the unitis heavilysoiled,

do not apply cleaner directly to

the unit. Soak a cloth in a

solution of neutral cleanser

thinned with water. Then wring

out the cloth, wipe the unit

clean, and finish by wiping with

a dry cloth.

Cleaning

Caution

Warnings and Cautions


SOUND

SET UP

D.PNR

P.AI STILL

100Hz/

PROGRE

SURROUND

ASPECT

MULTI

PIP

123

456

789

TV/AV

CH SEARCH


SOUND

SET UP

TV/TEXT

F.P. INDEX

STILL

HOLD

100Hz/

PROGRE

SURROUND

ASPECT

123

456

789

TV/AV

MULTI

PIP

CH SEARCH

TEXT Favourite

Page Selection

TV/TEXT

Selection

TEXT Index

/Channel Search

TEXT hold

/Still

Picture AI

Picture Noise

Reduction

Channel Search

Still

Before Operating This Set

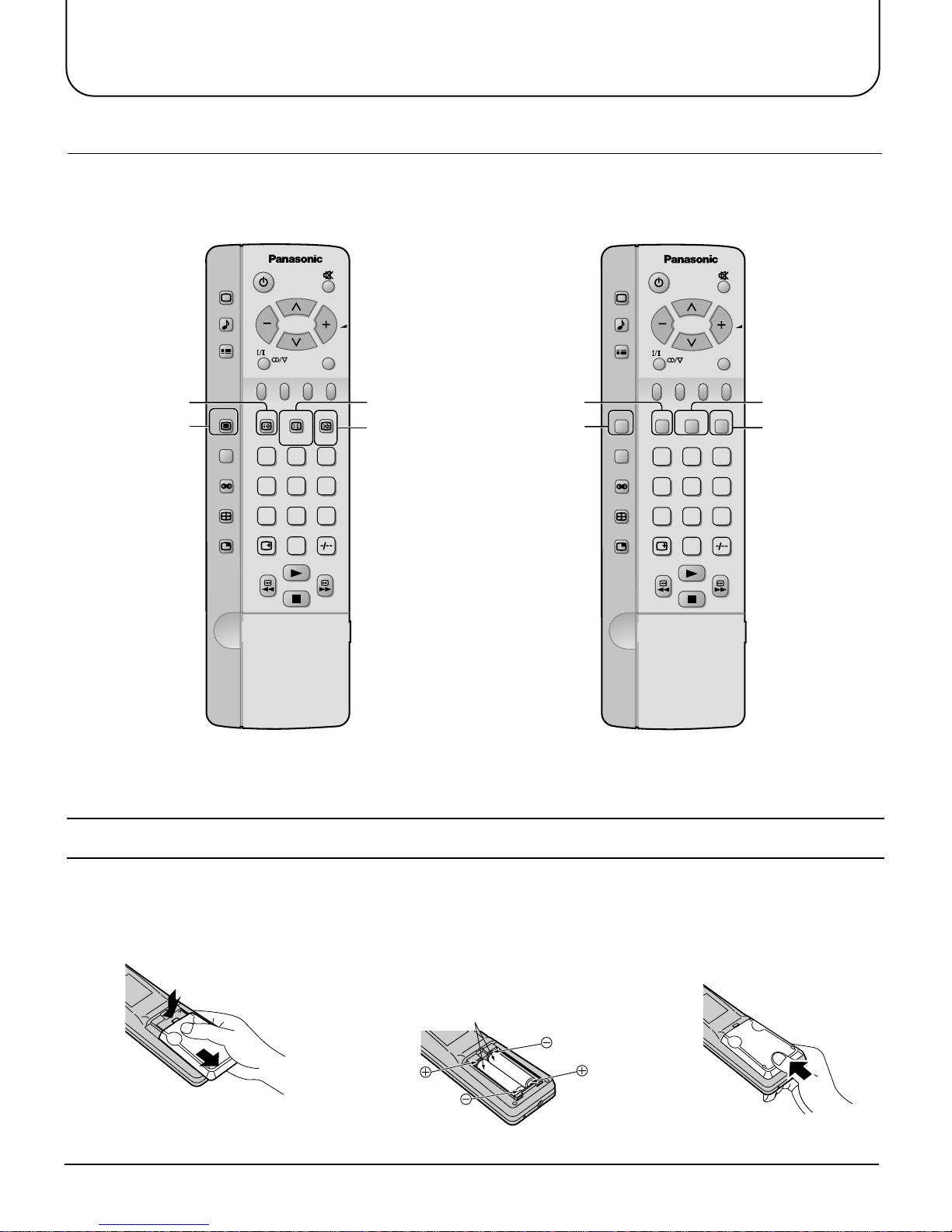

How to Use This Manual

Check the Model Number of your TV set; the Model Number is shown on the rear cover name plate on the set.

Use the table on the opposite page to confirm which features your particular Model is equipped with. This will help you

to known which sections of the manual apply to your set.

TX-29P250X

TX-68P250Z

TX-80P250Z

TC-29P250H

TC-34P250H

Open the cover.

Apply slight downward pressure

while pulling towards the bottom.

Replace the cover, and

slide in reverse until the

lock snaps.

Batteries: Use two “R6 (AA)” size

batteries.

Insert the batteries ensuring correct polarity.

This is identifiable by the “+”and “−”symbols

on both the batteries and inside the battery

compartment.

123

Battery Installation

Do not use rechargeable (Ni-Cd) batteries.

They are different in shape and performance and may fail to ensure correct operation.

Two “R6 (AA)”size

Note:

•Mainly the remote control for TX-29P250X, TX-68P250Z, TX-80P250Z is used as an example in the Operating

Instructions.

Before Operating This Set

Connecting the Aerial cable to the RF In Terminal

To obtain optimum quality picture and sound, an Aerial, the correct cable (75

Ohm coaxial) and the correct terminating plug are required.

If a communal Aerial system is used, you may require the correct connection

cable and plug between the wall Aerial socket and your television receiver.

Your local Television Service Centre or Dealer may be able to assist you in

obtaining the correct Aerial system for your particular area and accessories

required.

Any matters regarding Aerial installation, upgrading of existing systems or

accessories required, and the costs incurred, are the responsibility of you, the

Customer.

AV1

IN AV2

IN AV4

MONITOR

OUT

S-VIDEO

VIDEO

AUDIO

MONO MONO MONO

DVD

[Y-P

-P

]

DVD

[Y-P

-P

]

UHF Aerial

RF In Terminal

Coaxial Aerial Plug

VHF Aerial

Mixer

75 Ohm

Coaxial Cable

RF in

Terminal

Coaxial aerial plug

75 Ohm Coaxial Cable

Press the Power switch on Television to turn the set on. (See page 14)

How to turn the Power On

Note:

•Mains plug types vary between countries. The mains plug shown at left

may therefore not be the type fitted to your set.

Connecting the Plug to the Wall outlet

100Hz PROGR

Location of Controls

Remote Control

TX-29P250X, TX-68P250Z, TX-80P250Z

REC VCR

STR HELP

DISC SIDE

LD/DVD


SOUND

SET UP

TV/TEXT

F.P. INDEX

STILL

HOLD

100Hz/

PROGRE

SURROUND

ASPECT

123

456

789

MULTI

PIP

CH SEARCH

TV/AV

D.PNR

P.AI STILL

100Hz/

PROGRE

123

CH SEARCH

Sound Mute (see page 15)

Power (Stand-by) (see page 14)

Picture Menu (see page 18)

Sound Menu (see page 20)

Set up Menu (see page 22)

Stereo/Bilingual Sound Selection

(see page 31)

TELE TEXT (see page 33)

TV/TEXT Selection (see page 30)

100Hz/PROGRE (see page 19)

Surround (see page 21)

Aspect (see page 28)

Picture in Picture Selection

(see page 29)

Recall (see page 15)

VCR/LD/DVD Rewind/Review

(see page 32)

Normalization (see page 19)

Store (see page 15)

Programme Number Up and Down

(see page 14)

Volume Up and Down (see page 15)

TV/AV Mode Selection (see page 15)

Direct programme Number

Two Digit- programme Number

Selection (see page 14)

VCR/LD/DVD Play (see page 32)

Coloured buttons used for

Aspect functions (see page 28)

Teletext functions (see page 33)

AV selection (see page 15)

VCR/LD/DVD Fast Forward/cue

(see page 32)

VCR/LD/DVD Stop (see page 32)

VCR/LD/DVD Control (see page 32)

Help (see page 17)

TEXT Favourite Page Selection

(see page 34) TEXT hold (see page 30)

/Still (see page 30)

TEXT Index (see page 34)

/Channel Search (see page 30)

Picture Noise Reduction

(see page 19)

Picture AI (see page 19)

Still (see page 30)

Channel Search (see page 30)

TC-29P250H, TC-34P250H

Location of Controls

Controls and Terminals on the TV

STR F–/ +/ TV/AV

AV1

IN AV2

IN AV4

MONITOR

OUT

S-VIDEO

VIDEO

AUDIO

MONO MONO MONO

DVD

[Y-PB-PR]

DVD

[Y-PB-PR]

AV1

IN AV2

IN AV4

MONITOR

OUT

S-VIDEO

VIDEO

AUDIO

MONO MONO MONO

DVD

[Y-P

-P

]

DVD

[Y-P

-P

]

S-VIDEO VIDEO

AUDIO

RL/MONO RGB (31.5kHz)

AV3

Main Sub. S-VIDEO VIDEO

AUDIO

RL/MONO RGB(31.5kHz)

AV3

STR F–/ +/ TV/AV

Item

No. Function Refer to

Page Item

No. Function Refer to

Page

Main Headphones Jack 13

Sub Headphones Jack 13

AV3 Input Terminals 10

RGB Input Terminal 12

STR 15

Function 15

Volume Down (−) /

14,15

Volume Up (+) / 14,15

TV/AV Selection 15

Aerial Terminal (RF In Terminal) 7

Monitor Output Terminals 11

AV1 Input Terminals 10

AV2 Input Terminals 10

AV4 Input Terminals 10

DVD ( Y. P

. P

) Input 11

Programme Number

Down ( )

Programme Number

Up ( )

How to connect the “AV1, 2, 3 or 4” Input Terminals

AV1

VIDEO

AUDIO

(Super-VHS VCR)

Audio

OUT Video

OUT S-Video

OUT

(VHS VCR)

VIDEO

AUDIO

Audio

OUT Video

OUT

AV1

MONO

S Video

input

( )

MONO

AV1

IN AV2

IN AV4

MONITOR

OUT

S-VIDEO

VIDEO

AUDIO

MONO MONO MONO

DVD

[Y-P

-P

]

DVD

[Y-P

-P

]

AV1

IN AV2

IN AV4

MONITOR

OUT

S-VIDEO

VIDEO

AUDIO

MONO MONO MONO

DVD

[Y-P

-P

]

DVD

[Y-P

-P

]

Connect VCRs and other peripheral equipment

Notes:

• When an S-Video cable is connected to the S-Video terminal, the Video input will be automatically switched off for that

AV mode.

• When a Monaural VCR is used, connect the Monaural Audio cable to the Audio “L” (Left) terminal.

• Select the desired AV input position by pressing the TV/AV button. (Refer to page 15)

• Input 3 is located on the front of the unit.

• TheAV2 andAV4 audio input terminals serve as the audio input terminal for both the Video input and for the DVD input

AV2.

Connections

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panasonic Fernseher Handbücher

Panasonic

Panasonic TX-32DK1 Bedienungsanleitung

Panasonic

Panasonic TC GZ1000 Series Montageanleitung

Panasonic

Panasonic CT-2707D, CT-3207D Bedienungsanleitung

Panasonic

Panasonic CT-27G34 Bedienungsanleitung

Panasonic

Panasonic TX-28DK1 Bedienungsanleitung

Panasonic

Panasonic TX-32A300E Bedienungsanleitung

Panasonic

Panasonic my Home Screen Montageanleitung

Panasonic

Panasonic TX-51P950M Bedienungsanleitung

Panasonic

Panasonic Viera CX700H series Bedienungsanleitung

Panasonic

Panasonic TC-14Z88A Bedienungsanleitung

Panasonic

Panasonic TC-21Z99R Bedienungsanleitung

Panasonic

Panasonic CT30WX54J - 30" COLOR TV Bedienungsanleitung

Panasonic

Panasonic TX-21S3TC Bedienungsanleitung

Panasonic

Panasonic CT-27SL13MUG Bedienungsanleitung

Panasonic

Panasonic TX-32DS600E Montageanleitung

Panasonic

Panasonic TX-28MD4P Bedienungsanleitung

Panasonic

Panasonic TX-21S1T Bedienungsanleitung

Panasonic

Panasonic CT32G6E - 32" COLOR TV Bedienungsanleitung

Panasonic

Panasonic TX-W32D4DP Bedienungsanleitung

Panasonic

Panasonic TX-28DK20D Bedienungsanleitung

Panasonic

Panasonic TX-32DK1L Bedienungsanleitung

Panasonic

Panasonic TX-25XD4 Bedienungsanleitung

Panasonic

Panasonic TX-29AK1P Bedienungsanleitung

Panasonic

Panasonic TC-21L1Z Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
