nasonlc

Color Television

Operating Instructions

CT-32HX40 CT-36HX40

For assistance, please call: 1-800-211-PANA (7262) or TQB2AA0337-1 00619

send e-mail to: [email protected] (USA only) PRINTED IN USA

WARNING: 1"oreducethe riskofelectricshockdo notremovecoverorback. No user- '

sewiceablepartsinside.ReferservicingtoqualifiedServicepersonnel. I

_k The lighblingflash_th arrowhead AThe exclama_on point within a

withina,triangle is intendedto teql _tnsngJeis intendedto tegthe user

the usgr that parts insKJe the that important operating _nd

_o_ct _e _._iskof electric shO_ s_icing instructionsare in the

to persons. I_per5 vaththe appfiance

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO

NOT EXPOSE THIS APPARATUS TO RA N OR MOISTURE.

_er_aL,1audio features of that!0roduct .xrcnlar_utac_,r_dunder a Licch_e from D_per _¢t s.In¢

S_ti_li_,l_ a_ tim c_:k_-in ¢.qu_-c _f_viue_r_ Iradem:Ir_ owned by _l_r IFro,duc(s._i_.

SpatialiZerLr.S.pa_nt_ are;4.308.4_ 4.35_.20_ an_ 5._t2,_31_

TABLE OF CONTENTS

Table of Contents

Congratulations ........................................................ 3

Customer Record ..................................................................... 3

Care and Cleaning ................................................................... 3

Specifications ........................................................................... 3

Installation ................................................................. 4

Television Location ................................................................... 4

Optional Cable Connections ..................................................... 4

AC Power Supply Cord ............................................................ 4

Cable /Antenna Connection .................................................... 5

Optional Equipment Connections ............................................. 5

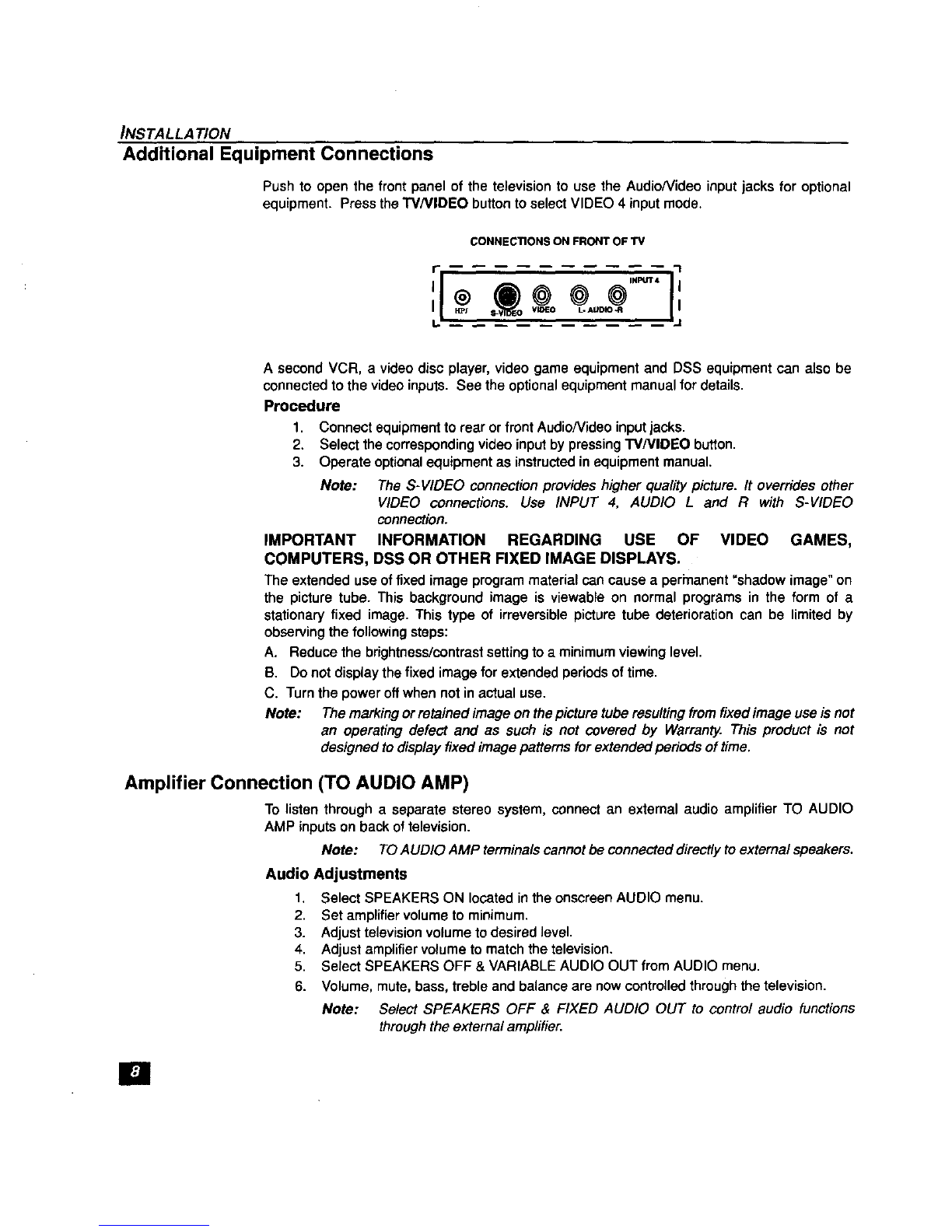

Additional Equipment Connections .......................................... 8

Amplifier Connection (TO AUDIO AMP) ................................... 8

Program Out Connection (PROG OUT) ................................... 9

Digital TV - Set-Top Box (DTV-STB)

or DVD Connection .................................................................. 9

Home Theater Connection .................................... 10

Picture In Picture (PIP) Operation ......................... 11

Split Screen Operation ........................................... 12

Roller Guide Menu TM .............................................. 13

Basic Navigation ..................................................................... 13

Remote Control Guide ............................................................ 13

Roller Guide Feature Chart .................................... 14

Special Features ..................................................... 17

Menu Languages .................................................................... 17

Prog Chan (Program Channels) ............................................. 17

Closed Captioning .................................................................. 18

Geomagnetic Correction ........................................................ 19

Sleep Timer ............................................................................ 20

Timer 1 and Timer 2 ............................................................... 20

Picture Adjustments ............................................................... 21

Dolby Center Mode & Fixed Audio Out .................................. 22

Favorite Channels and Captions............................................ 23

Lock........................................................................................ 24

Troubleshooting Chart ........................................... 25

[]

Read these instructions completely before operating television.

Contents are subject to change without notice or obligation.

Unauthorizedcopying anddistribution is a violation of law.

Congratulations CONGRA TULA TION,q

Your new Panasonic Tau television is designed to provide state-of-the-art picture quality and

features an innovative PureFlat TM picture tube. The new silver-gray cabinet with compact,

elegant styling is designed to give you many years of enjoyment. It was thoroughly tested and

tuned at the factory for best pedormance.

Customer Record

The model and serial number of this product are located on the back of the television. You

should note the model and serial number in the space provided and retain as apermanent

record of your purchase. This will aid in identification in the event of theft or loss. Product

registration for U.S. customers is available at www.prodreg.com/panasonic.

Model

Number

Serial

Number

Care and Cleaning

Screen (Turn TV Off)

•Use a mild soap solution or window cleaner with a soft clean cloth, DO NOT USE

ABRASIVE CLEANERS.

Avoid excessive moisture and wipe dry.

Note: Donotsprayany typeofcleaningfluiddirectlyonthe screen.

Cabinet and Remote Control

OFor cabinets and remote control, use a soft cloth dampened with water or a mild detergent

solution. Avoid excessive moisture and wipe dry.

0Do not use benzene, thinner or other petroleum based products.

Specifications

Power Source

CT-36HX40 (3.7A) t20V AC, 60Hz

CT-32HX40 (3.7A)

Channel Capability -181 VHF-12; UHF-56; Cable- 125

Video Input Jacks 1Vp-p, 75 Ohm, Phono Jack Type

Audio Input Jacks 500mV RMS 47K Ohm

Video Output Jack tVp-p, 75 Ohm. Phono Jack Type

Audio Output Jacks 0-2.0V RMS 4.7K Ohm

Component Input 75 Ohm, Phono Jack Type

S-Video Input Jacks S-Video (Y-C) Connector

Specifications are subject to change without notice or obligation.

[]

INSTALLATION

Installation

Television Location

This unit is intended to be used as part of an entertainment center. Consult your dealer for

available options.

[3 Avoid excessive sunlight or bright lights, including reflections.

[3 Keep away from excessive heat or moisture. Inadequate ventilation may cause internal

component failure.

[] Fluorescent lighting may reduce remote control transmitting range.

O Keep away from magnetic equipment, including motors, fans and external speakers.

CAUTION: Use this television receiver only with the cart, stand, tripod, bracket,

or table specified by the manufacturer, or sold with the apparatus. When acart is

used, use caution when moving the cart/apparatus combination to avoid injury from

tip-over. In order to avoid injury to children, never piece your television receiver on

a piece of furniture that is capable of being tilted by achild leaning on it, pulling on

it, standing on it, or climbing on it.

CT*36HX40:

CAUTION: This television receiver for use only with PANASONIC TY-36HX40P stand.

Use with other carts (or stands) is capable of resulting in instability causing possible

injury.

CT-32HX40:

CAUTION: This television receiver for use only with PANASONIC TY-32HX40P stand.

Use with other carts (or stands) is capable of resulting In instability causing possible

injury,

Optional Cable Connections

Shielded audio and video cables should be used between components. For best results:

[] Use 75-ohm coaxial shielded cables.

O Use appropriate input and output connectors that match your component connectors.

[] Avoid tong cables to minimize interference.

AC Power Supply Cord

CAUTION: TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF

PLUG TO WIDE SLOT OF AC OUTLET AND FULLY INSERT. DO NOT _[_i_

USE A PLUG WITH A RECEPTACLE OR OTHER OUTLET UNLESS THE

BLADE CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. Polarizedplug

PROTECT POWER CORDS FROM BEING WALKED ON, ROLLED OVER, CRIMPED, BENT

OR PINCHED, PARTICULARLY AT PLUGS, CONVENIENCE RECEPTACLES, AND THE

POINT WHERE THEY EXIT FROM THE APPARATUS.

[]

Cable /Antenna Connection

For proper reception, either acable or antenna connection is required.

Cable Connection

Connect the cable supplied by your local cable company to ANT or ANT1

connection on back of television. Select cable mode and ANT1 in SET UP

menu under Prog Chan (Program Channels).

Note: A cable converter box may be required for proper reception.

Chock with your local cable company for compatibility

requirements.

Antenna Connection

For proper reception of VHF/UHF channels, an external

antenna is required. For best reception, an outdoor

antenna is recommended.

•Connect home antenna to ANT or ANT1 connection on

back of television. Select TV mode and ANT1 in the SET

UP menu under Prog Chan.

Note: Cable Mode is preset at the factory. Antenna users must change

INSTALLA TION

Incoming Cable from

Cable Company

75 Ohm VHF/UHF

on back of TV

Incoming Cable from

HomeAntenna

to TV mode and select ANT1 in the Set Up Menu underProg Chan.

Optional Equipment Connections

Cable Box Connection

Follow this diagram when connecting your television to a cable box only.

CABLE BOX

C:3B

r-- "1 Incoming Cable

IANT INPUT l

o O.OTSU PL, O ,"--

CONNECTIONSONBACKOFTV

FROG OUT

B:)JL-i

o_.--I

TO AUDIO

AMP

Note: The remote control must be programmed with supplied codes to operate the cable

box. See Programming the Remote Control in the Remote Control Quick Reference

Guide.

Viewing a premium (scrambled) cable channel

Procedure

1. Select ANT2 in the SET UP menu under Prog Chan (Program Channels).

2. Tune the television to Channel 3.

3. Using the cable box, tune tothe premium cable channel you want to view.

Note: Touse special features such as Favorite Channels and Channel Captions (see Special

Features section for more information), ANT1 must be selected in the SET UP menu

under Prog Chan.

[]

INSTALLATION VCR Connection

Follow this diagram when connecting your television to a VCR only.

VCR

mI_i

rVIDEOOUT1 CONNECTIONS ON SACK OF "IV

IUse either the

|S-Vidsoor Video

I AUO_OOUT connection.

IOUTPWT

Note: The remote control must be programmed with supplied codes tooperate the VCR. See

Programming the Remote Control in the Remote Control Quick Reference Guide.

Viewing a television program

Procedure

1. Select ANTI in the SET UP menu under Prog Chan (Program Channels),

2. Tune the television to the television program you want toview,

Viewing a video

Procedure

t'l Option A

1. Select ANT1 in the SET UP menu under Prog Chan.

2. Press the "rVNIDEO button on the remote control to select the video input (VIDEO 1,

VIDEO 2, etc.) connected to your VCR.

3. Begin the video.

[3 Option B

1. Select ANT2 in the SET UP menu under Prog Chan.

2. Tune the television to Channel 3 or 4, depending on your VCR,

3. Begin the video.

Recording a television program

Procedure

Option A (Recording and viewing the same program)

1. Select ANT2 in the SET UP menu under Prog Chan.

2. Tune the television to Channel 3 or 4, depending on your VCR.

3. Using the VCR, tune to the television program you want to record.

4. Begin recording.

Option B (Recording one program while viewing another program)

1. Select ANTi in the SET UP menu under Prog Chan.

2. Press the W/VIDEO button on the remote control to select the video input (VIDEO 1,

VIDEO 2, etc.) connected to your VCR.

3. Using the VCR, tune to the television program you want to record.

4. Begin recording.

5. Press the "FV/VIDEO button on the remote control to switch back to TV mode.

6. Tune the television to the television program you want to view.

INSTALLA TION

VCR and Cable Box Connection

Follow this diagram when connectingyour televisiontoboth a VCR and a cablebox.

VCR

r-i

VIOEO (

I AUDIO OUT

IANT OUTPUT

CONNECTIONS ON BACK OF "iV

Use either the

S-Video or Video

connection,

Note: Theremotecontrol mustbe programmedwithsuppliedcodesto operatethe VCRand cablebox.

See ProgrammingtheRemoteControlintheRemote Control Quick Reference Guide.

Viewing a premium (scrambled) cable channel

Procedure

1. Select ANT2 in the SET UP menu under Prog Chan (Program Channels).

2. Tune the television to Channel 3.

3. Using the cable box, tune to the premium cable channel you want to view.

Note: Touse special features such as Favorite Channels and Channel Captions (see Special

Features section for more information), ANT1 must be selected in the SET UP menu

under Prog Chan.

Recording a premium (scrambled) cable channel

Procedure

1. Select ANT2 in the SET UP menu under Prog Chan.

2. Press the TVNIDEO button on the remote control to select the video input (VIDEO 1,

VIDEO 2, etc.) connected to your VCR.

3. Turn the VCR ON.

4. Tune the VCR to Channel 3 or 4, depending on the switch setting on the back of VCR.

5. Using your cable box, tune to the premium cable channel you want to record.

6. Begin recording.

Note: To view a different channel while recording:

•Select ANT1 in the SET UP menu under Prog Chan.

Press the W/VIDEO button on the remote control to TV mode.

Tune the television to a television program (except another premium cable

channel).

[]

INSTALLA TION

Additional Equipment Connections

Push to open the front panel of the television to use the Audio/Video input jacks for optional

equipment. Press the TVNIDEO button to select VIDEO 4 input mode.

CONNECTIONS ON FRONT OF TV

iiNPt,rr4

A second VCR, a video disc player, video game equipment and DSS equipment can also be

connected to the video inputs. See the optional equipment manual for details.

Procedure

1. Connect equipment to rear or front Audio/video input jacks.

2. Select the corresponding video input by pressing W/VIDEO button.

3. Operate optional equipment as instructed in equipment manual.

Note: The S-VIDEO connection provides higher quality picture. It overrides other

VIDEO connections. Use INPUT 4, AUDIO L and R with S-VIDEO

connection.

IMPORTANT INFORMATION REGARDING USE OF VIDEO GAMES,

COMPUTERS, DSS OR OTHER FIXED IMAGE DISPLAYS.

The extended use of fixed image program material can cause a perPnanent "shadow image" on

the picture tube. This background image is viewable on normal programs in the form of a

stationary fixed image. This type of irreversible picture tube deterioration can be limited by

observing the following steps:

A, Reduce the brightness/contrast setting to aminimum viewing level.

B. Do not display the fixed image for extended periods of time.

C. Turn the power off when not in actual use.

Note: The marking or retained image on the picture tube resulting from fixed image use is not

an operating defect and as such is not covered by Warranty. This product is not

designed todisplay fixed image patterns for extended periods of time.

Amplifier Connection (TO AUDIO AMP)

To listen through a separate stereo system, connect an external audio amplifier TO AUDIO

AMP inputs on back of television.

Note: TO AUDIO AMP terminals cannot be connected directly to external speakers.

Audio Adjustments

1, Select SPEAKERS ON located in the onscreen AUDIO menu.

2. Set amplifier volume to minimum,

3. Adjust television volume to desired level.

4. Adjust amplifier volume to match the television.

5. Select SPEAKERS OFF & VARIABLE AUDIO OUT from AUDIO menu.

6. Volume, mute, bass, treble and balance are now controlled through the television.

Note: Select SPEAKERS OFF &FIXED AUDIO OUT to control audio functions

through the external amplifier.

[]

INSTALLATION

Program Out Connection (PROG OUT)

To use the television audio and video with optional equipment, connect the PROG OUT and TO

AUDIO AMP connections on the back of the television.

Procedure

1. Connect optionalequipment to PROG OUT andTO AUDIOAMP terminals.

2. PROG OUT terminaldisplayisthe same as onscreendisplay.

3. See optionalequipmentmanualforfurther instructionsfor recordingand monitoring.

Digital TV - Set-Top Box (DTV-STB) or DVD Connection

Usethisdiagramtoconnectthe PanasonicDTV-STB(DigitalTV-Set-TopBox) orDVD

Playerto the backofyourIV.

TERMINALS ON BACK OF D'rV-STB OR OVD PLAYER

CABLES NOT SUPPLIED

D'rv INPUT TERMINALS ON BACK OF "IV

Note: There are 2 sets of three video inputs, Y, PB, and PR. Separate component color

inputs provide luminance and color separation. Use the L (/eft) and R (right) audio

inputs.

[]

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panasonic Fernseher Handbücher

Panasonic

Panasonic CT-2010H Montageanleitung

Panasonic

Panasonic TH-55DS630R Bedienungsanleitung

Panasonic

Panasonic Viera TH-42PZ81B Bedienungsanleitung

Panasonic

Panasonic TX-15LT2M Bedienungsanleitung

Panasonic

Panasonic TX-32PG30 Bedienungsanleitung

Panasonic

Panasonic Viera TC-P65GT50 Montageanleitung

Panasonic

Panasonic CT-27G7D Bedienungsanleitung

Panasonic

Panasonic Viera TC-P65VT50 Montageanleitung

Panasonic

Panasonic Viera TX-32LX80L Bedienungsanleitung

Panasonic

Panasonic Omnivision PV-DF2002 Bedienungsanleitung

Panasonic

Panasonic CT25G6E - 25" COLOR TV Bedienungsanleitung

Panasonic

Panasonic QuintrixF TX-28PK2 Bedienungsanleitung

Panasonic

Panasonic TX-29PX20DM Bedienungsanleitung

Panasonic

Panasonic VIERA TC-P46S2 Bedienungsanleitung

Panasonic

Panasonic TX-33AK10 Bedienungsanleitung

Panasonic

Panasonic CT-F2156WLP Bedienungsanleitung

Panasonic

Panasonic TX-3370ZR Bedienungsanleitung

Panasonic

Panasonic TX-32T2 Bedienungsanleitung

Panasonic

Panasonic TX-24WG10 Series Bedienungsanleitung

Panasonic

Panasonic TX-21M2T Bedienungsanleitung

Panasonic

Panasonic TC-21PM50A Bedienungsanleitung

Panasonic

Panasonic Viera TC-P50ST50 Bedienungsanleitung

Panasonic

Panasonic TH-42PX80U Bedienungsanleitung

Panasonic

Panasonic QuintrixF TX-29AS10F Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
