ORDER NO.MTNC140637CE

Hospitality LCD HDTV

Model No. TH-50LRU70

LA50 Chassis

TABLE OF CONTENTS

PAGE

1 Safety Precautions -----------------------------------------------3

1.1. General Guidelines ----------------------------------------3

1.2. Touch-Current Check--------------------------------------3

2Warning--------------------------------------------------------------4

2.1. Prevention of Electrostatic Discharge (ESD)

to Electrostatically Sensitive (ES) Devices ----------4

2.2. About lead free solder (PbF) ----------------------------5

3 Service Navigation------------------------------------------------6

3.1. PCB Layout --------------------------------------------------6

4 Specifications ------------------------------------------------------7

5 Service Mode -------------------------------------------------------8

5.1. How to enter into Service Mode ------------------------8

5.2. SRV-TOOL---------------------------------------------------9

5.3. Data Copy by USB Memory --------------------------- 10

6 Troubleshooting Guide---------------------------------------- 13

6.1. Check of the IIC bus lines------------------------------ 13

6.2. Power LED Blinking timing chart --------------------- 14

6.3. LCD Panel test mode ----------------------------------- 14

7 Disassembly and Assembly Instructions --------------- 15

7.1. Disassembly Flow Chart for the Unit ---------------- 15

7.2. Disassembly Procedure for the Unit----------------- 15

8 Measurements and Adjustments -------------------------- 21

8.1. Voltage chart of P-board-------------------------------- 21

8.2. Voltage chart of A-board------------------------------- 21

9 Block Diagram --------------------------------------------------- 22

9.1. Main Block Diagram ------------------------------------- 22

9.2. Block (1/2) Diagram ------------------------------------- 23

9.3. Block (2/2) Diagram ------------------------------------- 24

10 Wiring Connection Diagram --------------------------------- 25

10.1. Caution statement.--------------------------------------- 25

10.2. Wiring 1 ----------------------------------------------------- 25

10.3. Wiring 2 ----------------------------------------------------- 26

1 Safety Precautions

1.1. General Guidelines

1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or

damaged by the short circuit.

2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly

installed.

3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

4. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials.

5. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the

wires have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead.

6. When conducting repairs and servicing, do not twist the Fasten connectors but plug them straight in or unplug them straight

out.

1.2. Touch-Current Check

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth ground

such as a water pipe, as shown in Figure 1.

3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.

4. Check each exposed metallic part, and measure the voltage at each point.

5. Reserve the AC plug in the AC outlet and repeat each of the above measure.

6. The potential at any point (TOUCH CURRENT) shall not exceed 0.5 MIU.

7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should be

repaired and rechecked before it is returned to the customer.

2Warning

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically

Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called

Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and

semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage

caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your

body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,

which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as

aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as [anti-static (ESD protected)] can

generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most

replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or

comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material

to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the

brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD)

sufficient to damage an ES device).

2.2. About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table of elements.

In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.

The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).

That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it's manufacture due to environmental conservation issues. For service and repair work, we'd

suggest the use of Pb free solder as well, although Pb solder may be used.

PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.

Caution

• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 F (30~40 C) higher. Please

use a high temperature soldering iron and set it to 700 ± 20 F (370 ± 10 C).

• Pb free solder will tend to splash when heated too high (about 1100 F or 600 C).

If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb

solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the

opposite side. (see figure below)

Suggested Pb free solder

There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder.

However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.

3 Service Navigation

3.1. PCB Layout

Board Name Function

A-Board Main

K-Board IR/LED/CATS

P-Board Power Supply

GK-Board Power switch, Control Button

4 Specifications

Note

Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

Power Source AC 110-127 V, 60Hz

Power Consumption

Rated Power Consumption 110 W

Standby condition Under 1.0 W

Display Panel

Panel System LCD panel (LED backlight)

Screen size 50 inch class (49.5 inches measured diagonally)

W x H x Diagonal 43.1 inch x 24.2 inch x 49.5 inch (1,096 mm x 616 mm x 1,257 mm)

Number of pixels 2,073,600 (1,920 (W) x 1,080 (H)) [5,760 X 1,080 dots]

Speaker Output 20 W [10W + 10 W ]

Channel Capability (Digital/Analog) VHF/ UHF: 2 - 69, CATV: 1 - 135 (support MPEG4 H.264 decode)

PC Signals VGA, SVGA, XGA, WXGA, SXGA Horizontal scanning frequency 31- 69 kHz

Vertical scanning frequency 59 - 86 Hz

FEATURES 3D Y/C FILTER, CLOSED CAPTION, V-Chip, Vesa compatible, Integrated Pro: Idiom

Operating Conditions Temperature: 32 °F - 95 °F (0 °C - 35°C)

Humidity: 20 % - 80 % RH (non-condensing)

Connection Terminals

VIDEO IN VIDEO: RCA PIN Type x 1 1.0 V[p-p] (75Ω)

AUDIO L - R: RCA PIN Type x 2 0.5 V [rms]

COMPONENT IN Y: RCA PIN Type x 1 1.0 V[p-p] (including synchronization)

Pb: RCA PIN Type x 1 ±0.35 V [p-p]

Pr: RCA PIN Type x 1 ±0.35 V [p-p]

AUDIO L - R: RCA PIN Type x 2 0.5 V [rms]

HDMI 1-3 TYPE A Connector x 3 (This TV supports [HDAVI Control 5] function)

PC IN D-SUB 15PIN: R, G, B / 0.7 V [p-p] (75Ω)

HD, VD / 1.0 - 5.0 V [p-p] (high impedance)

AUDIO: M3 JACK x 1 0.5 V [rms]

USB USB2.0 Type A connector DC 5V, Max. 500mA

DIGITAL AUDIO OUT PCM / Dolby Digital / DTS, Fiber Optic

OTHERS ETHERNET (10BASE-T/100BASE-TX)

Dimensions (W x H x D)

Including pedestal 44.4 inch x 28.2 inch x 9.9 inch (1,126 mm x 716 mm x 250 mm)

TV Set only 44.4 inch x 25.7 inch x 2.1 inch (1,126 mm x 652 mm x 54 mm)

Mass

Including pedestal 37.7 lb. (17.1 kg) NET

TV Set only 32.0 lb. (14.5 kg) NET

5 Service Mode

5.1. How to enter into Service Mode

5.1.1. Set “Hotel Mode” Off

Service Mode can not be entered if Hotel Mode is “On” (Activating). Hotel Mode should be set to “Off” by using only Remote Control

as following procedure.

1. Press [MENU], [G], [Y] and [0] buttons on the remote control by turns to display “Hotel Mode setup menu”.

2. Select the item “Mode” and set “Off” status.

3. Select the item “Save” and press [OK] button.

4. Disconnect the AC cord from wall outlet, or press and hold the [POWER] button at right side on the main unit for 10 seconds

or more.

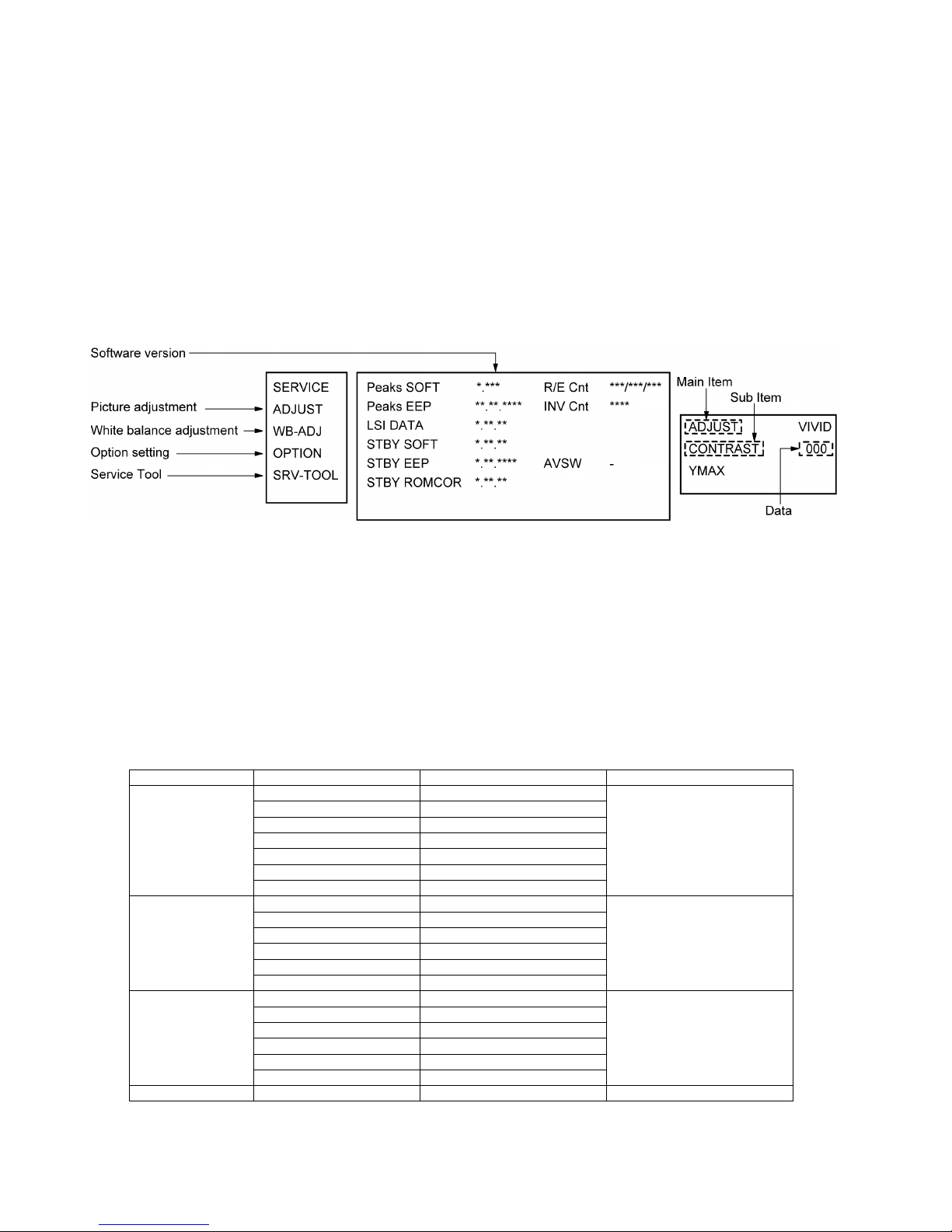

5.1.2. Enter into Service Mode

While pressing [VOLUME ( - )] button of the main unit, press [INFO] button of the remote control three times within 2 seconds.

5.1.3. Key command

[1] button...Main items Selection in forward direction

[2] button...Main items Selection in reverse direction

[3] button...Sub items Selection in forward direction

[4] button...Sub items Selection in reverse direction

[VOL] button...Value of sub items change in forward direction ( + ), in reverse direction ( - )

5.1.4. Contents of adjustment mode

• Value is shown as a hexadecimal number.

• Preset value differs depending on models.

• After entering the adjustment mode, take note of the value in each item before starting adjustment.

5.1.5. How to exit

Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.

Main item Sub item Sample Data Remark

ADJUST CONTRAST 000

COLOR 3C

TINT 00

SUB-BRT 800

BACKLGT FFF

B-Y-G 40

R-Y-A 00

WB-ADJ R-GAIN 7A

G-GAIN 80

B-GAIN 79

R-CENT 80

G-CENT 80

B-CENT 7E

OPTION Boot ROM Factory Preset.

STBY-SET 00

EMERGENCY ON

CLK MODE 00

CLOCK 000

EDID-CLK HIGH

SRV-TOOL 00 See next.

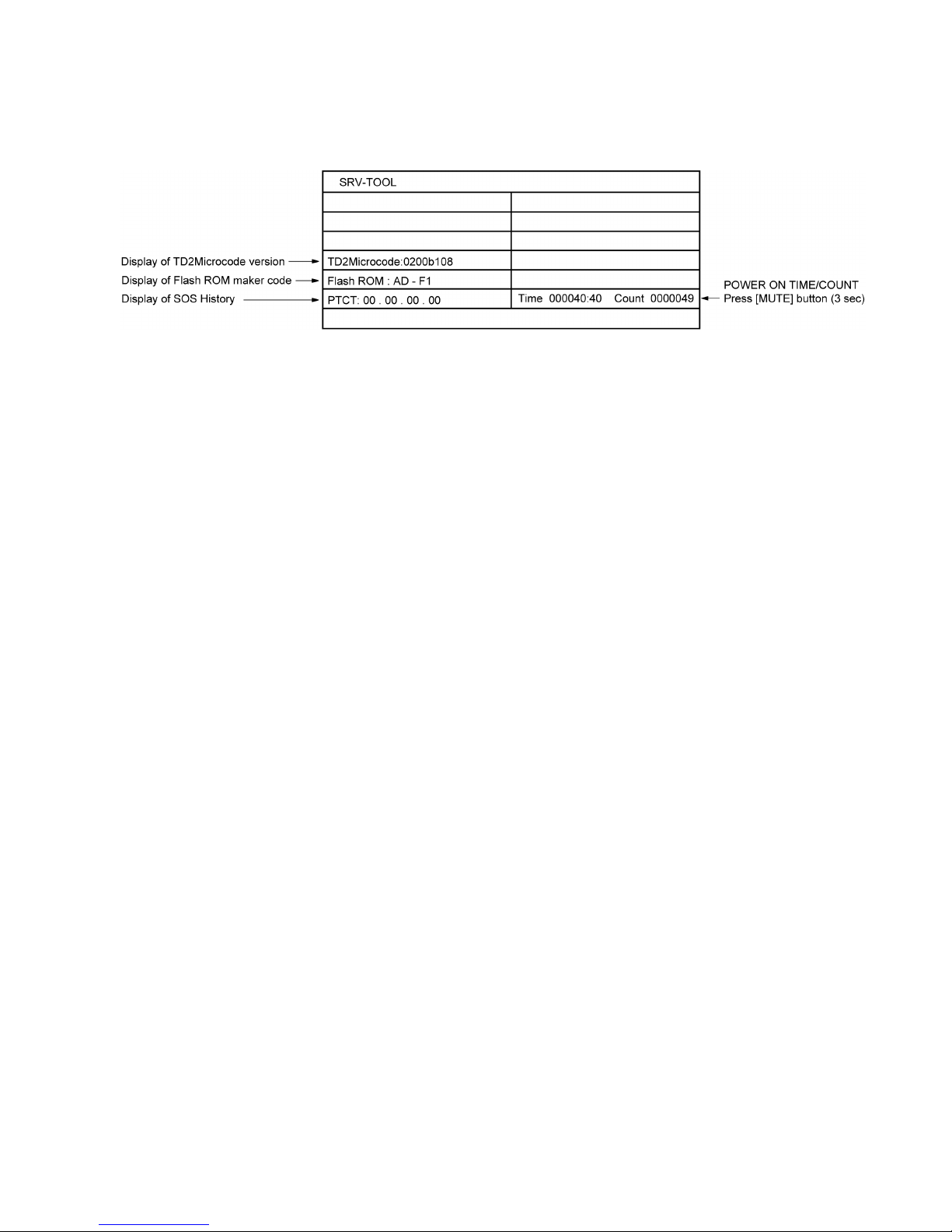

5.2. SRV-TOOL

5.2.1. How to access

1. Select [SRV-TOOL] in Service Mode.

2. Press [OK] button on the remote control.

5.2.2. Display of SOS History

SOS History (Number of LED blinking) indication.

From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment.

This indication except 2nd and 1st occurrence after shipment will be cleared by [Self-check indication and forced to factory

shipment setting].

5.2.3. POWER ON TIME/COUNT

Note : To display TIME/COUNT menu, highlight position, then press MUTE for 3 sec.

Time : Cumulative power on time, indicated hour : minute by decimal

Count : Number of ON times by decimal

Note : This indication will not be cleared by either of the self-checks or any other command.

5.2.4. Exit

Disconnect the AC cord from wall outlet or press the [POWER] button on the main unit for 3 seconds to turn off and then turn on

automatically.

5.3. Data Copy by USB Memory

Note:

SD card can not be used for Data Copy.

5.3.1. Purpose

(a) Board replacement (Copy the data when exchanging A-board):

When exchanging A-board, the data in original A-board can be copied to USB Memory and then copy to new A-board.

(b) Hotel (Copy the data when installing a number of units in hotel or any facility):

When installing a number of units in hotel or any facility, the data in master TV can be copied to USB Memory and then copy to

other TVs.

5.3.2. Preparation

Make pwd file as startup file for (a) or (b) in a empty USB Memory.

1. Insert a empty USB Memory to your PC.

2. Right-click a blank area in a USB Memory window, point to New, and then click text document. A new file is created by default

(New Text Document.txt).

3. Right-click the new text document that you just created and select rename, and then change the name and extension of the

file to the following file name for (a) or (b) and press ENTER.

File name:

(a) For Board replacement : boardreplace.pwd

(b) For Hotel : hotel.pwd

Note:

Please make only one file to prevent the operation error.

No any other file should not be in USB Memory.

Inhaltsverzeichnis

Andere Panasonic Fernseher Handbücher

Panasonic

Panasonic Viera TH-37PWD4 Bedienungsanleitung

Panasonic

Panasonic PT43LC14 - MULTI MEDIA DISPLAY Gebrauchs- und Pflegehandbuch

Panasonic

Panasonic TC-21S2 Kurzanleitung

Panasonic

Panasonic VIERA TC-65CX800U Bedienungsanleitung

Panasonic

Panasonic TX-21FS10A Bedienungsanleitung

Panasonic

Panasonic TX-25AD50F Bedienungsanleitung

Panasonic

Panasonic Viera TH-42PV700P Bedienungsanleitung

Panasonic

Panasonic Viera CX700H series Bedienungsanleitung

Panasonic

Panasonic TC-29KL03A Bedienungsanleitung

Panasonic

Panasonic CT-F2156WLP Bedienungsanleitung

Panasonic

Panasonic Viera TC-P50GT50 Montageanleitung

Panasonic

Panasonic TX-29PS10F Bedienungsanleitung

Panasonic

Panasonic TC-25FJ20R Bedienungsanleitung

Panasonic

Panasonic TX-28CK1P Bedienungsanleitung

Panasonic

Panasonic TX-32DK2 Bedienungsanleitung

Panasonic

Panasonic PT-50LC13 - 50" Rear Projection TV Bedienungsanleitung

Panasonic

Panasonic TX-34P150X Bedienungsanleitung

Panasonic

Panasonic TX-W32R4DP Bedienungsanleitung

Panasonic

Panasonic Viera TH-42PX77 Bedienungsanleitung

Panasonic

Panasonic Viera TC-L42E60 Bedienungsanleitung

Panasonic

Panasonic TX-40AX630E Bedienungsanleitung

Panasonic

Panasonic Viera TX-L65WT600E Bedienungsanleitung

Panasonic

Panasonic TX-21V50X Bedienungsanleitung

Panasonic

Panasonic Viera TH-37PX70B Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
