TQB8E3017---2

TX---21JT1L

TX---14JT1L

Operating Instructions

Colour Television

English Please read these instructions before operating your set and retain them for future reference

Contrast Auto Tracking System

Dear Panasonic Customer,

Welcome to the Panasonic family of customers. We hope that you have many years of enjoyment from your new colour television.

The best way to understand the features of this television is to read this book thoroughly, before operating the set.

This television has a low power consumption making it very cost effective to run.

To this end, the standby power consumption is merely 1 watt.

CONTENTS

DWarnings and Precautions 3...................

DAccessories 4................................

DFitting Remote Control Batteries 4..............

DInstallation and Set---up 5......................

DLocation of Controls 7.........................

DMenu Operation 8............................

DTeletext Operation 10..........................

DAudio / Video Connections 11...................

DVCR Installation 12............................

DVCR Operation 13.............................

DTrouble---shooting 14..........................

DGeneral Information 14.........................

DSpecifications 15.............................

DScart Terminal Information 15...................

Important Note :

The layout of the mains plug used

may differ from this illustration.

WARNINGS AND PRECAUTIONS

DThis T.V. is designed to operate on A.C. 220 --- 240V, 50Hz

and is capable of receiving the PAL I transmission

standard.

DDo not expose this TV set to rain or excessive moisture.

DWARNING: HIGH VOLTAGE !

Do not remove the rear cover, there are no user

serviceable parts inside.

DAvoid exposing the TV set to direct sunlight or other

sources of heat.

DRemove the mains plug from the wall socket when the TV

set is not to be used for a prolonged period of time. Do not

pull the power cable to remove the mains plug from the

socket, always remove it by the plug.

DCABINET AND PICTURE TUBE CARE

Remove the mains plug from the wall socket. The cabinet

and picture tube can be cleaned with a soft cloth

moistened with mild detergent and water. Do not use

solutions containing benzol or petroleum. TV sets can

produce static electricity, care must be taken whenever

touching the TV screen.

DAdequate ventilation is essential to prevent failure of

electrical components. We recommend that a gap of at

least 5cm is left all around this TV even when it is placed

inside a cabinet or between shelves.

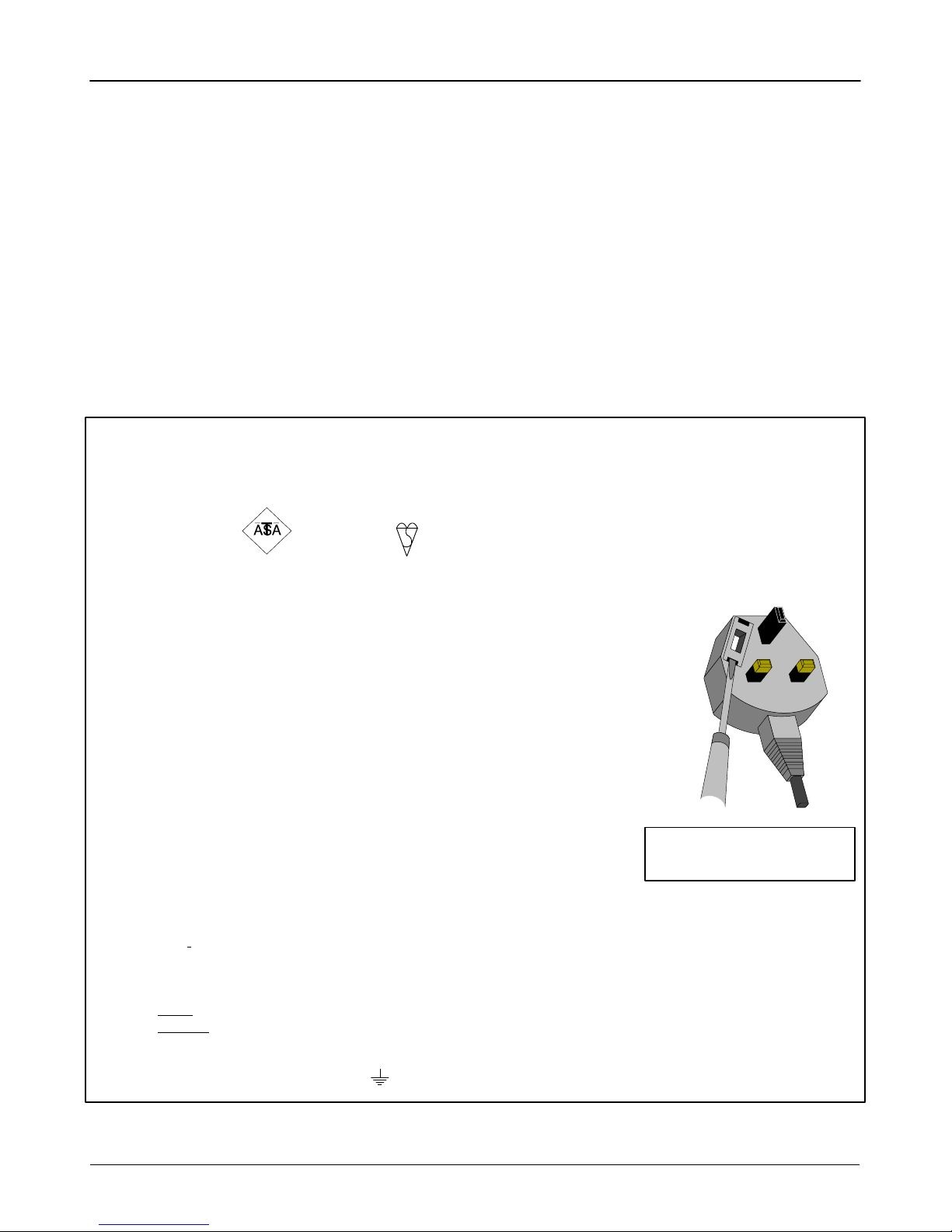

FOR YOUR SAFETY PLEASE READ THE FOLLOWING CAREFULLY

This appliance is supplied with a fitted three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this plug. If

the fuse is replaced then the replacement fuse must be 5 amp rated and should be approved by ASTA or BSI to BS1362.

Check for the ASTA mark or the BSI mark on the body of the fuse.

If the fitted plug has a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug

must not be used until a replacement cover is obtained.

Replacement fuse covers can be purchased through your local Panasonic dealer.

Theplugfittedtothisapplianceincorporates a mains filter circuit. If this is removed or

replaced with a non---filtered mains plug this television will no longer meet the

European standards for Electromagnetic Compatibility (EMC). If the fitted plug is

unsuitable for the socket outlet in your home an appropriate adapter should be used.

Nonetheless,ifthefittedplugisreplaced,thefuseshouldbetakenoutandthecut---off

plug disposed of safely. There is danger of severe electrical shock if the cut off plug is

inserted into any 13amp. socket.

If a new plug is to be fitted please observe the wiring code as shown below.

If in any doubt please consult a qualified electrician.

How to replace the fuse :

Lift out the removable fuse compartment with a screwdriver and replace the fuse, then refit

securely into the mains plug.

IMPORTANT :--- The wires in the mains lead of this appliance are coloured in accordance with the following code :---

BLUE : NEUTRAL BROWN : LIVE

As the colours of the wires in the mains lead of this appliance may not correspond to the markings identifying the terminals in your plug,

proceed as follows :---

1. The BLUE wire must be connected to the terminal marked ‘N’ or coloured black.

2. The BROWN wire must be connected to the terminal marked ‘L’ or coloured red.

IMPORTANT NOTE : Under no circumstances should either of these wires be connected to the Earth terminal of the three pin plug,

marked with the letter ‘E’ or the earth symbol ( ).

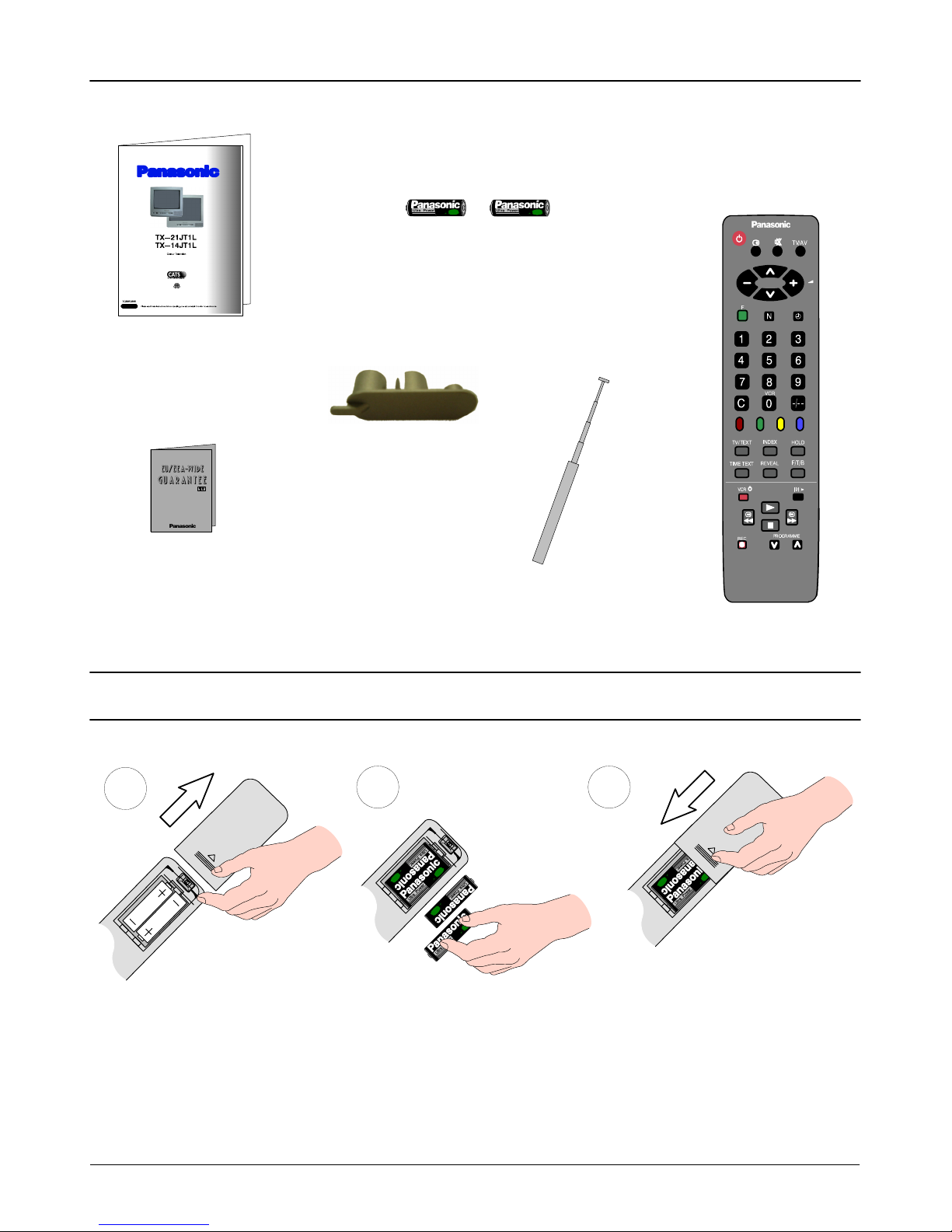

ACCESSORIES

Batteries for the

Remote Control Transmitter.

(2 x R6 (UM3) size)

Remote Control Transmitter

EUR511300

Operating Instruction

book

TV Guarantee

Check that you have the accessories and items shown

Te l e s c o p i c A e r i al

(TX---14JT1L only)

TSA---120026

AV cover

(TX---21JT1L only)

TKK8E043

FITTING REMOTE CONTROL BATTERIES

Replace the cover

12 3

Slide off the battery cover Insert batteries -- note correct

polarity (+ and -- )

DMake sure that the batteries are fitted the correct way round.

DDo not mix old batteries with new batteries. Remove old, exhausted batteries immediately.

DDo not mix different battery types, i.e. Alkaline and Manganese. Do not use rechargeable (Ni---Cad) batteries.

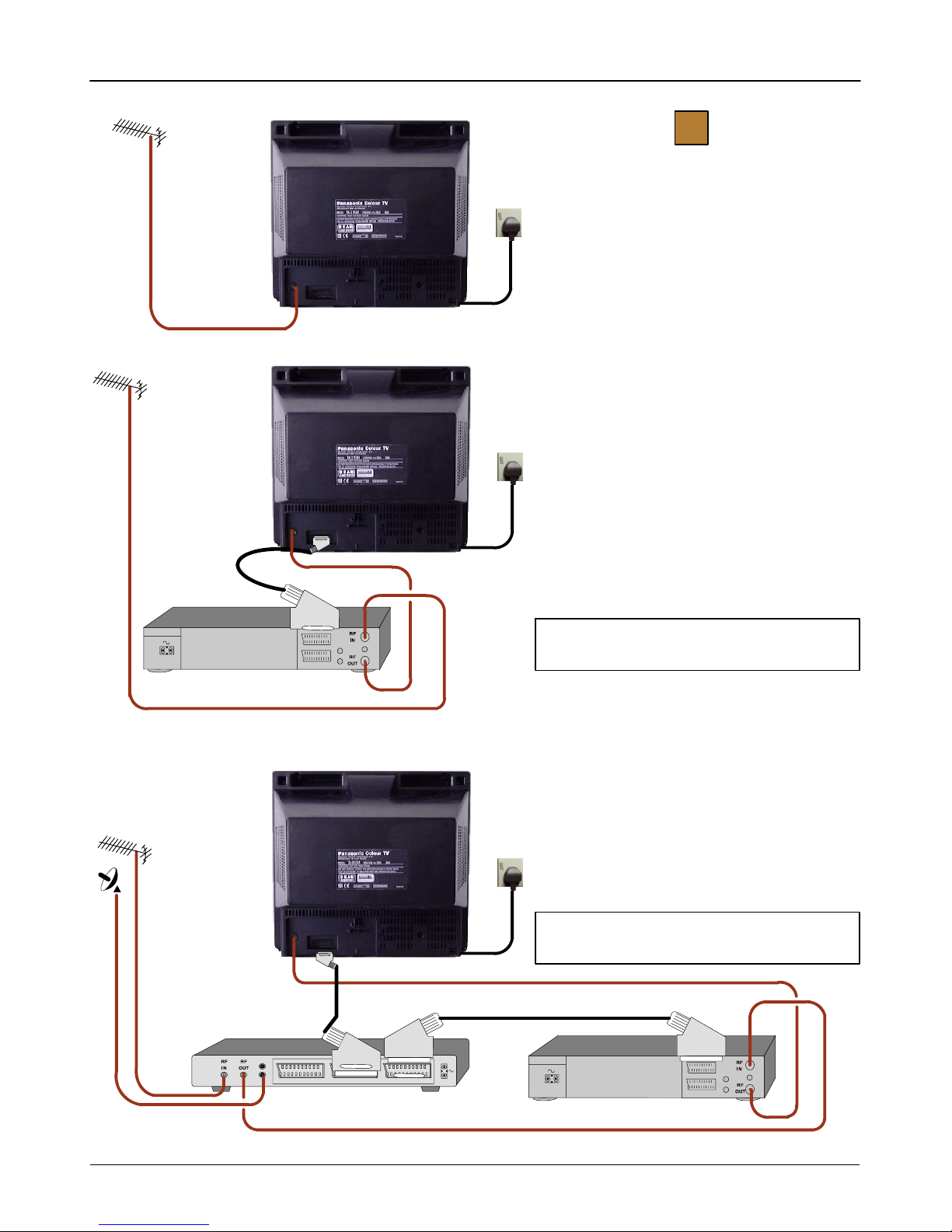

INSTALLATION AND SET---UP

Further details of Audio/ Video connections can be

found on page 11.

Connect aerial co---axial cable to RF Input socket of

VCR and a RF co---axial cable from VCR RF Out

socket to TV RF IN socket.

TheVCRcanalsobeconnectedtotheTVusinga

SCART to SCART lead.

Connect aerial co---axial cable to RF Input socket of

Satellite Receiver. An RF co---axial cable connects

from Satellite Receiver RF Out socket to VCR RF IN

socket.

A further co---axial cable connects from the VCR RF

OUT socket to the TV RF IN socket.

The Satellite Receiver and VCR can also be linked by

SCART to SCART lead.

Further information for VCR and Satellite Receiver

installation with this TV can be found on page 12.

USING A VCR

USING A VCR AND SATELLITE RECEIVER

TV only

Connect Aerial co---axial cable direct to TV RF IN

socket.

VCR

SATELLITE RECEIVER

Ancillary equipment and leads are not supplied.

Mains

Socket

Mains

Socket

Mains

Socket

INSTALLATION AND SET---UP

Switch ON your VCR. *1

Switch ON your Satellite Receiver.*2

Plug the TV into a mains socket and switch ON.

If the TV has not been programmed for you

then Auto setup will begin. TV stations will

be located and stored ready for use. *3

Switch the VCR Test Signal ‘off’. *4

Programmes will appear immediately if your

dealer has programmed the TV for you.

The first available channel will be displayed.

Programme change

Volume adjust

2 3

ATP

02 41

CH21

CH41

TELETEXT

99:21

*1. We recommend that you switch ON the VCR’s test signal --- refer to your VCR instruction book.

*2. We recommend that your Satellite Receiver is set to either SKY ONE or SKY NEWS to ensure reliable tuning.

*3. If the order in which the stations are stored is not to your preference it can be rearranged. Refer to the Tuning menu Swap feature

---seepage9fordetails.

*4. IT IS IMPORTANT that you only use TV programme position ‘0’ to view your VCR. If your VCR picture does not appear on

programme position ‘0’ (the VCR position), refer to page 12 for guidance.

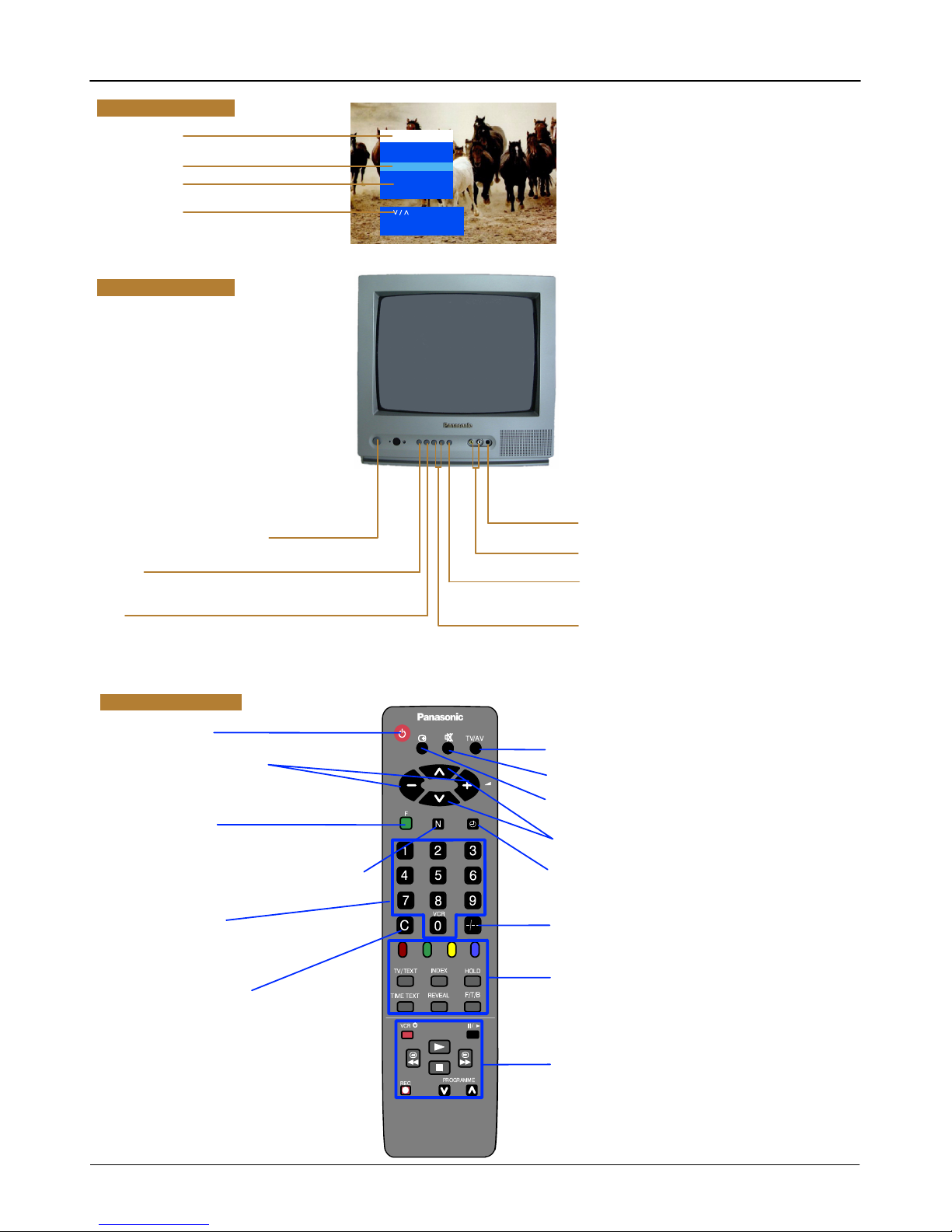

LOCATION OF CONTROLS

: Select

--- / + : A d j u s t

N:Exit

Main Menu

Contrast

Brightness

Colour

Sharpness

C --- A --- T --- S

Tuning Menu

VCR keys (Page 13)

Mains Power On/Off switch

STR

Stores tuning and other function settings

Selects a function from :

Volume, Contrast, Brightness, Colour, Sharpness,

C---A---T---S and Manual Tuning.

TV / AV

Switches between TV and AV modes

RCA Audio/Video sockets

Headphone socket

Teletext keys (Page 10)

Off timer

Press to select from 30, 60 or 90 minutes

Direct channel access

Press and enter channel number using

numeric keys

Numeric keys for :

Programme change

Direct channel access

Tel e t e x t o p e rat i o n

Standby On/Off

Status : Displays programme position, channel

number, time and teletext station name

Sound mute On/Off

Switches between TV and AV modes (Page 11)

Channel up/down and Menu option select

Adjusts currently selected

function. Adjusts the volume if

no function is selected

Selection of programmes 10---60 using numeric

keys

Function Select

Press to display the On Screen Menus

(Page 8)

Restores the levels previously set with STR

(TV front panel)

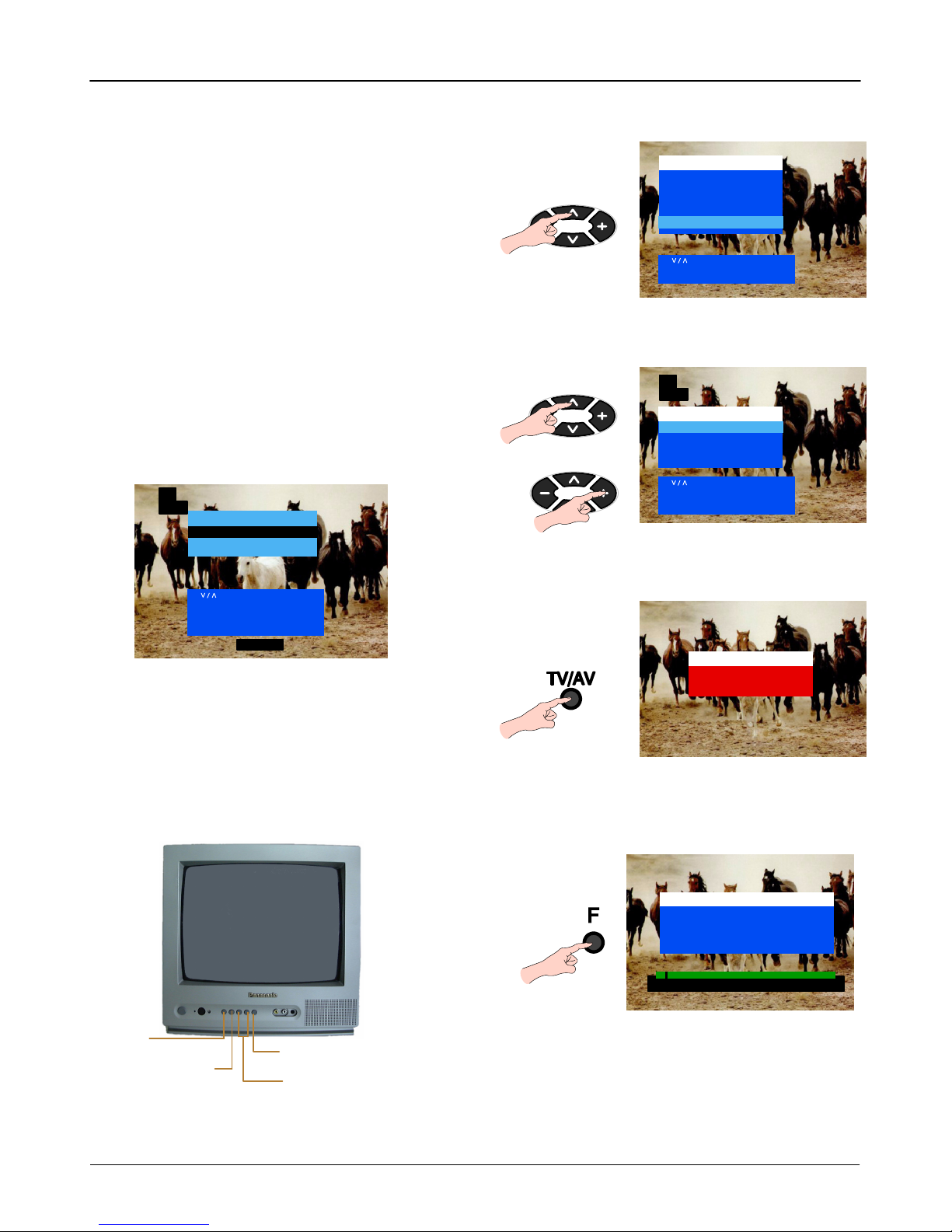

On Screen Displays

Menu Title

Cursor Bar

Sub Menu

Commands :

A guide to the various options available

when in On Screen Menu operations.

Front Panel Controls

Remote Control keys

/ --- , /+

Programme up / down.

When a function is already displayed,

allows adjustment of the function.

Select

Adjust/Access

Display Menu /

Previous Menu

Exit Menu

ATP start

Manual Tuning store

Programme Swap

Store in Tuning menu

: Select

---/+ : Adjust

N:Exit

Main Menu

Contrast

Brightness

Colour

Sharpness

C --- A --- T --- S

Tuning Menu

Brightness

Main Menu

Contrast

Brightness

Colour

Sharpness

C --- A --- T --- S

Tuning Menu

: Select

---/+ : Adjust

N:Exit

Main Menu

Contrast

Brightness

Colour

Sharpness

C --- A --- T --- S

Tuning Menu

MENU OPERATION

Main Menu

Contrast

Brightness

Colour

Sharpness

The Contrast, Brightness, Colour and Sharpness may be altered

to suit the viewing conditions and personal preferences.

C --- A --- T --- S : C o n t r a s t A u t o Tr a c k i n g S y s t e m

Automatically adjusts the contrast setting to compensate for

any changes in the ambient lighting of the surroundings.

To obtain best results first set the Contrast to maximum, to

a l l o w a g r e a t e r o p e r a t i n g r a n g e f o r C --- A --- T --- S , t h e n s e l e c t

one of the 3 settings as desired.

C --- A --- T --- S

Off

C --- A --- T --- S

Medium Sensitivity

C --- A --- T --- S

High Sensitivity

: Select

--- / + : A c c e s s

N:Exit

Main Menu

Contrast

Brightness

Colour

Sharpness

C --- A --- T --- S

Tuning Menu

: Select

--- / + : A c c e s s

F : Previous Menu

N:Exit

Tuning Menu

Auto Setup

Manual Tuning

Fine Tuning

Swap

CH21

Auto Setup

TV/AV : Start ATP

F : Previous Menu

N:Exit

: Select

---/+ : Adjust

TV/AV : Swap

F : Previous Menu

N:Exit

Swap

Position 01 CH44

with

Position 07 CH58

CH21

TELETEXT

Manual Tuning (Front Panel)

TV/AV : Programme Position

--- / + : S t a r t S e a r c h

STR : Store

F, N : E x i t

02 41

Function select /

Exit

Store

Change programme position

99:21

MENU OPERATION

Tuning Menu

The Tuning menu provides access to both manual and automatic

tuning menus.

Auto Setup

The Auto Setup menu allows you to automatically retune the TV,

particularly useful if you move to an area that is served by a

different transmitter.

Manual Tuning

The Manual tuning menu allows individual programme positions

to be tuned manually.

Fine Tuning

Stations can be finely tuned using the Fine Tuning adjustment.

Swap

If the programme order after Auto Setup is not to your preference

you can swap programmes between positions.

Manual Tuning (front panel of the television)

The stations may also be manually tuned using the controls on

the front of the television.

Press the F key (Front panel) until “Manual Tuning” is reached.

Press --- or + to access “Manual Tuning”.

TELETEXT OPERATION

DTeletext features may vary depending on the Broadcasting Companies and are only available if the selected channel is

transmitting Teletext.

DIf the Fbutton is pressed in Teletext mode the cyan contrast scale will appear; press buttons “+” and “ --- ” to change the

settings.

DWhen in Teletext mode, the volume may still be adjusted by pressing buttons “+” or “ --- ” .

What is FLOF (FASTEXT)?

In FASTEXT mode four differently coloured subjects are shown at the bottom of the screen. To access more information

about one of these subjects, push the appropriately coloured button. This function allows fast access to information on the

subjects shown.

Press the TV/TEXT button. The screen will display the Teletext page. Press again when you wish to

return to TV mode.

TV/Teletext Mode

Pages can be selected in two ways:

a) press the Up/Down buttons to increase or decrease the page number by one;

b) enter the page number using 0 --- 9 on the remote control.

Page Selection

In FASTEXT mode, these correspond to the differently coloured subjects.

Red/Green/Yellow/Blue Buttons

TV/TEXT

Index

INDEX

REVEAL

F/T/B

Hold

HOLD

Reveal

Press to reveal hidden words, e.g. crossword or quiz page answers, can also display VPS/PDC codes.

Full/Top/Bottom

Teletext information viewing on the screen.

Press to hold the current page. Press again to cancel the hold.

Press this button to return to the main index page. Depending on the way information is transmitted

you may have to press a few times to return to the main index page.

Press to expand the top half of the page.

Press again to expand the bottom half.

Press again to return to normal (full) size.

Normalisation

Press the NbuttontoreturntoTVmode.

When teletext information exceeds more than one page, it may take some time for the automatic

changing of the sub pages to reach the sub page you require. It is possible to enter the required sub

page and skip the pages in between.

Select the required page number using keys 0 --- 9.

Press TIME TEXT.

Press RED ( --- ) o r GREEN (+) to select the required sub page.

Whenthepageisfound,itwillbedisplayed.

Press TV/TEXT to exit Teletext operation.

Sub Page Access (Time Text key)

TIME TEXT

TV/TEXT

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panasonic Fernseher Handbücher

Panasonic

Panasonic TX-25S80Z Bedienungsanleitung

Panasonic

Panasonic CT27E33 - 27" TV Bedienungsanleitung

Panasonic

Panasonic TC-21FG10P Bedienungsanleitung

Panasonic

Panasonic CT-27G22 Bedienungsanleitung

Panasonic

Panasonic AG527DVDE - DVD/VCR/MONITOR Bedienungsanleitung

Panasonic

Panasonic TX-W32R4 Bedienungsanleitung

Panasonic

Panasonic Viera TX-26LE8F Bedienungsanleitung

Panasonic

Panasonic CT-35XF53 Bedienungsanleitung

Panasonic

Panasonic TX-60P82Z Bedienungsanleitung

Panasonic

Panasonic Viera TX-P42UT30J Bedienungsanleitung

Panasonic

Panasonic Viera TC-L39B6X Bedienungsanleitung

Panasonic

Panasonic TC-33V30H Bedienungsanleitung

Panasonic

Panasonic TX-15PM10T Bedienungsanleitung

Panasonic

Panasonic CT2511HDB - 25" HOTEL/MOTEL TV Bedienungsanleitung

Panasonic

Panasonic Viera TH-P42VT30Z Bedienungsanleitung

Panasonic

Panasonic Viera TC-P65S60 Bedienungsanleitung

Panasonic

Panasonic TX-P54Z11E Bedienungsanleitung

Panasonic

Panasonic CT30WX54J - 30" COLOR TV Bedienungsanleitung

Panasonic

Panasonic TX-25FG20R Bedienungsanleitung

Panasonic

Panasonic TX-29PS11FM Bedienungsanleitung

Panasonic

Panasonic TX-28PG45 Bedienungsanleitung

Panasonic

Panasonic CT-G2173 Bedienungsanleitung

Panasonic

Panasonic TC-14JR1L Bedienungsanleitung

Panasonic

Panasonic Viera TC-58PS24 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
