Panasonic TX-24DW304 Bedienungsanleitung

OPERATING INSTRUCTIONS

MODE D’EMPLOI

BEDIENUNGSANLEITUNG

KULLANIM KILAVUZU

TX-24DW304

COLOUR TELEVISION WITH REMOTE CONTROL

TÉLÉVISEUR COULEUR AVEC TÉLÉCOMMANDE

FARB-TV-GERÄT MIT FERNBEDIENUNG

UZAKTAN KUMANDALI RENKLİ TELEVİZYON

English - 2 -

Contents

Safety Information ..................................................3

Markings on the Product.........................................4

Maintenance...........................................................5

Display panel, Cabinet, Pedestal............................5

Mains plug ..............................................................5

Assembling / Removing the pedestal .....................5

When using the wall-hanging bracket.....................6

Environmental Information......................................6

Features .................................................................7

Accessories Included..............................................7

Standby Notications..............................................7

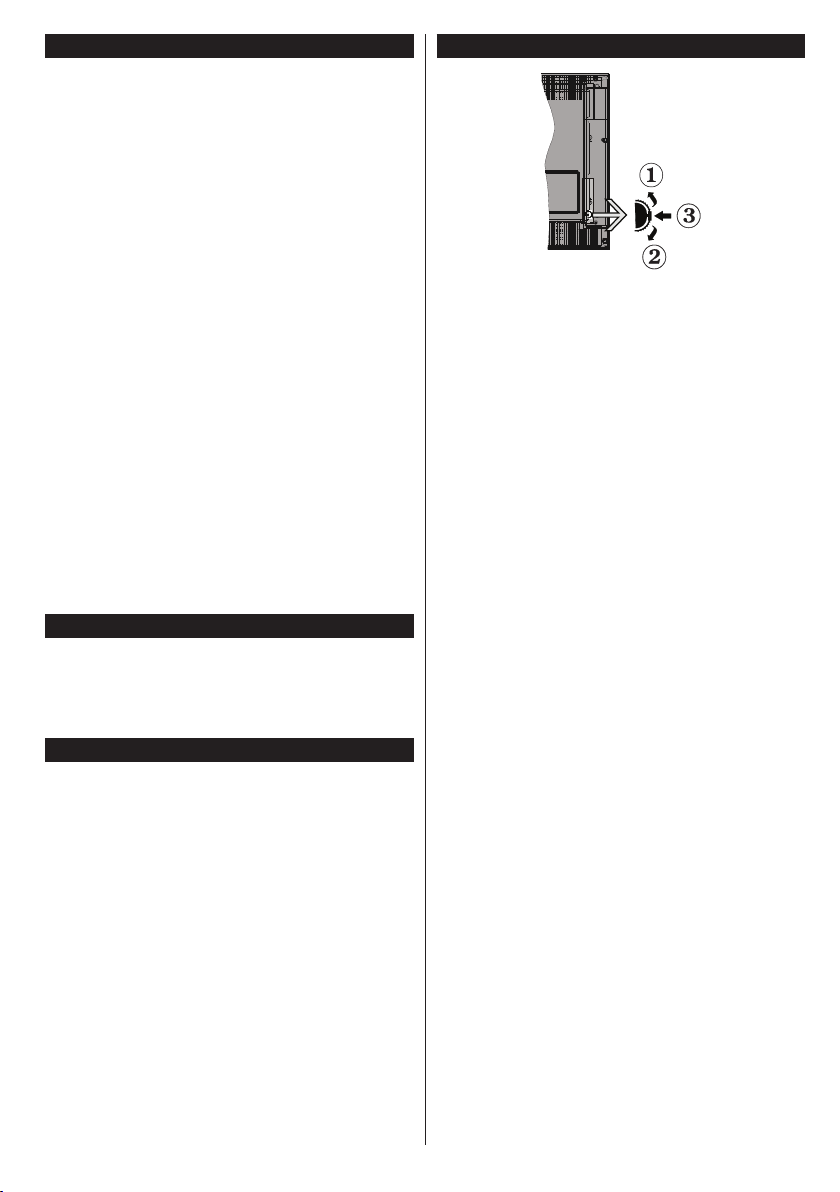

TV Control Switch & Operation...............................7

Inserting the Batteries into the Remote ..................8

Connect Power ......................................................8

Antenna Connection...............................................8

Notication..............................................................8

Specication ...........................................................9

Remote Control ....................................................10

Connections.......................................................... 11

Switching On/Off...................................................12

First Time Installation............................................12

Media Playback via USB Input .............................13

Media Browser Menu............................................13

CEC and CEC RC Passthrough...........................13

TV Menu Contents................................................14

General TV Operation ..........................................18

Using the Channel List .........................................18

Conguring Parental Settings...............................18

Electronic Programme Guide (EPG) ....................18

Teletext Services ..................................................19

Software Upgrade.................................................19

Troubleshooting & Tips.........................................19

PC Input Typical Display Modes...........................20

AV and HDMI Signal Compatibility .......................20

Supported Video File Formats for USB Mode ......21

Supported Picture File Formats for USB Mode ....21

Supported Audio File Formats for USB Mode ......22

Supported Subtitle File Formats for USB Mode ...23

Supported DVI Resolutions ..................................24

English - 3 -

Safety Information

Don’t operate your TV in extreme ambient

conditions as this may cause damage to your TV.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO

NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

Note: Follow the on screen instructions for operating the

related features.

In extreme weather (storms, lightning) and long

inactivity periods (going on holiday) disconnect

the TV set from the mains. The mains plug is

used to disconnect TV set from the mains and

therefore it must remain readily operable.

This sign is present wherever there is very

important information on operation and

maintenance of the appliance in the literature

accompanying it.

IMPORTANT - Please read these

instructions fully before installing or

operating

WARNING: Never let people (including

children) with reduced physical, sensory or

mental capabilities or lack of experience and / or

knowledge use electrical devices unsupervised.

• For ventilation purposes, leave a free space of at

least 10 cm all around the set.

• Do not block ventilation holes.

• Do not place the TV on sloping or unstable surfaces,

the TV may tip over.

• Use this device in moderate climates.

• The power cord plug should be easily accessible. Do

not place the TV, furniture, etc. on the power cord.

A damaged power cord/plug can cause re or give

you an electric shock. Handle the power cord by the

plug, do not unplug the TV by pulling the power cord.

Never touch the power cord/plug with wet hands

as this could cause a short circuit or electric shock.

Never make a knot in the power cord or tie it with

other cords. When damaged it must be replaced,

this should only be done by qualied personnel.

• Do not use this TV in a humid or damp environment.

Do not expose the TV to liquids. In case the cabinet

contacts any liquids unplug the TV immediately

and have it checked by qualied personnel before

operating it any further.

• Do not expose the TV to direct sunlight,

open ames or place it near intense heat

sources such as electric heaters.

• Listening in excessive volumes from earphones and

headphones may cause hearing loss.

• Ensure that no open ame sources, such

as lit candles, are placed on top of the TV.

• To prevent injuries, this TV must be securely

attached to a wall by carefully following the

instructions (if the option is available).

• Occasionally, a few non-active pixels may appear

on the screen as a xed blue, green or red point.

Please note that this does not affect the performance

of your product. Take care not to scratch the screen

with ngernails or other hard objects.

• Before cleaning, unplug the TV from the wall socket.

Only use a soft, dry cloth while cleaning.

Warning Serious injury or death risk

Risk of electric shock Dangerous voltage risk

Caution Injury or property damage risk

Important Operating the system correctly

Notice Additional notes marked

English - 4 -

Markings on the Product

The following symbols are used on the product as

a marker for restrictions and precautions and safety

instructions. Each explanation shall be considered

where the product bears related marking only. Note

such information for security reasons.

Class II Equipment: This appliance is

designed in such a way that it does not require

a safety connection to electrical earth.

Class II Equipment With Functional

Earthing: This appliance is designed in such

a way that it does not require a safety

connection to electrical earth, the earth connection is

used for functional purposes.

Protective Earth Connection: The marked

terminal is intended for connection of the

protective earthing conductor associated with

the supply wiring.

Hazardous Live Terminal: The marked

terminal(s) is/are hazardous live under normal

operating conditions.

Caution, See Operating Instructions: The

marked area(s) contain(s) user replaceable

coin or button cell batteries.

Class 1 Laser Product:

This product contains Class

1 laser source that is safe

under reasonably foreseeable

conditions of operation.

WARNING

Do not ingest the battery, Chemical Burn

Hazard

(The accessories supplied with or) This pro-

duct may contain a coin/button cell battery.

If the coin/button cell battery is swallowed,

it can cause severe internal burns in just 2

hours and can lead to death.

Keep new and used batteries away from

children.

If the battery compartment does not close

securely, stop using the product and keep it

away from children.

If you think batteries might have been swal-

lowed or placed inside any part of the body,

seek immediate medical attention.

CLASS 1

LASER PRODUCT

WARNING

Never place a television set in an unstable

location. A television set may fall, causing

serious personal injury or death. Many inju-

ries, particularly to children, can be avoided

by taking simple precautions such as;

• Using cabinets or stands recommended by

the manufacturer of the television set.

• Only using furniture that can safely support

the television set.

• Ensuring the television set is not overhanging

the edge of the supporting furniture.

• Not placing the television set on all furniture

(for example, cupboards or bookcases)

without acnhoring both the furniture and the

television set to a suitable support.

• Educating children about the dangers of

climbing on furniture to reach the television

set or its controls.

If your existing television set is being retained and

relocated, the same considerations as above should

be applied.

English - 5 -

Maintenance

First, remove the mains plug from the mains

socket.

Display panel, Cabinet, Pedestal

Regular care:

Gently wipe the surface of the display panel, cabinet,

or pedestal by using a soft cloth to remove dirt or

ngerprints.

For stubborn dirt:

1. First clean the dust from the surface.

2. Dampen a soft cloth with clean water or diluted

neutral detergent (1 part detergent to 100 parts

water).

3. Wring out the cloth rmly. (Please note, do not

let liquid enter the TV inside as it may lead to

product failure.)

4. Carefully wipe moisten and wipe away the

stubborn dirt.

5. Finally, wipe away all the moisture.

Caution

Do not use a hard cloth or rub the surface too hard,

otherwise this may cause scratches on the surface.

• Take care not to subject the surfaces to insect

repellent, solvent, thinner or other volatile

substances. This may degrade surface quality or

cause peeling of the paint.

• The surface of the display panel is specially treated

and may be easily damaged. Take care not to tap

or scratch the surface with your ngernail or other

hard objects.

• Do not allow the cabinet and pedestal to make

contact with a rubber or PVC substance for a long

time. This may degrade surface quality.

Mains plug

Wipe the mains plug with a dry cloth at regular

intervals.

Moisture and dust may cause re or electrical shock.

Assembling / Removing the pedestal

Preparations

Take out the pedestal and the TV from the packing

case and put the stand onto a work table or any other

even surface.

• Use a at and rm table or similar even surface that

can support the weight of the TV.

• Do not hold the screen panel part.

• Make sure not to scratch or break the TV.

Assembling the pedestal

1. Place the stand on the table or similar even

surface.

2. Hold the TV over the stand so that it coincides

with the stand mouinting point and then lower it

to be mounted with its own weight. If the stand

is not tted properly, gently press down until the

latch/es snap/s into place.

Removing the pedestal from the TV

Be sure to remove the pedestal in the following way

when using the wall-hanging bracket or repacking

the TV.

• Put the TV onto a work table with the screen panel

down on the clean and soft cloth. Leave the stand

protruding over the edge of the surface.

• Press the button/s to release the latch/es.

• Remove the stand by pulling it away from the TV.

English - 6 -

When using the wall-hanging bracket

Please contact your local Panasonic dealer to

purchase the recommended wall-hanging bracket.

Holes for wall-hanging bracket installation;

Rear of the TV

a (mm) 75

b (mm) 75

View from the side

Depth of

screw (a)

min. (mm) 5

max. (mm) 7

Diameter M4

Note: The screws for xing the TV onto the wall-hanging

bracket are not supplied with the TV.

Environmental Information

This television is designed to be environment friendly.

To reduce energy consumption, you can follow these

steps:

If you set the Energy Saving to Minimum, Medium,

Maximum or Auto the TV will reduce the energy

consumption accordingly. If you like to set the

Backlight to a xed value set as Custom and adjust

the Backlight (located under the Energy Saving

setting) manually using Left or Right buttons on the

remote. Set as Off to turn this setting off.

Note: Available Energy Saving options may differ depending

on the selected Mode in the Picture menu.

The Energy Saving settings can be found in the

Picture menu. Note that some picture settings will

be unavailable to be changed.

If pressed Right button while Auto option is selected or

Left button while Custom option is selected, “Screen

will be off in 15 seconds.” message will be displayed

on the screen. Select Proceed and press OK to turn

the screen off immediately. If you don’t press any

button, the screen will be off in 15 seconds. Press any

button on the remote or on the TV to turn the screen on

again. The brightness level is increased up to a very

low level so the menu can be seen now. Press Left

or Right button to change the Energy Saving option.

Note: Screen Off option is not available if the Mode is set

to Game.

When the TV is not in use, please switch off or

disconnect the TV from the mains plug. This will also

reduce energy consumption.

English - 7 -

Features

• Fully integrated digital terrestrial/cable/satellite TV

(DVB-T2/C/S2)

• HDMI inputs to connect other devices with HDMI

sockets

• USB input

• OSD menu system

• Scart socket for external devices (such as DVD

Players, PVR, video games, etc.)

• Stereo sound system

• Teletext

• Headphone connection

• Automatic programming system

• Manual tuning

• Automatic power down after up to eight hours.

• Sleep timer

• Child lock

• Automatic sound mute when no transmission.

• NTSC playback

• AVL (Automatic Volume Limiting)

• PLL (Frequency Search)

• PC input

• Game Mode (Optional)

• Picture off function

Accessories Included

• Remote Control

• Batteries: 2 x AA

• Instruction Book

• Detachable stand

Standby Notications

If the TV does not receive any input signal (e.g. from

an aerial or HDMI source) for 5 minutes, it will go

into standby. When you next switch-on, the following

message will be displayed: “TV switched to stand-by

mode automatically because there was no signal

for a long time.” Press OK to continue.

If the TV is on and it isn’t being operated for a while

it will go into standby. When you next switch-on, the

following message will be displayed. “TV switched to

stand-by mode automatically because no operation

was made for a long time.” Press OK to continue.

TV Control Switch & Operation

1. Up direction

2. Down direction

3. Volume / Info / Sources List selection and

Standby-On switch

The Control button allows you to control the Volume

/ Programme / Source and Standby-On functions of

the TV.

To change volume: Increase the volume by pushing

the button up. Decrease the volume by pushing the

button down.

To change channel: Press the middle of the button,

the information banner will appear on the screen.

Scroll through the stored channels by pushing the

button up or down.

To change source: Press the middle of the button

twice(for the second time in total), the source list will

appear on the screen. Scroll through the available

sources by pushing the button up or down.

To turn the TV off: Press the middle of the button

down and hold it down for a few seconds, the TV will

turn into standby mode.

Notes:

• If you turn the TV off, this circle starts again

beginning with the volume setting.

• Main menu OSD cannot be displayed via control

button.

Operation with the Remote Control

Press the Menu button on your remote control to

display main menu screen. Use the directional buttons

to select a menu tab and press OK to enter. Use the

directional buttons again to select or set an item. Press

Return/Back or Menu button to quit a menu screen.

Input Selection

Once you have connected external systems to your

TV, you can switch to different input sources. Press the

Source button on your remote control consecutively

to select the different sources.

Changing Channels and Volume

You can change the channel and adjust the volume

by using the Volume +/- and Programme +/- buttons

on the remote.

English - 8 -

Inserting the Batteries into the Remote

Lift the cover on the back of the remote gently. Insert

two AA batteries. Make sure the (+) and (-) signs

match (observe correct polarity). Place the cover

back on.

Connect Power

IMPORTANT: The TV set is designed to operate on

220-240V AC, 50 Hz socket. After unpacking, allow

the TV set to reach the ambient room temperature

before you connect the set to the mains. Plug the

power cable to the mains socket outlet.

Antenna Connection

Connect the aerial or cable TV plug to the AERIAL

INPUT (ANT) socket or satellite plug to the SATELLITE

INPUT (LNB) socket located on the back of the TV.

satellite

REAR

THE TV

aerial

cable

Notication

TRADEMARK ACKNOWLEDGMENT

The terms HDMI and High-Definition Multimedia

Interface, and the HDMI Logo are trademarks or

registered trademarks of HDMI Licensing LLC in the

United States and other countries.

Manufactured under license from Dolby Laboratories.

Dolby, Dolby Audio, and the double-D symbol are

trademarks of Dolby Laboratories.

Disposal of Old Equipment and Batteries

Only for European Union

and countries with recycling

systems

These symbols on the products,

packaging, and/or accompanying

documents mean that used electrical and

electronic products and batteries must

not be mixed with general household

waste.

For proper treatment, recovery and

recycling of old products and batteries,

please take them to applicable collection

points in accordance with your national

legislation.

By disposing of them correctly, you will

help to save valuable resouces and

prevent any potential negative effects

on human health and the environment.

For more information about collection

and recycling, please contact your local

municipality.

Penalties may be applicable for incorrect

disposal of this waste, in accordance with

national legislation.

Note for the battery symbol

(bottom symbol):

This symbol might be used in

combination with a chemical symbol.

In this case it complies with the

requirement set by the Directive for the

chemical involved.

Authorized Representative:

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

Web Site: http://www.panasonic.com

English - 9 -

Specication

TV Broadcasting PAL BG/DK/II’

SECAM BG/DK

Receiving Channels VHF (BAND I/III) - UHF

(BAND U) - HYPERBAND

Digital Reception

Fully integrated digital

terrestrial-cable-satellite

TV(DVB-T-C-S)

(DVB-T2, DVB-S2 compliant)

Number of Preset

Channels 10 000

Channel Indicator On Screen Display

RF Aerial Input 75 Ohm (unbalanced)

Operating Voltage 220-240V AC, 50Hz.

Audio A2 Stereo+Nicam Stereo

Headphone 3.5 mm mini stereo jack

Audio Output Power

(WRMS.) (10% THD) 2 x 2,5 W

Power Consumption (W) 40 W

Weight (Kg) 3,5 Kg

TV Dimensions DxLxH

(with foot) (mm) 134 x 554 x 372

TV Dimensions DxLxH

(without foot) (mm) 35/61 x 554 x 339

Display 16/9 24”

Operation temperature

and operation humidity

0ºC up to 40ºC, 85%

humidity max

English - 10 -

Remote Control

BACK

EXIT

LANG SUBT

1. Standby: Switches On / Off the TV

2. Text: Displays teletext (where available), press again

to superimpose the teletext over a normal broadcast

picture (mix)

3. Menu: Displays TV menu

4. Media browser: Opens the media browsing screen

5. Info: Displays information about on-screen content,

shows hidden information (reveal - in TXT mode)

6. Directional buttons: Helps navigate menus, content

etc. and displays the subpages in TXT mode when

pressed Right or Left

In media browser mode;

Left: Rapid reverse

Right: Rapid advance

7. OK: Conrms user selections, holds the page (in TXT

mode), views channel list (DTV mode), Pause (in

media browser mode)

8. Quick Menu: Displays a list of menus for quick access

9. Coloured Buttons: Follow the on-screen instructions

for accurate functions of the coloured button

In media browser mode;

Red: Stop / Play

Green: Play / Jump

Yellow: Pause / Subtitle time correction

Blue: Stop

10. Screen: Changes the aspect ratio of the screen

11. Volume +/-

12. Numeric buttons: Switches the channel, enters

a number or a letter in the text box on the screen,

switches the TV on when in standby mode.

13. TV: Displays channel list / Switches to TV Source

14. Swap: Quickly cycles between previous and current

channels or sources

15. Mute: Completely turns off the volume of the TV

16. Programme +/- : Programme up-down, Page up-down

(in TXT mode), switches the TV on when in standby

mode.

17. Back/Return: Returns to previous screen, opens

index page (in TXT mode)

18. Exit: Closes and exits from displayed menus or

returns to previous screen

19. Language: Switches between sound modes

(analogue TV), displays and changes audio/subtitle

language (digital TV, where available)

20. Subtitles: Turns subtitles on and off (where available)

21. EPG (Electronic programme guide): Displays the

electronic programme guide

22. Source: Shows all available broadcast and content

sources

Inhaltsverzeichnis

Sprachen:

Andere Panasonic Fernseher Handbücher

Panasonic

Panasonic CT13R17B - 13" COLOR TV Bedienungsanleitung

Panasonic

Panasonic Viera TH-L42U30S Bedienungsanleitung

Panasonic

Panasonic PV-M2738 Operating Bedienungsanleitung

Panasonic

Panasonic VIERA TH-P55VT60A Bedienungsanleitung

Panasonic

Panasonic Viera TH-50PZ800B Bedienungsanleitung

Panasonic

Panasonic TX-36PL35P Bedienungsanleitung

Panasonic

Panasonic TX-40CS610EW Bedienungsanleitung

Panasonic

Panasonic TH50PX80UA - 50" PLASMA TV Bedienungsanleitung

Panasonic

Panasonic CT-20G7DF-1 Bedienungsanleitung

Panasonic

Panasonic CT25G6E - 25" COLOR TV Bedienungsanleitung

Panasonic

Panasonic TX-36PL35D Bedienungsanleitung

Panasonic

Panasonic Viera TH-42PV700H Bedienungsanleitung

Panasonic

Panasonic TX-G10/C Bedienungsanleitung

Panasonic

Panasonic TX-28MD4 Bedienungsanleitung

Panasonic

Panasonic TX-2980Z Bedienungsanleitung

Panasonic

Panasonic TX-32PF10 Bedienungsanleitung

Panasonic

Panasonic TX-29GX25RS-IRAN Bedienungsanleitung

Panasonic

Panasonic TX-55CRW454 Bedienungsanleitung

Panasonic

Panasonic TX-28SL1F / TX-25SL1? Bedienungsanleitung

Panasonic

Panasonic CT-13R14 Bedienungsanleitung

Panasonic

Panasonic TC-14Z88AQ Bedienungsanleitung

Panasonic

Panasonic TX-25LK10P Bedienungsanleitung

Panasonic

Panasonic TX-29F150B Bedienungsanleitung

Panasonic

Panasonic VIERA TH-32D410H Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
