TQB8E3437U---1

TX---32PL10P/M

TX---28PL10P

Colour television

Operating Instructions

English

Dear Panasonic Customer,

Welcome to the Panasonic family of customers. We hope that you have many years of enjoyment from your

new colour television. This is a very advanced television; however, the Quick Start Guide will tell you how to

have the TV operating quickly. You can then read the instructions completely and retain them for future

reference.

Warnings and Precautions 2.......................

Accessories 3....................................

Quick Start Guide 4...............................

Basic Controls 6..................................

Using the On Screen Displays 7....................

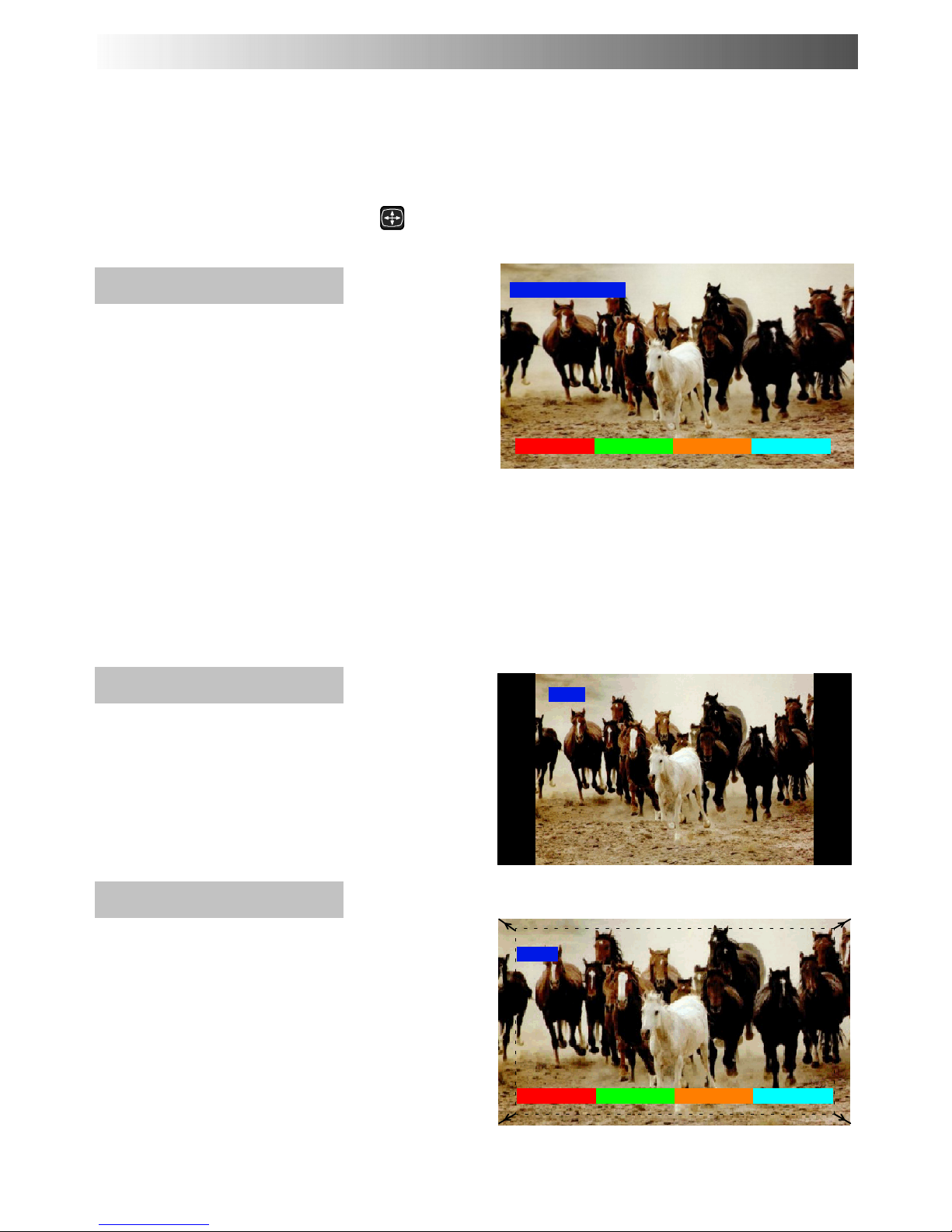

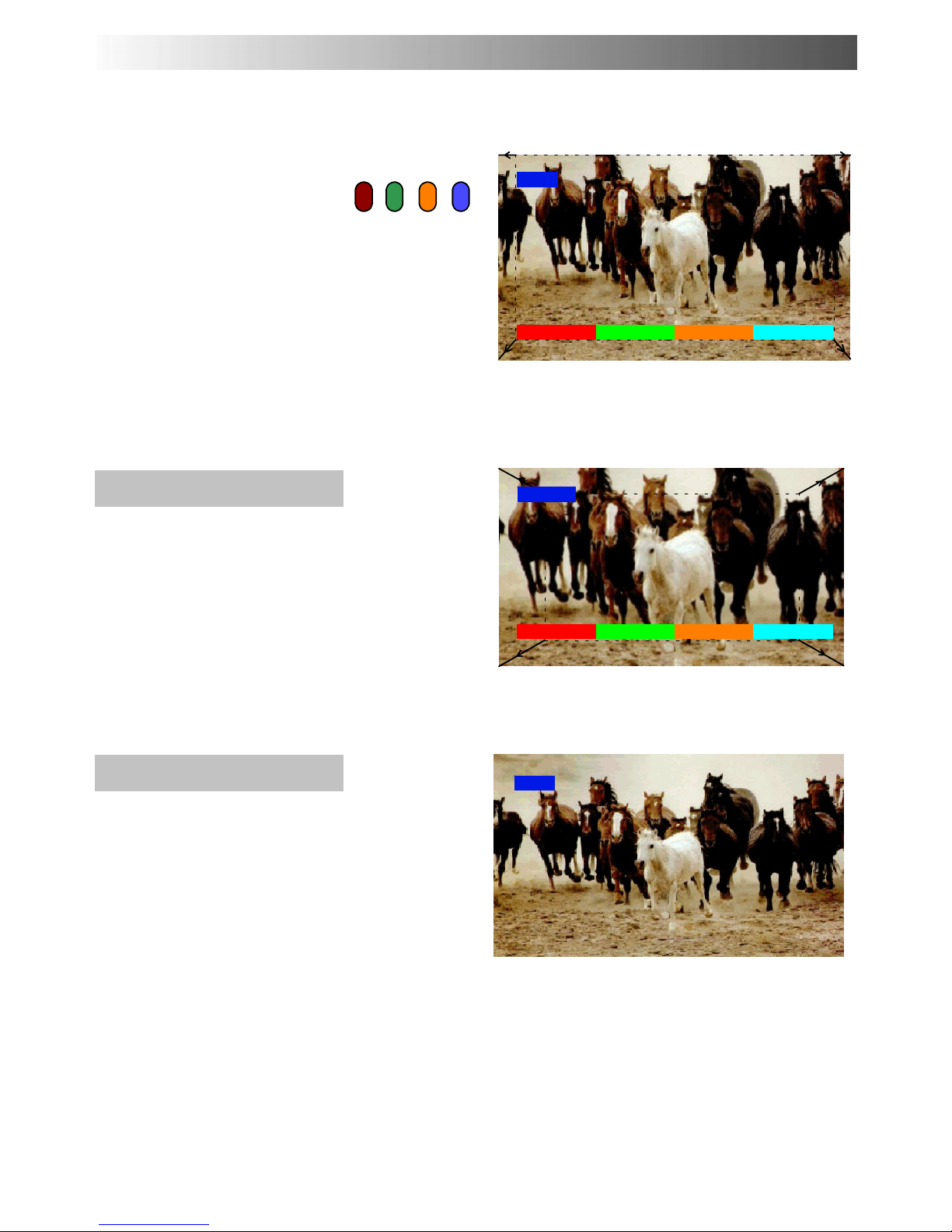

Aspect controls 8.................................

Picture Menu 11..................................

Sound Menu 12...................................

Setup Menu 13...................................

Tuning Menu 14..................................

Tuning Menu -- Programme edit 15.................

Tuning Menu -- Auto Setup 19......................

Tuning Menu -- Manual tuning 20...................

OSD Language 21................................

Q-- Link 22.......................................

AV Select and Setup 23...........................

VCR/DVD Operation 24...........................

Te l e t e x t O p e r a t i o n 2 5.............................

Audio / Video (AV) Connections 27.................

Via the front AV3 Audio / Video (RCA)

and Headphone Sockets 27........................

SCART and S-- Video Terminal Information 27..........

ViatherearAV1/AV221Pin(SCART)

and RCA Audio Out terminals 28.....................

Troubleshooting 29...............................

Foryourguidance 30.............................

Specifications 30.................................

DThis TV set is designed to operate on A.C. 220 -- 240V, 50Hz.

DTo prevent damage which might result in electric shock orfire,

do not expose this TV set to rain or excessive moisture. This TV

must not be exposed to dripping or splashing water and

objects filled with liquid, such as vases, must not be placed on

top of or above the TV.

DWARNING : HIGH VOLTAGE !!!

Donotremovetherearcoveraslivepartsareaccessiblewhen

it is removed. There are no user serviceable parts inside.

DAvoid exposing the TV set todirect sunlightand other sources

of heat. To prevent fire, never place any type of candle or

nakedflameontopof,orneartheTVset.

DThe On/Off switch on this model does not fully disconnect the

TV from the mains supply. Remove the mains plug from the

wall socket when the TV set is not used for a prolonged period

of time.

DCABINET AND PICTURE TUBE CARE

Remove the mains plug from the wall socket. The cabinet and

picture tube can be cleaned with a soft cloth moistened with

mild detergent and water. Do not use solutions containing

benzol or petroleum. TV sets can produce static electricity,

care must be taken whenever touching the TV screen.

DAdequate ventilation is essential to prevent failure of electrical

components, we recommend that a gap of at least 5cm is left

all around this television receiver even when it is placed inside

a cabinet or between shelves.

WELCOME

CONTENTS

WARNINGS AND PRECAUTIONS

Batteries for the Remote Control

Transmitter.

(2 x R6 (UM3) size)

Check that you have the accessories and items shown

Operating Instruction book

DMake sure that the batteries are fitted

the correct way round.

DDo not mix old batteries with new

batteries. Remove old, exhausted

batteries immediately.

DDo not mix different battery types, i.e.

Alkaline and Manganese or use

rechargeable (Ni---Cad) batteries.

Remote control batteries

Remote Control Transmitter

EUR511211

ACCESSORIES

Plug in aerial and connect ancillary equipment.

First, ensure that the VCR is in Standby mode.

Plug in TV and switch on.

Select your country.

Auto setup will begin, your stations will be located and stored.

Use the Programme Edit menu to delete unwanted stations

(see page 15).

Press the TV/AV button to exit.

Press the red button.

If you are installing a new Q---Link compatible VCR, you can now

switch it ON. Downloaded tuning data will match the television’s.

If you are installing a new NEXTVIEWLINK compatible VCR, you will

need to initiate download manually.

See the VCR handbook for details.

DIf the VCR has not accepted download data from the TV, you may need to select the Download option from the VCR’s menu.

DIf Q---Link is not operating correctly, check it is connected to the television’s AV2 socket, the SCART lead is a “full function” type, and

the VCR is compatible with Q---Link, NEXTVIEWLINK or similar technologies. Ask your dealer for further details.

DFor further information on Q---Link and connecting equipment, see pages 22, 27 and 28.

5CH41

TV/AV

English Magyar Hrvatski

Čeština Russkij Bulgarian

RomânăSlovenskySlovensko

Polski Nemački

Select

Exit

TV/AV

OSD language

Start ATP Manual tune

Prog. Chan. Name Lock Sys

1: CH41 XYZ Off SC2

2: -- Off SC2

3: -- Off SC2

4: -- Off SC2

5: -- Off SC2

Delete Add Move TV > VCR

Return --

Change

programme

Select

option

Exit

Store

TV/AV

STR

Programme edit

VCR

SATELLITE RECEIVER

AV2

AV1

AV2

AV1

QUICK START GUIDE

Adjust Volume Change Programme

You are now ready to begin viewing programmes

The cursor controls provide the two basic functions:

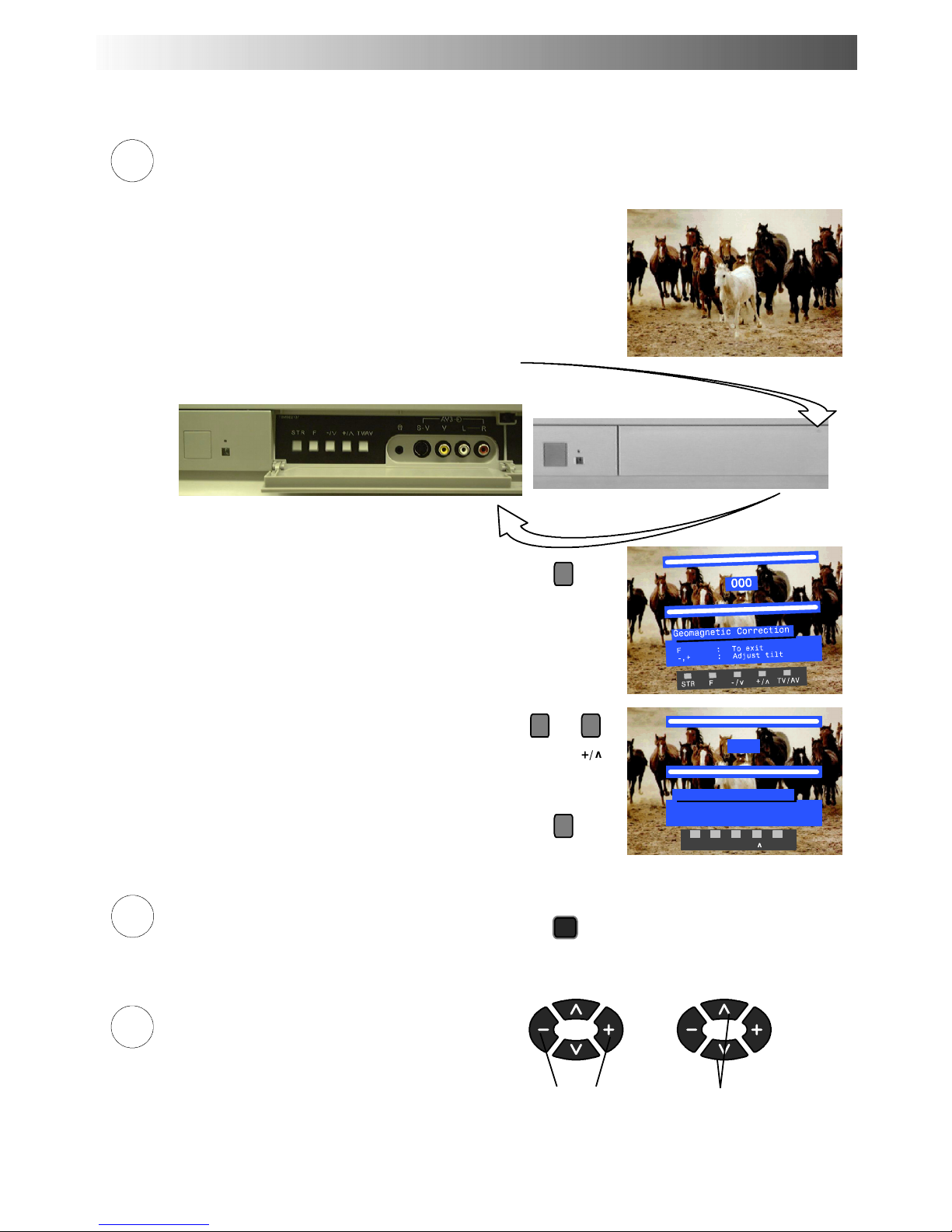

Slight tilting of the picture may be noticeable or coloured patches may sometimes appear at the corners of the screen

(colour purity). The Geomagnetic Correction feature can be used to eliminate them, if necessary:

First, ensure the ATP and Q---Link download procedures are complete.

The screen should not be showing any On---Screen Display menus.

Open the flap on the television’s front panel

Press and release here to open flap

Press the Fbutton repeatedly until the Geomagnetic

Correction feature is displayed

Press the +or --- buttons repeatedly until the picture

appears to be level

--- / v

Press the Fbutton again to return to normal viewing.

Close the flap to prevent damage

002

STR F --/v +/ TV/AV

Geomagnetic Correction

F : To exit

--,+ : Adjust tilt

7We recommend that as soon as the ATP feature is

completed, the picture controls are reset to normal

viewing levels. To do this, press the “N” button, found

under the remote control’s pull down flap.

QUICK START GUIDE

Switch between viewing TV or AV input

(see page 23)

Standby ON/OFF switch

Switches TV On or Off standby.

Programme position for selection of

two digit programmes (10-99) using

numeric buttons

Programme / channel change

buttons (0-9) and Teletext page

buttons (see page 25)

Menu buttons

Press to access the Picture, Sound

and Setup menus (see page 7)

Sound mute On/Off

Direct Channel Access

During normal TV viewing or when

in the Tuning, Programme edit or

Manual tuning menus, press and

then enter channel number using

the numeric buttons

Teletext buttons (see page 25)

Coloured buttons used for

Programme Edit functions (see page 15)

Teletext functions (see page 25)

AV selection (see page 23)

MAINS Power On/Off switch

STR (Normalisation store)

Used to store tuning and other function settings

F (Function select)

Displays the On Screen Display functions, use repeatedly to

select from the available functions -Volume, Contrast,

Brightness, Colour, Sharpness, Tint (in NTSC mode), Bass,

Treble, Balance, Tuning mode and Geomagnetic correction

Increases or decreases the programme position by

one. When a function is already displayed, press to

increase or decrease the selected function.

TV/AV switch (see page 23)

Headphonesocket(seepage27)

RCA Audio/Video sockets

(page 27)

Red light indicates Standby mode.

The N button will recall settings

stored with STR

STR (Normalisation store)

Cursor buttons to make selections and

adjustments

The Help button provides a

demonstrationofOnScreen

Display menus

Ambience on/off

Direct TV Record button

(see page 22)

Status button

Press to display programme position,

programme name, channel number,

TV system, time stereo mode

and programme table

VCR / DVD buttons

(see page 24)

S ---VHS socket (see page 27)

Aspect control button (see page 8)

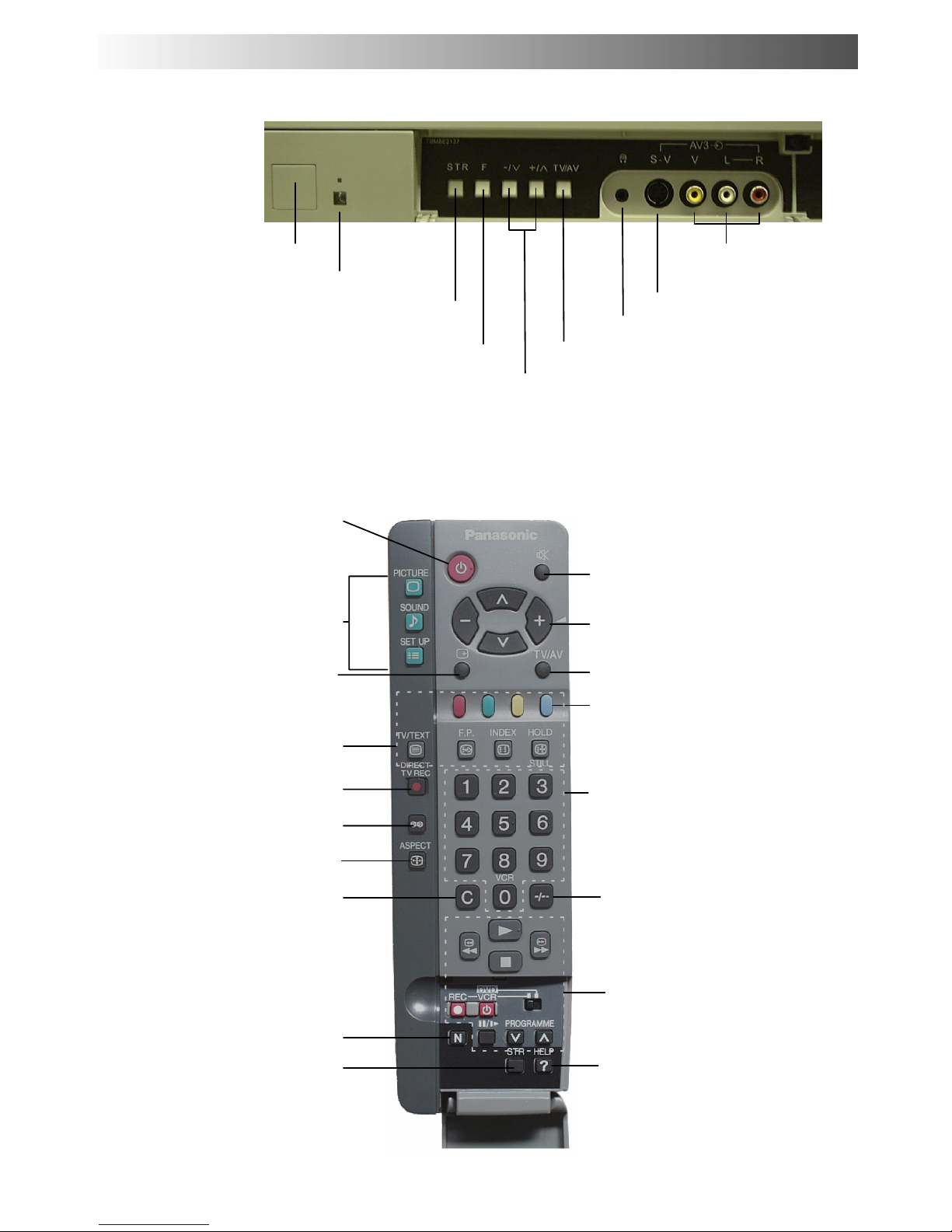

BASIC CONTROLS : FRONT PANEL AND REMOTE CONTROL

This TV has a comprehensive system of On Screen Display menus to access

adjustments and options

Picture menu

Contrast

Brightness

Colour

Sharpness

Colour balance Normal

P-- NR Off

AI On

Select

Change

Exit

TV/AV

Some selections, for example, Contrast, Brightness, Colour and Sharpness

will allow you to increase or decrease their level.

Some selections, for example, Off timer, allow a choice to be made.

Some selections, for example Tuning menu, will lead to a further menu.

The PICTURE,SOUND and SET UP buttons are

used to open the main menus and also to return to

the previous menu.

The up and down cursor buttons are used to move

the cursor up and down the menus.

The left and right cursor buttons are used to access

menus, adjust levels or to select from a range of

options.

The STR button is used to store settings after

adjustments have been made or options have

been set.

The TV/AV button is used to exit the menu system

and return to the normal viewing screen.

The HELP button will run a demonstration of the

menus available. Press the HELP button and

select one of the options.

Menu Title

Selection bar

Sub-- menus

Indicator for options

Instructions

PICTURE SOUND SET UP

STR

HELP

TV/AV

If the HELP button is pressed whilst a menu is

displayed, the ’Instructions’ box will be hidden

from view. Press the HELP button again to show

the ’Instructions’ box.

USING THE ON SCREEN DISPLAYS

The widescreen TV will allow you to enjoy viewing the picture at its maximum size, including

widescreen ‘cinema format’ pictures.

Note: Just mode is not available when viewing an RGB source.

Press the ASPECT button to move

through the six aspect options:

Panasonic Auto, 4:3, Zoom,

S --- Z o o m , 1 6 : 9 ( F u l l ) a n d J u s t

Panasonic Auto

Some broadcasts are transmitted

together with a wide screen

identification signal (WSS). If the TV

receives this signal then it will

automatically switch to wide screen

16:9 mode, maximum display.

The automatic widescreen switching

depends upon reception conditions

and the strength of the signal. If the

signal is poor and therefore the WSS is

weak then it is possible that the picture

may not expand to full size and that the

TV will display black areas around the

edges.

If the original source signal was a

standard 4:3 aspect ratio then you

might prefer to view it in its original size;

the red and green keys that appear will

allow you to choose between viewing at

standard 4:3 size or expanded in Just

mode.

4:3

4:3 will display a 4:3 picture at its

standard 4:3 size and can be selected if

youwishtoviewinthisformat.

Zoom

Zoom mode magnifies the central

section of the picture.

The picture can be moved and

enlarged vertically using the coloured

keys. The former adjustment is useful

for viewing any sub---titles which may

appear outside the picture.

ASPECT CONTROLS

ASPECT

Panasonic Auto

4:3

Zoom

VSize-- VSize+ VPos.-- VPos.+

Panasonic Auto

4:3 Just

4:3

Zoom

The on screen selector keys that appear

for some aspect functions will clear after

a few seconds. If you subsequently

wish to select an operation then press

the Aspect key once more for the keys

to reappear.

The widescreen aspect ratios of different films and programmes

can vary. If these are wider than a standard 16:9 aspect picture

then a black band may be visible at the top and bottom of the

screen.

If, in Panasonic Auto mode, you experience problems with the

screen display size when playing back widescreen format

recordings from your VCR then it is possible that the tracking

control of your VCR requires adjustment (your VCR instruction

book will contain adjustment details).

S--Zoom

S --- Z o o m allows increased

magnification and the ability to move

the picture horizontally and vertically.

16:9 (Full)

16:9 (Full) will display the picture at its

maximum size but with slight

elongation.

ASPECT CONTROLS

Blue key has been pressed to move picture upwards

VSize-- VSize+ VPos.-- VPos.+

Increased magnification with S --- Z o o m

HPos.-- HPos.+ VPos.-- VPos.+

Zoom

S--Zoom

16:9 (Full)

16:9

Just

Just mode will display a 4:3 picture at

maximum size but with aspect

correction applied to the centre of the

screen so that elongation is only

apparent at the left and right edges of

the screen. The size of the picture will

depend on the original signal.

STILL Control

The STILL key allows you to freeze the

picture at any time.

ASPECT CONTROLS

Just

STILL CONTROL

HOLD

STILL

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panasonic Fernseher Handbücher

Panasonic

Panasonic Omnivision VHS PV-C1324 Bedienungsanleitung

Panasonic

Panasonic TH-L32X20A Bedienungsanleitung

Panasonic

Panasonic TX-29RX25R Bedienungsanleitung

Panasonic

Panasonic TX-32DK1L Bedienungsanleitung

Panasonic

Panasonic TX-28MD3P Bedienungsanleitung

Panasonic

Panasonic TC-14S2R Bedienungsanleitung

Panasonic

Panasonic CT-27D42 Bedienungsanleitung

Panasonic

Panasonic QuintrixF TX-28PK1 Bedienungsanleitung

Panasonic

Panasonic TX-P54Z11E Bedienungsanleitung

Panasonic

Panasonic TC-60AS540C Montageanleitung

Panasonic

Panasonic TX-21S4TF Bedienungsanleitung

Panasonic

Panasonic QuintrixF TX-29AS1P Bedienungsanleitung

Panasonic

Panasonic TX-28MD4L Bedienungsanleitung

Panasonic

Panasonic TX-W36D3DP Bedienungsanleitung

Panasonic

Panasonic TC-21S3M Bedienungsanleitung

Panasonic

Panasonic QuintrixF TX-28PK2 Bedienungsanleitung

Panasonic

Panasonic TX-29P180B Bedienungsanleitung

Panasonic

Panasonic Viera TH-42PV700P Bedienungsanleitung

Panasonic

Panasonic TH-50PZ700U Bedienungsanleitung

Panasonic

Panasonic PT43LC14 - MULTI MEDIA DISPLAY Gebrauchs- und Pflegehandbuch

Panasonic

Panasonic Viera TX-17LX2 Bedienungsanleitung

Panasonic

Panasonic TH-55AS740A Bedienungsanleitung

Panasonic

Panasonic Viera TH-37PW5 Bedienungsanleitung

Panasonic

Panasonic TX-48C300E Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
