Panasonic Viera TX-26LM70FA Bedienungsanleitung

REC VCR DVD

VCR

TEXT

EXIT

TV/AVGUIDE

F.P. INDEX HOLD

123

456

789

PROGRAMME

DIRECT TV REC

ASPECT

Operating Instructions

Wide LCD TV

English Please read these instructions before operating your set and retain them for future reference.

The images shown in this manual are for illustrative purposes only.

Model No. TX-26LM70FA

TX-32LM70FA

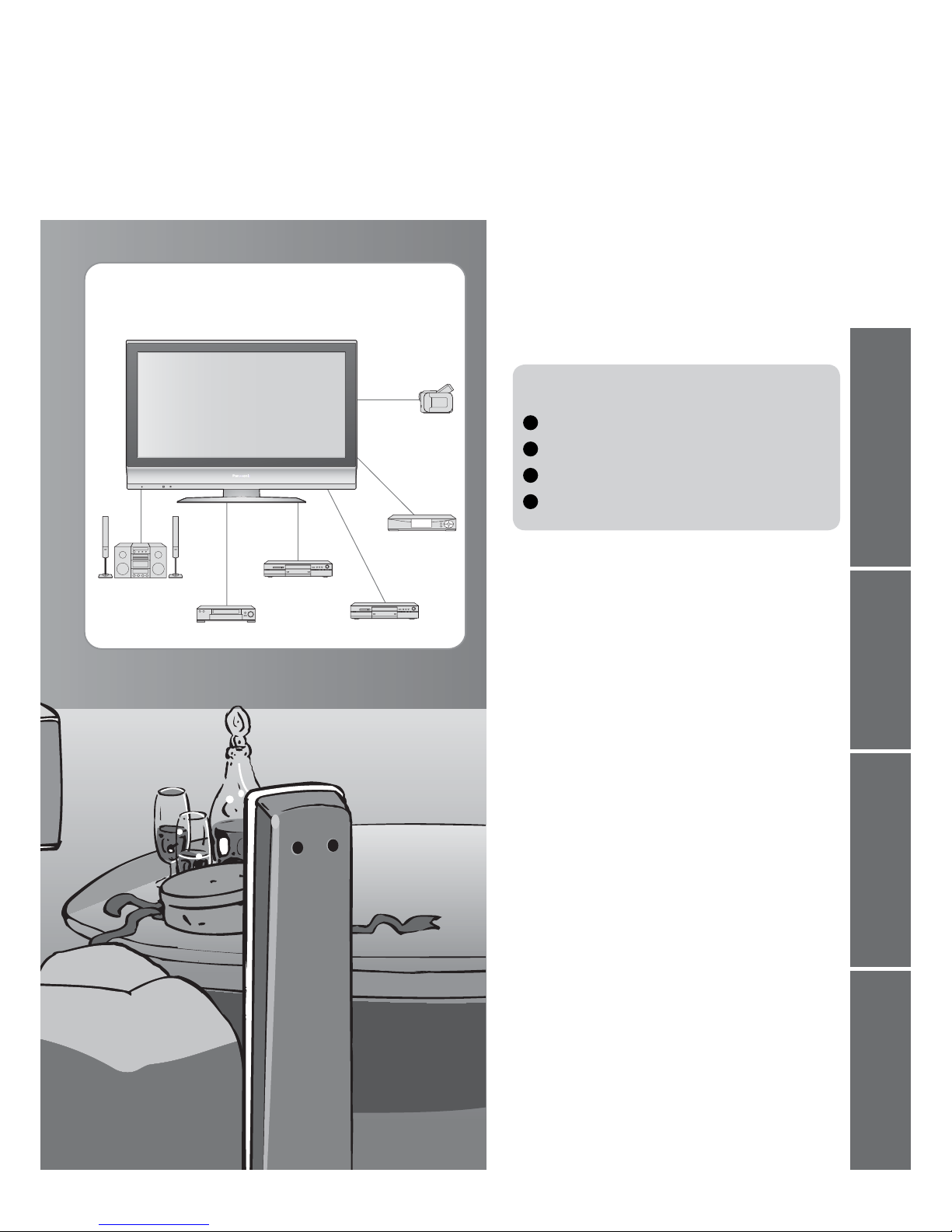

Turn your own living room into a movie theatre!

Experience an amazing level of multi-

Viewing Advanced FAQs, etc.Quick Start Guide

media excitement

Enjoy rich multi-media

Camcorder

VCR DVD player

DVD recorder

Set top box

Contents

•Safety Precautions ······································ 4

(Warning / Caution)

•Notes··························································· 5

•Maintenance················································ 5

Be Sure to Read

Advanced Features

•How to Use Menu Functions·····················14

(picture, sound quality, etc.)

•

Editing and Setting Channels

······················16

•External Equipment···································18

(Q-Link / VIERA Link / Connections)

Basic Features

•Watching TV·············································· 10

•Watching Videos and DVDs······················ 11

•Viewing Teletext ········································12

Enjoy your TV!

•Technical Information ································ 24

•FAQs ························································· 27

•Licence······················································29

•Speciﬁcations············································ 29

FAQs, etc.

Accessories / Options·········· 6

Identifying Controls ··············· 7

Connection ································ 8

Auto Setup································· 9

Quick Start Guide

Ampliﬁer with

Speaker system

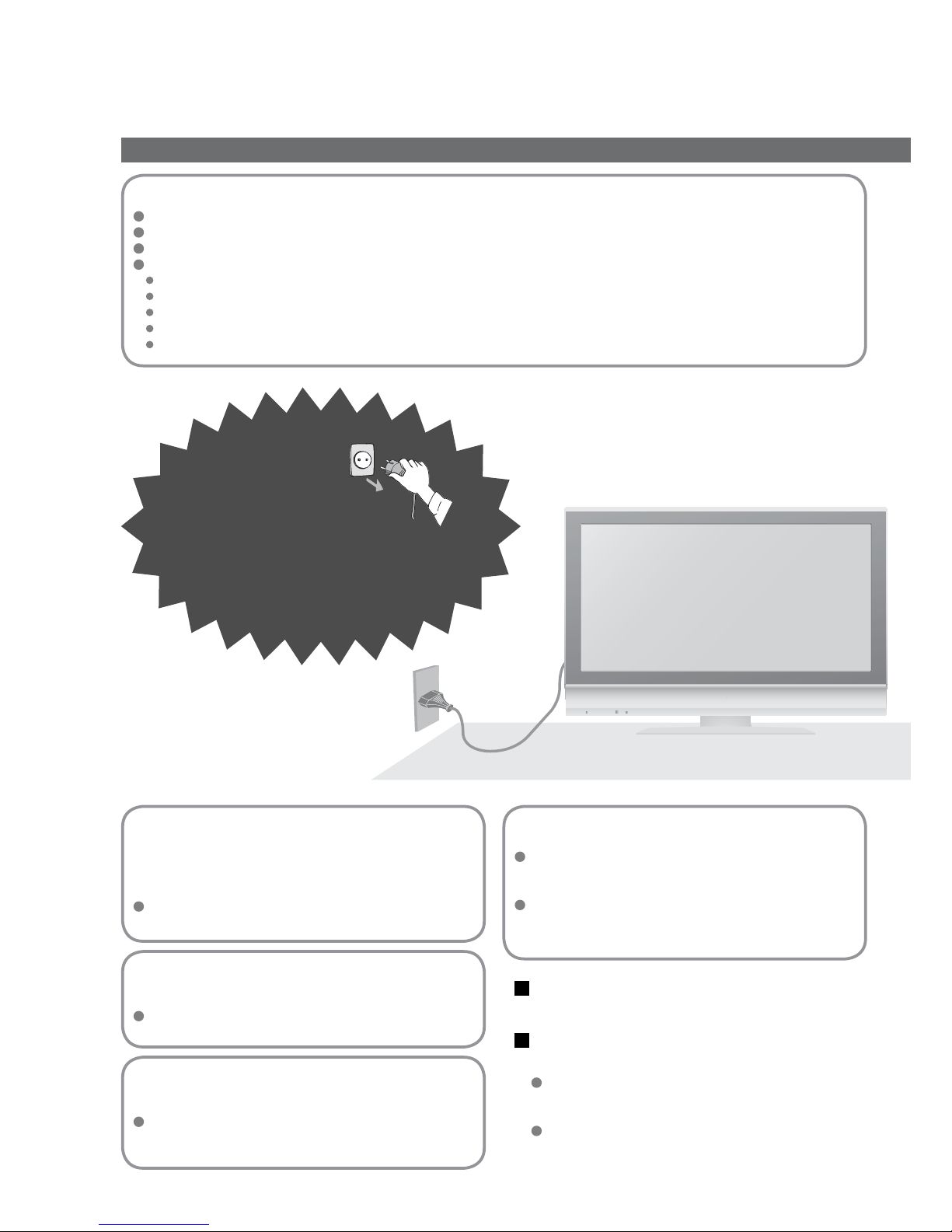

Safety Precautions

If you ﬁnd any

abnormality, remove

the mains plug immediately!

(such as strange smell or smoke)

Keep liquids away from the TV

To prevent damage which may result in ﬁre or

shock hazard, do not expose this appliance to

dripping or splashing.

Do not place containers with water (ﬂower vase,

cups, cosmetics, etc.) above the set. (including on

shelves above, etc.)

AC 220-240 V

50 Hz

Do not remove covers

NEVER modify the unit yourself

(High-voltage components may cause serious

electrical shock.)

Have the unit checked, adjusted, or repaired at

your local Panasonic dealer.

Do not place foreign objects

inside the unit

Do not let any objects drop into the unit through the air

vents (ﬁre or electrical shock may result).

Using an unauthorized stand or other ﬁxtures may

make the unit unstable, risking injury. Be sure to

ask your local Panasonic dealer to perform setup.

Use optional stands / mounts (p. 6).

Use only the dedicated stands /

mounting equipment

Handling the mains plug and lead

Insert the mains plug fully into the socket outlet. (If the mains plug is loose, it could generate heat and cause ﬁre.)

Ensure that the mains plug is easily accessible.

Do not touch the mains plug with a wet hand. (This may cause electrical shock.)

Do not damage the mains lead. (A damaged lead may cause ﬁre or electrical shock.)

Do not move the TV with the lead plugged in the socket outlet.

Do not place a heavy object on the lead or place the lead near a high-temperature object.

Do not twist the lead, bend it excessively, or stretch it.

Do not pull on the lead. Hold onto the mains plug body when disconnecting lead.

Do not use a damaged mains plug or socket outlet.

Warnings and Precautions

Do not place the TV on an unstable

surface

Do not expose to direct sunlight

and other sources of heat

Avoid exposing the TV set to direct sunlight and other

sources of heat. To prevent ﬁre never place any type

of candle or naked ﬂame on top or near the TV set.

Blocked ventilation by curtains,

etc. may cause overheating, ﬁre

or electrical shock.

Allow sufﬁcient space around

the unit for radiated heat

10 7

(Cleaning an energized unit may cause electrical shock.)

When cleaning the TV unit, remove the

mains plug

Remove the mains plug from the wall

socket when TV is not in use for a

prolonged period of time. Remove the

mains plug from the wall socket before

connecting or disconnecting any leads.

(cm)

Do not block the rear air vents

Maintenance

Display panel

Cabinet

Mains plug

Daily care: Gently wipe the surface clean of dirt by using a soft cloth.

Detail: Wipe the surface clean using a soft cloth dampened with clean water or water containing a small amount of

neutral detergent. Then, using a soft dry cloth, evenly wipe the surface clean until it is dry.

Daily care: Wipe the surface clean using a soft dry cloth.

Detail: Dampen a soft cloth with clean water or water containing a small amount of neutral detergent. Then, wring

the cloth and wipe the surface clean with it. Finally, wipe the surface clean with a dry cloth.

Wipe the mains plug with a dry cloth at regular intervals. (Moisture and dust may lead to ﬁre or electrical shock.)

First, remove the mains plug from the socket outlet.

Caution

•The surface of the display panel has been specially treated and may be easily damaged.

Do not tap or scratch the surface with your ﬁngernail or other hard object.

•Use care not to subject the surface to bug repellent, solvent, thinner, or other volatile substances

(this may degrade surface quality).

Caution

•Use care not to subject the TV unit's surfaces to detergent.

(A liquid inside the TV unit could lead to product failure.)

•Use care not to subject surfaces to bug repellent, solvent, thinner, or other volatile substances

(this may deteriorate the surface by peeling the paint).

•Do not allow the cabinet to make contact with a rubber or PVC substance for a long time.

This TV will still consume some power even in the

Standby mode, as long as the mains plug is still

connected to a live socket outlet. On /Off switch

see page 7.

Notes

Electronic equipment

In particular, do not place video equipment too close

the TV (electromagnetic interference may distort

images / sound).

Equipment with an infrared sensor

Remote Controller of this TV also emits infrared

rays (this may affect operation of other equipment).

Keep the TV away from this equipment

Adjust the LCD panel to your desired

angle

15° 15°

(View from the top)

Do not expose your ears to excessive

sound pressure from headphones.

Irreversible damage can be caused.

TV Stand

123

456

789

Optional accessories

Wall-hanging

bracket

TY-WK32LX20W

Caution

•In order to maintain the unit’s performance and safety, be

absolutely sure to ask your dealer or a licenced contractor to

secure the wall-hanging brackets.

•Handle the TV carefully during installation since subjecting it to

impact or other forces may cause product damage.

•Take care when ﬁxing wall brackets to the wall.

Always ensure that there are no electrical cables or pipes in the

wall before hanging bracket.

Installing remote's batteries

1Pull

open

Hook

Note the correct

polarity (+ or -)

Caution

•Incorrect installation may cause battery

leakage and corrosion, resulting in

damage to the remote control unit.

•Do not mix old and new batteries.

•

Do not mix different battery types (such as

alkaline and manganese batteries).

•

Do not use rechargeable (Ni-Cd) batteries.

•Do not burn or breakup batteries

(see page 32).

Attaching the clamper

•Do not bundle the RF cable and mains lead together (could

cause distorted image).

•Fix cables with clampers as necessary.

•When using the optional accessory, follow the option’s

assembly manual to ﬁx cables.

To tighten:

Keep the

knob pressed

Rear of the TV

To loosen:

Bundle the cables

Batteries for the Remote

Control Transmitter (2)

•R6 (UM3)

Accessories / Options

Clamper

Remote Control

Transmitter

•EUR7651030A

Operating Instructions

Pan European Guarantee Card

Standard accessories Check that you have the accessories and items shown

Quick Start Guide

REC VCR DVD

VCR

TEXT

EXIT

TV/AVGUIDE

F.P. INDEX HOLD

123

456

789

PROGRAMME

DIRECT TV REC

ASPECT

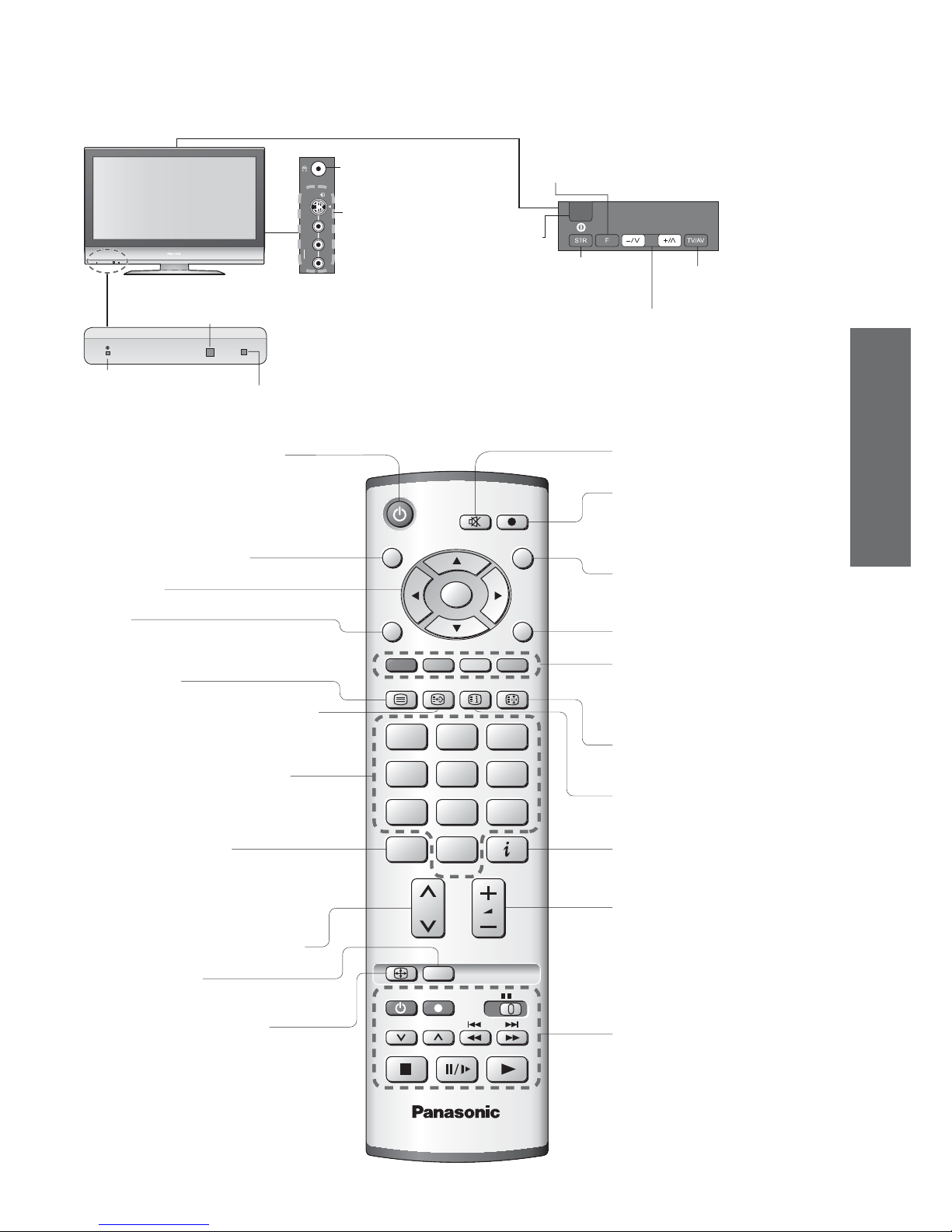

Identifying Controls

Function

select

Increases or decreases the programme position by

one. When a function is already displayed, press to

increase or decrease the selected function.

When in Standby mode, switches TV On.

Backlight Automatic Tracking System sensor

(senses brightness to adjust picture quality) (p. 14)

Power lamp

standby : red

on : green

Remote control

signal receiver

Switches TV/AV

Volume / Backlight / Contrast / Brightness /

Colour / Sharpness / Tint (NTSC mode) / Bass /

Treble / Balance / Tuning mode (p. 16)

()

Headphones jack (p. 22)

AV3 terminals (p. 22)

Store setting (p. 16)

Used to store tuning and

other function settings

()

On / Off switch

AV3

S-V

()

Switches TV to On or Standby

(On / Off switch in On position)

Sound mute On / Off

Changes aspect ratio (p. 10)

Normalizes (p. 14)

(Resets settings)

Selects programmes in sequence

Direct channel access

During normal TV viewing or when in the

Tuning, Programme edit or Manual tuning

menus, press and then enter channel number

using the numeric buttons

Press twice to change to the Cableband mode

Changes programme / channel

(p. 10)

Viewing a favourite teletext channel

(p. 12)

Teletext (p. 12)

Press to access the Picture, Sound and

Setup menus

Select / OK

Programme Guide (p. 10)

VCR / DVD operations (p. 11)

Volume

Programme Information (p. 10)

Teletext Index (p. 12)

Still Picture (p. 10)

Coloured buttons

(used for various functions)

(for example, see p. 12)

EXIT (Returns to TV screen)

Switches TV/AV

(To watch videos or DVDs) (p. 11)

DIRECT TV Recording

To immediately record programme

in VCR / DVD recorder with Q-Link

connection (p. 18)

•Identifying Controls

•Accessories / Options

()

Connection

External equipments and cables shown in this manual are not supplied with this TV.

Please ensure that the unit is disconnected from the mains before attaching or disconnecting any leads.

RF OUT

RF IN

AV1 AV2

DVD Recorder or VCR

SCART cable

(fully wired)

RF cable

VHF / UHF aerial

Rear terminal portion

(enlarged view)

Rear of the TV

Mains lead

•Connect to AV1

or AV2 for a unit

supporting

Q-Link (p. 18).

ŶWatching TV

ŶTo record TV

programmes

(Connect after all the other connections.)

Quick Start Guide

VCR

123

456

789

Exit

Adjust

Select

Return

Bass

Treble

Balance

Headphone volume

MPX

Mode

Ambience

Sound menu

Stereo

Music

Off

DOWNLOAD IN PROGRESS

PLEASE WAIT

Programme : 63

Remote control unavailable

red

Turn the TV On with the On / Off switch

Need help

with operations?

(example: Sound menu)

On-screen operation

guide will help you.

Auto Setup

•For Belgium, Switzerland

and E.Eu, select the desired

language

Search and store TV channels automatically.

These steps are not necessary if the setup has been completed your local dealer.

Auto Setup is now

complete and your

TV is ready for viewing.

•You can now use the remote

control to turn On the unit or

turn the unit to standby mode.

(Power lamp: On)

•If Q-Link (p. 16) equipment is

connected, channel information

is automatically downloaded to

the equipment.

•To edit channels

"Programme edit" (p. 16)

•Auto Setup

•Connection

Select your country

select

•To set manually

green

(p. 16)

3Start Auto Setup

•Auto Setup will start to search

for TV channels and store them.

Manual tune

Start ATP Exit

Select country

Select language

Deutschland

Österreich

France

Italia

España

Portugal

Nederland

Danmark

Sverige

Norge

Suomi

Belgium

Schweiz

ELLADA

Polska

Česká republika

Magyarország

E.Eu

Country OSD Language

English

AUTO SETUP IN PROGRESS

SEARCHING : PLEASE WAIT

02 99:21 41

CH12

Exit

ŶTo select the two-digit programme number, e.g. 39

3ĺ9

VCR

EXIT

GUIDE

HOLD

123

456

789

ASPECT

GUIDE

VCR

123

456

789

Watching TV

Select a programme number

Volume

Select from the Programme table

select programme

Turn power on

HOLD

Freeze / unfreeze picture

Hold

ŶOther Useful Functions (Operate after )

On / Off switch on unit should be On.

(for about 1 second)

watch

down

Display

status

information

Display / hide status information

•Displayed information:

Programme number / Programme name / Channel number / MPX mode

(p. 14) / Sound system (p. 14) / Aspect mode

Change

aspect

ratio

14 : 9

SPECT

•Each press changes the mode.

Change the aspect ratio (p. 24)

While the bar is displayed

red

green

Auto aspect / 16:9 / 14:9 / Just / 4:3 / 4:3 Full /

Zoom1 / Zoom2 / Zoom3

()

Programme Guide

Prog. Name Chan.

VCR :

1 :

2 :

3 :

4 :

5 :

6 :

7 :

8 :

9 :

10 :

12 :

CH21

CH44

CH51

CH41

CH47

CH23

CH26

CH58

Das Erste

ZDF

RTL

Prog. Name Chan.

13 :

14 :

15 :

16 :

17 :

18 :

19 :

20 :

21 :

22 :

23 :

24 :

select page

(in a short time)

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Panasonic Fernseher Handbücher

Panasonic

Panasonic QuintrixF TX-24PS1L Bedienungsanleitung

Panasonic

Panasonic TX-25MD4C Bedienungsanleitung

Panasonic

Panasonic Viera TH-37PW5 Bedienungsanleitung

Panasonic

Panasonic TX-22LT2M Bedienungsanleitung

Panasonic

Panasonic TC-P42X60 Bedienungsanleitung

Panasonic

Panasonic TX-28MD4P Bedienungsanleitung

Panasonic

Panasonic TX-29AD2 Bedienungsanleitung

Panasonic

Panasonic TX-W32D5F/P Bedienungsanleitung

Panasonic

Panasonic TX-21MD4 Kurzanleitung

Panasonic

Panasonic TC-14S2RL Bedienungsanleitung

Panasonic

Panasonic TX32DTX-40 Bedienungsanleitung

Panasonic

Panasonic TX-48CXW404 Bedienungsanleitung

Panasonic

Panasonic TX-25MD1P Bedienungsanleitung

Panasonic

Panasonic TX-36PF10P Bedienungsanleitung

Panasonic

Panasonic TX-28DK1F Bedienungsanleitung

Panasonic

Panasonic TX-28PX10DM Bedienungsanleitung

Panasonic

Panasonic Quintrix TX--25LD4C/Z Bedienungsanleitung

Panasonic

Panasonic Viera TX-L32DT30B Bedienungsanleitung

Panasonic

Panasonic TH-37PA30E Bedienungsanleitung

Panasonic

Panasonic Viera TH-65PV600E Bedienungsanleitung

Panasonic

Panasonic CT25G6E - 25" COLOR TV Bedienungsanleitung

Panasonic

Panasonic TX-28XDP3 Bedienungsanleitung

Panasonic

Panasonic TX-36PL32 Bedienungsanleitung

Panasonic

Panasonic TX-29E355RF-IRAN Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
