Panasonic NA-FS10V7 Produkthandbuch

Contents

Safety Precautions 2

Part Names

Accessories

Before Washing 7

Operation Panel 8

Washing 9

Variety of Programs 10

Detergent / Softener / Bleach

Washing Options

• Preset

• Wash / Rinse / Spin

• Delicate

• Blanket

• Stain Master +

• Air Dry (90 min)

• ECONAVI

Convenient Functions 18

Contents of Programs 19

Maintenance 20

Installation 24

Error Display 28

Troubleshooting 30

Specifications 32

Thank you for purchasing this product.

- Read these instructions carefully for optimum

performance and safety before use.

- Keep this manual for future reference.

AWW9901C1C00

A0918-0(V)

Printed in Vietnam

09-2018

Operating & Installation

Instructions

Fully Automatic Washing Machine

(Household Use)

Model No. NA-FS10V7

NA-FS95V7

Safety Precautions

May cause serious injury or death.

WARNING

Children must not use it alone.

zThis appliance is not intended for use by persons

(including children) with reduced physical, sensory

or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a

person responsible for their safety.

zChildren should be supervised to ensure that they do

not play with the appliance.

Do not touch the tub until it stops.

zIf the tub does not stop within 15 sec:

May cause fire or electric shock.

Do not touch it

with wet hands.

Do not hold or

pull on the cord.

Do not use.

Plug adaptor

Extension cord

Fully insert it. Do not use.

zIf the power cord is damaged,

it must be replaced by the

manufacturer, its service

agent or similarly qualified

persons in order to avoid a

hazard.

Damaged

WARNING

May cause failure.

Never disassemble, repair or modify it by yourself.

In case of failure or damaged power cord,

stop use and ask the service centre.

Accumulated dust

may cause fire.

Securely insert the ground prong.

Call your local dealer for a new socket.

Wipe the power plug

periodically.

Use a socket appropriate for this

appliance.

Keep away from

flammable materials.

e.g.)

zThe plug shape, socket shape and rating

requirement varies with the region.

Safety Precautions (continued)

May cause injury.

Be careful not to get your fingers caught.

Do not climb or put objects on the appliance.

Do not touch when it is hot. Be careful of your hands

and feet.

May cause water leakage.

Turn off the water faucet. Use new hose-sets.

zNew hose-sets

supplied with the

appliance are to be

used and old hose-sets

should not be reused.

CAUTION

zIf the lid is broken,

immediately stop

using.

CAUTION

May cause failure.

Keep away from heat and direct

sunlight.

For Machine-washable

items only.

Do not wash waterproof items. Do not use hot water.

Raincoats, wet suits, etc. Over 50 ºC

Do not obstruct.

zDo not obstruct the

openings of the bottom

face with carpet, etc.

Part Names / Accessories

Water supply hose

(1) (P. 26)

1.0 m

External drain

water hose (1)

(P. 25)

Bottom cover (1) /Screw (1)

(P. 25)

Water tap

adaptor (1) (P. 26)

External drain

water hose

Lint filter

(P. 20)

Lid

Leveller (P. 27)

Power cord and

plug* (P. 3)

* The plug shape

varies with the

region.

Adjustable leg (P. 27)

Detergent and

softener drawer

(P. 12)

Accessories

Part names

Operation panel (P. 8) Water supply valve (P. 26)

Pulsator

Tub

Detergent/

Bleach inlet

(P. 12)

Before Washing

Laundry preparation and check

Use laundry nets for delicates

Overpack

For “Stain Master +”

(P. 16)

zPretreatments for heavily stains

zObserve the clothes' care labels.

zFor

• Shirts with stiff fabric

• Rubber clothes • Graphic shirts

• Coloured clothes

Pre-laundry check

Reverse

Clothes likely to pill

Paper diapers

To prevent colour staining

ECONAVI (P. 17)

Program selection (P. 10)

NOTE

zIn case of a power failure.

Operation will resume from where it stopped when the power recovers.

zIf you do not press within 10 minutes after power-on.

Auto power off.

zThe wash process setting of the “Stain Master +” and “Soak” programs

cannot be changed.

Stain Master + (P. 16)

Power Off/On

Heater On: Lamp flashes

Air Dry (P. 17) Start/Pause

Child Lock lamp (P. 18)

Operation Panel

Preset (P. 14)

Detergent volume

Water level (L) Detergent *2

72 *159 55

51 47 43

33 27

*1 NA-FS10V7: 72 L

NA-FS95V7: 71 L

*2 : 1 scoop of detergent

Change process

settings (P. 14)

Flashing

(in progress)

Lighting

Tangle Care

(P. 10)

For NA-FS10V7

Auto Tub Clean (P. 18)

Water amount

Approx.

5 sec

Remaining time

(P. 10)

Preset timer

(P. 14)

3Measures the

amount of laundry.

10 sec 5 sec

20 sec

(P. 8)

(P. 12)

Washing

After pressing “Start”

zTo change each operation (while washing).

Pause Start

zTo check or change the water level (while washing).

zYou cannot change the program.

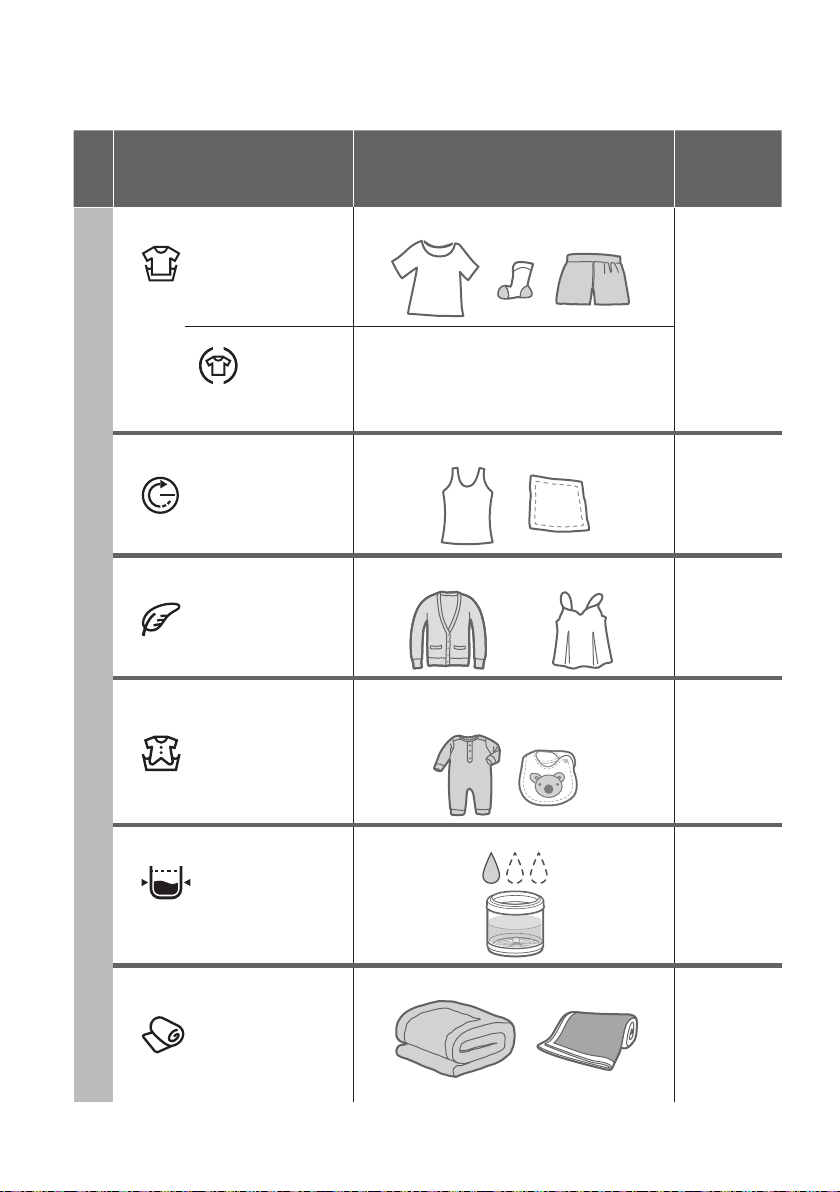

Variety of Programs

Program Purpose

Max.

capacity *

(kg)

Wash

Normal (P. 9)

zEveryday clothes

10.0

9.5

zAnti-tangling

• Washing more gently than “Normal”to

reduce tangle.

• Disentangling clothes after spin:

6 kgor less.

Speedy (P. 9)

zFor light soil

10.0

9.5

Delicate (P. 15)

zWashing gently

4.2

Baby Care (P. 9)

zClothes for babies & sensitive skin

Rinsing thoroughly

10.0

9.5

Water Save

(P. 9)

zSaving water

10.0

9.5

Blanket (P. 15)

zComforters and blankets

With a machine-washable tag

4.2

Tangle

Care (P. 9)
