Operating & Installation
Instructions
Fully Automatic Washing Machine
(Household Use)
Model No. NA-FS10X7 NA-FS95X7
NA-FS85X7
2

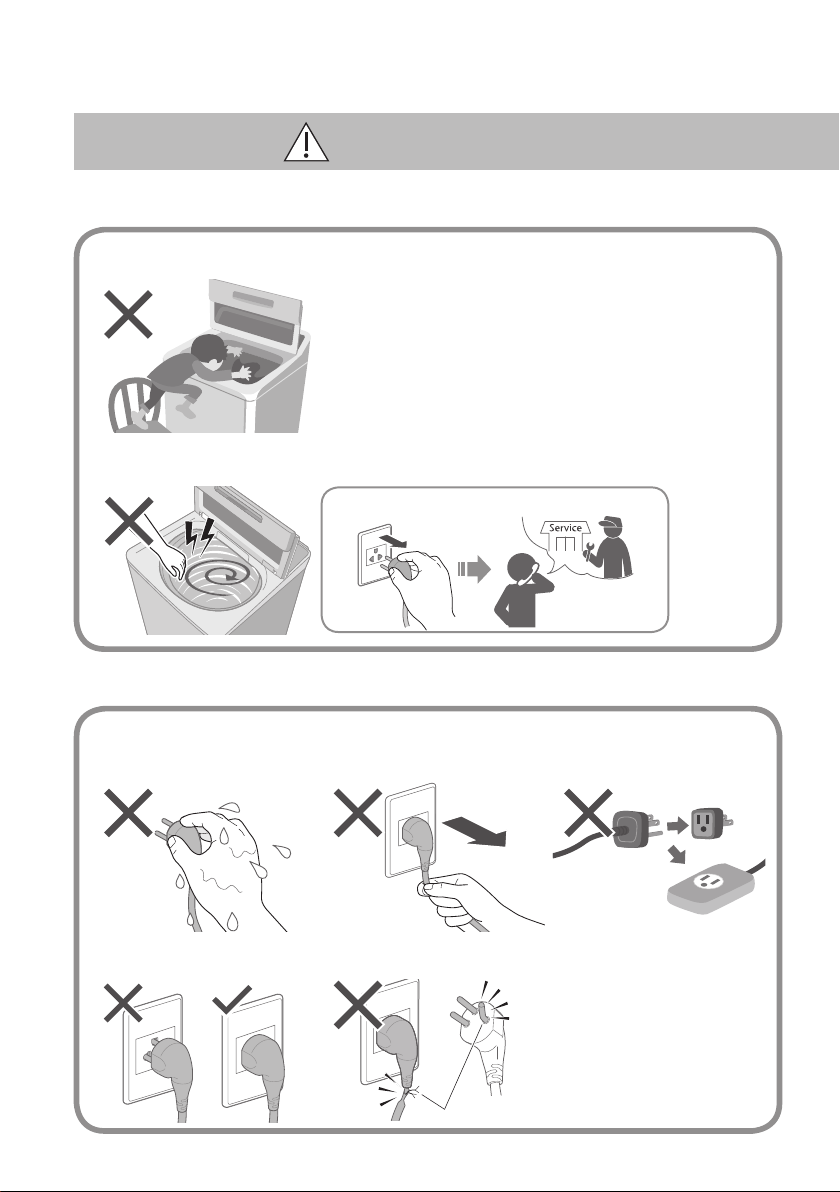

Safety Precautions
May cause serious injury or death.
WARNING
Children must not use it alone.
zThis appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
zChildren should be supervised to ensure that they do
not play with the appliance.
Do not touch the tub until it stops.
zIf the tub does not stop within 15 sec:
May cause fire or electric shock.
Do not touch it
with wet hands.
Do not hold or
pull on the cord.
Do not use.
Plug adaptor
Extension cord
Fully insert it. Do not use.
zIf the power cord is damaged,
it must be replaced by the
manufacturer, its service
agent or similarly qualified
persons in order to avoid a
hazard.
Damaged
3

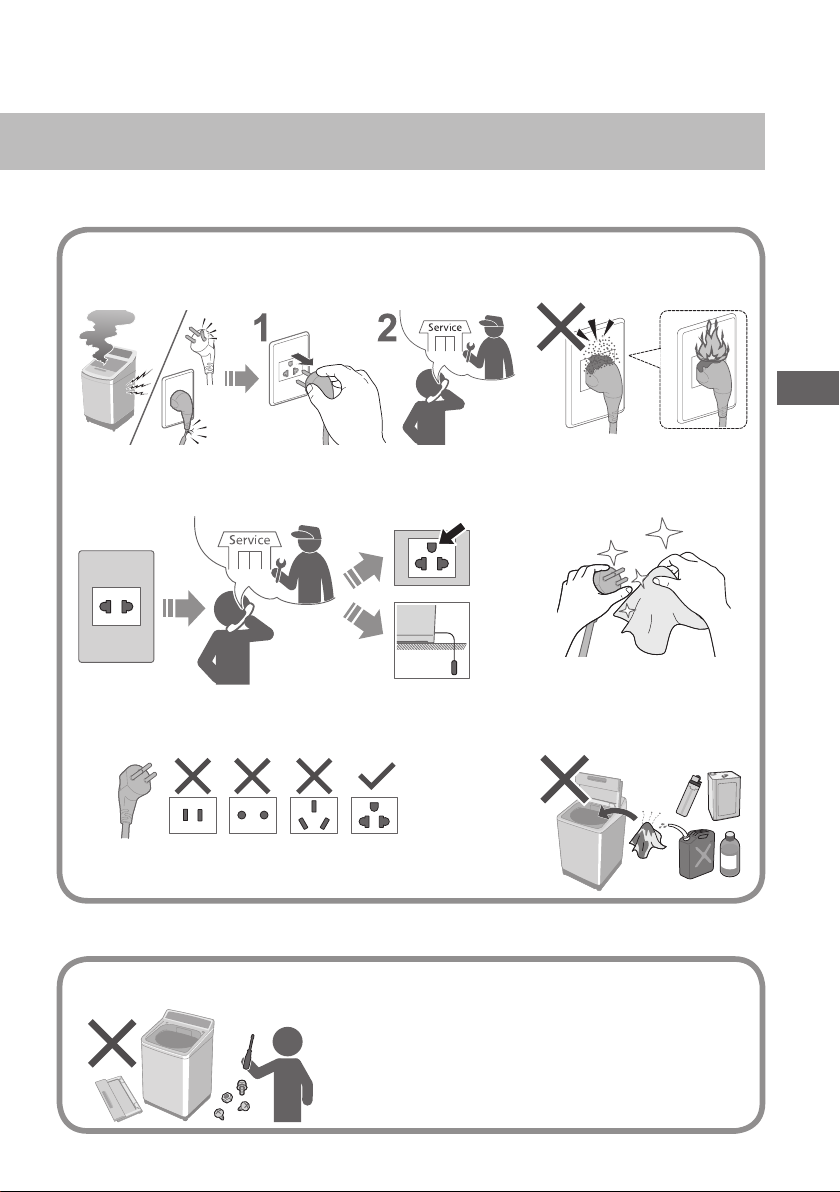

WARNING
May cause failure.
Never disassemble, repair or modify it by yourself.
In case of failure or damaged power cord,
stop use and ask the service centre.
Accumulated dust
may cause fire.
Securely insert the ground prong.
Call your local dealer for a new socket.
Wipe the power plug
periodically.
Use a socket appropriate for this
appliance.
Keep away from
flammable materials.
e.g.)
zThe plug shape, socket shape and rating
requirement varies with the region.
4
Safety Precautions (continued)
May cause injury.
Be careful not to get your fingers caught.
Do not climb or put objects on the appliance.
Be careful of your hands and feet.
May cause water leakage.
Turn off the water faucet. Use new hose-sets.
zNew hose-sets
supplied with the
appliance are to be
used and old hose-sets
should not be reused.
CAUTION
zIf the lid is broken,
immediately stop
using.
5
CAUTION
May cause failure.
Keep away from heat and direct
sunlight.
For Machine-washable
items only.
Do not wash waterproof items. Do not use hot water.
Raincoats, wet suits, etc. Over 50 ºC
Do not obstruct.
zDo not obstruct the
openings of the bottom
face with carpet, etc.
6

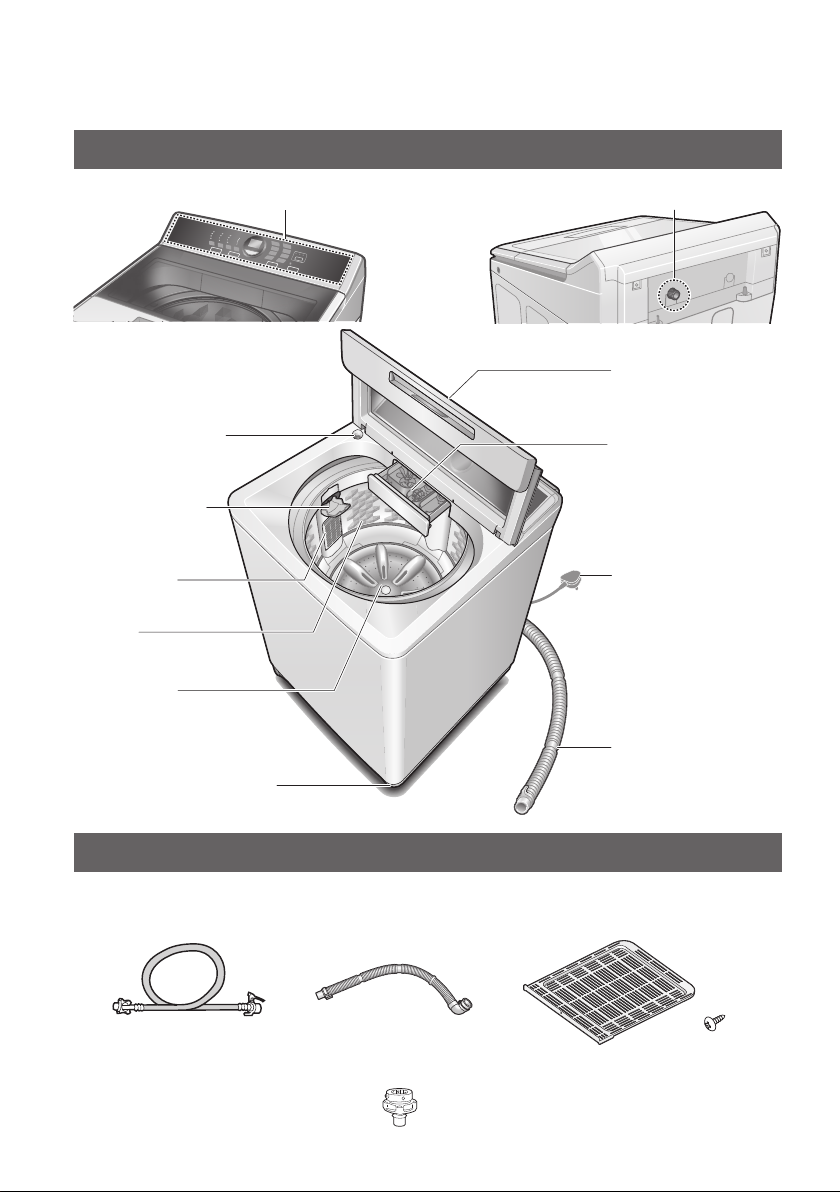

Part Names / Accessories
Water supply hose
(1) (P. 26)
1.0 m
External drain
water hose (1)
(P. 25)
Bottom cover (1) /Screw (1)
(P. 25)
Water tap
adaptor (1) (P. 26)
External drain
water hose
Lint filter
(P. 20)
Lid
Leveller (P. 27)
Power cord and
plug* (P. 3)
* The plug shape
varies with the
region.
Adjustable leg (P. 27)
Detergent and
softener drawer
(P. 12)
Accessories
Part names
Operation panel (P. 8) Water supply valve (P. 26)
Pulsator
Tub
Detergent/
Bleach inlet
(P. 12)
7
Before Washing
Laundry preparation and check
Use laundry nets for delicates
Overpack
For “Stain Master”
(P. 16)
zPretreatments for heavily stains
zObserve the clothes' care labels.
Pre-laundry check
Reverse
Clothes likely to pill
Paper diapers
To prevent colour staining
8
ECONAVI (P. 17)
Program selection (P. 10)
NOTE
zIn case of a power failure.
Operation will resume from where it stopped when the power recovers.
zIf you do not press within 10 minutes after power-on.
Auto power off.
zThe wash process setting of the “Stain Master” and “Soak” programs cannot
be changed.
Stain Master (P. 16)
Power Off/On
Air Dry (P. 17) Start/Pause
Child Lock lamp (P. 18)

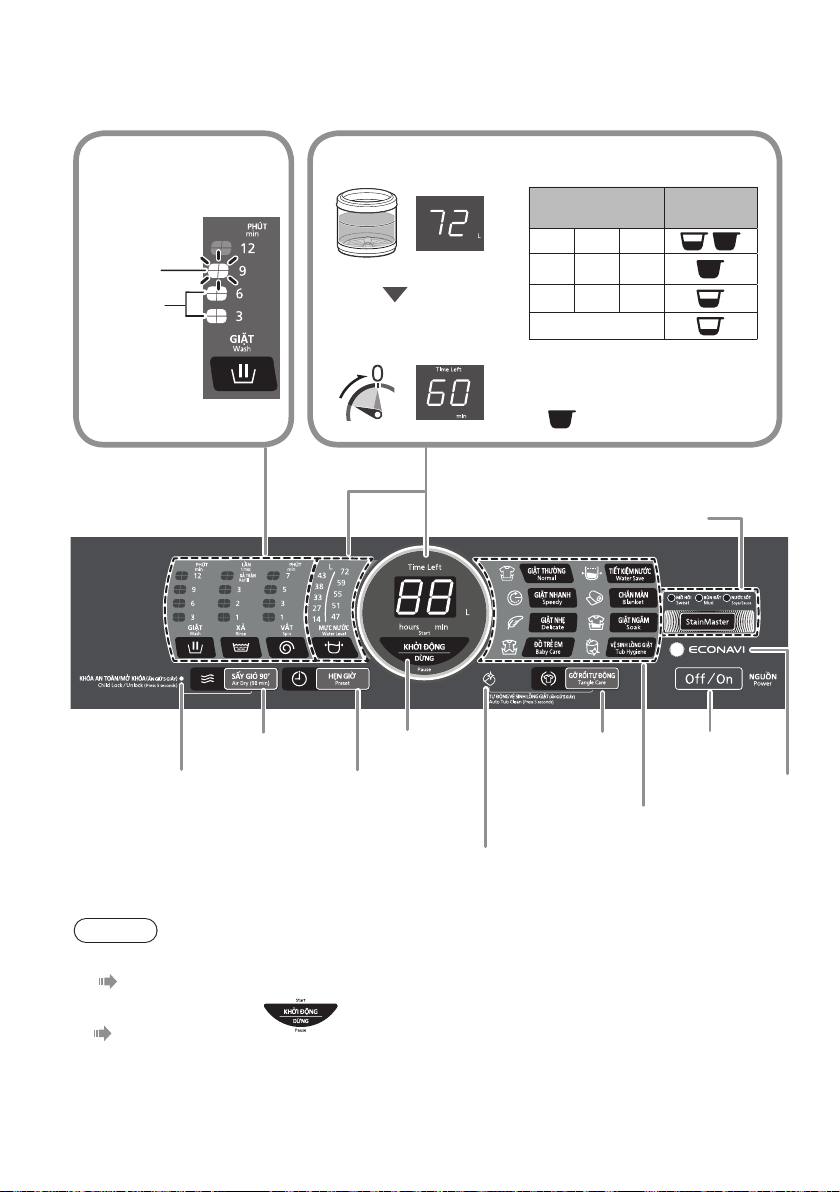

Operation Panel
Preset (P. 14)
Detergent volume
Water level (L) Detergent *2
72 *159 55
51 47 43
38
33 27
14
*1 NA-FS10X7: 72 L
NA-FS95X7: 71 L
NA-FS85X7: 66 L
*2 : 1 scoop of detergent
Change process
settings (P. 14)
Flashing
(in progress)
Lighting
Tangle Care
(P. 10)
For NA-FS10X7
Auto Tub Clean (P. 18)
Water amount
Approx.
5 sec
Remaining time

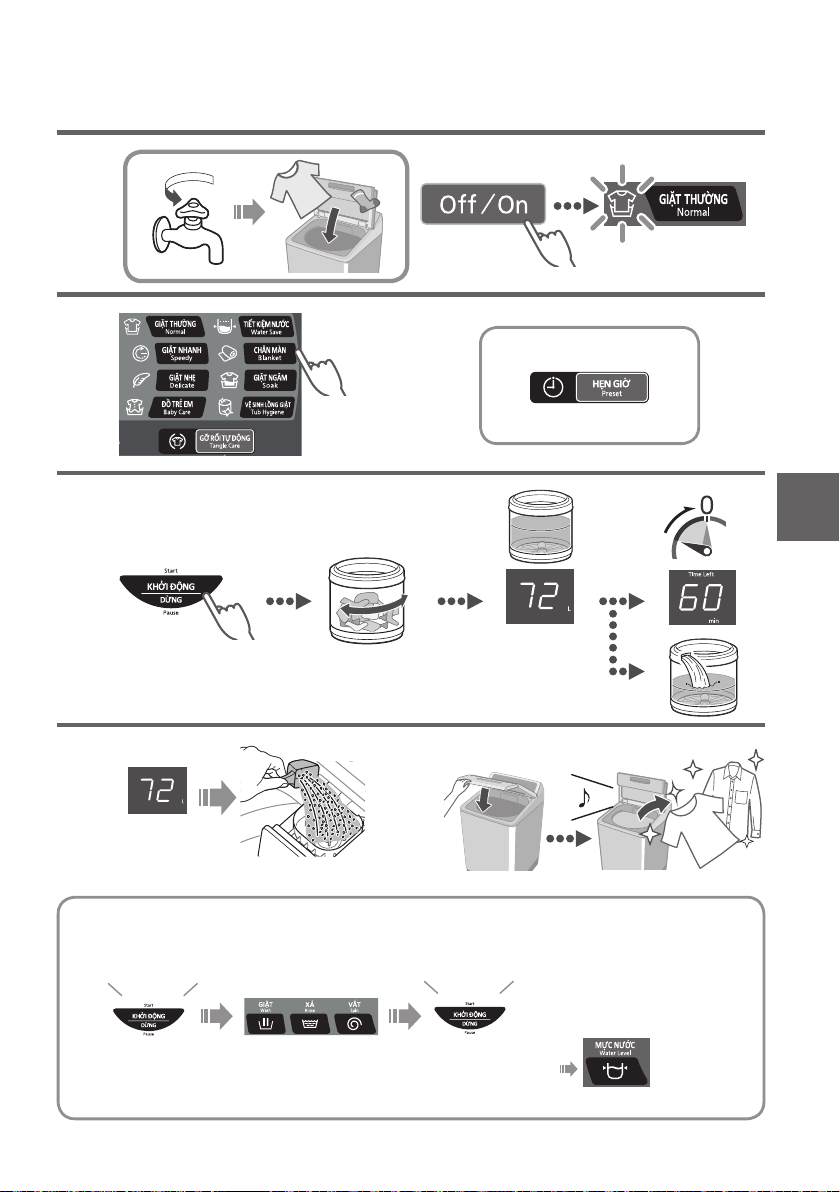

9
1
2
(P. 10)
Preset timer
(P. 14)
3Measures the
amount of laundry.
10 sec 5 sec
20 sec
4
(P. 8)
(P. 12)
5
Washing
After pressing “Start”
zTo change each operation (while washing).
Pause Start
zTo check or change the water level (while washing).
zYou cannot change the program.
10
Variety of Programs
Program Purpose
Max.
capacity *
(kg)
Wash
Normal (P. 9)
zEveryday clothes
10.0
9.5
8.5
zAnti-tangling
• Washing more gently than “Normal”to
reduce tangle.
• Disentangling clothes after spin:
6 kgor less.
Speedy (P. 9)
zFor light soil 10.0
9.5
8.5
Delicate (P. 15)
zWashing gently
4.2
Baby Care (P. 9)
zClothes for babies & sensitive skin
Rinsing thoroughly 10.0
9.5
8.5
Water Save
(P. 9)
zSaving water
10.0
9.5
8.5
Blanket (P. 15)
zComforters and blankets
With a machine-washable tag
4.2
Tangle
Care (P. 9)
