Panasonic NA-V11FX2 Produkthandbuch
AWW9901C7JC0-0C5
AWW9901C7JC0-0C5
Contents
Safety Precautions 2
Checking Your Washing Machine
6
Before Washing 7
Control Panel 8
Detergent 10
Washing 12
Program List 14
Details of Programs 16
Washing Tips 18
Changing Program Settings 20
Changing Appliance Settings 26
Maintenance 27
Troubleshooting 31
Error Display 37
Installation
Choosing the Right Location 38
Moving and Installing 39
Connecting the Hoses 41
Test Run 43
Specifications 44
EN
Thank you for purchasing this product.
- Read these instructions carefully for optimum
performance and safety before use.
- Keep this manual for future reference.
Operating & Installation
Instructions
Washing Machine
(Household Use)
Model No. NA-V11FX2 NA-V10FX2 NA-V90FX2
NA-V10FX1 NA-V11FG2 NA-V10FG2 NA-V90FB1
zIf the power cord is
damaged, it must
be replaced by the
manufacturer, its
service agent or similarly
qualified persons in
order to avoid a hazard.
Safety Precautions
May cause serious injury or death
May cause fire or electric shock
WARNING
Children must not use it alone.
zThis appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by a person responsible for
their safety.
zChildren should be supervised to ensure that
they do not play with the appliance.
Setting the Child Lock. (P. 26)
On
Hold
5 sec.
Do not touch it
with wet hands.
Fully insert it.
Do not hold or
pull on the cord.
Do not use.
Damaged
Do not use.
Plug adaptor
Extension cord
2
WARNING
May cause failure
In case of failure or damaged power cord,
stop use and ask the electrical technician.
Securely insert the ground prong.
Ask the electrical technician for a new socket.
Use a socket appropriate for this
appliance.
e.g.)
zThe plug shape, socket shape and rating
requirement vary with the region.
Accumulated dust
may cause fire.
Wipe the power plug
periodically.
Keep away from
flammable materials.
Do not disassemble, repair or modify it by yourself.
3
Safety Precautions (continued)
May cause injury
May cause water leakage
CAUTION
Be careful not to get your
fingers caught.
Do not touch when it is hot.
Do not climb on the appliance.
Turn off the water faucet. Use new hose-sets.
zNew hose-sets
supplied with the
appliance are to
be used and old
hose-sets should
not be reused.
For maximum mass of dry cloth and pressure of tap water, see P. 44.
4
CAUTION
May cause failure
Keep away from heat and direct
sunlight.
Do not obstruct.
zDo not obstruct
the openings of
the bottom face
with carpet, etc.
Remove anchor bolts before
operation.
Do not use hot water.
Over 50 ºC
For machine-washable items only.
zThis appliance is intended to be used in household.
This appliance is not intended to be used in
applications such as:
- staff kitchen areas in shops, offices and other
working environments;
- farm houses;
- by clients in hotels, motels and other residential
type environments;
- bed and breakfast type environments;
- areas for communal use in blocks of flats or in
launderettes.
Do not wash excessively oily clothes.
5
150
MAX
100
50

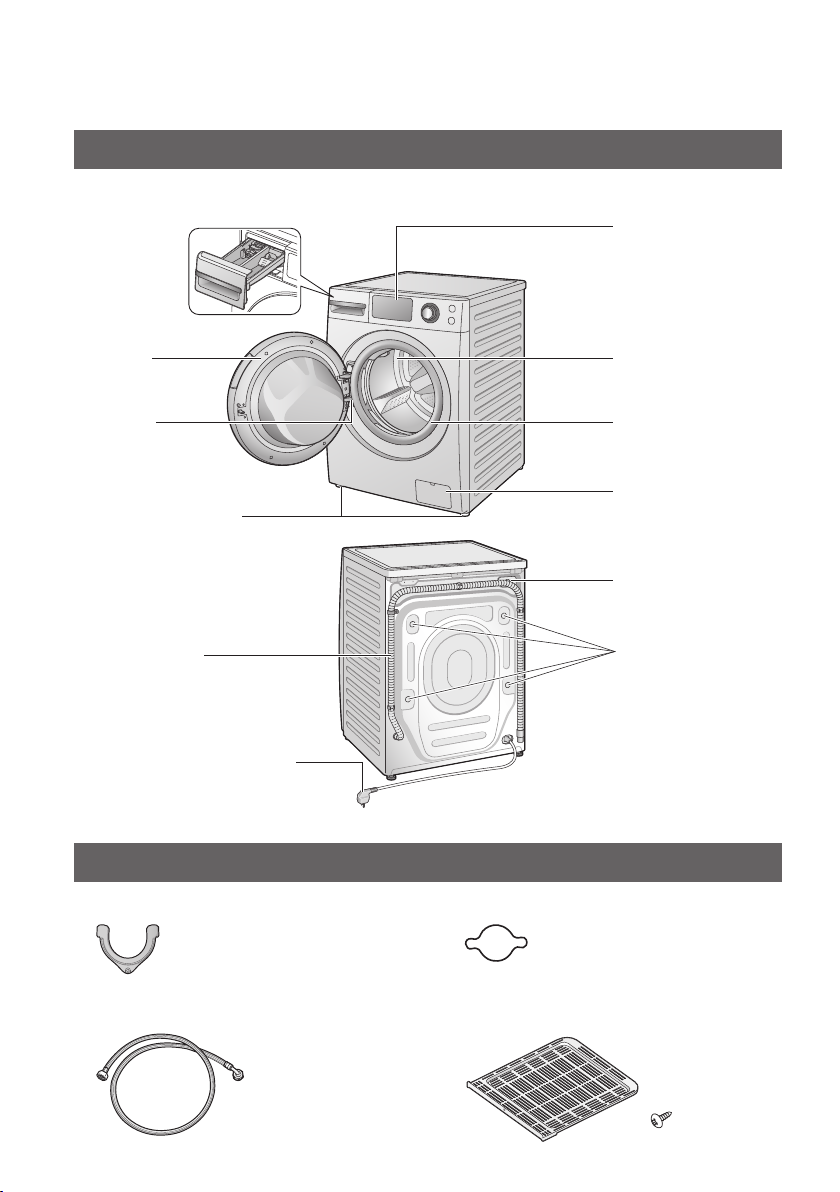

Part names
Checking Your Washing Machine
Detergent drawer (P. 10)
Accessories
Control panel
(P. 8)
DrumDoor
Door seal
Drain filter cover
(P. 30)
Hinge
Water inlet (P. 42)
Anchor bolts
(P. 40)
Drain hose
(P. 41, 42)
Power cord and plug*
*The plug shape varies
with the region.
Adjustable feet
(P. 40)
Elbow (1) (P. 42) Cover caps (4) (P. 40)
Water supply hose (1) (P. 41, 42) Bottom cover (1) /Screw (1) (P. 39)
6

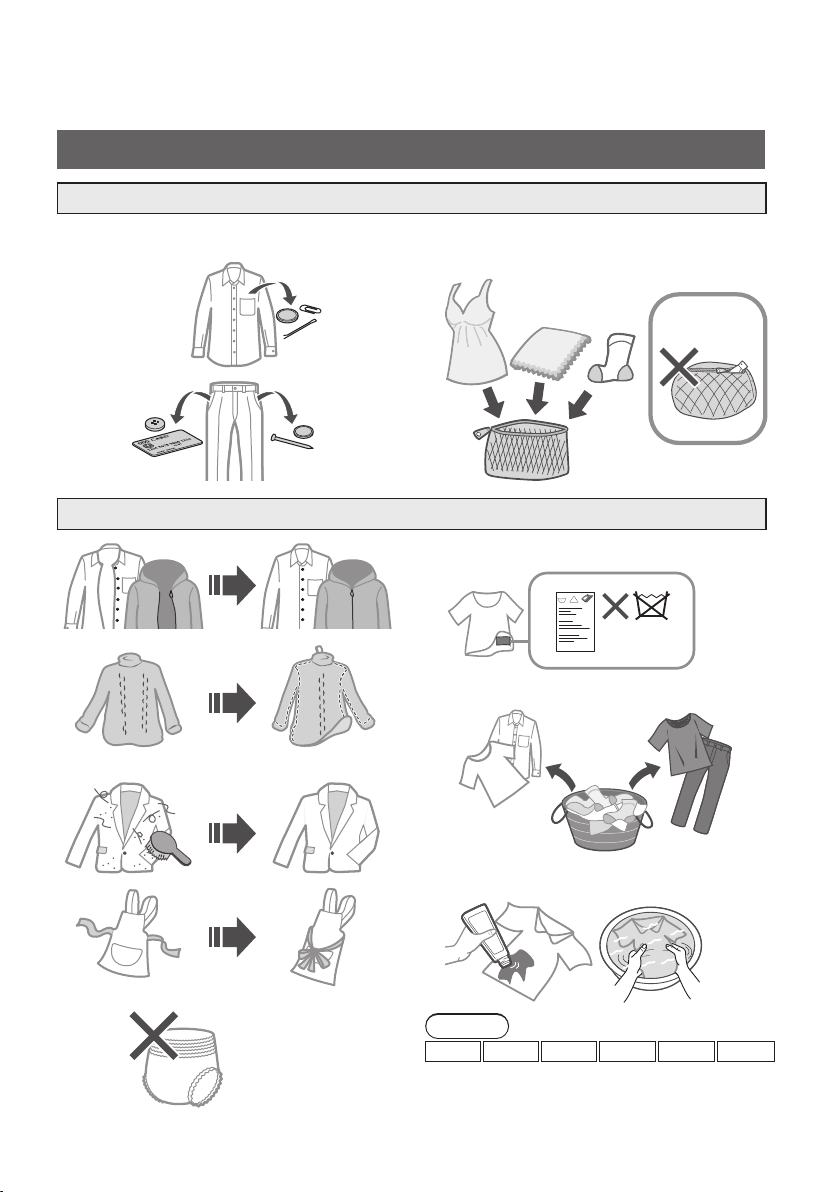

Before Washing
Preparing laundry
Pre-laundry check
Reverse
Clothes likely to pill
Paper diapers
zObserve care labels.
zWash separately.
White
clothes
zPretreat for heavily stains.
NOTE
V10FX1 V11FG2
V90FX2
V11FX2 V10FX2
z“Mud / Oily Sauce / Collar & Sleeve”
programs (P. 15) are recommended
for removing stains.
Before put clothes in drum
zRemove foreign objects. zUse laundry nets for delicates and
small items.
Overpack
V10FG2
Coloured
clothes
7
Control Panel
Display
Add Wash lamp:
You can add clothes while lit. (P. 12)
Lock The door is locked
The door and buttons are
all locked (Child Lock) (P. 26)
Process Wash
Rinse
Spin
ECONAVI lamp
(P. 18)
Water temperature
Spin speed
: Drain only
(No spin) Remaining time
Error display (P. 37)
(e.g. U11)
Optional function lamp
NA-V11FG2/NA-V10FG2
NA-V90FB1
Auto Tub Care (P. 24)
(P. 24) (P. 23)
(P. 29) (P. 23)
(P. 22) (P. 25)
V90FX2
V11FX2
V10FX2
zImages in these instructions are of the
NA-V11FX2, unless otherwise indicated.
V10FX1
V11FG2 V10FG2
V90FX2V11FX2 V10FX2
V10FX1
8
Program selection dial (P. 14)
Power button
Start/Pause button
Temp (P. 20)
Control buttons
Spin (P. 21)
Mode (P. 21)
Timer (P. 22)
Rinse+ (P. 23)
Easy Iron (P. 23)
Blue Ag+ (P. 25)
NOTE
zTurn off back on zNo operation auto power off
3 sec.
Turn off On
( ) Auto
Power off
(Not pressed )
10 min.
On
zIn case of a power failure
When the power recovers, operation resumes from where it stopped.
(Auto Restart)
Press at the same time:
Auto Tub Care (P. 24)
Press at the same time:
Child Lock (P. 26)
NA-V11FX2/NA-V10FX2/NA-V90FX2/NA-V10FX1
Touch operation
V10FX1 V11FG2V90FX2V11FX2 V10FX2 V10FG2
Operation buttons are capacitive (Except for / ).
zIf water, detergent or softener gets
on, turn off and wipe off with a
towel etc. immediately. (Cause of
malfunction)
9
Detergent
NOTE
STARTSTART
Detergent
Use a low foam detergent.
zTo prevent powder detergent from
remaining in the detergent drawer:
Wet Dry
Lumps Powder
Fabric softener
150
MAX
100
50
Separated
or solidified
softeners
Concentrated
softener
Water
Detergent
Powder detergent Liquid detergent
Bleach
zFollow the instructions on each package.
10
