Panasonic NA-148VB6WDE Bedienungsanleitung

ing and distribution is a violation of law.

Order No. VES1504002CE

Drum Type Washing Machine

Model No. NA-148VB6WDE

Model No. NA-148VB6WTA

Model No. NA-148VB6WGN

Model No. NA-148VB6WGB

Product Color : White

Destination : Germany, Austlia, Italy, Holland, Belgium,

Czech, Hungary, Romania, Slovakia,

Croatia, Serbia, Slovenia, Bosnia-Herze-

govina, UK, Ireland

TABLE OF CONTENTS

PAGE PAGE

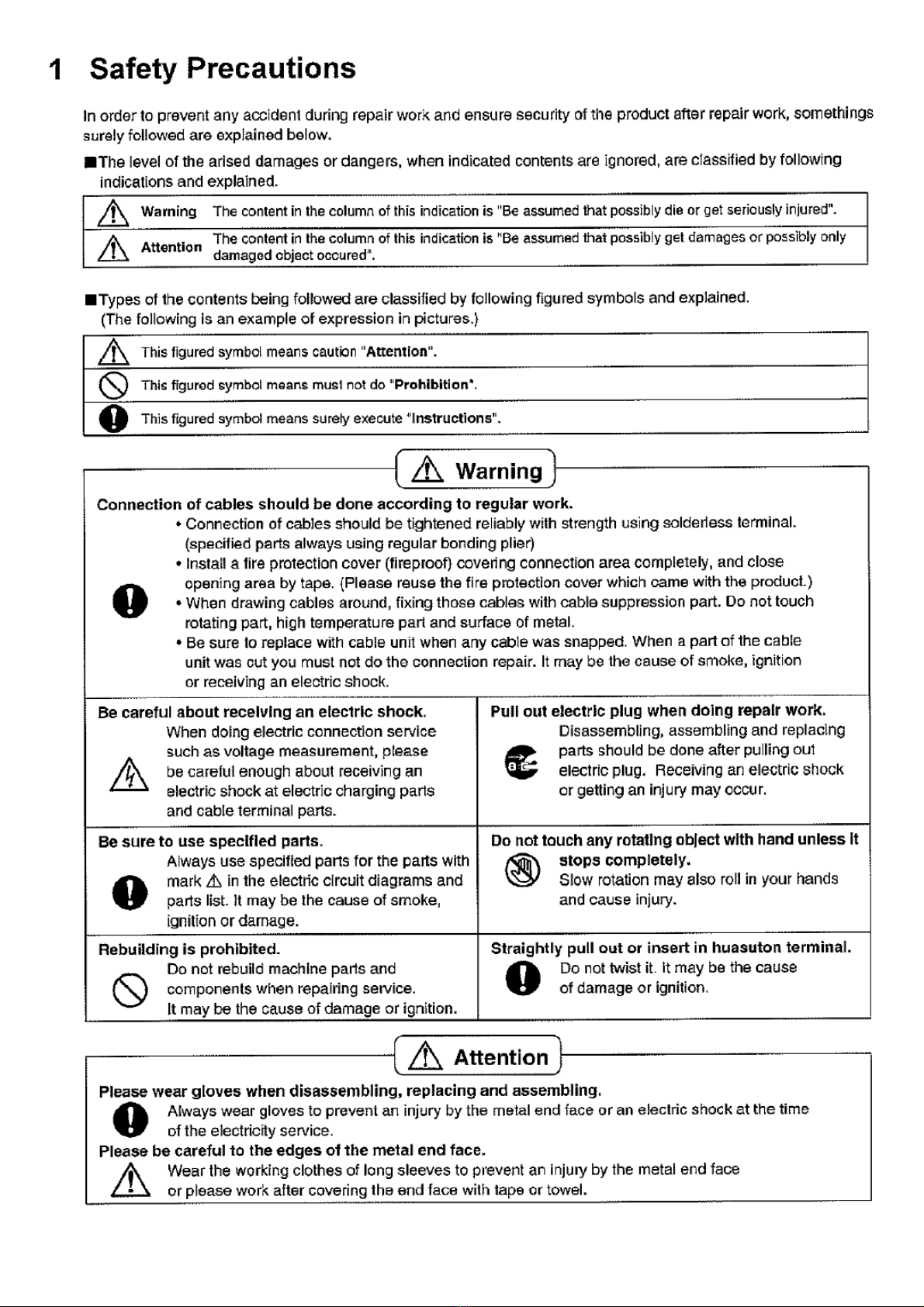

1 Safety Precautions----------------------------------------------- 2

2 Specifications ----------------------------------------------------- 3

3 Location of Controls and Components ------------------- 5

4 Installation Instructions ---------------------------------------- 6

5 Operating Instructions------------------------------------------ 8

6 Test Mode ----------------------------------------------------------10

7 Service Mode -----------------------------------------------------12

8 Troubleshooting Guide ----------------------------------------13

9 Torque Values ----------------------------------------------------14

10 Disassembly and Assembly Instructions ---------------15

11 Component Specifications -----------------------------------26

12 Wiring Connection Diagram ---------------------------------35

13 Exploded View and Replacement Parts List -----------37

2. Specifications

2.1. Product Specifications

Model NA-148VB6

Product Type Front Loader

Capacity 8 kg

Max Spin Speed 1400 rpm

Drum Volume 55 lt

Energy Label Rating A+++

Energy Consumption 194 kWh / annum

Water Consumption 9900 L / annum

Noise Level Wash 58 dBA

Spin 76 dBA

Control Panel LCD Display

Wash Programs 15 settings

Spin Speed Setting 7 setting

Dimensions

Height 84,5 cm

Width 59.7 cm

Depth 55.7 cm

Door Opening Large door opening

Delay Time Setting Yes

Colour White

Water Protection Overflow Protection

Other Features Child Lock

Packaging Shrink package

2.2. Name Plate

2.3. Dimension in millimetres

NA-148VB6

3. Location of Controls and Components

4. Installation Instructions

4.1. Moving and Installing

4.1.1. Removal of Transportation Screw

1. Transportation screws, which are located at the back side of

the machine, must be removed before running the machine.

2. Loosen the screws by turning them anticlockwise with a

suitable spanner.

4.1.2. Foot Adjustment

1. Do not install machine on rugs or similar surfaces.

2. For machine to work silently and without any vibration, it should be

installed on a flat, non-slippery firm surface. Any suspended floor

must be suitably strengthened.

3. You can adjust the level of machine using its feet.

4. First, loosen the plastic adjustment nut away from the cabinet

base.

5. Change the level by adjusting the feet upwards or downwards.

6. After level has been reached, tighten the plastic adjustment nut

again by rotating it upwards against the base of the cabinet.

7. Never put cartons, wooden blocks or similar materials under the

machine to balance irregularities of the floor.

3. Pull out the screws and rubber washers.

4.1.3. Electrical Connection

1. Washing machine requires a 50Hz supply of 220-240Volts.

2. A special earthed plug has been attached to the supply cord of

washing machine. This plug must be fitted to an earthed socket. The

fuse value fitted to this plug should be 13 amps. If you have any

doubts about electrical supply, consult a qualified electrician.

THIS APPLIANCE MUST BE EARTHED.

Insert the machine’s plug to a grounded socket which

you can easily reach.

4. The holes where the transport screws have been removed

should be covered with the plastic transport caps found in the

accessories bag.

5. The transportation screws that have been removed from the

machine must be re-used in any future transporting of the

machine.

4.1.4. Water Supply Connection

1. Washing machine is supplied with a single (cold) water inlet.

2. To prevent leakage from the connection joints, a rubber

washer is included in the hose packing. Fit this washer at the

end of water inlet hose on the tap side.

3. Connect the hose to the water inlet valve. Tighten the plastic

connector by hand. Please call a qualified plumber if you are

unsure about this.

4. Water pressure of 0,1-1 MPa from tap will enable machine to

work more efficiently.(0,1 MPa pressure means water flow of

more than 8 litres in 1 minute from a fully opened tap)

5. After connection is complete, check for leakage by turning on

tap completely.

6. Make sure that water inlet hoses can not become folded,

damaged, stretched or crushed when the washing machine is in

its final position.

7. Mount the water inlet hose to a ¾” threaded water tap.

4.1.5. Drain Connection

1. Make sure that water inlet hoses are not folded, twisted,

crushed or stretched.

2. The drain hose should be mounted at a minimum height of 60

cm, and a maximum height of 100 cm from the floor.

3. The end of the drain hose can be connected directly to a

drainage stand-pipe or alternatively to a specific connection point

designed for that purpose on the waste outlet of a sink unit.

4. Do not extend the drain hose or guarantee will be invalidated.

4.2 Detergent Box Group

PREWASH = WATER ENTRY VALVE 1

MAIN = WATER ENTRY VALVE 2

SOFTENER = WATER ENTRY VALVE 1 + VALVE 2

MAIN

SOFTENER

PREWASH

VALVE1

VALVE2

VALVE1

5. Operating Instructions

5.1. LCD Screen, Function Buttons & Knobs

PR Program selector 16 programs including off position

SW1 Switch 1, Start / Pause

SW2 Switch 2, Temperature Selection

SW3 Switch 3, Spin Speed Selection

SW4 Switch 4, Delay Timer Selection

SW5 Switch 5, Extra Rinse Option

SW6 Switch 6, Easy Ironing Option

SW7 Switch 7, Eco/Speed Mode Option

SS1 7 Segment LCD for Temperature Display I8 Extra Rinse Symbol

SS2 7 Segment LCD for Spin Speed Display I9 Easy Ironing Symbol

SS3 7 Segment LCD for Remaining Time I10 Eco Mode Symbol

I1 Child Lock Symbol I11 Speed Mode Symbol

I2 Door Lock Symbol I12 Cold Wash Symbol

I3 Drain Phase Symbol I13 Temperature Sign

I4 Spin Phase Symbol I14 Program Proceeding Zone

I5 Rinse Phase Symbol Slow Blink ON 0.5 sec, OFF 0.5 sec, ON 0.5 sec

I6 Wash Phase Symbol Fast Blink ON 0.10 sec, OFF 0.10 sec, ON 0.10 sec

I7 Delay Symbol

SW1 SW2 SW3 SW4 SW5 SW6 SW7 PR

I6 I5 I4 I3 I2 I1

SS1 SS2 SS3 I7 I8 I9 I10 I11I12I13

I14

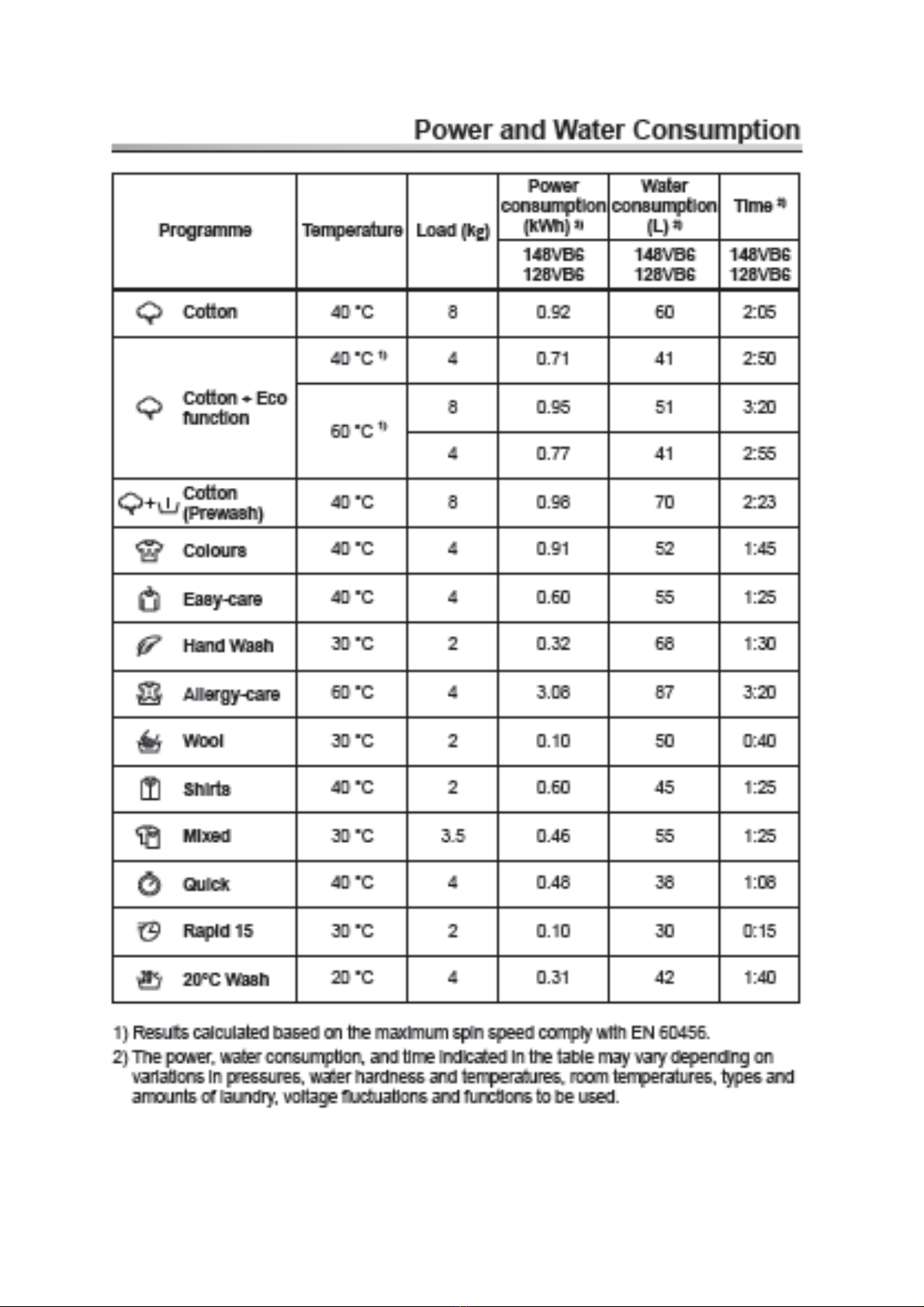

5.2. Program Details

5.3. Child Lock

Activation

Press SW7 for 5 seconds.

The Child Lock Symbol on appears on the LCD display as Child

Lock is active.

Deactivation

Press SW7 for 5 seconds.

The Child Lock Symbol will disappear on LCD displayupon

deactivation.

6. Test Mode

6.1. Autotest

Set PR to program 3 (Colours)

While pressing SW5 (Extra Rinse), change position of the PR from

third program to second (Cotton-Prewash), and release SW5.

Autotest starts.
