Panduit CM308F Konfigurationshandbuch

FOR TECHNICAL SUPPORT www.panduit.com/resources/install_maintain.asp

INSTRUCTIONS CM308F

Mounting Kits

(sold separately)

Front/Rear Front Only

WMPVCBE, NRVCB

(Center Mount)

WMPV22E WMPVF22E (Standard mounting for

WMPV45E WMPVF45E

Panduit 2 and 4 post racks

WMPVHC45E

WMPVHCF45E

racks. One kit Included.)

NRV6 NRVF6

NRV10 NRVF10

NRV12 NRVF12

VERTICAL CABLE

MANAGEMENT

R4P Series of Racks

R2P Series of Racks

Doors

WMPV Includes

Cover

NRD6B1

NRD10B1

NRD12B1

Racks

R2P Series of Racks

R4P Series of Racks

ER4P Series of Racks

WMPVSMK (Side Mount)

(Optional Mounting for

4 post racks and R2PS)

(Required Mounting for R2P6S)

Page 1 of 3

NETRUNNER Vertical Cable Managers

PART NUMBERS

Location pin(s)

#12-24 Screws

Rear Bottom Mounting

Location

Top Mounting Location

Bottom Mounting Location

#12-24 Screws

Bracket Installation

Note:

For additional brackets when

installing between two racks use

part number WMPVCBE or

NRVCB. Bracket is keyed to be

installed in the correct orientation.

Standard Rack Installation

Note:

Arrows and flags

must point upward

Dimensions in () parenthesis are for 6” Vertical Cable Management

Location Guide for Center Mounting

(R2P with WMPVCBE and NRVCB)

Table 1

FOR TECHNICAL SUPPORT www.panduit.com/resources/install_maintain.asp

INSTRUCTIONS CM308F

Page 2 of 3

3/8 Bolt, Lock

Washer & Nut

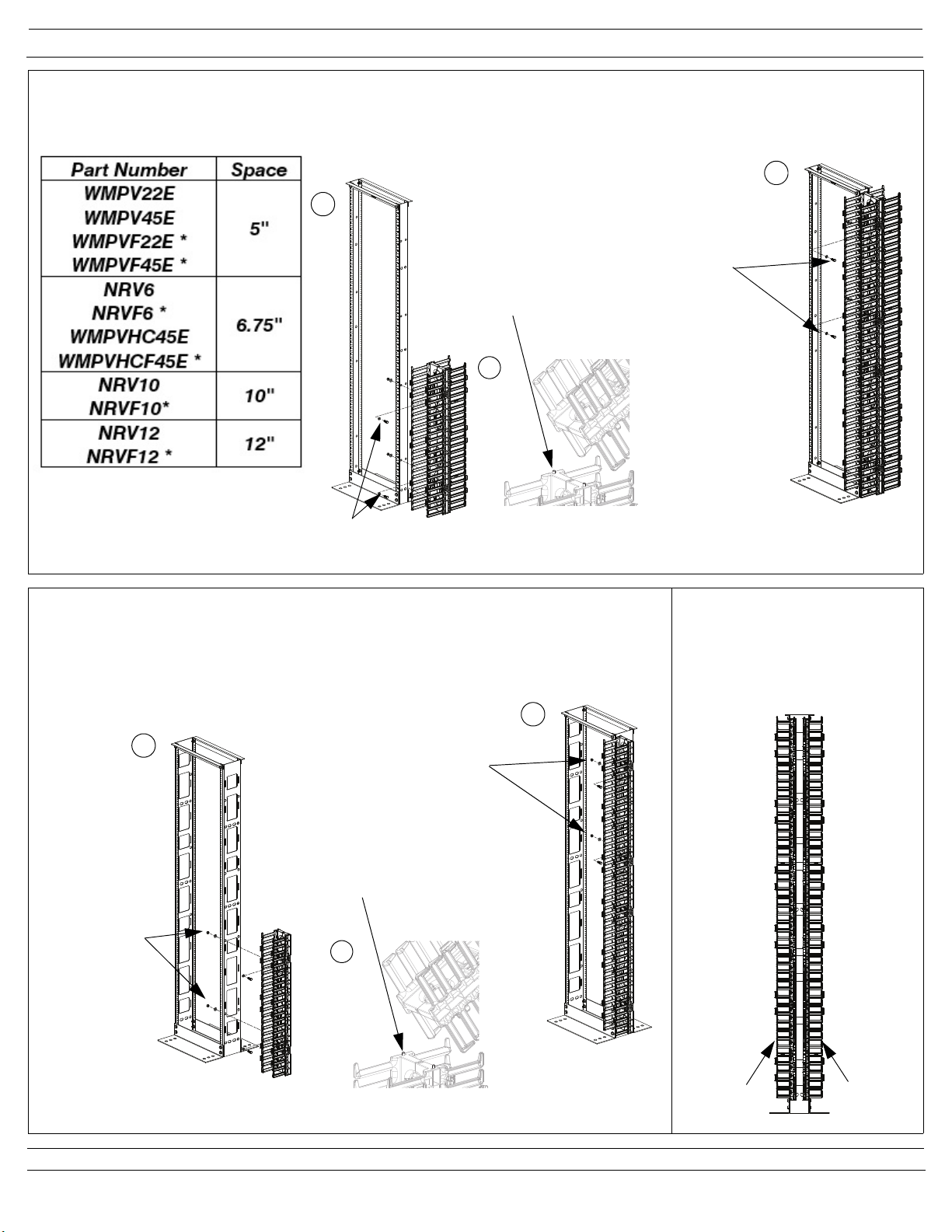

Installation Instructions R2PS using WMPVSMK side mounting kit

Note: Mount the racks to the floor (with the appropriate space between racks indicated in Table 2.)

Location pin(s)

3/8 Bolt, Lock

Washer & Nut

* FOR USE WITH R2P6S

3/8 Bolt, Lock

Washer & Nut

Location pin(s)

3/8 Bolt, Lock

Washer & Nut

Installation Instructions Required mounting for R2P6S using WMPVSMK side mounting kit

Note: Mount the racks to the floor (with the appropriate space between racks indicated in Table 2.)

Table 2

Installing Front Only Managers for

Front and Back cable management.

Use a front only manager for additional

cable management on the back of the

rack (see Table 2 for all compatible

managers for this rack)

Front Only

Manager

Front Only

Manager

INSTRUCTIONS CM308F

For instructions in Local Languages

and Technical Support:

www.panduit.com/resources/install_maintain.asp

E-mail:

[email protected]om

Fax:

(866)405-6654

www.panduit.com

Page 3 of 3

Opening and Closing Cover for WMPV managers

Open Closing Removal

Use thumb to release

wire retainer for removal

Wire Retainer Installation

(WR5E) SOLD SEPERATELY

Installation Instructions R4P using WMPVSMK side mounting kit

Note: Mount the racks to the floor (with the appropriate space between racks indicated in Table 2.)

Location pin(s)

3/8 Bolt, Lock

Washer & Nut

3/8 Bolt, Lock

Washer & Nut

Opening

Opening and Closing Cover for NRV managers

To open, grasp back of

door and push top button

with thumb. Repeat with

bottom button.

Top Latch

Buttons

Installation

Line up finger tabs with door latches.

Then squeeze door and fingers

together to engage (4 places).

Removal

To remove door, press bottom

latches first, then press top latch

bottons while holding door

Door Latches Door

Finger

Tabs

To close, grasp cable

retainers and door until

latched

Bottom Latch

Buttons
