INSTRUCTIONS CM396F

FOR TECHNICAL SUPPORT www.panduit.com/resources/install_maintain.asp

Page 1 of 4

Part Numbers: R4P, R4PCN, R4P23, R4P23CN, R4P36, R4P36CN, R4P42, R4P42CN, R4P96, R4PCN96,

R4P2396, R4P23CN96, R4P3696, R4P36CN96, R4P4296, R4P42CN96,R4P79, R4PCN79

(2) Side Channel Assembles

(2) Base Angles

(2) Top Brackets

(1) Hardware Kit

(25) 12-24 Cage Nuts

(25) 12-24 x.5” Screws

(16) Paint Piercing Washers

(16) 3/8 x 1” Bolts

(1) Tube of Anti-Oxidizing Gel

Step 1

Lay one Side Assembly on the floor or on a pair of sturdy saw

horses. Apply antioxidant paste to painted surfaces that the 3/8”

paint piercing washers will come in contact with. Install Base

Angles and Top Brackets using (8) 3/8” Bolts and Paint Piercing

Washers.

DO NOT TIGHTEN.

Note: The base angles are assembled on the bottom of the rack

and the top angles are assembled at the top of the rack. A dia-

mond on the outer face of each post indicates the bottom of the

rack. See closeup in Step 2.

(2) Side Channel Assembles

(2) Base Angles

(2) Top Bracket

(1) Hardware Kit

(25) 12-24 x.5” Screws

(16) Paint Piercing Washers

(16) 3/8 x 1” Bolts

(1) Tube of Anti-Oxidizing Gel

4 Post Rack and Accessories

R4P**CN** R4P****

Step 2

Place remaining Side Assembly as shown. Apply antioxidant paste to

painted surfaces that the 3/8” paint piercing washers will come in con-

tact with. Assemble to Base Angles using 3/8” Bolts and Paint Piercing

Washers. One of each per side.

DO NOT TIGHTEN.

Diamond indicates

bottom of rack

For Technical Support: www.panduit.com/resources/install_maintain.asp

INSTRUCTIONS CM396F

Page 2 of 4

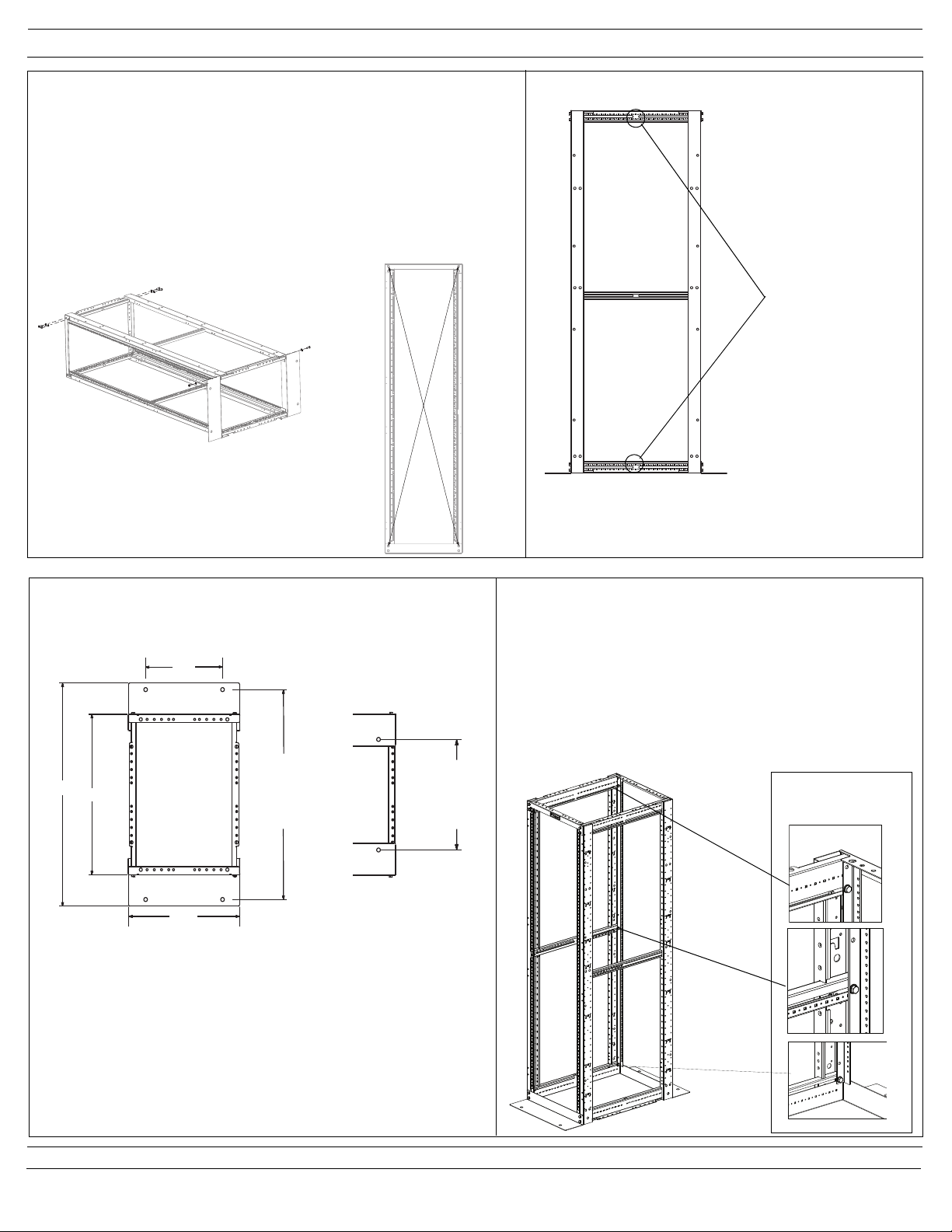

Step 3

Hinging Side Assembly on the two fasteners affixed in Step 2, rotate Side

Assembly upwards to align mounting holes in the two top brackets. Install

remaining (6) 3/8” Bolts and paint piercing washers in the locations shown

below. Stand the rack upright. Verify #12-24 tapped holes or Cage nuts are EIA

spaced at 18.31”. Square the rack by measuring the distance from A to D, and

B to C shown in 3.2. The difference in distance from A to D, and B to C should

be no greater than 1/8”. Completely tighten all bolts to at least

14 ft.-lbs(19.0 N-m)

3.1

3.2

Grounding

Two hole ground lug attachment located on the top and

bottom rails of the side channel assembly at the loca-

tions shown. Remove masking before installing.

Grounding Locations

42.00" 30.21"

23.25"

39.50"

Turned

Out

16.00"

20.70"

Turned

[32.50"]

Turned

Out

[13.70"]

Turned

{45.5”}

Turned

Out

*51.0”*

Turned

Out

{26.7”}

Turned

*32.2”*

Turned

Mount rack to floor using the location guide below for mounting

hole and overall size information.

Location Guide

Note: Floor Mounting Bolts must be used in all applications in order to

provide maximum rigidity, load bearing capacity and safety.The maximum

weight load is 2500 pounds. The weight load should be distributed evenly

across the height of the rack, with the heaviest components mounted at

the bottom of the rack.

X.XX are dimensions for 30” deep 4 post racks

[x.xx] are dimensions for 23” deep 4 post racks

{x.xx} are dimensions for 36” deep 4 post racks

*x.xx* are dimensions for 42” deep 4 post racks

Adjustable EIA Mounting Rails

All 4 rails are fully adjustable. To set depth loosen (3)5/16”-18 X

3/4” Mounting bolts and slide to desired position. Retighten to 20

foot pounds to engage washers.

Bolt Orientation

Panduit recommends putting the front rails 1” back for optimal ther-

mal and cable management.

Front rails are to be recessed less than 1.5” to be compatible with

newer thermal ducts.

For Technical Support: www.panduit.com/resources/install_maintain.asp

INSTRUCTIONS CM396F

Page 3 of 4

Flippable EIA Mounting Rails

The rack is shipped with rails in a numbers-up orientation. The rails can

be flipped to read in a numbers-down orientation by moving 1 right rail

and 1 left rail in tandem. Remove (3) 5/16”-18 X 3/4” Mounting Bolts on

each rail. Then flip right rail so that numbering reads down and bolt to

left side of assembly using bolt orientation shown. Then flip left rail so

that numbering reads down and bolt to right side of assembly using bolt

orientation shown.

Numbering-Up

Orientation

Numbering-Down

Orientation

Use J-Bolt mounting holes for

securing ladder rack to the 4-post

rack

CMR4PWF (for use with Patchrunner cable

managers only)

Apply Antioxidant Paste to painted surfaces that

the 3/8” paint piercing washers will come in con-

tact with.

Mounting Locations

Fig, 1

CVPPB- Zero RU Bracket- to mount 1RU

EIA 19” copper and fiber patch panels to the

side of rack posts.

CVPPB

Secure to desired hole location

using #12-24 Screws

Side of post installation

RSHLF- Shelf for 30”Deep rack

RSHLF23- Shelf for 23” Deep rack

RSHLF36- Shelf for 36” Deep rack

Mount bracket to

desired RU in rear of

rack

Slide shelf into slots in rear mounting bracket

Secure with (4) #12-24 Screws

#12-24 Screws

Shelf

Secure the waterfall as shown in Fig. 1 using

provided hardware.

(2) 1/4-20 bolts

(4) Paint piercing

washers

(2) 1/4-20 nuts

Note: Shelf load rating is 275 lbs. when rails are

spaced a minimum of half the shelf depth.

Note: Shelf is designed to support large net-

working equipment in combination with sup-

plied equipment mounting flanges

INSTRUCTIONS CM396F

For instuctions in Local Languages

and Technical Support:

www.panduit.com/resources/install_maintain.asp

E-mail:

[email protected]

Fax:

(708)444-6448

www.panduit.com

Page 4 of 4

Long POU’s

Part Numbers: CMRPSVD20TL, CMRPSVD20, RPSV243520TL5,

RPSV243620TL6

Affix Power Strip Mounting mounting brackets using #12-24 screws

provided into tapped holes in the front or the sides of the post. Power

Strip Mounting Brackets can also be mounted to the rear equipment

rails. To center the 66.25” vertical power strips mount L-Bracket at

RU spaces 03 and 43 for 7ft. 4 post racks. For 8ft. 4 post racks,

mount L-Bracket at RU spaces 06 and 46 or spaces 07 and 47. For

6.5ft. 4 post rack, flip bottom bracket 180oand mount L-bracket at

RU spaces 02 and 40. Mount power strip between brackets.

Power Strip

Front of post installation

Secure POU to brackets

Side of post installation

Short POU’s

Part Numbers: CMRPSV20, CMRPSV20TL

Secure brackets using

#12-24 Screws

Secure brackets using

#12-24 Screws

Note: Short POU’s may be orientated using one of

two post hole configurations, side or front of post

Configuration

Secure POU

to brackets

Side of post

installation

CVPDUB- Pair of Brackets for Vertical POU Button Mounting to the

side of the rack post.

CVPDUB

Align bracket to desired location on rack post,

then secure with #12-24 screws.

#12-24 Screws

#12-24 Screw

Fasten bridge lance on bracket to desired C-

shaped cutout on post (both brackets), then

secure with #12-24 screw.

CNSPE- Pair of end slack spools including spools and mounting

brackets.

CNSPE

C-shaped cutout on post

Bridge lance on

bracket

Front of post

installation

Flip bottom bracket 180o for 6.5ft. rack
