Paradox DGP2-641 Bedienungsanleitung

DIGIPLEX

EV0641 / EV0641 R

DGP2-641 BL / DGP2-641 RB DGP2-648BL

User Guide

For EVO Systems

We hope this product performs to your complete satisfaction. Should you have any questions or comments, please visit

www.paradox.com and send us your comments.

0X®

SECURITY

SYSTEMS

3.0 Partitioned System ~

Your installer can set your keypad to recognize separate protected areas. A separated system is called a partitioned system,

which can be useful in situations where shared security systems are more practical. For example, a company that has both

an office and a warehouse area, can arm and disarm each area separately while controlling access to each area. Therefore,

one person may have access to only one area, whereas another person may have access to all areas. Access to the areas is

determined by the User Access Code.

3.1 Area Display

The Area Status Display enables you to see the status of the individual areas within a

partitioned system. Your installer can partition the system into separate areas.

To view the status of the areas:

1. Enter your [ACCESS CODE], and then press the [1] button.

2. Press the button corresponding to the area (i.e. 1, 2,...8), or use the [.A.] and [T]

buttons and press [ENTER] when the area you want to view appears on the screen.

3. Press [CLEAR] to exit.

In Area Status Display mode, the following information will scroll on the LCD screen:

RERD'::!, if all zones in the selected area are closed.

/YDT RERD'::!: if zones in the selected area are open.

FRDln DDDR OPEIV: if there is an open zone within that area.

TROUBLHSJ: (section 8.0 on page 17) if a trouble has occurred.

RLRRl'lS /IVl'IEflD"?':::I: (section 5.3 on page 8) if an alarm has occurred.

RRl'IED; FO,'?CERRl'IED; INSTRIYT RRl'IED; STR'::!RRl'IED: displays the arming status of the selected

area.

In Area Status Display, the following will illuminate for the area selected:

The area lights (A1, A2, A3, and A4) if the associated area is armed. For example, if

you have selected area 3 and it is currently armed, A3 will illuminate.

The numericallight(s) representing any open zone(s) in a corresponding area or

areas.

The MEM action light if any alarms have occurred.

The TRBL action light if any troubles are occurring.

The STA vaction light if the area is Stay or Instant Armed.

The FORCE action light if the area is Force Armed.

The Bvp action light if zones are bypassed.

4 User Guide

4.0 Arming ;j7

II:;;;

When your system is armed, it can respond to any breach in the protected zones by causing an alarm and sending a report to

your monitoring station.

4.1 Exit Delay Timer 'V

When you arm your system, it will trigger the Exit Delay Timer to provide you with enough

time to exit the protected area before the system is armed.

4.2 Regular Arming I

This method is used for the everyday arming of your system. All zones within the

protected area must be closed to Regular arm the system.

To Regular arm the system:

1. Enter your [ACCESS CODE].

2. Press the [ARM] button.

3. If you have access to more than one area, select the area(s) you wish to Regular arm

(refer to section 3.1 on page 4).

4.3 StayArming V

Stay arming will partially arm your system to permit you to remain in your home or office

by arming the outer zones (perimeter) of the protected area (Le. doors and windows).

To Stay arm:

1. Enter your [ACCESS CODE].

2. Press the [STAY] button.

3. If you have access to more than one area, select the area(s) you wish to Stay arm

(refer to section 3.1 on page 4).

4.4 Instant Arming /

This feature is the same as Stay arming except that there is no Entry Delay. Therefore,

any armed zone that is breached will immediately generate an alarm.

To Instant arm:

1. Enter your [ACCESS CODE].

2. Press the [5] button.

3. If you have access to more than one area, select the area(s) you wish to Instant arm

(refer to section 3.1 on page 4).

4.5 Force Arming vi

Force arming allows you to quickly arm your system when zones are open. However,

once the open zone is closed, your system will then arm that zone as well.

To Force arm:

1. Enter your [ACCESS CODE].

2. Press the [FORCE] button.

3. If you have access to more than one area, select the area(s) you wish to Force arm

(refer to section 3.1 on page 4).

4.6 Bypass Programmingv' j

You can bypass certain zones when you arm the protected area(s). When a zone is

bypassed, it will be ignored the next time your system is armed. Once your area is

disarmed, the system will unbypass the zone.

To Bypass a zone:

1. Enter your [ACCESS CODE].

2. Press the [BYP] button.

Eva Systems5

3. Enter the zone number (Le. 01,02, ...96), or use the [.•.] and [T] buttons and press

[BVP] once the zone you want to bypass appears on the screen. If 8':JPRSSED, the byp

light does not appear on the screen and the keypad emits a rejection beep, you may

not have access to bypass that zone.

4. Repeat step 3 until all zones you want to bypass have been selected.

5. Press the [ENTER] button to save and exit.

To view all bypassed zones.

1. Enter your [ACCESS CODE].

2. Press the [BVP] button.

3. Scroll through the zones using the [.•.] and [T]buttons to view zone status. (LCD

Keypads)

In order to bypass azone, the following conditions must be met:

• The zone must have the Bypass option programmed by your installer.

• The Bypass option must be enabled in your User Options.

• Your user access code must have access to the zone's Area Assignment.

• The zone's area must be disarmed before the zone can be bypassed.

Fire Zones cannot be bypassed.

4.6.1 Bypass Recall

Bypass Recall reinstates the zones that were bypassed the last time your system

was armed.

To activate Bypass Recall:

1. Enter your [ACCESS CODE].

2. Press the [BVP] button.

3. Press the [MEM] button.

Zones bypassed the last time your system was armed are bypassed.

4. Press the [ENTER] button to save and exit.

4.6.2 One-Touch Buttons

If enabled by your installer, you can access the following features without using your user

access code by pressing and holding the desired One-Touch button.

Table 1: One Touch Button

[ARM]

[STAY]

[FORCE]

[BVP]

[DISARM]

[5]

[6]

[7]

Regular arm

Stay arm

Force arm

Bypass Programming

Disarm a Stayl/nstant armed area

Instant arm

Change display settings

View Event Record display (LCD Keypads only)

6 User Guide

4.7 Keyswitch Arming

A key can be used to arm and disarm your system using two forms of keyswitches. With

a Maintained Keyswitch, place the key in the "ON" position to arm your system, and

place the key in the "OFF" position to disarm your system. With a Momentary Keyswitch,

place the key in the "ON" position briefly then place it back in the "OFF" position to arm

the system. Repeat this process to disarm with a Momentary Keyswitch.

-- 7.3 How Access Control Works

To illustrate how Access Control functions, we will use three simple Access Control

System examples:

Access Level 01:

Door01 & 02

Schedule 01:

Monday to Friday from 9AM to 5PM

Sat., Sun., and Holidays from 10AM to 1PM

Bonnie's Access Control card is programmed with Access Level 01 and Schedule 01. If

she presents her card to the reader or the EV0641 R / DGP2-641 RB keypad on Door 02

on Tuesday, August 3 at 3:00 p.m., she will gain access to the room.

Access Level 01:

Door 01 & 02

Schedule 01:

Monday to Friday from 9AM to 5PM

Sat., Sun., and Holidays from 10AM to 1PM

Access Level 02:

Door01

Schedule 01:

Monday to Friday from 9AM to 5PM

Sat., Sun., and Holidays from 10AM to 1PM

16 User Guide

If Bonnie presents her card to the reader or the EV0641 R / DGP2-641 RB keypad on

Door 02 on Saturday or on a Holiday at 3:00 p.m., she will be denied access.

If we change Bonnie's Access Level to 02 and she presents her card to the reader or the

EV0641 R / DGP2-641 RB keypad on Door 02 on Tuesday, August 3 at 3:00 p.m., she will

be denied access.

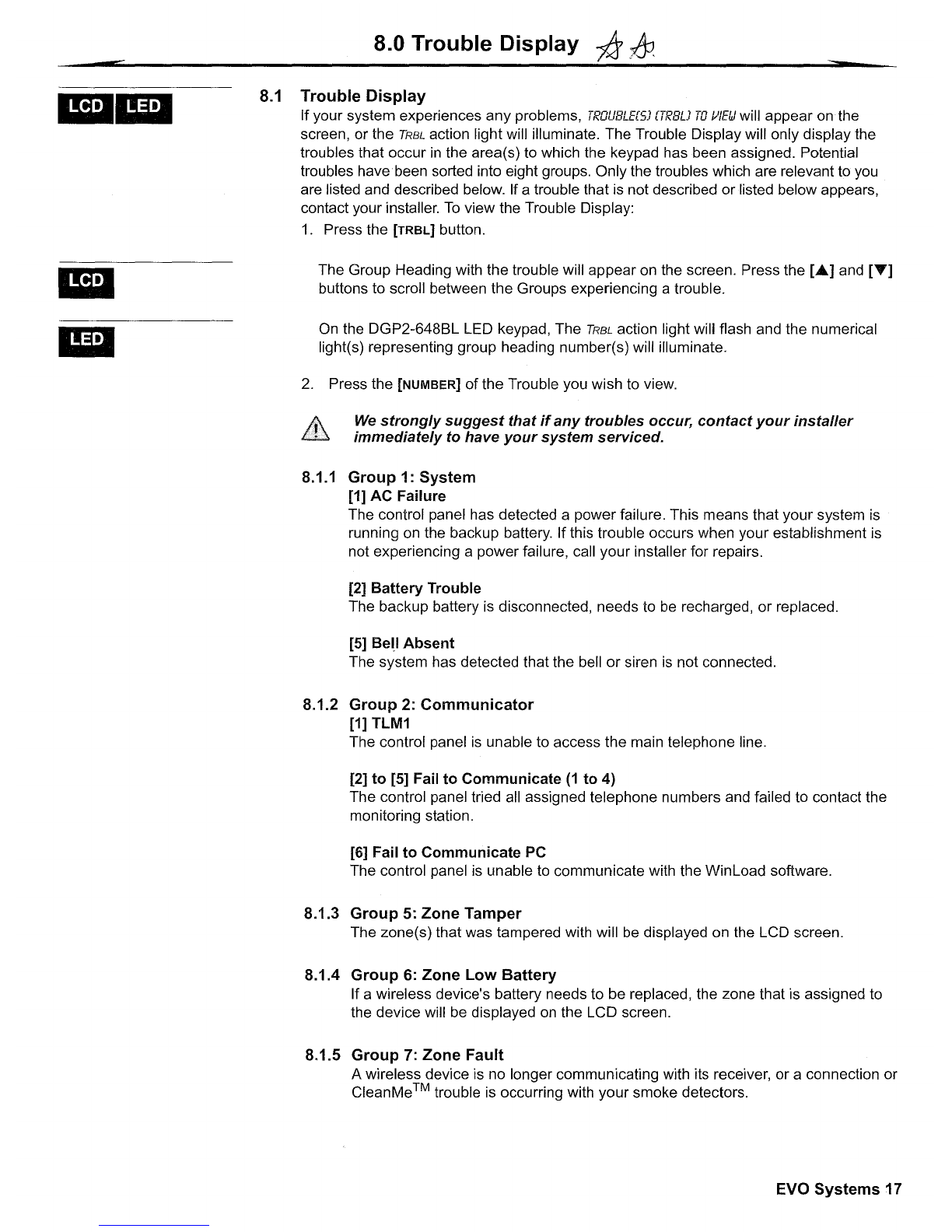

.:;;;;. 8.0 Trouble Display :if b;;:.

8.1 Trouble Display

If your system experiences any problems, TROUBLHSJ [TRBLY TO V/EIJ will appear on the

screen, or the TRBL action light will illuminate. The Trouble Display will only display the

troubles that occur in the area(s) to which the keypad has been assigned. Potential

troubles have been sorted into eight groups. Only the troubles which are relevant to you

are listed and described below. If a trouble that is not described or listed below appears,

contact your installer. To view the Trouble Display:

1. Press the [TRBL] button.

The Group Heading with the trouble will appear on the screen. Press the [..•.] and [T]

buttons to scroll between the Groups experiencing a trouble.

On the DGP2-648BL LED keypad, The TRBL action light will flash and the numerical

light(s) representing group heading number(s) will illuminate.

2. Press the [NUMBER] of the Trouble you wish to view.

Westrongly suggest that if any troubles occur, contact your installer

immediately to have your system serviced.

8.1.1 Group 1: System

[1] AC Failure

The control panel has detected a power failure. This means that your system is

running on the backup battery. If this trouble occurs when your establishment is

not experiencing a power failure, call your installer for repairs.

[2] Battery Trouble

The backup battery is disconnected, needs to be recharged, or replaced.

[5] Bel.!Absent

The system has detected that the bell or siren is not connected.

8.1.2 Group 2: Communicator

[1] TLM1

The control panel is unable to access the main telephone line.

[2] to [5] Fail to Communicate (1to 4)

The control panel tried all assigned telephone numbers and failed to contact the

monitoring station.

[6] Fail to Communicate PC

The control panel is unable to communicate with the WinLoad software.

8.1.3 Group 5: Zone Tamper

The zone(s) that was tampered with will be displayed on the LCD screen.

8.1.4 Group 6: Zone Low Battery

If a wireless device's battery needs to be replaced, the zone that is assigned to

the device will be displayed on the LCD screen.

8.1.5 Group 7: Zone Fault

A wireless device is no longer communicating with its receiver, or a connection or

CleanMe™trouble is occurring with your smoke detectors.

Eva Systems 17

18 User Guide

8.1.6 Group 8: Clock Loss

The time and date have been reset to the default. This is the only trouble that we

recommend that you correct. CLOCK LOSS [8] TO SET will appear on the LCD screen

after you press the [TRBL] button or the [(Ol] key. Refer to section 9.4 on page 19

to set the time and date.

8.2 Event Record Display

The Event Record Display will record the user-initiated actions that occurred in your

system as well as any alarms or troubles (i.e. "Access Granted"). You will only be able to

view the events that occurred in the area(s) assigned to your user access code.

-Only available on LCD keypads.

To view the Event Record:

1. Enter your [ACCESS CODE].

2. Press the [7] button.

3. If you have access to more than one area, select the area(s) you wish to view.

4. Use the [A.]and [T] buttons to scroll between the events.

5. Press the [CLEAR] button to exit.

Once you have entered Event Record Display mode, you can change the order that the

Event Record screens appear by pressing the [7] button. If you already know the number

of the event you want to view, press the [MEM] button after step 3 above, and then enter

the event's number.

Andere Handbücher für DGP2-641

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Paradox Sicherheitssystem Handbücher

Paradox

Paradox Marine Magel 6130 Bedienungsanleitung

Paradox

Paradox Digiplex EVO DGP2-640 Bedienungsanleitung

Paradox

Paradox SPECTRA 1727 Bedienungsanleitung

Paradox

Paradox Magellan MG5050 EN Bedienungsanleitung

Paradox

Paradox MAGELLAN MG6250 Bedienungsanleitung

Paradox

Paradox Spectra Bedienungsanleitung

Paradox

Paradox SP5500 Bedienungsanleitung

Paradox

Paradox MG5000 Bedienungsanleitung

Paradox

Paradox EVOHD+ Bedienungsanleitung

Paradox

Paradox Magellan DCT2 Bedienungsanleitung

Paradox

Paradox MG5000 Bedienungsanleitung

Paradox

Paradox Esprit 748 Express Betriebsanleitung

Paradox

Paradox Esprit 727 Bedienungsanleitung

Paradox

Paradox Esprit 738 EXPRESS Bedienungsanleitung

Paradox

Paradox Magellan K636 Bedienungsanleitung

Paradox

Paradox K07C Bedienungsanleitung

Paradox

Paradox IP100 Bedienungsanleitung

Paradox

Paradox ParaVox Bedienungsanleitung

Paradox

Paradox Magellan MG-6060 Bedienungsanleitung

Paradox

Paradox PGM4 Bedienungsanleitung

Paradox

Paradox Digiplex EVO DGP2-640 Bedienungsanleitung

Paradox

Paradox SR150 Bedienungsanleitung

Paradox

Paradox STAY D MG5000 Bedienungsanleitung

Paradox

Paradox Digiplex EVO48 V1.20 Bedienungsanleitung

Beliebte Sicherheitssystem Handbücher anderer Marken

Inner Range

Inner Range Concept 2000 Bedienungsanleitung

Climax

Climax Mobile Lite R32 Montageanleitung

CADDX

CADDX NX-6 Bedienungsanleitung

FBII

FBII XL-31 Series Bedienungsanleitung

Johnson Controls

Johnson Controls PENN Connected PC10 Bedienungsanleitung

Aeotec

Aeotec Siren Gen5 Bedienungsanleitung

Blaupunkt

Blaupunkt SA 2700 Bedienungsanleitung

IDEAL

IDEAL Accenta Betriebsanleitung

AJAX

AJAX DoubleButton Bedienungsanleitung

Swann

Swann SW-P-MC2 Bedienungsanleitung

Ecolink

Ecolink Siren+Chime Bedienungsanleitung

Digital Monitoring Products

Digital Monitoring Products XR150 Bedienungsanleitung

EDM

EDM Solution 6+6 Wireless-AE Bedienungsanleitung

Highway Safety Group

Highway Safety Group EA401 Bedienungsanleitung

Siren

Siren LED GSM Bedienungsanleitung

Detection Systems

Detection Systems 7090i Montageanleitung

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Bedienungsanleitung

Siemens

Siemens FDM273 Bedienungsanleitung
