Paradyne MIM-4E1 Bedienungsanleitung

MIM4-A2-GZ42-00 June 2005 1

MIM-4E1

Installation Instructions

Document Number MIM4-A2-GZ42-00

June 2005

Contents

Software and Firmware License Agreement ...................................................... 1

Unpacking and Inspecting the Equipment ......................................................... 3

Installing the MIM-4E1 ....................................................................................... 3

Connecting the E1 Lines .................................................................................... 4

E1 RJ48C Pinouts ............................................................................................. 5

E1 Default Settings ............................................................................................ 5

E1 Parameter Configuration .............................................................................. 6

LED Indicators ................................................................................................... 7

Regulatory Notices ............................................................................................ 7

Warranty, Sales, Service, and Training Information ........................................... 8

Product Documentation Online .......................................................................... 8

Software and Firmware License Agreement

The terms and conditions of this License Agreement (the “Agreement”) will apply

to the software and/or firmware (individually or collectively the “Software”)

incorporated into the Paradyne product (the “Product”) purchased by you and any

derivatives obtained from the Software, including any copy of either. If you have

executed a separate written agreement covering the Software supplied to you

under this purchase, such separate written agreement shall govern.

Paradyne Corporation (“Paradyne”) grants to you, and you (“Licensee”) agree to

accept a personal, non-transferable, non-exclusive, right (without the right to

ONCE YOU HAVE READ THIS LICENSE AGREEMENT AND AGREE TO ITS

TERMS, YOU MAY USE THE SOFTWARE AND/OR FIRMWARE INCORPORATED

INTO THE PARADYNE PRODUCT. BY USING THE PARADYNE PRODUCT YOU

SHOW YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE AGREEMENT.

IN THE EVENT THAT YOU DO NOT AGREE WITH ANY OF THE TERMS OF THIS

LICENSE AGREEMENT, PROMPTLY RETURN THE UNUSED PRODUCT IN ITS

ORIGINAL PACKAGING AND YOUR SALES RECEIPT OR INVOICE TO THE

LOCATION WHERE YOU OBTAINED THE PARADYNE PRODUCT OR THE

LOCATION FROM WHICH IT WAS SHIPPED TO YOU, AS APPLICABLE, AND YOU

WILL RECEIVE A REFUND OR CREDIT FOR THE PARADYNE PRODUCT

PURCHASED BY YOU.

2June 2005 MIM4-A2-GZ42-00

sublicense) to use the Software, solely as it is intended and solely as incorporated

in the Product purchased from Paradyne or its authorized distributor or reseller

under the following terms and conditions:

1. Ownership: The Software is the sole property of Paradyne and/or its licensors.

The Licensee acquires no title, right or interest in the Software other than the

license granted under this Agreement.

2. Licensee shall not use the Software in any country other than the country in

which the Product was rightfully purchased except upon prior written notice to

Paradyne and an agreement in writing to additional terms.

3. The Licensee shall not reverse engineer, decompile or disassemble the

Software in whole or in part.

4. The Licensee shall not copy the Software except for a single archival copy.

5. Except for the Product warranty contained in the manual, the Software is

provided “AS IS” and in its present state and condition and Paradyne makes

no other warranty whatsoever with respect to the Product purchased by you.

THIS AGREEMENT EXPRESSLY EXCLUDES ALL OTHER WARRANTIES,

WHETHER EXPRESS OR IMPLIED, OR ORAL OR WRITTEN, INCLUDING

WITHOUT LIMITATION:

a. Any warranty that the Software is error-free, will operate uninterrupted in

your operating environment, or is compatible with any equipment or

software configurations; and

b. ANY AND ALL IMPLIED WARRANTIES, INCLUDING WITHOUT

LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS

FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT.

Some states or other jurisdictions do not allow the exclusion of implied

warranties on limitations on how long an implied warranty lasts, so the above

limitations may not apply to you. This warranty gives you specific legal rights,

and you may also have other rights which vary from one state or jurisdiction to

another.

6. In no event will Paradyne be liable to Licensee for any consequential,

incidental, punitive or special damages, including any lost profits or lost

savings, loss of business information or business interruption or other

pecuniary loss arising out of the use or inability to use the Software, whether

based on contract, tort, warranty or other legal or equitable grounds, even if

Paradyne has been advised of the possibility of such damages, or for any

claim by any third party.

7. The rights granted under this Agreement may not be assigned, sublicensed or

otherwise transferred by the Licensee to any third party without the prior

written consent of Paradyne.

8. This Agreement and the license granted under this Agreement shall be

terminated in the event of breach by the Licensee of any provisions of this

Agreement.

9. Upon such termination, the Licensee shall refrain from any further use of the

Software and destroy the original and all copies of the Software in the

possession of Licensee together with all documentation and related materials.

10. This Agreement shall be governed by the laws of the State of Florida, without

regard to its provisions concerning conflicts of laws.

MIM4-A2-GZ42-00 June 2005 3

Unpacking and Inspecting the Equipment

HANDLING PRECAUTIONS FOR

STATIC-SENSITIVE DEVICES

This product is designed to protect sensitive components from damage

due to electrostatic discharge (ESD) during normal operation. When

performing installation procedures, however, take proper static control

precautions to prevent damage to equipment. If you are not sure of the

proper static control precautions, contact your nearest sales or service

representative.

If there is any visible damage, do not attempt to install the MIM-4E1; contact your

sales representative.

Installing the MIM-4E1

The MIM-4E1 Micro Interface Module provides additional uplink ports for the

4929 DSLAM or BSX8000-5 Broadband Services Switch.

NOTE: All MIMs are hot swappable, although removal of a MIM disengages the

upstream network connection for the DSLAM.

Procedure

1. Using a flat-head screwdriver to loosen the fastening screws, remove the

cover plate from the MIM port on the front of your 4929 or BSX8000.

CAUTION: The cover plate should be stored for possible future use: if the MIM

is removed from your 4929 or BSX-8000, it must be replaced with either

another MIM or a cover plate. Do not operate a 4929 or BSX8000 with an

open MIM port.

2. Align the MIM-4E1 with the module guides inside the MIM port.

3. Slide the MIM-4E1 firmly into place. Do not use excessive force.

4. Secure the MIM-4E1 by tightening the fastening screws on the MIM faceplate

with a flat-head screwdriver.

MIM-4T1/E1

05-17671

Lnk/Alm 1Act Lnk/Alm 2Act Lnk/Alm 3Act Lnk/Alm 4Act

4June 2005 MIM4-A2-GZ42-00

Connecting the E1 Lines

A primary feature of the MIM-4E1 is loop bonding capability, though the module

can function with a single E1 connection as well.

NOTE: A MIM-4E1 must be connected with E1 provider equipment; a connection

between the MIM-4E1 and E1 subscriber equipment will not function.

Loop Bonded Connection

Using multiple E1 lines for one network connection (loop bonding ) multiplies the

speed and data passing capability of the connection. Multiple E1 lines also provide

backup should any of the lines become disabled. A MIM-4E1 can only establish

loop bonded connections with other loop bonding capable E1 provider equipment;

refer to the E1 Loop Bonding Product to Product Feature Compatibility list

(Document Number COMP-A2-GK43 ).

Procedure

1. If ferrite chokes are supplied with your MIM:

— Open a ferrite choke.

— One or two cables will fit in the ferrite choke. Make a loop at the end of

your cables and close them in the ferrite choke. Position the choke as

close as possible to the RJ48C connectors.

— Snap shut the ferrite choke.

2. Plug your E1 cables into the E1 RJ48C ports on the MIM-4E1 faceplate; the

order of connection is not important.

3. Verify all connections: the Port 1 and Port 2 Lnk LEDs on the MIM-4E1

faceplate will flash green to indicate the connections are established and

operational.

Single E1 Connection

A single line connection may be established between a MIM-4E1 and Paradyne’s

E1 provider equipment (stand-alone or IP DSLAM module), regardless of loop

bonding capability.

04-17593

MIM4-A2-GZ42-00 June 2005 5

Procedure

1. If a ferrite choke is supplied with your MIM:

— Open the ferrite choke.

— Make a loop at the end of your cable and close it in the ferrite choke.

Position the choke as close as possible to the RJ48C connector.

— Snap shut the ferrite choke.

2. Plug your E1 cable into one of the E1 RJ48C ports on the MIM-4E1. Any port

may be used.

3. Verify the connection: the E1 link LED on the front of the MIM will flash green

to indicate the connection is established and operational.

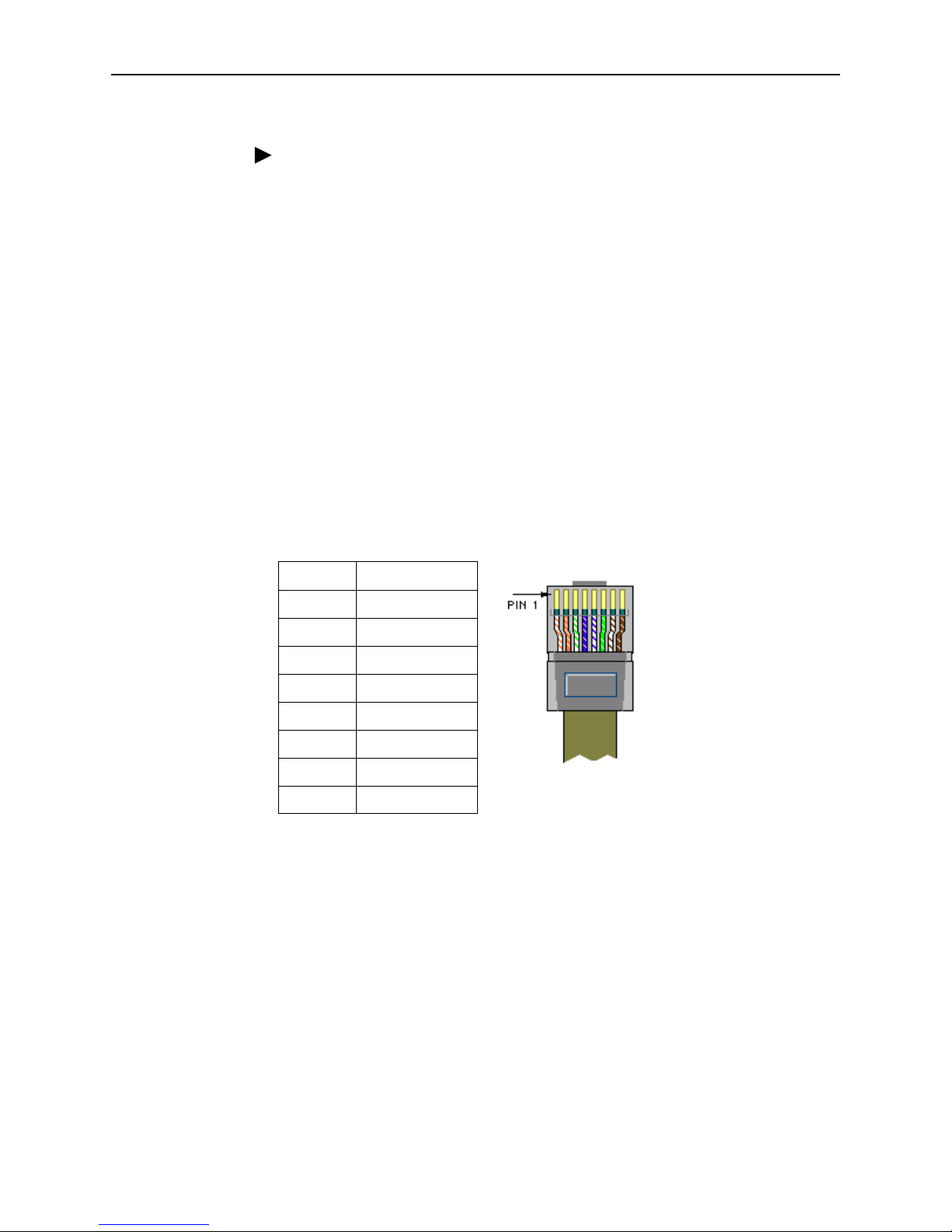

E1 RJ48C Pinouts

If you are using a shielded E1 cable for your network connection, it must be

grounded through pins 3, 6, 7, and 8.

E1 Default Settings

No configuration is necessary for the MIM-4E1 to operate at default settings:

Speed: Adaptive. The MIM-4E1 determines timeslot and bandwidth

configurations via communication with the remote E1 equipment to which it is

connected. Each E1 connection has the capability of receiving data across all

31 channels at 1,984 kbps.

Frame Type: Cyclic Redundancy Check (CRC)

Line Code: High Density Binary 3 (HDB3)

Timing: Adaptive. The MIM-4E1 determines clock source via communication

with the remote E1 equipment to which it is connected.

PIN CONNECTION

1RxRing

2 Rx Tip

3 not used

4 Tx Ring

5 Tx Tip

6 not used

7 not used

8 not used

6June 2005 MIM4-A2-GZ42-00

E1 Parameter Configuration

MIM-4E1 parameters may be configured using the web-based Network

Management System (NMS). Refer to the NMS User’s Guide (Document Number

NMS-A2-GB20) for detailed instructions.

Frame Type

Frame type is the E1 data encapsulation method. A frame consists of 248 bits

(8-bit samples of each of the 31 E1 data channels) plus 8 bits of overhead

transmitted at a rate of 8,000 frames per second (1.984 kbps) across the E1 line.

Cyclic Redundancy Check (Default) – Cyclic Redundancy Check (CRC)

scrutinizes data integrity across the E1 line by appending a hexadecimal

checksum to the end of each E1 frame (calculated from the previous E1 frame

contents). The remote modem then makes a similar calculation upon receipt of

each E1 frame and compares it to the checksum of the ensuing E1 frame.

No Cyclic Redundancy Check – NMS offers an option to disable the Cyclic

Redundancy Check function.

Line Code

Line code is the E1 mode of transmission. The two line code options outlined

below both fall within the International Telecommunication Union -

Telecommunication Standardization Sector (ITU-T) G.703 Standards for

Transmission Facilities.

High Density Binary 3 (Default) – High Density Binary 3 (HDB3) is used to

accommodate the minimum ones density requirement in the European public

network. HDB3 line encoding helps prevent loss of synchronization between

the MIM-4E1 and remote E1 equipment by using bipolar violations to

guarantee the presence of pulses in the E1 line.

Alternate Mark Inversion – Alternate Mark Inversion (AMI) simply alternates

positive and negative pulses. Although AMI links typically encounter long

strings of zeros which can potentially cause loss of synchronization between

units, Paradyne products meet the European minimum ones density

requirement internally such that loss of synchronization is prevented between

the MIM-4E1 and remote E1 equipment with AMI just as it is with HDB3.

MIM4-A2-GZ42-00 June 2005 7

LED Indicators

Regulatory Notices

UNITED STATES – EMI NOTICE:

This equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is

likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

The authority to operate this equipment is conditioned by the

requirements that no modifications will be made to the equipment

unless the changes or modifications are expressly approved by

Paradyne Corporation.

Table 1. LEDs

LED STATE INDICATION

ADDITIONAL

INFORMATION

Lnk/Alm

(Port 1 – Port 4)

Flashing Green* Connection is established

and active.

Traffic is flowing.

Solid Green Problematic connection. A connection exists but no data

is being passed.

No Illumination Red Alarm. The incoming

connection to the MIM has

been lost; no data is being

received.

If the outgoing connection from

the MIM has also been lost

then the remote E1 equipment

to which the MIM is connected

will be in Red Alarm as well.

Solid Amber Yellow Alarm. The outgoing

connection from the MIM

has been lost; no data is

being transmitted.

The remote E1 equipment has

lost its incoming connection

and is in Red Alarm.

Pulsing Amber Blue Alarm. An indirect

connection has been lost;

the MIM may no longer be

receiving data from the

remote E1 equipment.

The remote E1 equipment has

lost a connection with an

intermediate device and is in

Red or Yellow Alarm.

Act

(Port 1 – Port 4)

Flashing Green Transmitting data.

Flashing Amber Receiving data.

*A pulsing LED blinks steadily at a rate of once per second. A flashing LED blinks at a more rapid,

less constant rate.

8June 2005 MIM4-A2-GZ42-00

CANADA – EMI NOTICE:

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003

du Canada.

EUROPEAN REGULATORY COMPLIANCE

The following regulatory compliance information applies to the MIM-4E1

as installed in the 4929 DSLAM or BSX8000-5 Broadband Services

Switch:

This Class A product complies with European Norm EN55022.

Warning: In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate

measures to correct the situation.

Warranty, Sales, Service, and Training Information

Contact your local sales representative, service representative, or distributor

directly for any help needed. For additional information concerning warranty, sales,

service, repair, installation, documentation, training, distributor locations, or

Paradyne worldwide office locations, use one of the following methods:

Internet: Visit the Paradyne World Wide Web site at www.paradyne.com.

(Be sure to register your warranty at www.paradyne.com/warranty.)

Telephone: Call our automated system to receive current information by fax or

to speak with a company representative.

— Within the U.S.A., call 1-800-870-2221

— Outside the U.S.A., call 1-727-530-2340

Product Documentation Online

Complete documentation for Paradyne products is available at

www.paradyne.com. Select Support →Technical Manuals.

To order a paper copy of a Paradyne document, or to speak with a sales representative,

please call 1-727-530-2000.

*MIM4-A2-GZ42-00*

Inhaltsverzeichnis

Andere Paradyne Netzwerk-Hardware Handbücher

Paradyne

Paradyne COMSPHERE 3610 Bedienungsanleitung

Paradyne

Paradyne iMarc DSL 9720 CSU/DSU Bedienungsanleitung

Paradyne

Paradyne Comsphere 3510 Bedienungsanleitung

Paradyne

Paradyne COMSPHERE 3610 Stücklistenhandbuch

Paradyne

Paradyne MIM-4000F Bedienungsanleitung

Paradyne

Paradyne Hotwire 5446 Bedienungsanleitung

Paradyne

Paradyne COMSPHERE 3610 Bedienungsanleitung

Paradyne

Paradyne Jetstream CPX-1000 Bedienungsanleitung

Paradyne

Paradyne 9126 Bedienungsanleitung

Paradyne

Paradyne FrameSaver SLV 9626 Bedienungsanleitung

Paradyne

Paradyne FrameSaver NP 64+ Bedienungsanleitung

Paradyne

Paradyne Dual DSU 7511 Bedienungsanleitung

Paradyne

Paradyne COMSPHERE 6700 Series Bedienungsanleitung

Paradyne

Paradyne 24-Port SHDSL Mini DSLAM SMD2000-24T Bedienungsanleitung

Paradyne

Paradyne T1 Access Mux 916x Gebrauchs- und Pflegehandbuch

Paradyne

Paradyne COMSPHERE 3610 Bedienungs- und Wartungshandbuch

Paradyne

Paradyne Application Module 9109 OCU-DP Bedienungsanleitung

Paradyne

Paradyne COMSPHERE 3800PLUS Bedienungsanleitung

Paradyne

Paradyne 7610 SNMP DSU Bedienungsanleitung

Paradyne

Paradyne 3163 Bedienungsanleitung

Paradyne

Paradyne BitStorm 2600 Bedienungsanleitung

Paradyne

Paradyne Hotwire 5216 Bedienungsanleitung

Paradyne

Paradyne Hotwire 5620 RTU Bedienungsanleitung

Paradyne

Paradyne JetFusion Integrated Access Device Bedienungsanleitung

Beliebte Netzwerk-Hardware Handbücher anderer Marken

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Bedienungsanleitung

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Bedienungsanleitung

Yudor

Yudor YDS-16 Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-320L Bedienungsanleitung

Samsung

Samsung ES1642dc Gebrauchsanweisung

Honeywell Home

Honeywell Home LTEM-PV Montageanleitung

evertz

evertz 7700 Series Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-343 Bedienungsanleitung

Asante

Asante AsanteBridge 1012 Bedienungsanleitung

FireBrick

FireBrick FB2700 Bedienungsanleitung

Audiovox Electronics

Audiovox Electronics ARWH2T Bedienungsanleitung

ADC

ADC DSX-1 Handbuch

NetComm

NetComm NF2 Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 5620 Bedienungsanleitung

Dell EMC

Dell EMC XC6420 Series Bedienungsanleitung

Lanner

Lanner NCA-1020A Bedienungsanleitung

Allied Telesis

Allied Telesis AT-TN121-A Bedienungsanleitung

Arista

Arista CCA-ETM-Q12 Bedienungsanleitung
