33000-A2-GZ52-00 March 1996

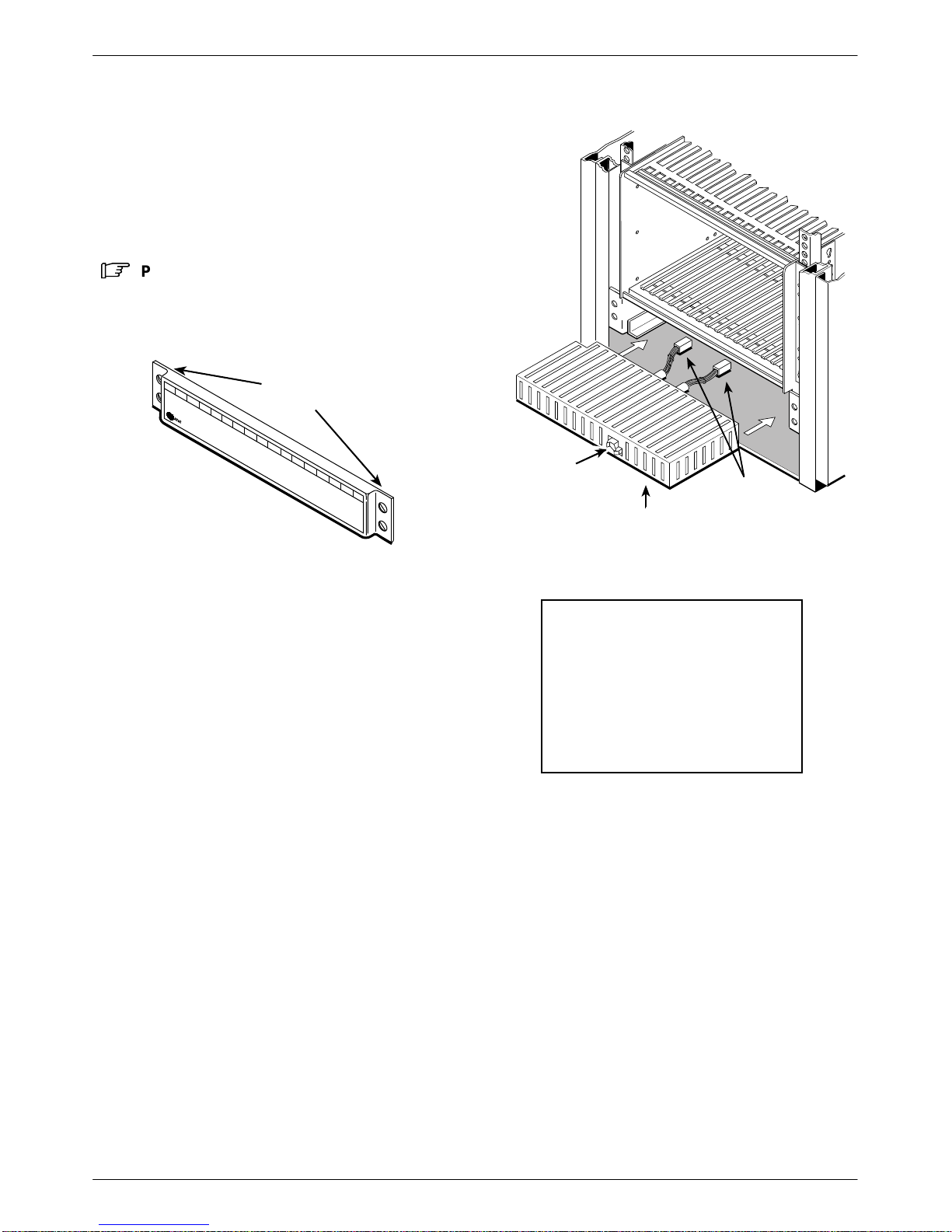

3. At the rear of the carrier, use a screwdriver to
engage and tighten the two captive screws that
fasten the power transformer unit to the carrier.
P26 P25 P24 P23
P20 P19
J2 P22 J1 P21
496-1489
Captive
Screws
4. Plug the power transformer output connectors into
the P19 and P20 connectors on the backplane and
latch them.
CAUTION
The power cord contains a
3-wire grounding-type plug
which has a grounding pin.
This is a safety feature.
Grounding of the carrier is
vital to ensure safe operation.
Do not defeat the purpose of
the grounding plug by
modifying it or by using an
adapter.
Prior to installation, use an
outlet tester or voltmeter to
check the ac receptacle for
earth ground. If the power
source does not provide a
ground connection, consult an
electrician to determine
another method of grounding
the carrier before proceeding
with the installation.
5. Plug the appropriate end of the power cord into
the ac receptacle on the carrier.
P26 P25 P24 P23
P20 P19
J2 P22 J1 P21
P20 P19
496-14804-0
AC
Receptacle
6. Plug the other end of the power cord into one of
the convenience outlets inside the cabinet, or to an
external ac outlet.
7. If you are not installing a fan module or SDCP,
return to the front of the carrier and replace the
cover plate. Tighten the four captive screws.
Refer to Document Number 3000-A2-GA31,
COMSPHERE 3000 Series Carrier Installation Manual,
for additional carrier installation details.
