Zamp Quattro Four Channel Amplifier
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
360 Watt RMS Dual Zone Half Rack Space Power Amplifier
The Zamp
Quattro is an ultra-compact class D amplifier that produces an impressive 50 watts
x
4 8
Ω) and
90
watts
x
4
4
Ω) with all channels driven. Class D amplifiers made for custom installation typically use
inexpensive car audio amp chips - and they sound like it. The Zamp
Quattro uses a class AB input stage to
drive advanced Class D modules which use high-grade parts throughout. The result is sound
quality that
surpasses many full-size power amps
. The Zamp
Quattro’s numerous advantages include higher
power output with less heat, unconditional stability with low impedance speaker loads and effective
protection from accidentally short-circuited speaker wires.
The Zamp
Quattro can expand any audio system because we’ve included speaker level inputs to integrate
stereo receivers that don’t have preamp outputs. An input bus switch makes it easy for Zone 1 and Zone
2 to play the same source. Level controls for each channel make volume setup easy and are rear-
mounted to prevent client tampering. The speaker terminals accept up to 12AWG wire and are
removable to make installation easier. Automatic turn on options include a 12-volt input and an audio
trigger with two sensitivity settings.
The Parasound Zamp
Quattro is finished in anodized black with rack-mount capability. Optional
accessories include a matching blank panel to rack mount a single unit in a standard rack and a panel
coupler to rack mount any two Z Custom models. The half-rack width Zrack is also available to mount up
to five Z-Custom components.
Typical Zamp Quattro Applications
Power multiple zones from an AV receiver
Combine with 1 or 2 Sonos® Connects® to power multiple zones
Expand zones from any multi-room audio controller
Integrate with older or low-priced stereo receivers without pre-outs
Rack mount four Zamp Quattros for 16 channels in 2 rack spaces
Almost all surround sound receivers
have outputs for at least one extra zone
and many have two. The Zamp Quattro
is a great way to take advantage of
these extra Zones and power additional
rooms of audio.
Stereo receivers and older home
theater receivers often don t have
preamp outputs and that is why the
Zamp Quattro includes speaker level
inputs. With the addition of these
speakers level inputs any existing audio
system can be expanded with additional
rooms of audio.
The Zamp Quattro is a great companion
to one or two Sonos® Connects. With
just one Connect® you can set the ZONE
2 SOURCE SELECT switch so that both
zones will play from one Connect®.
With two Connects you can have two
zones that play music independently.
Sonos® and Connect® are registered trademarks of Sonos Inc.
Rack mount multiple Zamp Quattros
6 Zamp Quattros only occupy 3 rack
spaces but can power 24 speakers in 12
independent rooms with a total of
2160 Watts RMS !

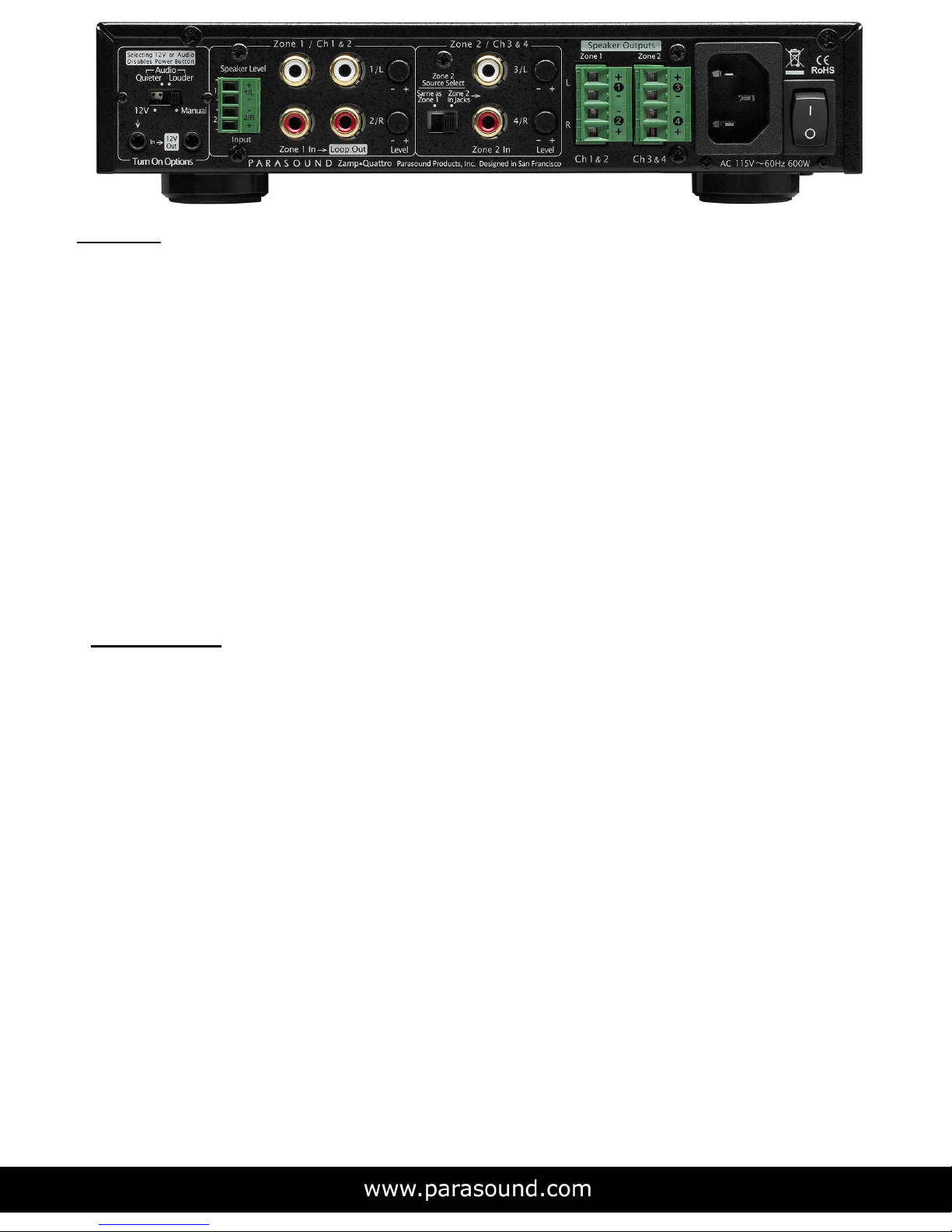

We Couldn’t Put More on The Quattro’s Rear Panel
(Seriousl , we tried)
We Couldn’t Fit More in The Quattro’s Interior
(Seriousl , we tried)
Features:
- Four channels in the same size chassis as a Zamp v.3
- 50 watts RMS x 4 @ 8
Ω
, all channels driven
- 90 watts RMS x 4 @ 4
Ω
, all channels driven
- Class AB input stage plus premium Class D power stage
- Speaker level input works with stereo receivers without pre outs jacks
- Bus switch to loop Zone 1 to Zone 2 so both zones play the same music
- Audio trigger with two sensitivity settings for automatic turn on
- 12v trigger input for automatic turn on
- Powered 12v output to trigger other devices
- Loop output jacks for passing audio to another amplifier
- Separate level controls for all four channels
- Detachable Phoenix-style speaker connectors accept up to 12AWG wire
- Short circuit and overheat protection with front panel indicators
- Unique half-rack width chassis 1 rack space high)
- Hardware available for mounting in a standard size rack
Specifications:
Power Output - All Channels Driven
50 watts RMS x 4, (20 Hz - 20 kHz, 8Ω)
90 watts RMS x 4, (20 Hz - 20 kHz, 4Ω)
Total Harmonic Distortion: < .05 % at typical list ning l v ls / < 1 % at full pow r
S/N Ratio: > 112 dB, input short d (IHF A-w ight d)
Interchannel Crosstal : 70 dB at 20 kHz
Input Sensitivity/Gain: 700mV = Full output (50 Watts @ 8 Ω) / 29dB
AC Power Requirement:
600 Watts Maximum / 50 Watts Typical / 15 Watts Idl (no audio) / 0.5 Watts Standby
110-130 VAC 60 Hz or 220-240 VAC 50 Hz (s t only by qualifi d l ctronics t chnician)
Dimensions:
Width: 9.5” (241 mm)
D pth: 10” (254 mm)
H ight, with f t: 2” (51 mm)
H ight, without f t: 1.75” (45 mm)
Weight: N t: 4.5 lbs (2.0kg) / Shipping: 7.5 lbs (3.4kg)
Rac Mount Accessory (purchas d s parat ly):
SBS: Locks two Z Custom compon nts tog th r for mounting in a standard rack spac
Zblank: Pan l xt nd r to mount on Z Custom compon nt in a standard rack spac
Zrack: Half width rack that holds up to 5 Parasound Z Custom compon nts
Parasound Products, Inc., 2250 McKinnon Ave., San Francisco, CA 94124 / 415 39 - 100
For more photos, features, specifications and product manuals, please visit our website.
