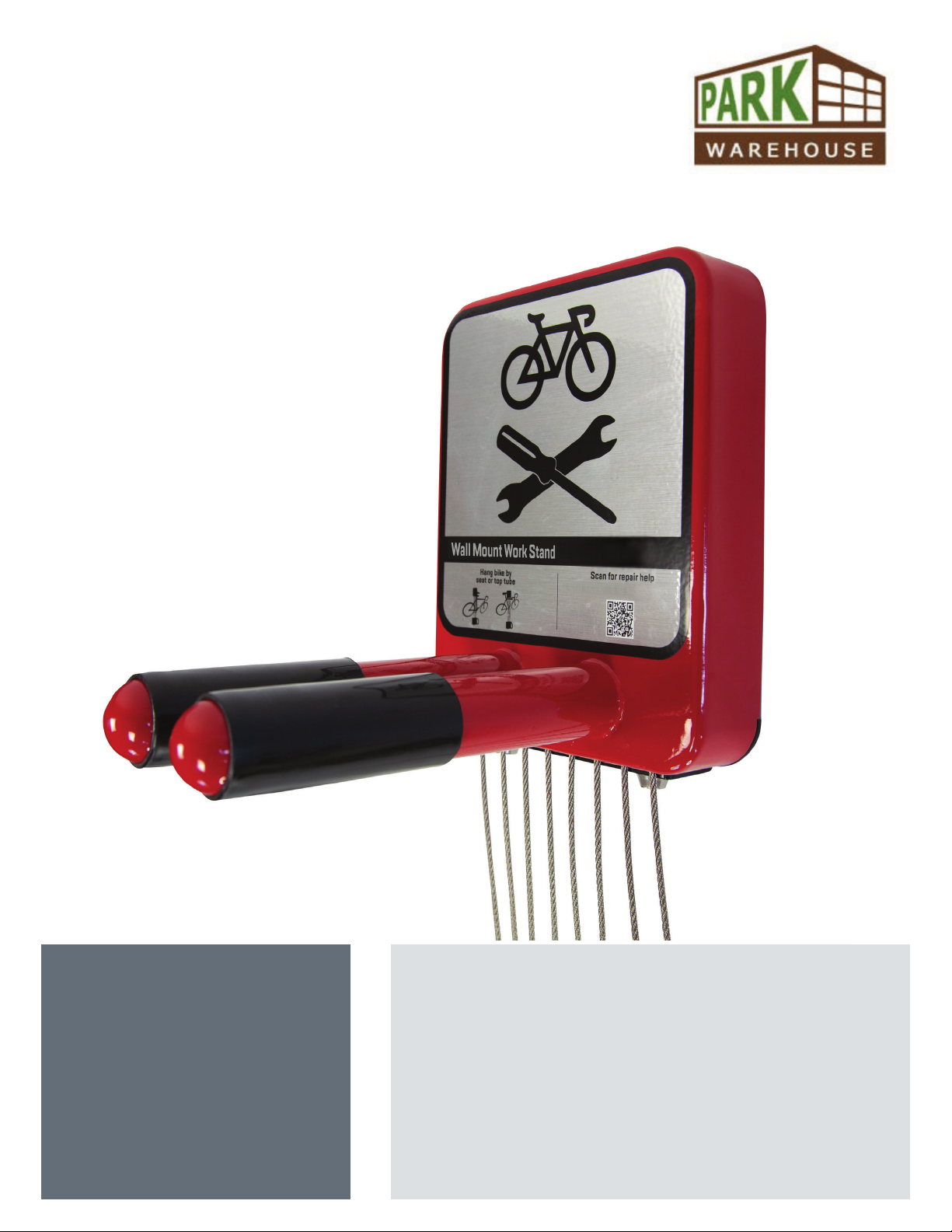

Space doesn’t have to be a limiting

factor when it comes to making a DIY,

public-use bicycle repair area. The Wall

Mount Work Stand is a super tough,

wall-mounted option for providing

access to the most commonly used

bicycle repair tools. When paired with

a manual or Electric Pump, you’ve got a

VXSHUVSDFHHIéFLHQW',<ELF\FOHUHSDLU

area that cyclists will love!

Product Speciﬁcations

WALL MOUNT

WORK STAND

• Optional galvanized Wall Plate to protect the wall from tool

strikes and meets ADA compliance

• Designed for Indoor or Outdoor use

• Wall mount design; small footprint is perfect for small spaces

• Pairs perfectly with manual or Electric Public Bike Pump

• Tools securely attached by braided stainless steel cables

Sku: 537br130

Made in

the USA

2 year

warranty

Thick-walled steel Powder Coat

Recommended Setbacks

Wall Mount Work Stand

Dimensions

Model # Description Type of Mount Weight Length Width Height Space

Requirement

537br130 Wall Mount Work Stand Wall Mount 29 lbs. 16” 11” 61” See Setback

The Wall Mount Work Stand is very versatile in where it can be installed.

We recommend that it is placed in a location that allows a bicycle to

access it either perpendicular or horizontal to the wall.

















• Philips & standard screwdrivers

• Steel core tire levers (2)

• Headset/pedal wrench

• 8/10mm cone wrench

• 9/11mm cone wrench

• Torx T-25

• Hex key set

Tools Included

Standard Colors

Tools Needed Recommended Setbacks:

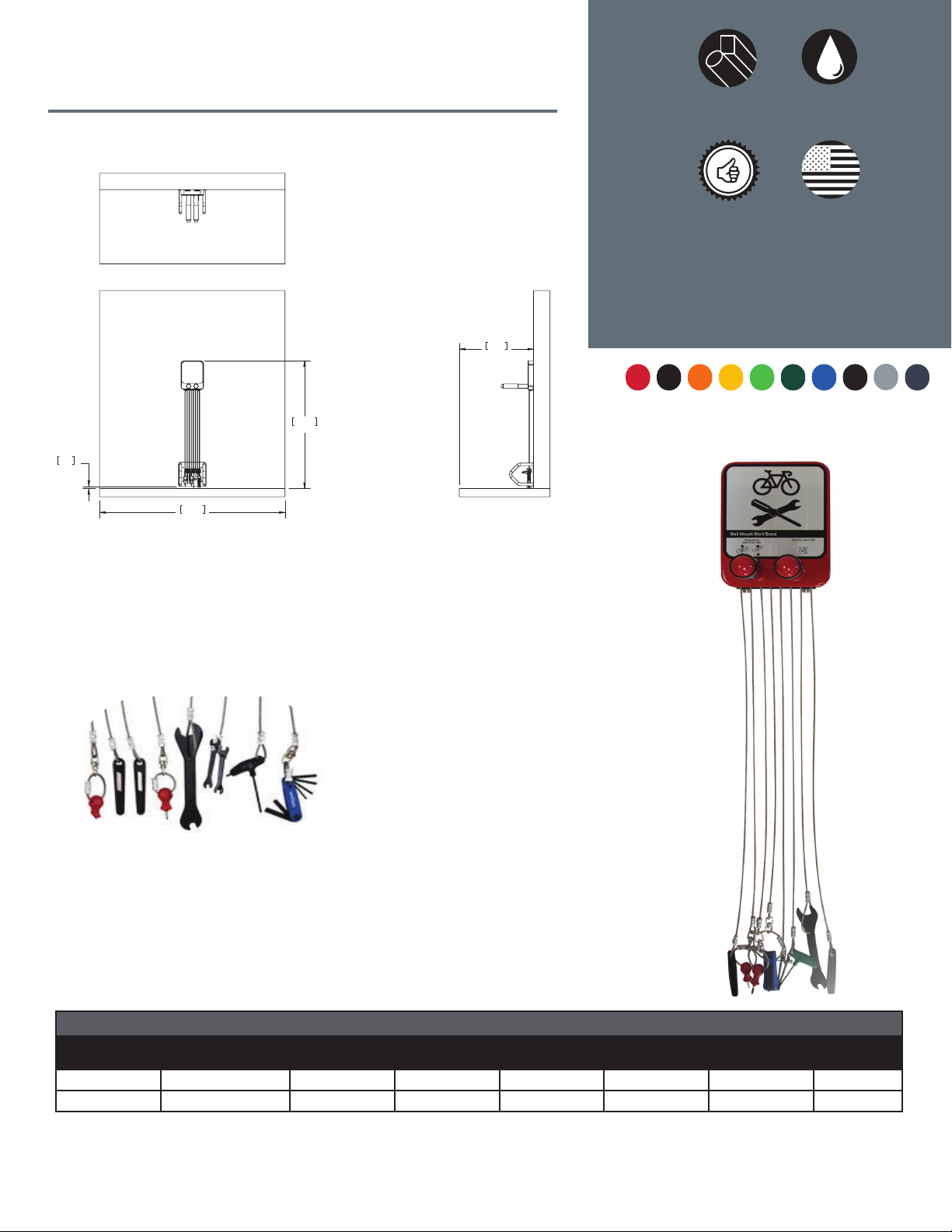

Figure 1: Setbacks

See Figure 1 below for minimum space requirements. It is possible to

mount a manual or electric pump within this setback region as well.

Drill and drill bits (mounting hard-

ware dependent)

Phillips Screwdriver

Mounting Hardware (location

dependent)

Penta Nut Socket (included)

3/8” drive ratchet

Marker or Pencil

Level

Tape Measure

Wall Mounting Instructions

1. Identify mounting location and be sure to follow recommended setbacks. The top of the work stand should be

mounted at 62” (157.5cm) from the ground. If installing on a vending machine, mount in a position that does

not inhibit the door opening (we usually mount on the left side of the machine).

2. Choose appropriate fasteners for your mounting surface.

a. If mounting to sheet metal, we recommend using #14 sheet metal screws no longer than 3/4” (20mm). If

mounting into concrete, we recommend using a ¼” masonry screw.

b. If mounting into wood framing, we recommend using #14 wood screws.

c. If installing into drywall, we recommend drywall toggle anchor (typically rated to 100+ lbs. each) that uses at

least a #12 screw size (and installing all 4).

d. If installing into a stud wall, it is possible to use a #14 wood into 1 stud and toggle anchors into the other 2

holes that do not line up with a stud.

3. Once the back plate is secured, load the tools to the front cover as shown.

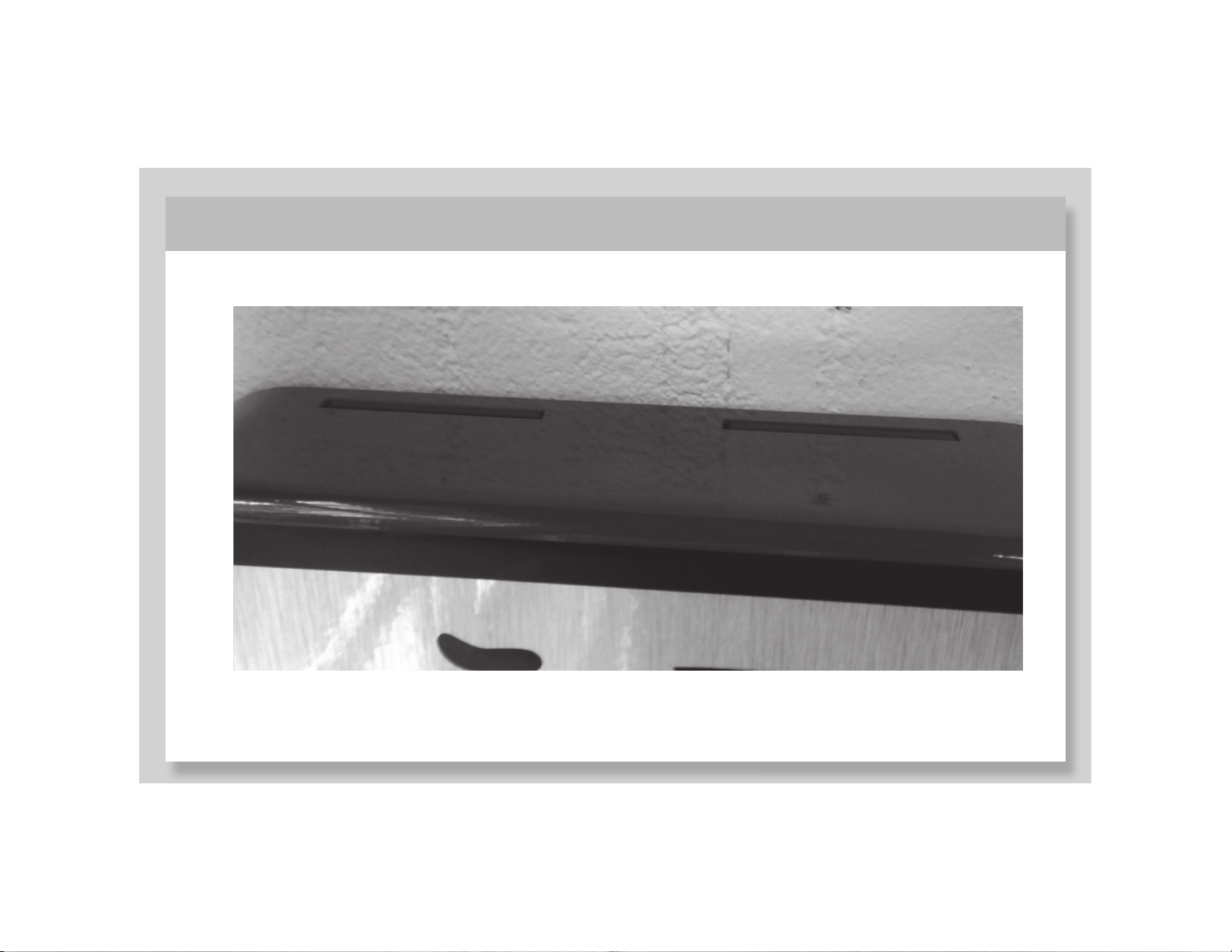

4. Lift the front cover onto the back plate so that the tabs ﬁt into the slots.

5. Install and tighten penta nuts to approximately 5-6 Nm. Be careful not to over tighten.

Optional ADA compliance wall plate

For some locations, it may be necessary to install the

optional ADA compliance wall plate. This plate also

protects the wall from tool damage.

1. Locate the wall plate directly below the work

stand at a distance of 1” (2.54cm) off the ﬂoor.

2. If mounting to sheet metal, we recommend using

#14 sheet metal screws no longer than 3/4”

(20mm). If mounting into concrete, we recom-

mend using a ¼” masonry screw. If mounting

into wood framing, we recommend using #14

wood screws.

WARNING: Manufacturer and seller expressly disclaim any and all liability for personal injury, property damage or loss,

whether direct, indirect, or incidental, resulting from the incorrect attachment or inappropriate placement, improper use,

inadequate maintenance, or neglect of this product. Placement of this product is beyond control of the manufacturer. It is

the end users reasonability to place this product so as to avoid potential pedestrian or playground accidents.
