Parker HASV08R Bedienungsanleitung

Patent applied

$LU5HGXFWLRQ

%ORZ(IILFLHQF\83

3XOVH&RQWLQXRXV

%ORZ&KDQJHRYHU%XWWRQ

1R(OHFWULFLW\

Air Saver Module

Air Saving Unit for Air Blowgun

Easy Energy Saving Solution

3XOVH)UHTXHQF\

$GMXVWPHQW

●Approx. 35% Air Consumption Reduction

●Possible to attach visible air blowgun

●Built-in pulse/continuous blow changeover button

●Blow efficiency up because of pulsed air

●With pulse frequency adjustment screw

HASV08R

www.parker.com

Parker Hannifin Corporation

Contact Information:

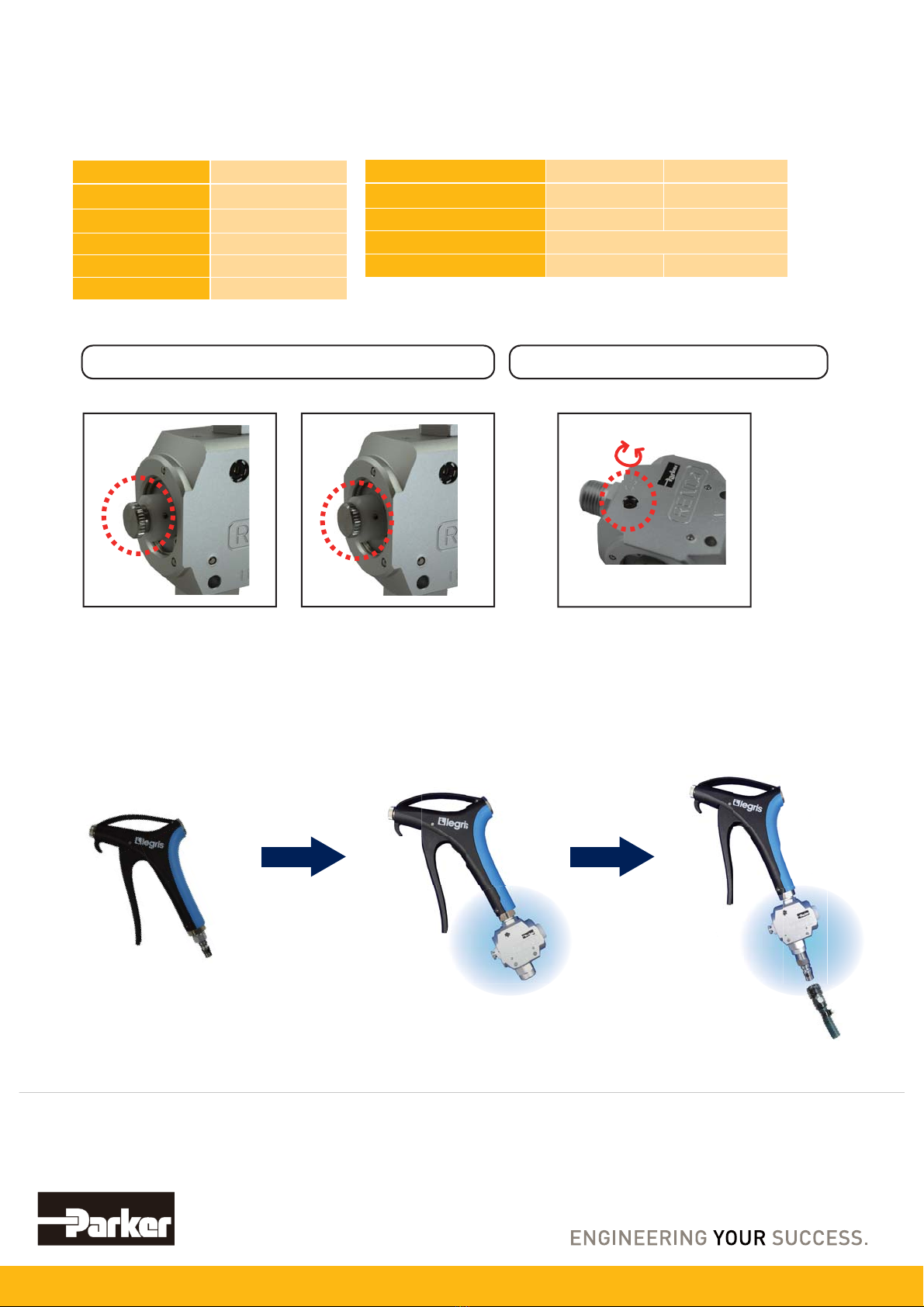

Speciﬁcations and Features

How to Connect Air Saver Module to Air Blowgun

HASV08R

0.35 〜0.8MPa

5〜15 Hz

Aluminum

IN Rc1/4, OUT R1/4

155 ｇ

Pulse frequency adjustment screwPulse/Continuous air blow changeover button

【Speciﬁcations 】

Pulsefrequencysetup

ONtime

OFFtime

Airreductionperformance

Lowerfrequency

5Hz

170ms

20%reduction

【Features】

Higherfrequency

15Hz

35ms

40%reduction

30ms

Pulse blow Continuous blow

CAT.No.KPL1609E-a

Model No.

Operating pressure

Body material

Port size

Weight

Pulse frequency

adjustment range

Pulse/Continuous blow change over button is mounted. When push the changeover

button, pulse blow will change to continuous blow. Also, the button is locked when

the button is turned 90 degree clockwise.

Turn the button counterclockwise to the original point in order to change to pulse

blow.

Pulse frequency is adjustable depending on types of work.

Higher frequency of pulse is adjusted by pulse frequency

adjustment button turned clockwise by ﬂat-head screw

driver. Lower frequency of pulse is adjusted the adjustment

button turned counterclockwise.

* Connect Air Saver Module directly to an air blowgun

* Adjust pulse frequency by pulse frequency adjustment button that is suitable the air blowgun and application.

* Air Saver Module is for air blowgun only. We recommend "Air Saver Unit, ASV Series"is applicable for other pulse blow applications.

䞉This document is published in November, 2015.

䞉In order to improve the product, we might change the specification without notice.
