Parrot ASTEROID Tablet Bedienungsanleitung

CLIO 3

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

Installation manual:

Parrot ASTEROID

CLIO 3

The brand name RENAULT CLIO 3 and the RENAULT logo are the property of RENAULT.

This document is only valid for the vehicle model CLIO 3® year 2006 to 2011, excluding all other models in the same range and excluding later

modifications made to the vehicle by the manufacturer.

The Parrot brand name and logos are the exclusive property of Parrot SA.

CLIO 3

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

Accessories required

Disassembly

15min

Kit installation

30min

Refitting

15min

Testing

15min

Total

1h15min

YES

ACC wire

YES

ISO

N/A

UNIKA

FRONT SPEAKER

TEL mode

ALL

MUSIC mode

Fitting time (estimated) / Main features

Tools

-Multimeter or Test lamp

-Hose clamp

- Electrical tape

"Please contact your Wholesaler to purchase accessories."

Updating

Plastic trim removal tools

FACOM / BERNER

FACOM DX-25 kit (n°4 tools)

To get the most out of your hands-free kit we recommend that you update your

software regularly. The update procedure can be found at

www.parrot.com/usa/support/downloads

CLIO 3

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

Disassembly

CLIO 3

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

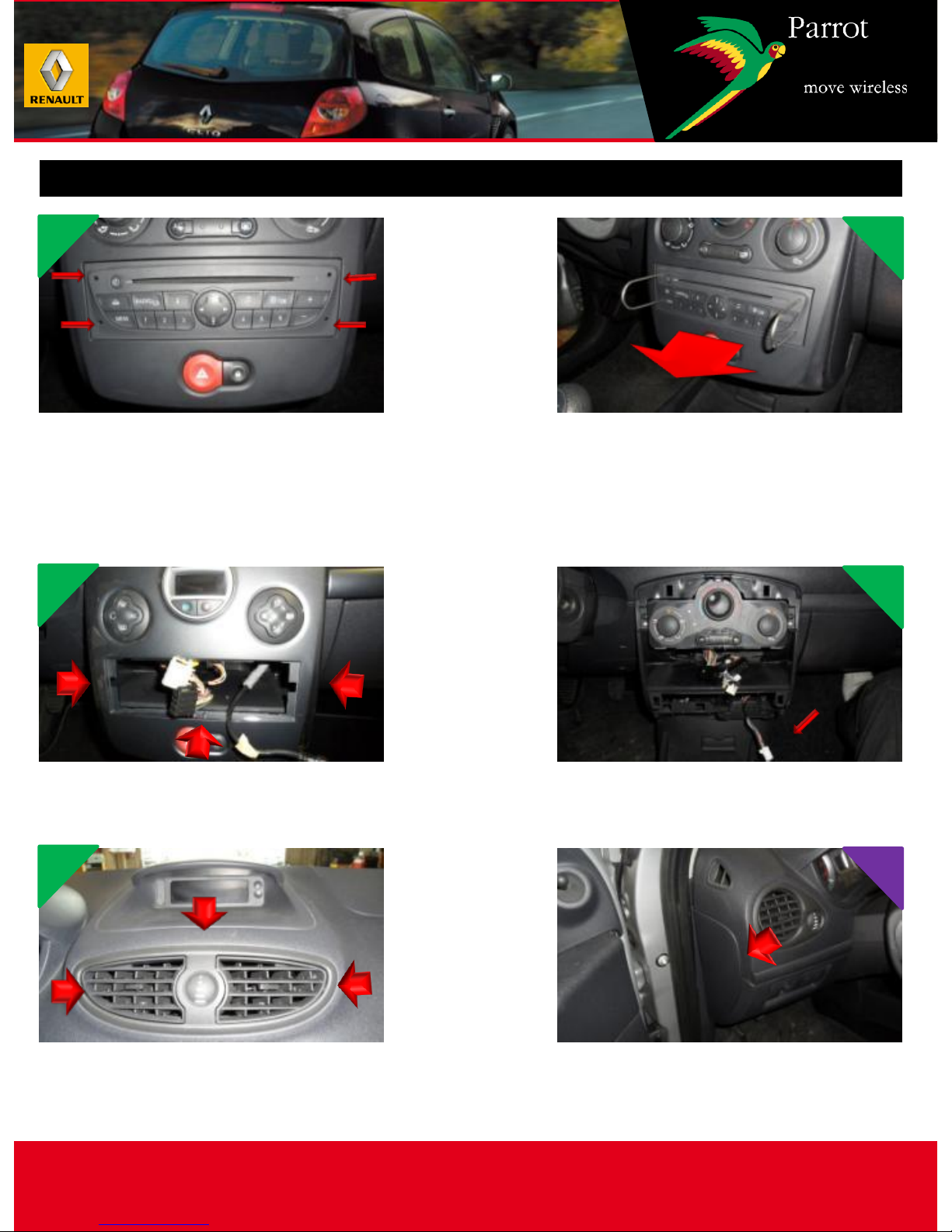

Disassembly 1 / 2

Insert the removal tools into the

slots on each side of the radio.

Carefully release the radio, without

pulling it out completely, so that

you can disconnect the connectors

and the antenna. Then completely

remove the radio.

Using the plastic trim tools,

unclip the car stereo and air

conditioning surround.

Disconnect the WARNING

connector.

5 6

Using the plastic trim tools,

unclip and remove the central air

vent.

Using the plastic trim tools,

unclip the panel located on the

left side of the dashboard.

CLIO 3

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

Disassembly 2 / 2

Remove the door seal on the

driver’s side.

Using the plastic trim tools, unclip

and open (without removing) the

panel in between the two sun

visors.

7 8

CLIO 3

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

Affix the bracket provided after

cleaning the sun visor support.

Then run the cable under the

headliner .

Microphone passage

Using a guide, feed the cable

inside the sun visor support

towards the windscreen.

Reclose the sun visor support

panel . (BE CAREFUL not to cut

the cable.)

Run the cable along the driver's side

windscreen support while replacing the

door seal.

5 6

Pass the cable into the

dashboard on the left side.

Run the cable under the steering

wheel panel towards the radio

housing, attaching with wire ties.

CLIO 3

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

Feeding the GPS antenna

Run the cable under the headliner

towards the driver's side door.

Stick the antenna to the windscreen.

(If necessary use windscreen

adhesive for a better grip.)

Run the cable along the driver's side

windscreen support while replacing

the door seal.

Pass the cable into the dashboard on

the left side. (Connect the USB

extension.)

Run the cable under the steering

wheel panel towards the radio

housing, attaching with wire ties.

CLIO 3

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

Feeding the accessory cable

On the top side of the glove box,

insert the cable into the hole.

Then bring it out leaving sufficient

length.

1 2

CLIO 3

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

Fitting the radio 1 / 2

Attach the yellow connector to

the ISO cable using a wire tie or

tape.

Fit the radio drawer onto the

centre console surround.

1 2

CLIO 3

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

Fitting the radio 2 / 2

Insert the radio and test.
